Mechanical Circulatory Support in Cardiogenic Shock What every cardiologist needs to know The Surgeon's view ACCA Masterclass 2017 R Trimlett (London, UK) Mechanical Circulatory Support in Cardiogenic Shock What every cardiologist needs

slide-1
SLIDE 1

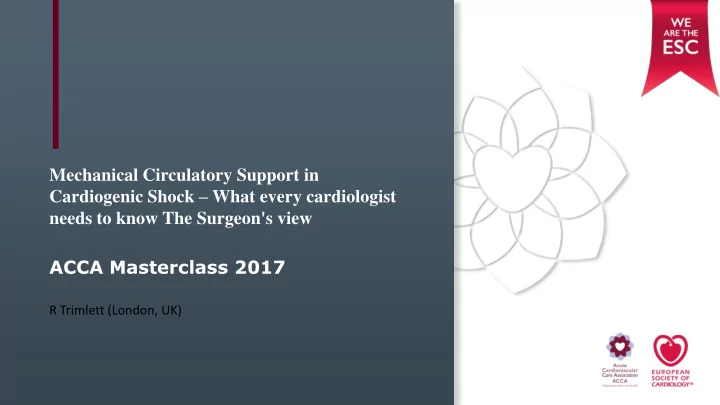

Mechanical Circulatory Support in Cardiogenic Shock – What every cardiologist needs to know The Surgeon's view ACCA Masterclass 2017

R Trimlett (London, UK)

slide-2
SLIDE 2

Mechanical Circulatory Support in Cardiogenic Shock – What every cardiologist needs to know The Surgeon's view

ACCA Masterclass 2017

slide-3
SLIDE 3

ACCA Masterclass 2017

Potential for Cardiac Support

TOTAL DIED Cath Lab 25,011 1,317 Cardiac Surgery 36,134 990 Intensive Care 238,248 59,562 Accident & Emergency 18,142,311 20,358 Ambulance OOH Arrests 60,000 57,800 Overall UK Mortality 501,424

10000 20000 30000 40000 50000 60000 ITU OOH Arrest A&E Cath lab Cardiac Surgery

slide-4
SLIDE 4

ACCA Masterclass 2017

slide-5
SLIDE 5

ACCA Masterclass 2017

slide-6
SLIDE 6

ACCA Masterclass 2017

slide-7
SLIDE 7

ACCA Masterclass 2017

slide-8
SLIDE 8

81 Centres providing at least a working-hours Service. 22 performing less than 400 cases per year.

Catheter Labs

Mortality

  • 25,011 Cases

performed

  • 1,317 died
  • 5.3% mortality
slide-9
SLIDE 9

ACCA Masterclass 2017

= 1,083 Catheter Labs – OOHA followed by PCI

slide-10
SLIDE 10

ACCA Masterclass 2017

IABP – SHOCK II Trial

slide-11
SLIDE 11

ACCA Masterclass 2017

IABP – SHOCK II Trial

slide-12
SLIDE 12

ACCA Masterclass 2017

slide-13
SLIDE 13

ACCA Masterclass 2017

IMPELLA DEVICE

Per-cutaneous / Surgical 2.5L / 5L+ Already anticoagulated. May cause Haemolysis.

slide-14
SLIDE 14

ACCA Masterclass 2017

slide-15
SLIDE 15

ACCA Masterclass 2017

slide-16
SLIDE 16

ACCA Masterclass 2017

slide-17
SLIDE 17

ACCA Masterclass 2017

slide-18
SLIDE 18

ACCA Masterclass 2017

slide-19
SLIDE 19

ACCA Masterclass 2017

slide-20
SLIDE 20

ACCA Masterclass 2017

slide-21
SLIDE 21

ACCA Masterclass 2017

Compact CardioHelp VV / VA Portable Device

slide-22
SLIDE 22

ACCA Masterclass 2017

External Artificial Heart and Lungs

Uses of VA-ECMO

  • Cardiogenic shock
  • Large myocardial infarction (MI)
  • Assistance with CPR using (E-CPR)
  • Post-cardiotomy shock
  • Bridge to more definitive treatment,
  • Bridge to left ventricular assist device (LVAD)
  • Bridge to decision
  • Cardiomyopathic process
  • Fulminant myocarditis
  • Sepsis-associated cardiomyopathy
  • Pulmonary hypertension
  • Pulmonary embolism with right heart failure
  • Class IV/stage D heart failure
  • Post heart transplantation
slide-23
SLIDE 23

ACCA Masterclass 2017

CONSIDERATIONS FOR V-A ECMO CANNULATION

  • Time / Urgency
  • Facilities / Location
  • Anatomical Considerations / Physical Size
  • Previous or planned Surgery / Vascular Access
slide-24
SLIDE 24

ACCA Masterclass 2017

CONSIDERATIONS FOR V-A ECMO CANNULATION ARTERIAL ACCESS Single Cannula or Multiple Cannulae Femoral Subclavian Aorta Left Ventricle Carotid

slide-25
SLIDE 25

ACCA Masterclass 2017

BODY SURFACE AREA – RULE OF NINES

slide-26
SLIDE 26

ACCA Masterclass 2017

PRESSURE OF TIME – TWO QUICKEST STRATEGIES (I)

1. FEMORAL CANNULATION Ultrasound Bilateral approach Percutaneous vs. Open Sterile Field Small Cannulae

slide-27
SLIDE 27

ACCA Masterclass 2017

PRESSURE OF TIME – TWO QUICKEST STRATEGIES (II)

  • 2. EMERGENCY STERNOTOMY

You will need a saw. If you have a saw, this is very quick Bleeding Sterility Transport

slide-28
SLIDE 28

ACCA Masterclass 2017

PRESSURE OF TIME – TWO QUICKEST STRATEGIES (II)

Sternotomy and ‘Clam shell’ incisions both give good emergency access to Heart and Great Vessels. Clam shell can be done Without a saw. Need two retractors for Best access.

slide-29
SLIDE 29

ACCA Masterclass 2017

FEMORAL CANNULATION

X-Ray Guided Approach 0.035” J-wire provided (soft) Amplatz Super Stiff if prev. femoral op. Dilate properly and incise skin Wire can loop down opposite leg Wire can enter Hepatic or renal veins

slide-30
SLIDE 30

ACCA Masterclass 2017

FEMORAL VENOUS CANNULATION

CANNULA CHOICE Size Multi-stage Dual Drainage / Ascites Cannula Positioning

slide-31
SLIDE 31

ACCA Masterclass 2017

FEMORAL ARTERIAL CANNULATION

CANNULA CHOICE Size Distal Perfusion Side arm vent Wire re-inforced

slide-32
SLIDE 32

ACCA Masterclass 2017

ALTERNATIVE FEMORAL ARTERIAL CANNULATION

Division of Inguinal Ligament 10mm Side Graft to External Iliac A. No Cannula Used No Distal Perfusion Issues Simple Decannulation

slide-33
SLIDE 33

ACCA Masterclass 2017

ALTERNATIVE FEMORAL ARTERIAL CANNULATION

Conventional with Cannulae Surgical Side Graft 10mm Gelseal

slide-34
SLIDE 34

Technique for Cannulation

10mm Graft 3/8” – 3/8” connector 3/8” = 9.56325mm

slide-35
SLIDE 35

ACCA Masterclass 2017

CONSIDERATIONS FOR V-A ECMO CANNULATION – FACILITIES

Accident and Emergency Resus. Hybrid Theatre Suite

slide-36
SLIDE 36
slide-37
SLIDE 37

ACCA Masterclass 2017

ALTERNATIVE FEMORAL ARTERIAL CANNULATION

slide-38
SLIDE 38

ACCA Masterclass 2017

STANDARD CANNULATION SITES IN OPEN CHEST

slide-39
SLIDE 39

ACCA Masterclass 2017

OPEN-CHEST SITUATIONS

In an Emergency pipes can be held in place. Minimizes retrograde Aortic flow.

slide-40
SLIDE 40

ACCA Masterclass 2017

OPEN-CHEST SITUATIONS

Often, in complex Aortic cases, the whole Aortic is replaced by a woven Dacron tube. Haemostasis is a major challenge. Kinking of grafts is an issue.

slide-41
SLIDE 41

ACCA Masterclass 2017

Aortic Pulse Amplification

As mean pressure falls along the aorta, the pressure wave is delayed and the pulse amplitude raised.

slide-42
SLIDE 42

ACCA Masterclass 2017

Aortic Compliance

slide-43
SLIDE 43

ACCA Masterclass 2017

THE IMPORTANCE OF LOW SHEAR STRESSES

Haemolysis ? CVA Lower Pump RPM Less ‘Jet Wash’ of Aorta

slide-44
SLIDE 44
slide-45
SLIDE 45

ACCA Masterclass 2017

AVOIDING FLOW-LIMITING CANNULAE WITH GELSEAL GRAFTS

No need to remove when weaning off ECMO Close with Stapler and leave a small stump.

slide-46
SLIDE 46

ACCA Masterclass 2017

VA-ECMO IN THE PRESENCE OF AORTIC REGURGITATION

Relative Contraindication Ignore. Balloon Pump. LV Vent. Change Valve (AVR). TAVI. Impella Device.

slide-47
SLIDE 47

ACCA Masterclass 2017

IMPELLA DEVICE

slide-48
SLIDE 48

ACCA Masterclass 2017

Rapid Expansion in Cardiac ECMO (UK)

slide-49
SLIDE 49

ACCA Masterclass 2017

slide-50
SLIDE 50

ACCA Masterclass 2017

913 Patients, short term mortality 62% 347 Patients, 6-month mortality 24% 264 Patients, 1-year mortality 17% 219 Patients alive at 1 year = 76% mortality
