slide-1

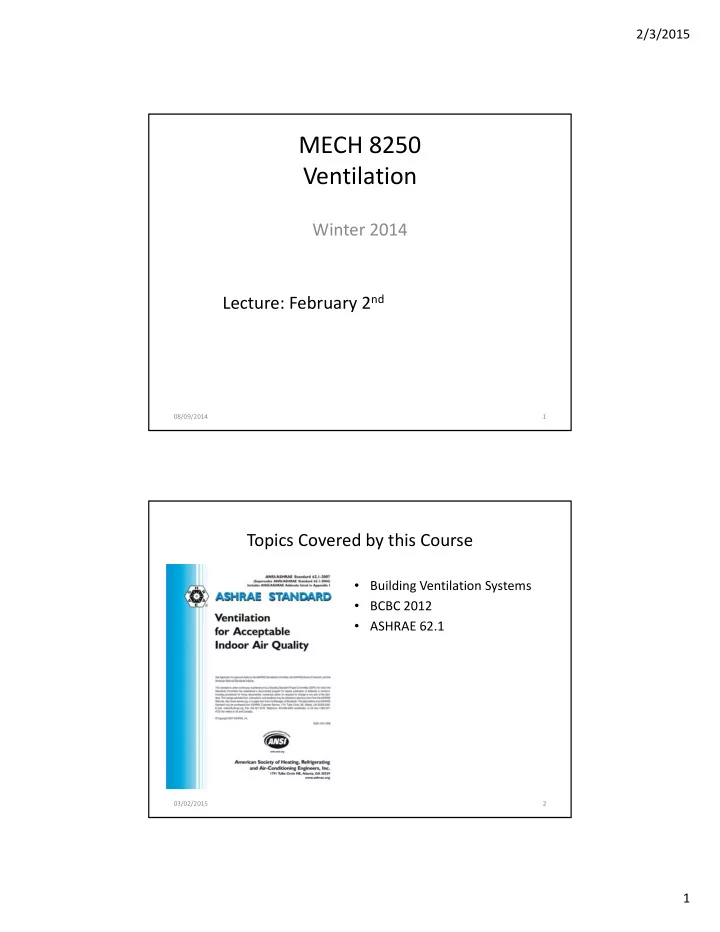

SLIDE 1

2/3/2015 1

MECH 8250 Ventilation

Winter 2014 Lecture: February 2nd

08/09/2014 1

Topics Covered by this Course

  • Building Ventilation Systems
  • BCBC 2012
  • ASHRAE 62.1

03/02/2015 2

slide-2
SLIDE 2

2/3/2015 2

Natural Ventilation

03/02/2015 3

Mechanical Ventilation

03/02/2015 4

slide-3
SLIDE 3

2/3/2015 3

Mechanical Ventilation

Dedicated Outdoor Air Systems (DOAS)

03/02/2015 5

Ventilation Standards

BCBC 2012 3.3.5.7: Ventilation of Vestibules 6.2.2.3: For Storage Garage 9.32: Ventilation for Single Dwelling Unit ASHRAE Standard 62

– 62.1: Non‐Residential – 62.2: Residential (BCBC 2012 takes over)

LEED (Leadership in Environment & Energy Design) ‐ 2004

03/02/2015 6

slide-4
SLIDE 4

2/3/2015 4

VENTILATION – BCBC 2012

BCBC 3.3.5.7: Natural Ventilation: Unobstructed area of 0.1m2 for each door that opens into the vestibule BUT not less than 0.4m2 Mechanical Ventilation: 14m3/hr.m2 (0.82 cfm/ft2) for vestibule area

03/02/2015 7

Natural Ventilation: Unobstructed area of 0.1m2 for each door that opens into the vestibule BUT not less than 0.4m2 Mechanical Ventilation: Supply 14m3/hr.m2 (0.82 cfm/ft2) for vestibule area

03/02/2015 8

BCBC 3.3.5.7 – Ventilation of Vestibules

slide-5
SLIDE 5

2/3/2015 5

BCBC 6.2.2.3 – For Storage Garage

Mechanical Ventilation:

  • 1. Continuous supply of ventilation air @ 14m3/hr.m2 (0.76

cfm/ft2) of the floor area.

  • 2. When CO and NO2 is detected at higher levels, this

ventilation air is increased. 6ACH.

03/02/2015 9

VENTILATION – BCBC 2012

BCBC 9.32.2: Ventilation during Non‐Heating Season 9.32.2.2: Natural Ventilation Table 9.32.3.3 Open areas for various rooms 9.32.2.1: Mechanical Ventilation 0.5 ACH for air‐conditioning spaces 1.0 ACH for NON air‐conditioning spaces

03/02/2015 10

slide-6
SLIDE 6

2/3/2015 6

VENTILATION – BCBC 2012

BCBC 9.32.3: Ventilation during Heating Season 9.32.3.3: Principal Ventilation Exhaust Fan OR Dedicated Central Ventilation System

03/02/2015 11

VENTILATION – BCBC 2012

Changes implemented on December 19 2014: 1. The End of Exhaust‐Only Ventilation Systems. Exhaust‐only ventilation systems are being replaced by a system that includes both exhaust and supply. 2. Principal Ventilation System Requirements : Continuous Operation (24 hours a day) 3. The same Principal Exhaust Fan can be used for Washroom or Kitchen, but when the room is being used, the exhaust will increase to satisfy the exhaust requirements

03/02/2015 12

slide-7
SLIDE 7

2/3/2015 7

VENTILATION – BCBC 2012

Ventilation during Heating Season 9.32.3.3: Dedicated Central ventilation System with minimum Ventilation rate

03/02/2015 13

Principal Ventilation System Exhaust Fan

A SFD unit shall include: A principal ventilation system including supply (1) and continuous exhaust (2). The bathroom fan (2) provides continuous exhaust as the principal ventilation exhaust fan and intermittent, on command exhaust at a higher air flow rate as a bathroom fan. The kitchen exhaust is provided by a dedicated kitchen exhaust fan (3). The heated crawl space is provided with a dedicated fan (4) and at least one passive grille to the rest of the house (5).

03/02/2015 14

slide-8
SLIDE 8

2/3/2015 8

Ducted forced‐air furnace

The furnace ducting provides supply air to required areas of the dwelling unit and the bathroom fan is designated as the principal ventilation exhaust fan, operating continuously as the principal ventilation exhaust fan (see 9.32.3.5.) and intermittently as a bathroom fan (see 9.32.3.6.).

03/02/2015 15

Use of HRV in Ducted Furnace

9.32.3.4.(3) Using a ducted forced‐air furnace in the principal ventilation system. The HRV may act as the principal ventilation exhaust fan and may exhaust from more than one location in the dwelling unit. In this case, the bathroom and kitchen fans are not part of the principal ventilation system.

03/02/2015 16

slide-9
SLIDE 9

2/3/2015 9

Topics Covered by this Course

  • General requirements
  • LEED Points
  • Ventilation requirements
  • Construction and O/M

requirements

  • Energy Efficiency Options
  • Possible Coming Changes
  • Questions

03/02/2015 17

ASHRAE – LEED Points

  • EQ Prerequisite 1: Minimum IAQ
  • EQ Prerequisite 2: Environmental Tobacco Smoke (ETS) Control
  • EQ Credit 1: Outdoor Air Delivery Monitoring for CO2
  • EQ Credit 2: Increased Ventilation – at least 30% more than ASHRAE

62.1 2004

  • EQ Credit 3.1: Construction IAQ Management during Construction
  • EQ Credit: Construction IAQ Plan before occupancy

03/02/2015 18

slide-10
SLIDE 10

2/3/2015 10

  • 1. Purpose

1.1 The purpose of this standard specify minimum ventilation rates and other measures intended to provide indoor air quality that is acceptable to human

  • ccupants and that minimizes adverse health effects.

1.2 This standard is intended for regulatory application to new buildings, additions to existing buildings, and those changes to existing buildings that are identified in the body of the standard. 1.3 This standard is intended to be used to guide the improvement of indoor air quality in existing buildings.

03/02/2015 19

  • 2. Scope

2.1 All spaces intended for human occupancy excluding low‐rise residential (62.2) 2.2 Defines requirements for ventilation, air‐cleaning design, commissioning, installation and O&M 2.3 Additional requirements and other standards may apply (labs, healthcare, industrial, etc.) 2.4 May be applied to both new and existing buildings, not intended to be used retroactively 2.5 Does not prescribe specific ventilation rates for smoking spaces 2.6 Ventilation requirements based on chemical, physical, & biological contaminants 2.7 Consideration or control of thermal comfort is not included 2.8 In addition to ventilation, the standard contains requirements related to certain sources

03/02/2015 20

slide-11
SLIDE 11

2/3/2015 11

  • 2. Scope

2.9 Acceptable IAQ may not be achieved in all buildings meeting these requirements because of:

– Diversity of sources and contaminants – Air temperature, humidity, noise, lighting, and psychological/social factors – Varied susceptibility in the occupants – Introduction of outdoor contaminants

03/02/2015 21

  • 2. DEFINITIONS

Acceptable indoor air quality: Air in which there are no known contaminants at harmful concentrations as determined by cognizant authorities and with which a substantial majority (80% or more) of the people exposed do not express dissatisfaction. Occupiable space: an enclosed space intended for human activities, excluding those spaces intended primarily for other purposes, such as storage rooms and equipment rooms, that are only occupied occasionally and for short periods of time.

03/02/2015 22

slide-12
SLIDE 12

2/3/2015 12

Ventilation System

03/02/2015 23

  • 6. PROCEDURES

6.1 General.

– Ventilation Rate Procedure or IAQ Procedure for

  • utdoor airflow values for mechanical ventilation

systems

6.1.1 Ventilation Rate Procedure.

– Prescribes rates & procedures based on typical space contaminant sources & source strengths

6.1.2 IAQ Procedure.

– Requires calculation of rates based on analysis of contaminant sources, concentration targets and perceived air quality targets.

03/02/2015 24

slide-13
SLIDE 13

2/3/2015 13

  • 6. PROCEDURES

Ventilation Rate Procedure

  • Most commonly used method
  • Lookup table (simple) or Appendix A (complex)
  • Need zone air distribution effectiveness
  • LEED requires this method

Indoor Air Quality Procedure

  • Design to maintain specific contaminant levels
  • Mass Balance Analysis
  • Methods used in similar buildings
  • Validation by contaminant monitoring

03/02/2015 25

VENTILATION RATE PROCEDURE

03/02/2015 26

slide-14
SLIDE 14

2/3/2015 14

VENTILATION RATE PROCEDURE

03/02/2015 27

Ventilation Air (OA) Calculation

Step 1 Vbz = RpPz + RaAz

  • Vbz = Breathing Zone OA
  • Rp= Outdoor Air Rate per person
  • Pz = Zone Population
  • Ra = Outdoor Air Rate per unit area
  • Az = Zone Floor Area (Net occupiable)

03/02/2015 28

slide-15
SLIDE 15

2/3/2015 15

Ventilation Air (OA) Calculation

Step 2 Voz=Vbz/Ez

  • Voz = Ventilation Outdoor Airflow in the zone
  • Vbz = Breathing Zone Outdoor Airflow
  • Ez = Effectiveness of the air distribution

03/02/2015 29 03/02/2015 30

slide-16
SLIDE 16

2/3/2015 16

COOLING

03/02/2015 31

Induced Ventilation

03/02/2015 32

slide-17
SLIDE 17

2/3/2015 17

HEATING

03/02/2015 33

Ventilation Air (OA) Calculation

Step 2 Voz=Vbz/Ez

  • Voz = Ventilation Outdoor Airflow in the zone
  • Vbz = Breathing Zone Outdoor Airflow
  • Ez = Effectiveness of the air distribution

03/02/2015 34

slide-18
SLIDE 18

2/3/2015 18

Multiple Spaces

Vot = Vou/Ev

  • Vot ‐ Design OA intake flow
  • Vou ‐ Uncorrected OA intake
  • Ev ‐ ventilation efficiency from Table 6‐3 or

Appendix A

03/02/2015 35

General Requirements

4. OUTDOOR AIR QUALITY 5. SYSTEMS AND EQUIPMENT

03/02/2015 36

slide-19
SLIDE 19

2/3/2015 19

  • 4. Outdoor Air Quality

4.1 Regional Air Quality

  • Must determine NAAQS attainment status
  • Air cleaning is required in some cases in non‐attainment

areas

4.2 Local Air Quality

  • Conduct observational site survey to identify local sources of

air contaminants

4.3 Documentation

  • Regional air quality compliance status
  • Local survey information
  • Conclusions regarding acceptability of outdoor air quality

03/02/2015 37

  • 5. SYSTEMS AND EQUIPMENT

5.1 Natural Ventilation

– Location and size of openings

  • Naturally ventilated spaces shall be permanently open to

and within 8 m (25 ft) of operable wall or roof openings to the outdoors, the openable area of which is a minimum of 4% of the net occupiable floor area.

  • Louvers based on the free unobstructed area.
  • Where interior spaces without direct openings to the
  • utdoors are ventilated through adjoining rooms, the
  • pening between rooms shall be permanently unobstructed

and have a free area of not less than 8% of the area of the interior room nor less than 25 ft2 (2.3 m2).

03/02/2015 38

slide-20
SLIDE 20

2/3/2015 20

VENTILATION – ASHRAE 62.1

5.1 Natural Ventilation

  • 1. Determine the maximum W to

qualify for natural ventilation.

  • 2. Minimum size of each operable

window.

  • 3. What needs to be changed for

the 10’x10’ room to allow natural ventilation?

  • 4. What if the operable windows

are changed with a louver with 0.5 free area.

03/02/2015 39

VENTILATION – ASHRAE 62.1

5.1 Natural Ventilation

  • 1. Determine the maximum W to qualify for natural ventilation.

Within 25’ of the opening. Therefore the W will be 10’ + 25’ = 35’

  • 2. Minimum size of each operable window.

Opening Size: 4% minimum of the floor area Floor area: 35’ x 40’ = 1,400 ft2 Opening Area = 56ft2 Window area: 18.7ft2 (three)

  • 3. What needs to be changed for the 10’x10’ room to allow natural ventilation?

The door (>8.5ft high and 3ft wide) must be removed to make the opening permanently unobstructed so that the interior office can have natural ventilation. Greater of the two: 8% of floor area = 112 ft2 OR 25ft2

  • 4. What if the operable windows are changed with a louver with 0.5 free area.

56ft2 x 0.5 = 112ft2

03/02/2015 40

slide-21
SLIDE 21

2/3/2015 21

  • 5. SYSTEMS AND EQUIPMENT

5.2 Ventilation Air Distribution

– Must provide means to adjust the system (Balancing Dampers) – Minimum ventilation air must be provided to each terminal unit in ceiling/floor plenum systems – Documentation (Air Balancing Reports)

03/02/2015 41

  • 5. SYSTEMS AND EQUIPMENT

5.3 Exhaust Duct Location

  • Operate exhaust ducts with harmful contaminants at

negative pressure (Install Exhaust Fans at the end of the exhaust duct system)

5.4 Ventilation System Controls

  • Control to assure proper ventilation under any operating

condition

5.5 Airstream Surfaces

  • Use materials that have documented resistance to microbial

growth and erosion

03/02/2015 42

slide-22
SLIDE 22

2/3/2015 22

  • 5. SYSTEMS AND EQUIPMENT

5.6 Outdoor Air Intakes

– Location: Separate OA intake from outdoor contaminant sources Must comply with default minimum separation distances in Table 5‐1. Examples:

  • Loading dock

25 ft

  • Dumpster

15 ft

  • Surface below intake

1 ft

  • Cooling tower exhaust

25 ft

– Rain Entrainment: Must limit moisture penetration (using hood, proper velocity, etc.) or manage water that penetrates – Rain Intrusion: Prevent moisture intrusion into equipment mounted

  • utdoors

– mounted outdoors – Snow Entrainment: Designed to manage melted snow drawn in the system. – Bird Screens: Must use bird screens and prevent bird nesting

03/02/2015 43

  • 5. SYSTEMS AND EQUIPMENT

5.7 Local Capture of Contaminants

– Discharge air from non‐combustion equipment that captures contaminants shall be exhausted to

the outdoors

5.8 Combustion Air

– Follow manufacturer’s instructions to provide sufficient combustion air and exhaust air for indoor fuel‐fired appliances – Products of combustion from vented appliances shall be vented directly outdoors

03/02/2015 44

slide-23
SLIDE 23

2/3/2015 23

  • 5. SYSTEMS AND EQUIPMENT

5.9 Particulate Matter Removal

– MERV 6 (or gUse a filter rated at MERV 6 (orgreater) upstream of cooling coils and other wet‐surface devices in supply stream

5.10 Dehumidification Systems

– Must be able to limit indoor RH to 65%or less at design dew point condition – Exception to RH limit ‐ where occupancy requirements or processes dictate higher RH conditions – Intake airflow must be greater than relief/exhaust during cooling (to minimize moist air infiltration)

03/02/2015 45

  • 5. SYSTEMS AND EQUIPMENT

62F DP At 75F, 65% RH, safety Margin is 13F before condensation occures.

03/02/2015 46

slide-24
SLIDE 24

2/3/2015 24

  • 5. SYSTEMS AND EQUIPMENT

5.11 Drain Pans

– Assure drainage without flooding or carryover – Slope: 0.125” (1/8”) per foot toward outlet – Drain: located at lowest point, with sufficient diameter prevent overflow – Drain seal: Shall include P‐trap or other seal for negatively pressurized drain pans to prevent ingestion of air while allowing complete drainage (fan on or off) – Pan size: length at least 1/2 coil height or as necessary to limit carryover

03/02/2015 47

  • 5. SYSTEMS AND EQUIPMENT

5.12 Finned Tube Coils and Heat Exchangers

– Use drain pan – Select to limit coil pressure drop to 0.75 in.wc.@ 500 fpm face velocity – If higher pressure drop, provide access on both sides for maintenance

5.13 Humidifiers and Water Spray Systems

– Use potable water (or better) – No downstream devices within absorption distance

5.14 Access for Inspection, Cleaning and Maintenance.

03/02/2015 48

slide-25
SLIDE 25

2/3/2015 25

  • 5. SYSTEMS AND EQUIPMENT

5.15 Building Envelope and Interior Surfaces

– Weather barrier to prevent water penetration into envelope – Vapor retarder or other means to prevent condensation on cold surfaces within envelope – Seal all seams, joints, penetrations to limit infiltration – Insulate pipes, ducts expected to have surface temperature below surrounding dew point

5.16 Buildings with Attached Parking Garages. Limit infiltration of vehicular exhaust

– Maintain garage pressure at or below adjacent occupied space – Or, use a vestibule – Or, otherwise design to minimize air migration from garage to

  • ccupied space

03/02/2015 49

5.17 Air Classification and Recirculation

– Limit recirculation or transfer of “dirty” air to “cleaner” spaces

5.17.1 Classification

– Designate air leaving each space using Table 6.1

  • Class 1: Low contaminant concentration (office)
  • Class 2: Moderate concentration (dining room)
  • Class 3: Significant concentration (sick room)
  • Class 4: Highly objectionable or potentially harmful

concentration

  • 5. SYSTEMS AND EQUIPMENT

03/02/2015 50

slide-26
SLIDE 26

2/3/2015 26

5.17.2 Re‐Designation: 1. Air Cleaning. May reclassify air cleaned by passing it through an appropriate air‐cleaning system 2. Energy Recovery. Energy recovery ok:

1. class 2 (exhaust) airstreams must have no more than 10% leakage into a class 1 airstream. 2. class 3 (exhaust) airstreams must have no more than 5% leakage into a class 1 airstream.

3.

  • Transfer. Mixed classes are re‐designated.

5.17.2 Recirculation Limitations: Manage recirculation as follows

  • Class 1 to anywhere
  • Class 2 to self, similar Class 2 or Class 3 or Class 4
  • Class 3 to self
  • Class 4 to outdoors
  • 5. SYSTEMS AND EQUIPMENT

03/02/2015 51

  • 5. SYSTEMS AND EQUIPMENT

5.18 Requirements when building has both ETS and ETS‐Free areas.

– Does not purport to achieve acceptable IAQ in ETS areas. – Spaces must be classified as ETS or ETS‐Free – Air must be kept separate by means of walls, automatic door closers and pressurization – Recirculation or transfer from ETS to ETS‐Free is prohibited – ETS areas must be exhausted to the outdoors

03/02/2015 52

slide-27
SLIDE 27

2/3/2015 27

  • 6. PROCEDURES

6.1 General.

– Ventilation Rate Procedure or IAQ Procedure for

  • utdoor airflow values for mechanical ventilation

systems

6.1.1 Ventilation Rate Procedure.

– Prescribes rates & procedures based on typical space contaminant sources & source strengths

6.1.2 IAQ Procedure.

– Requires calculation of rates based on analysis of contaminant sources, concentration targets and perceived air quality targets.

03/02/2015 53

  • 7. CONSTRUCITON & SYSTEM START‐UP

7.1 Construction Phase

– Don’t operate air handlers without filters – Protect building materials – Protect occupied areas – Limit migration of construction contamination into occupied space – Air Duct Construction shall be in accordance with the SMACNA duct construction standards and NFPA standards governing installation of HVAC systems

7.2 System Start‐up

– Balance airflow values, test drain pans, clean up before starting, test damper controls – Documentation including balance report, construction drawings and design criteria with assumptions shall be provided to Owner

03/02/2015 54

slide-28
SLIDE 28

2/3/2015 28

  • 8. OPERATION & MAINTENANCE

8.2 Operations and Maintenance Manual.

– Develop and maintain a building operations and maintenance manual which shall include a maintenance schedule with frequencies of tasks.

8.3 Ventilation System Operation.

– Operate in accordance with Building Operations Manual

8.4 Ventilation System Maintenance.

– Maintain in accordance with Building Operations Manual.

03/02/2015 55

  • 8. OPERATION & MAINTENANCE

8.4.1.4 Coil drains

– Drain pans shall be inspected at least once a year and cleaned if required

8.4.1.8 Outside Air Flow Verification

– For units >2,000 cfm the outside air flow shall be tested a minimum of every 5 years and adjustments shall be made to have the design flow provided to system

03/02/2015 56

slide-29
SLIDE 29

2/3/2015 29

ASHRAE 62.1 ‐ History

6 2 -2 0 0 1

  • Prescriptive
  • Com m issioning
  • O&M
  • Com bustion air
  • Filtration

6 2 -1 9 9 9

  • I AQ-Health disclaim ers
  • Sm oking disclaim ers
  • Clarified CO2as

ventilation m etric 6 2 - 1 9 8 9

  • Rem oved

Therm al Com fort

  • Ventilation Rate

Proc.

  • I AQ Proc.

6 2 - 1 9 7 3 first issued 6 2 - 1 9 8 1 Alternative Air Quality Proc. 1 9 9 0 2 0 0 0 2 0 1 0 1 9 7 0 1 9 8 0 6 2 .1 -2 0 0 4

  • Com m ercial and High Rise Res.
  • Enforceable code language
  • ETS vent. rates not covered
  • Vent. Rate. Proc. Modified
  • Occupant and area vent. rates

6 2 .1 -2 0 0 7 Updated

03/02/2015 57
