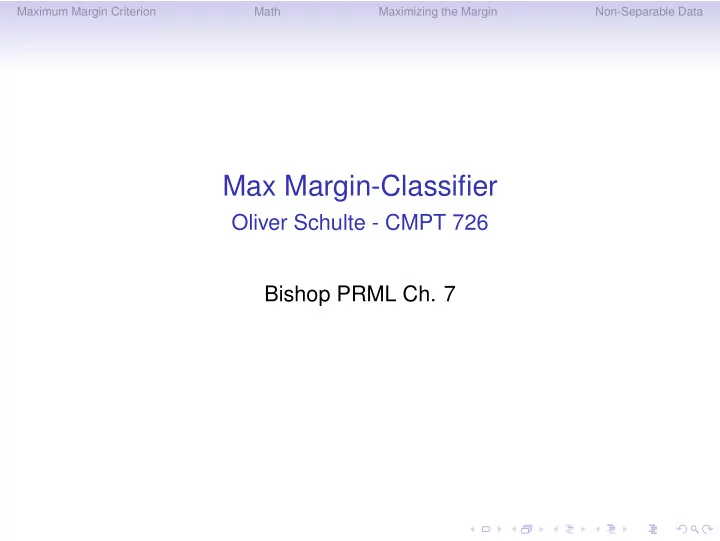

Max Margin-Classifier

Oliver Schulte - CMPT 726 Bishop PRML Ch. 7

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Outline

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernels and Non-linear Mappings

• Where does the maximization problem come from?
• The intuition comes from the primal version, which is

based on a feature mapping φ.

• Theorem: Every valid kernel k(x, y) is the dot-product

φ(x)[φ(x)]T for some set of basis functions (feature mapping) φ.

• The feature space φ(x) could be high-dimensional, even

infinite.

• This is good because if data aren’t separable in original

input space (x), they may be in feature space φ(x)

• We can think about how to find a good linear separator

using the dot product in high dimensions, then transfer this back to kernels in the original input space.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernels and Non-linear Mappings

• Where does the maximization problem come from?
• The intuition comes from the primal version, which is

based on a feature mapping φ.

• Theorem: Every valid kernel k(x, y) is the dot-product

φ(x)[φ(x)]T for some set of basis functions (feature mapping) φ.

• The feature space φ(x) could be high-dimensional, even

infinite.

• This is good because if data aren’t separable in original

input space (x), they may be in feature space φ(x)

• We can think about how to find a good linear separator

using the dot product in high dimensions, then transfer this back to kernels in the original input space.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernels and Non-linear Mappings

• Where does the maximization problem come from?
• The intuition comes from the primal version, which is

based on a feature mapping φ.

• Theorem: Every valid kernel k(x, y) is the dot-product

φ(x)[φ(x)]T for some set of basis functions (feature mapping) φ.

• The feature space φ(x) could be high-dimensional, even

infinite.

• This is good because if data aren’t separable in original

input space (x), they may be in feature space φ(x)

• We can think about how to find a good linear separator

using the dot product in high dimensions, then transfer this back to kernels in the original input space.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernels and Non-linear Mappings

• Where does the maximization problem come from?
• The intuition comes from the primal version, which is

based on a feature mapping φ.

• Theorem: Every valid kernel k(x, y) is the dot-product

φ(x)[φ(x)]T for some set of basis functions (feature mapping) φ.

• The feature space φ(x) could be high-dimensional, even

infinite.

• This is good because if data aren’t separable in original

input space (x), they may be in feature space φ(x)

• We can think about how to find a good linear separator

using the dot product in high dimensions, then transfer this back to kernels in the original input space.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Why Kernels?

• If we can use dot products with features, why bother with

kernels?

• Often easier to specify how similar two things are (dot

product) than to construct explicit feature space φ.

• e.g. graphs, sets, strings (NIPS 2009 best student paper

award).

• There are high-dimensional (even infinite) spaces that have

efficient-to-compute kernels

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernel Trick

• In previous lectures on linear models, we would explicitly

compute φ(xi) for each datapoint

• Run algorithm in feature space
• For some feature spaces, can compute dot product

φ(xi)Tφ(xj) efficiently

• Efficient method is computation of a kernel function

k(xi, xj) = φ(xi)Tφ(xj)

• The kernel trick is to rewrite an algorithm to only have x

enter in the form of dot products

• The menu:
• Kernel trick examples
• Kernel functions

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernel Trick

• In previous lectures on linear models, we would explicitly

compute φ(xi) for each datapoint

• Run algorithm in feature space
• For some feature spaces, can compute dot product

φ(xi)Tφ(xj) efficiently

• Efficient method is computation of a kernel function

k(xi, xj) = φ(xi)Tφ(xj)

• The kernel trick is to rewrite an algorithm to only have x

enter in the form of dot products

• The menu:
• Kernel trick examples
• Kernel functions

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernel Trick

• In previous lectures on linear models, we would explicitly

compute φ(xi) for each datapoint

• Run algorithm in feature space
• For some feature spaces, can compute dot product

φ(xi)Tφ(xj) efficiently

• Efficient method is computation of a kernel function

k(xi, xj) = φ(xi)Tφ(xj)

• The kernel trick is to rewrite an algorithm to only have x

enter in the form of dot products

• The menu:
• Kernel trick examples
• Kernel functions

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Kernel Trick

• In previous lectures on linear models, we would explicitly

compute φ(xi) for each datapoint

• Run algorithm in feature space
• For some feature spaces, can compute dot product

φ(xi)Tφ(xj) efficiently

• Efficient method is computation of a kernel function

k(xi, xj) = φ(xi)Tφ(xj)

• The kernel trick is to rewrite an algorithm to only have x

enter in the form of dot products

• The menu:
• Kernel trick examples
• Kernel functions

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

A Kernel Trick

• Let’s look at the nearest-neighbour classification algorithm
• For input point xi, find point xj with smallest distance:

||xi − xj||2 = (xi − xj)T(xi − xj) = xiTxi − 2xiTxj + xjTxj

• If we used a non-linear feature space φ(·):

||φ(xi) − φ(xj)||2 = φ(xi)Tφ(xi) − 2φ(xi)Tφ(xj) + φ(xj)Tφ(xj) = k(xi, xi) − 2k(xi, xj) + k(xj, xj)

• So nearest-neighbour can be done in a high-dimensional

feature space without actually moving to it

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

A Kernel Trick

• Let’s look at the nearest-neighbour classification algorithm
• For input point xi, find point xj with smallest distance:

||xi − xj||2 = (xi − xj)T(xi − xj) = xiTxi − 2xiTxj + xjTxj

• If we used a non-linear feature space φ(·):

||φ(xi) − φ(xj)||2 = φ(xi)Tφ(xi) − 2φ(xi)Tφ(xj) + φ(xj)Tφ(xj) = k(xi, xi) − 2k(xi, xj) + k(xj, xj)

• So nearest-neighbour can be done in a high-dimensional

feature space without actually moving to it

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

A Kernel Trick

• Let’s look at the nearest-neighbour classification algorithm
• For input point xi, find point xj with smallest distance:

||xi − xj||2 = (xi − xj)T(xi − xj) = xiTxi − 2xiTxj + xjTxj

• If we used a non-linear feature space φ(·):

||φ(xi) − φ(xj)||2 = φ(xi)Tφ(xi) − 2φ(xi)Tφ(xj) + φ(xj)Tφ(xj) = k(xi, xi) − 2k(xi, xj) + k(xj, xj)

• So nearest-neighbour can be done in a high-dimensional

feature space without actually moving to it

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Example: The Quadratic Kernel Function

• Consider again the kernel function k(x, z) = (1 + xTz)2
• With x, z ∈ R2,

k(x, z) = (1 + x1z1 + x2z2)2 = 1 + 2x1z1 + 2x2z2 + x2

1z2 1 + 2x1z1x2z2 + x2 2z2 2

= (1, √ 2x1, √ 2x2, x2

1,

√ 2x1x2, x2

2)(1,

√ 2z1, √ 2z2, z2

1,

√ 2z1z2, z2

2)T

= φ(x)Tφ(z)

• So this particular kernel function does correspond to a dot

product in a feature space (is valid)

• Computing k(x, z) is faster than explicitly computing

φ(x)Tφ(z)

• In higher dimensions, larger exponent, much faster

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Example: The Quadratic Kernel Function

• Consider again the kernel function k(x, z) = (1 + xTz)2
• With x, z ∈ R2,

k(x, z) = (1 + x1z1 + x2z2)2 = 1 + 2x1z1 + 2x2z2 + x2

1z2 1 + 2x1z1x2z2 + x2 2z2 2

= (1, √ 2x1, √ 2x2, x2

1,

√ 2x1x2, x2

2)(1,

√ 2z1, √ 2z2, z2

1,

√ 2z1z2, z2

2)T

= φ(x)Tφ(z)

• So this particular kernel function does correspond to a dot

product in a feature space (is valid)

• Computing k(x, z) is faster than explicitly computing

φ(x)Tφ(z)

• In higher dimensions, larger exponent, much faster

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Example: The Quadratic Kernel Function

• Consider again the kernel function k(x, z) = (1 + xTz)2
• With x, z ∈ R2,

k(x, z) = (1 + x1z1 + x2z2)2 = 1 + 2x1z1 + 2x2z2 + x2

1z2 1 + 2x1z1x2z2 + x2 2z2 2

= (1, √ 2x1, √ 2x2, x2

1,

√ 2x1x2, x2

2)(1,

√ 2z1, √ 2z2, z2

1,

√ 2z1z2, z2

2)T

= φ(x)Tφ(z)

• So this particular kernel function does correspond to a dot

product in a feature space (is valid)

• Computing k(x, z) is faster than explicitly computing

φ(x)Tφ(z)

• In higher dimensions, larger exponent, much faster

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Regression Kernelized

• Many classifiers can be written as using only dot products.
• Kernelization = replace dot products by kernel.
• E.g., the kernel solution for regularized least squares

regression is y(x) = k(x)T(K + λIN)−1t vs. φ(x)(ΦTΦ + λIM)−1ΦTt for original version

• N is number of datapoints (size of Gram matrix K)
• M is number of basis functions (size of matrix ΦTΦ)
• Bad if N > M, but good otherwise
• k(x) = (k(x, x1, . . . , k(x, xn)) is the vector of kernel values
• ver data points xn.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Outline

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Linear Classification

• Consider a two class classification problem
• Use a linear model

y(x) = wTφ(x) + b followed by a threshold function

• For now, let’s assume training data are linearly separable
• Recall that the perceptron would converge to a perfect

classifier for such data

• But there are many such perfect classifiers

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Max Margin

y = 1 y = 0 y = −1 margin

• We can define the margin of a classifier as the minimum

distance to any example

• In support vector machines the decision boundary which

maximizes the margin is chosen.

• Intuitively, this is the line “right in the middle” between the

two classes.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Marginal Geometry

x2 x1 w x

y(x) w

x⊥

−w0 w

y = 0 y < 0 y > 0 R2 R1

• Recall from Ch. 4 y(x) = wTx + b
• (Using Ch.4 notation x for input rather than φ(x).)
• wTx

||w|| − −b ||w|| = y(x) ||w|| is signed distance to decision boundary.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Support Vectors

y = 1 y = 0 y = −1

• Assuming data are separated by the hyperplane, distance

to decision boundary is tny(xn)

||w||

• The maximum margin criterion chooses w, b by:

arg max

w,b

1 ||w|| min

n [tn(wTφ(xn) + b)]

• Points with this min value are known as support vectors

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Canonical Representation

• This optimization problem is complex:

arg max

w,b

1 ||w|| min

n [tn(wTφ(xn) + b)]

• Note that rescaling w → κw and b → κb does not change

distance tny(xn)

||w|| (many equiv. answers)

• So for x∗ closest to surface, can use w → w/y(x∗) and

b → b/y(x∗) so that: t∗(wTφ(x∗) + b) = 1

• All other points are at least this far away:

∀n , tn(wTφ(xn) + b) ≥ 1

• Under these constraints, the optimization becomes:

arg max

w,b

1 ||w|| = arg min

w,b

1 2||w||2

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Canonical Representation

• This optimization problem is complex:

arg max

w,b

1 ||w|| min

n [tn(wTφ(xn) + b)]

• Note that rescaling w → κw and b → κb does not change

distance tny(xn)

||w|| (many equiv. answers)

• So for x∗ closest to surface, can use w → w/y(x∗) and

b → b/y(x∗) so that: t∗(wTφ(x∗) + b) = 1

• All other points are at least this far away:

∀n , tn(wTφ(xn) + b) ≥ 1

• Under these constraints, the optimization becomes:

arg max

w,b

1 ||w|| = arg min

w,b

1 2||w||2

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Canonical Representation

• This optimization problem is complex:

arg max

w,b

1 ||w|| min

n [tn(wTφ(xn) + b)]

• Note that rescaling w → κw and b → κb does not change

distance tny(xn)

||w|| (many equiv. answers)

• So for x∗ closest to surface, can use w → w/y(x∗) and

b → b/y(x∗) so that: t∗(wTφ(x∗) + b) = 1

• All other points are at least this far away:

∀n , tn(wTφ(xn) + b) ≥ 1

• Under these constraints, the optimization becomes:

arg max

w,b

1 ||w|| = arg min

w,b

1 2||w||2

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Canonical Representation

• This optimization problem is complex:

arg max

w,b

1 ||w|| min

n [tn(wTφ(xn) + b)]

• Note that rescaling w → κw and b → κb does not change

distance tny(xn)

||w|| (many equiv. answers)

• So for x∗ closest to surface, can use w → w/y(x∗) and

b → b/y(x∗) so that: t∗(wTφ(x∗) + b) = 1

• All other points are at least this far away:

∀n , tn(wTφ(xn) + b) ≥ 1

• Under these constraints, the optimization becomes:

arg max

w,b

1 ||w|| = arg min

w,b

1 2||w||2

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Canonical Representation

• So the optimization problem is now a constrained
• ptimization problem:

arg min

w,b

1 2||w||2 s.t. ∀n , tn(wTφ(xn) + b) ≥ 1

• To solve this, we need to take a detour into Lagrange

multipliers

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Outline

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers

∇f(x) ∇g(x) xA g(x) = 0

Consider the problem: max

x

f(x) s.t. g(x) = 0

• Points on g(x) = 0 must have ∇g(x) normal to surface
• A stationary point must have no change in f in the direction
• f the constraint surface, so ∇f(x) must also be normal to

the surface.

• So there must be some λ = 0 such that ∇f(x) + λ∇g(x) = 0
• Define Lagrangian:

L(x, λ) = f(x) + λg(x)

• Stationary points of L(x, λ) have ∇xL(x, λ) = ∇f(x) + λ∇g(x) = 0

and ∇λL(x, λ) = g(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers

∇f(x) ∇g(x) xA g(x) = 0

Consider the problem: max

x

f(x) s.t. g(x) = 0

• Points on g(x) = 0 must have ∇g(x) normal to surface
• A stationary point must have no change in f in the direction
• f the constraint surface, so ∇f(x) must also be normal to

the surface.

• So there must be some λ = 0 such that ∇f(x) + λ∇g(x) = 0
• Define Lagrangian:

L(x, λ) = f(x) + λg(x)

• Stationary points of L(x, λ) have ∇xL(x, λ) = ∇f(x) + λ∇g(x) = 0

and ∇λL(x, λ) = g(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers

∇f(x) ∇g(x) xA g(x) = 0

Consider the problem: max

x

f(x) s.t. g(x) = 0

• Points on g(x) = 0 must have ∇g(x) normal to surface
• A stationary point must have no change in f in the direction
• f the constraint surface, so ∇f(x) must also be normal to

the surface.

• So there must be some λ = 0 such that ∇f(x) + λ∇g(x) = 0
• Define Lagrangian:

L(x, λ) = f(x) + λg(x)

• Stationary points of L(x, λ) have ∇xL(x, λ) = ∇f(x) + λ∇g(x) = 0

and ∇λL(x, λ) = g(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers

∇f(x) ∇g(x) xA g(x) = 0

Consider the problem: max

x

f(x) s.t. g(x) = 0

• Points on g(x) = 0 must have ∇g(x) normal to surface
• A stationary point must have no change in f in the direction
• f the constraint surface, so ∇f(x) must also be normal to

the surface.

• So there must be some λ = 0 such that ∇f(x) + λ∇g(x) = 0
• Define Lagrangian:

L(x, λ) = f(x) + λg(x)

• Stationary points of L(x, λ) have ∇xL(x, λ) = ∇f(x) + λ∇g(x) = 0

and ∇λL(x, λ) = g(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers Example

g(x1, x2) = 0 x1 x2 (x⋆

1, x⋆ 2)

• Consider the problem

max

x

f(x1, x2) = 1 − x2

1 − x2 2

s.t. g(x1, x2) = x1 + x2 − 1 = 0

• Lagrangian:

L(x, λ) = 1 − x2

1 − x2 2 + λ(x1 + x2 − 1)

• Stationary points require:

∂L/∂x1 = −2x1 + λ = 0 ∂L/∂x2 = −2x2 + λ = 0 ∂L/∂λ = x1 + x2 − 1 = 0

• So stationary point is (x∗

1, x∗ 2) = ( 1 2, 1 2), λ = 1

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers - Inequality Constraints

∇f(x) ∇g(x) xA xB g(x) = 0 g(x) > 0

Consider the problem: max

x

f(x) s.t. g(x) ≥ 0

• Optimization over a region – solutions either at stationary

points (gradients 0) in region g(x) > 0 or on boundary L(x, λ) = f(x) + λg(x)

• Solutions at stationary points of the Lagrangian with either:
• ∇f(x) = 0 and λ = 0 (in region)
• ∇f(x) = −λ∇g(x) and λ > 0 (boundary, > for maximizing f)
• For both, λg(x) = 0
• Find stationary points of L s. t. g(x) ≥ 0, λ ≥ 0, λg(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Lagrange Multipliers - Inequality Constraints

∇f(x) ∇g(x) xA xB g(x) = 0 g(x) > 0

Consider the problem: max

x

f(x) s.t. g(x) ≥ 0

• Optimization over a region – solutions either at stationary

points (gradients 0) in region g(x) > 0 or on boundary L(x, λ) = f(x) + λg(x)

• Solutions at stationary points of the Lagrangian with either:
• ∇f(x) = 0 and λ = 0 (in region)
• ∇f(x) = −λ∇g(x) and λ > 0 (boundary, > for maximizing f)
• For both, λg(x) = 0
• Find stationary points of L s. t. g(x) ≥ 0, λ ≥ 0, λg(x) = 0

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Outline

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Now Where Were We

• So the optimization problem is now a constrained
• ptimization problem:

arg min

w,b

||w||2 2 s.t. ∀n , tn(wTφ(xn) + b) ≥ 1

• For this problem, the Lagrangian (with N multipliers an) is:

L(w, b, a) = ||w||2 2 −

N

• n=1

an

• tn(wTφ(xn) + b) − 1
• We can find the derivatives of L wrt w, b and set to 0:

w =

N

• n=1

antnφ(xn) =

N

• n=1

antn

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Dual Formulation

• Plugging those equations into L removes w and b results in

a version of L where ∇w,bL = 0: ˜ L(a) =

N

• n=1

an − 1 2

N

• n=1

N

• m=1

anamtntmφ(xn)Tφ(xm) this new ˜ L is the dual representation of the problem (maximize with constraints)

• Another formula for finding b, like the bias in linear

regression.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Outline

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Non-Separable Data

y = 1 y = 0 y = −1

ξ > 1 ξ < 1 ξ = 0 ξ = 0

• For most problems, data will not be linearly separable

(even in feature space φ)

• Can relax the constraints from

tny(xn) ≥ 1 to tny(xn) ≥ 1 − ξn

• The ξn ≥ 0 are called slack variables
• ξn = 0, satisfy original problem, so xn is on margin or correct

side of margin

• 0 < ξn < 1, inside margin, but still correctly classifed
• ξn > 1, mis-classified

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Loss Function For Non-separable Data

y = 1 y = 0 y = −1

ξ > 1 ξ < 1 ξ = 0 ξ = 0

• Non-zero slack variables are bad, penalize while

maximizing the margin: min C

N

• n=1

ξn + 1 2||w||2

• Constant C > 0 controls importance of large margin versus

incorrect (non-zero slack)

• Set using cross-validation
• Optimization is same quadratic, different constraints,

convex

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

SVM Loss Function

• The SVM for the separable case solved the problem:

arg min

w

1 2||w||2 s.t. ∀n , tnyn ≥ 1

• Can write this as:

arg min

w N

• n=1

E∞(tnyn − 1) + λ||w||2 where E∞(z) = 0 if z ≥ 0, ∞ otherwise

• Non-separable case relaxes this to be:

arg min

w N

• n=1

ESV(tnyn − 1) + λ||w||2 where ESV(tnyn − 1) = [1 − yntn]+ hinge loss

• [u]+ = u if u ≥ 0, 0 otherwise

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

SVM Loss Function

• The SVM for the separable case solved the problem:

arg min

w

1 2||w||2 s.t. ∀n , tnyn ≥ 1

• Can write this as:

arg min

w N

• n=1

E∞(tnyn − 1) + λ||w||2 where E∞(z) = 0 if z ≥ 0, ∞ otherwise

• Non-separable case relaxes this to be:

arg min

w N

• n=1

ESV(tnyn − 1) + λ||w||2 where ESV(tnyn − 1) = [1 − yntn]+ hinge loss

• [u]+ = u if u ≥ 0, 0 otherwise

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

SVM Loss Function

• The SVM for the separable case solved the problem:

arg min

w

1 2||w||2 s.t. ∀n , tnyn ≥ 1

• Can write this as:

arg min

w N

• n=1

E∞(tnyn − 1) + λ||w||2 where E∞(z) = 0 if z ≥ 0, ∞ otherwise

• Non-separable case relaxes this to be:

arg min

w N

• n=1

ESV(tnyn − 1) + λ||w||2 where ESV(tnyn − 1) = [1 − yntn]+ hinge loss

• [u]+ = u if u ≥ 0, 0 otherwise

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Loss Functions

−2 −1 1 2 z E(z)

• Linear classifiers, compare loss function used for learning
• z = yntn ≥ 1 iff there is an error (with tn ∈ {+1, −1}).
• Black is misclassification error
• Transformed simple linear classifier, squared error:

(yn − tn)2

• Transformed logistic regression, cross-entropy error: tn ln yn
• SVM, hinge loss: ξn = [1 − yntn]+
• positive only if there is a mistake, otherwise 0.
• encourages sparse solutions.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Two Views of Learning as Optimization

• The original SVM goal was of the form:
• Find the simplest hypothesis that is consistent with the

data, or

• Maximize simplicity, given a consistency constraint.
• This general idea appears in much scientific model

building, in image processing, and other applications.

• Bayesian methods use a criterion of the form
• Find a trade-off between simplicity and data fit, or
• Maximize sum of the type (data fit - λ simplicity)
• e.g., ln(P(D|M)) − λln(P(M)) where the model prior M is

higher for simpler models.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Pros and Cons of Learning Criteria

• The Bayesian approach has a solid probabilistic foundation

in Bayes’ theorem.

• Seems to be especially suitable for noisy data.
• The constraint-based approach is often easy for users to

understand.

• Often leads to sparser simpler models.
• Suitable for “clean” data.

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Conclusion

• Readings: Ch. 7 up to and including Ch. 7.1.2
• Many algorithms can be re-written with only dot products of

features

• We’ve seen NN, perceptron, regression; also PCA, SVMs

(later)

• Maximum margin criterion for deciding on decision

boundary

• Linearly separable data
• Relax with slack variables for non-separable case
• Global optimization is possible in both cases
• Convex problem (no local optima)
• Descent methods converge to global optimum

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Logistic Regression Learning: Iterative Reweighted Least Squares

• Iterative reweighted least squares (IRLS) is a descent

method

• As in gradient descent, start with an initial guess, improve it
• Gradient descent - take a step (how large?) in the gradient

direction

• IRLS is a special case of a Newton-Raphson method
• Approximate function using second-order Taylor expansion:

ˆ f(w + v) = f(w) + ∇f(w)T(v − w) + 1 2(v − w)T∇2f(w)(v − w)

• Closed-form solution to minimize this is straight-forward:

quadratic, derivatives linear

• In IRLS this second-order Taylor expansion ends up being

a weighted least-squares problem, as in the linear regression case

• Hence the name IRLS

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Logistic Regression Learning: Iterative Reweighted Least Squares

• Iterative reweighted least squares (IRLS) is a descent

method

• As in gradient descent, start with an initial guess, improve it
• Gradient descent - take a step (how large?) in the gradient

direction

• IRLS is a special case of a Newton-Raphson method
• Approximate function using second-order Taylor expansion:

ˆ f(w + v) = f(w) + ∇f(w)T(v − w) + 1 2(v − w)T∇2f(w)(v − w)

• Closed-form solution to minimize this is straight-forward:

quadratic, derivatives linear

• In IRLS this second-order Taylor expansion ends up being

a weighted least-squares problem, as in the linear regression case

• Hence the name IRLS

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Logistic Regression Learning: Iterative Reweighted Least Squares

• Iterative reweighted least squares (IRLS) is a descent

method

• As in gradient descent, start with an initial guess, improve it
• Gradient descent - take a step (how large?) in the gradient

direction

• IRLS is a special case of a Newton-Raphson method
• Approximate function using second-order Taylor expansion:

ˆ f(w + v) = f(w) + ∇f(w)T(v − w) + 1 2(v − w)T∇2f(w)(v − w)

• Closed-form solution to minimize this is straight-forward:

quadratic, derivatives linear

• In IRLS this second-order Taylor expansion ends up being

a weighted least-squares problem, as in the linear regression case

• Hence the name IRLS

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Logistic Regression Learning: Iterative Reweighted Least Squares

• Iterative reweighted least squares (IRLS) is a descent

method

• As in gradient descent, start with an initial guess, improve it
• Gradient descent - take a step (how large?) in the gradient

direction

• IRLS is a special case of a Newton-Raphson method
• Approximate function using second-order Taylor expansion:

ˆ f(w + v) = f(w) + ∇f(w)T(v − w) + 1 2(v − w)T∇2f(w)(v − w)

• Closed-form solution to minimize this is straight-forward:

quadratic, derivatives linear

• In IRLS this second-order Taylor expansion ends up being

a weighted least-squares problem, as in the linear regression case

• Hence the name IRLS

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Logistic Regression Learning: Iterative Reweighted Least Squares

• Iterative reweighted least squares (IRLS) is a descent

method

• As in gradient descent, start with an initial guess, improve it
• Gradient descent - take a step (how large?) in the gradient

direction

• IRLS is a special case of a Newton-Raphson method
• Approximate function using second-order Taylor expansion:

ˆ f(w + v) = f(w) + ∇f(w)T(v − w) + 1 2(v − w)T∇2f(w)(v − w)

• Closed-form solution to minimize this is straight-forward:

quadratic, derivatives linear

• In IRLS this second-order Taylor expansion ends up being

a weighted least-squares problem, as in the linear regression case

• Hence the name IRLS

Maximum Margin Criterion Math Maximizing the Margin Non-Separable Data

Newton-Raphson

f

• f

(x, f(x)) (x + ∆xnt, f(x + ∆xnt))

• Figure from Boyd and Vandenberghe, Convex Optimization
• Excellent reference, free for download online

http://www.stanford.edu/~boyd/cvxbook/
