11/14/2012 MAT 129 Precalculus Chapter 11 Notes Conics Analytic Geometry, Conic Sections David J. Gisch Conic S ections Conic S ections All the conic sections can be thought of as different slices (cross-sections) of the double

slide-1
SLIDE 1

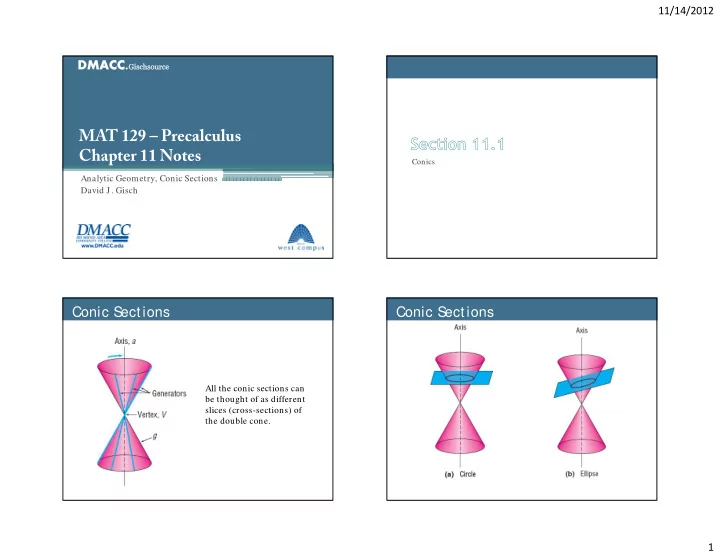

11/14/2012 1

MAT 129 – Precalculus Chapter 11 Notes

Analytic Geometry, Conic Sections David J. Gisch

Conics

Conic S ections

All the conic sections can be thought of as different slices (cross-sections) of the double cone.

Conic S ections

slide-2
SLIDE 2

11/14/2012 2

Conic S ections

The Parabola

The Parabola The Parabola

slide-3
SLIDE 3

11/14/2012 3

The Parabola

Example 11.2.1: Find an equation of the parabola with vertex at 0, 0 and focus at 3, 0. Graph the equation.

The Parabola

Example 11.2.2: Find the equation of a parabola with vertex at 0, 0 and focus at 8, 0. Graph the equation.

The Parabola

Example 11.2.3: The equation of a parabola is 24. Graph the equation and find the vertex and directrix.

The Parabola

slide-4
SLIDE 4

11/14/2012 4

The Parabola

Example 11.2.4: Find the equation of a parabola with a focus at 0, 6 and directrix at 6. Graph the equation.

The Parabola

Example 11.2.5: The equation of a parabola is 8, Graph the equation and state the focus, vertex and directrix.

The Parabola

Example 11.2.6: Find the equation of a parabola with a vertex at 4, 3 and focus 4, 0. Graph the equation.

The Parabola

Example 11.2.7: The equation of a parabola is 4 4 0. Graph the equation and state the focus, vertex, and directrix.

slide-5
SLIDE 5

11/14/2012 5

S pecial Properties of the Parabola S pecial Properties of a Parabola The Parabola

Example 11.2.8: A satellite dish measures 8 feet across at its opening and is 3 feet deep at its center. Where should the receiver be placed?

Example 11.2.8 Cont.

slide-6
SLIDE 6

11/14/2012 6

The Ellipse

The Ellipse

An ellipse is a collection of all points in the plane, the sum

  • f whose distances from two fixed points, called the foci, is
  • constant. OR. For any point P in the plane and foci

and

  • the equation

, , ,

where c is a constant, must be satisfied.

The Ellipse The Ellipse

  • The foci, center, and vertices on the minor axis form a right triangle.

This allows you to use trig and the Pythagorean theorem to find missing values.

  • Also notice that the hypotenuse is half the length of the major axis

and b is half the minor axis.

Major horizontal axis, equation

  • 1,

Major horizontal axis, equation

  • 1,
slide-7
SLIDE 7

11/14/2012 7

The Parabola

Example 11.3.1: Find an equation of an ellipse centered at the origin with a focus of 4, 0 and vertex at 8, 0. Graph the equation.

The Parabola

Example 11.3.2: Find the equation of an ellipse centered at the origin with a major axis of length 10 and a minor axis

  • f length 6. Graph the equation.

The Parabola

Example 11.3.3: The equation of an ellipse is

  • 36

9 1 Find the foci, center, and vertices. Graph the ellipse.

The Ellipse

slide-8
SLIDE 8

11/14/2012 8

The Parabola

Example 11.3.4: Find an equation of an ellipse centered at 2, 3 , with a focus of 2, 5 and a major axis of 6. Graph the equation.

The Parabola

Example 11.3.5: Find an equation of an ellipse centered at 1, 2 , with a focus of 0, 2 and a vertex at 0, 5. Graph the equation.

The Parabola

Example 11.3.6: The equation of an ellipse is 4 32 4 52 0 Find the foci, center, and vertices. Graph the ellipse.

S pecial Properties of the Ellipse

slide-9
SLIDE 9

11/14/2012 9

The Parabola

Example 11.3.7: The whispering gallery in the Museum of Science and Industry in Chicago is 47.3 feet long. The distance from the center of the room to the foci is 20.3

  • feet. Find an equation that describes the shape of the
  • room. How high is the room at its center?

Whispering Room Cont.

The Hyperbola

The Hyperbola

slide-10
SLIDE 10

11/14/2012 10

S pecial Properties of Hyperbola S pecial Properties of Hyperbola

General Form of Conics Polar Equations of Conics

slide-11
SLIDE 11

11/14/2012 11

Polar Equations of Conics

  • All conics fail the vertical line test except for a “vertical”
  • parabola. Thus, they are not functions in the traditional

x-y plane.

  • However, conics are all functions when in polar form.

Polar Equations of Conics

Parametric Equations

Parametric Equations

We essentially break an equation into two pieces; one that models the x values, and one that models the y values. In doing so, each part is a function but when combined we can graph curves that are not normally functions, like the conics.

slide-12
SLIDE 12

11/14/2012 12

The Parabola

Example 11.7.1: Graph the parametric equation 3, 2, 2 2

  • 2

1 1 2

The Parabola

Example 11.7.2: Graph the parametric equation 3 cos , 3 sin ,

  • 2
  • 2
  • Uses of Parametric Equations
  • One fun use of parametric equations is the science of projectiles.
  • Here we can model a projectile with the parametric equations

cos , 1 2 sin where is the force of gravity (32 ⁄ or 9.8 ⁄ ), is the angle to the horizontal, is the height from the “ground,” and is the initial velocity of the projectile.

Parametric Equations

Example 11.7.3: Including her height, Mara is on a cliff that is 150 feet high. She decides to become a drunk and get heavily involved in drugs and thus throws her dreams off

  • f the cliff at an angle of 38° and a velocity of 25 feet per

second. a) Write a set of parametric equations modeling the flight

  • f the dreams.

b) Graph the equations on a TI calculator c) Determine the length of time that her dreams will be in the air. d) How far did her dreams fly horizontally? e) At what time will her dreams be at their peak height and what is that height?

slide-13
SLIDE 13

11/14/2012 13

Mara’s Dreams Mara’s Dreams Parametric Equations

Example 11.7.4: An M16 machine gun has a muzzle velocity

  • f 3,110

⁄ . You are standing on level ground and shoot a bullet with an angle of 30° with the horizontal. a) Write a set of parametric equations modeling the flight

  • f the bullet.

b) Graph the equations on a TI calculator c) Determine the length of time that the bullet will be in the air. d) How far did her bullet fly horizontally? e) At what time will the bullet be at its peak height and what is that height?

The Bullet

slide-14
SLIDE 14

11/14/2012 14

The Bullet Angry Proj ectiles

R ectangular to Parametric Equations

Example 11.7.5: Find the parametric equation of 4

R ectangular to Parametric Equations

Example 11.7.6: Find the parametric equation of 16 1

slide-15
SLIDE 15

11/14/2012 15

Parametric Equations

R ectangular to Parametric Equations

Example 11.7.7: In the quintessential movie moment, you and your adversary, who are 15 feet apart, both see the

  • bject of supreme importance to completing the climax of

the plot. Suddenly the lights go out. Your adversary takes

  • ff at a heading of 87° at 4

⁄ . At the same time, you take off at a heading of 97° at 4.2 ⁄ . a) Write a parametric equation for each persons movement. b) Assuming you both were aiming correctly for the

  • bject, what are its coordinates?

c) Who gets to the object first? And at what time?

Movie Moment

R ectangular to Parametric Equations

Example 11.7.8: A boat leaves the port on a heading of 45° going 40 knots per hour. At the same time a another boat takes off from a port 40 knots east of the first port, at a heading of 100° at 60 knots per hour. a) Write a parametric equation for each boats movement. b) Will the boats hit each other? c) If yes, when? If not, when will they be the closest (to the nearest half hour)?

slide-16
SLIDE 16

11/14/2012 16

S hip Happens
