Mario A. Snchez David R. Choffnes John S. Otto U. of Washington Zachary S. Bischof Balachander Krishnamurthy Fabin E. Bustamante Walter Willinger AT&T Labs-Research Northwestern U. The Internet edge is exploding 34% of global

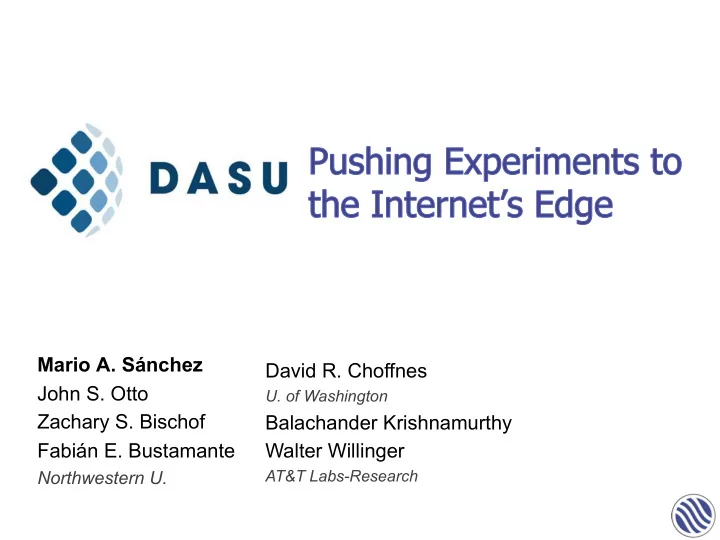

slide-1
SLIDE 1

Mario A. Sánchez John S. Otto Zachary S. Bischof Fabián E. Bustamante

Northwestern U.

David R. Choffnes

  • U. of Washington

Balachander Krishnamurthy Walter Willinger

AT&T Labs-Research

slide-2
SLIDE 2

NSDI’13 Sánchez et al. 2 Pushing Experiments to the Internet’s Edge

  • The Internet edge is exploding

1 2 3 4 5 6 7 8 9 10 50 100 150 200 % Penetration Number of countries Fixed broadband countries Fixed broadband penetration

34% of global population uses the Internet 5x growth in the past 12 years

2

slide-3
SLIDE 3

NSDI’13 Sánchez et al. 3 Pushing Experiments to the Internet’s Edge

  • The view from the edge

Many of our systems run at the edge Lack platforms to experiment at or even characterize the edge

3

slide-4
SLIDE 4

NSDI’13 Sánchez et al. 4 Pushing Experiments to the Internet’s Edge

  • The view from the edge

Control Scale

4

slide-5
SLIDE 5

NSDI’13 Sánchez et al. 5 Pushing Experiments to the Internet’s Edge

  • The view from the edge

Control Scale

4

slide-6
SLIDE 6

NSDI’13 Sánchez et al. 6 Pushing Experiments to the Internet’s Edge

  • The view from the edge

Control Scale

4

slide-7
SLIDE 7

NSDI’13 Sánchez et al. 7 Pushing Experiments to the Internet’s Edge

  • The view from the edge

Control Scale

4

slide-8
SLIDE 8

NSDI’13 Sánchez et al. 8 Pushing Experiments to the Internet’s Edge

  • The view from the edge

A flexible experimentation platform hosted by end users

4

slide-9
SLIDE 9

NSDI’13 Sánchez et al. 9 Pushing Experiments to the Internet’s Edge

  • Hosted by end users, at scale …

Guarantees safety of participants Controls impact of experiments on underlying network and systems Shares platform resources among concurrent experiments Our work

5

slide-10
SLIDE 10

NSDI’13 Sánchez et al. 10 Pushing Experiments to the Internet’s Edge

  • Dasu

A platform prototype Software-based (BitTorrent ext., for now) Hosted at the network’s edge Broadband characterization as incentive for adoption

6

slide-11
SLIDE 11

NSDI’13 Sánchez et al. 11 Pushing Experiments to the Internet’s Edge

  • Dasu

Two purposes by design

– Characterize users’ broadband services – Support experimentation from the edge

Aligns objectives of end-users and experimenters

7

slide-12
SLIDE 12

NSDI’13 Sánchez et al. 12 Pushing Experiments to the Internet’s Edge

  • Dasu

Two purposes by design

– Characterize users’ broadband services – Support experimentation from the edge

Aligns objectives of end-users and experimenters

End-user Experimenter Coverage Availability At the edge Extensibility

✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

7

slide-13
SLIDE 13

NSDI’13 Sánchez et al. 13 Pushing Experiments to the Internet’s Edge

  • End-user based platform – Challenges

No dedicated resources

– We cannot run arbitrary experiments – Safety of volunteer nodes is key

Large-scale platform è large-scale impact Highly volatile nodes

– We cannot run at arbitrary times – We cannot run at arbitrary locations

8

slide-14
SLIDE 14

NSDI’13 Sánchez et al. 14 Pushing Experiments to the Internet’s Edge

  • Roadmap

Motivation Design and implementation Challenges A unique perspective

9

slide-15
SLIDE 15

NSDI’13 Sánchez et al. 15 Pushing Experiments to the Internet’s Edge

  • Dasu: Current status

An extension to BitTorrent

– Soon standalone and in a DNS resolver

Could be hosted by other long-running networked app. (e.g. Skype, IPTV) Over 90,000 users (>150 countries) with almost no advertisement

10

slide-16
SLIDE 16

NSDI’13 Sánchez et al. 16 Pushing Experiments to the Internet’s Edge

  • Guiding goals…

Programmable platform

– To run general measurement experiments

Reduce effort needed to develop/deploy large-scale measurements

11

slide-17
SLIDE 17

NSDI’13 Sánchez et al. 17 Pushing Experiments to the Internet’s Edge

  • Design: System components

Configuration

Registration Configuration Experiment Task

Coordination

Measurement Activity Experiment Lease Experiment Report

Data Service Experiment Administration

12

slide-18
SLIDE 18

NSDI’13 Sánchez et al. 18 Pushing Experiments to the Internet’s Edge

  • dialect "java”

package edu.northwestern.dasu.drools

  • import edu.northwestern.dasu.drools.*;
  • global FactHalt halt;
  • declare TestResult

taskId : String todoList : List pingList : List end

  • function void ping(String ip, int taskId)

{

  • AMCoordinator.addProbeTask(

taskId, ip, ProbeType.PING);

  • }
  • Design: Experiment specification

package package-name Imports variable declaration

  • global
  • local

functions rules

13

slide-19
SLIDE 19

NSDI’13 Sánchez et al. 19 Pushing Experiments to the Internet’s Edge

  • dialect "java”

package edu.northwestern.dasu.drools

  • import edu.northwestern.dasu.drools.*;
  • global FactHalt halt;
  • declare TestResult

taskId : String todoList : List pingList : List end

  • function void ping(String ip, int taskId)

{

  • AMCoordinator.addProbeTask(

taskId, ip, ProbeType.PING);

  • }
  • Design: Experiment specification

package package-name Imports variable declaration

  • global
  • local

functions rules

13

slide-20
SLIDE 20

NSDI’13 Sánchez et al. 20 Pushing Experiments to the Internet’s Edge

  • dialect "java”

package edu.northwestern.dasu.drools

  • import edu.northwestern.dasu.drools.*;
  • global FactHalt halt;
  • declare TestResult

taskId : String todoList : List pingList : List end

  • function void ping(String ip, int taskId)

{

  • AMCoordinator.addProbeTask(

taskId, ip, ProbeType.PING);

  • }
  • Design: Experiment specification

package package-name Imports variable declaration

  • global
  • local

functions rules

13

slide-21
SLIDE 21

NSDI’13 Sánchez et al. 21 Pushing Experiments to the Internet’s Edge

  • dialect "java”

package edu.northwestern.dasu.drools

  • import edu.northwestern.dasu.drools.*;
  • global FactHalt halt;
  • declare TestResult

taskId : String todoList : List pingList : List end

  • function void ping(String ip, int taskId)

{

  • AMCoordinator.addProbeTask(

taskId, ip, ProbeType.PING);

  • }
  • Design: Experiment specification

package package-name Imports variable declaration

  • global
  • local

functions rules rule "name” when … then … end

rule “Process Probes”

  • when

$tr : TestResult();

  • $ping : FactProbePingResult();

then $tr.getPingList().add($ping); retract($ping);

  • if($tr.getTodoList().size() == 0) {

AMCoordinator.commitResult( “Experiment Name”, $tr); halt.setHalt(true); } else { ping($tr.getTodoList().remove(0), $tr.getTaskId()); } end 13

slide-22
SLIDE 22

NSDI’13 Sánchez et al. 22 Pushing Experiments to the Internet’s Edge

  • Design: Rule-based programming

Experiment as a combination of rules Rules drive execution and flow of experiments Benefits of a declarative model

– Clear and concise – Easy to check – Easy to extend

14

slide-23
SLIDE 23

NSDI’13 Sánchez et al. 23 Pushing Experiments to the Internet’s Edge

  • Design: Dasu client

Probe Modules

Traceroute Ping NDT

…

Experiment

Rule Engine

Working Memory

Coordinator

Results

15

slide-24
SLIDE 24

NSDI’13 Sánchez et al. 24 Pushing Experiments to the Internet’s Edge

  • Challenges: No dedicated resources

Protecting volunteer nodes

Sandboxed

– Import restrictions avoid arbitrary code execution – Resource profiler / watchdog timer

Secure communication of configuration and

experiments

16

slide-25
SLIDE 25

NSDI’13 Sánchez et al. 25 Pushing Experiments to the Internet’s Edge

  • Challenges: No dedicated resources

Limit resource consumption Minimize impact on user’s performance:

– Pre-defined probe rates – Restrict aggregate bandwidth consumption – Limit probes to low-utilization periods

17

slide-26
SLIDE 26

NSDI’13 Sánchez et al. 26 Pushing Experiments to the Internet’s Edge

  • Scaling measurement coordination

across participants

– Experiment leases – Elastic budgets

Challenges: Impact

Experiment Administration Coordination

Measurement Activity Experiment Lease Aggregated Measurement Activity Experiment Lease 18

slide-27
SLIDE 27

NSDI’13 Sánchez et al. 27 Pushing Experiments to the Internet’s Edge

  • Challenges: Availability and churn

19

slide-28
SLIDE 28

NSDI’13 Sánchez et al. 28 Pushing Experiments to the Internet’s Edge

  • Challenges: Availability and churn

Median session time ~3 hours

19

slide-29
SLIDE 29

NSDI’13 Sánchez et al. 29 Pushing Experiments to the Internet’s Edge

  • Challenges: Availability and churn

Median session time ~3 hours 50% PlanetLab slices < 3 hours

19

slide-30
SLIDE 30

NSDI’13 Sánchez et al. 30 Pushing Experiments to the Internet’s Edge

  • 47%

44% 41% 38% 35% 32% 29% 26% 23%

Average fraction

Challenges: Availability and churn

Peers online per hour

20

slide-31
SLIDE 31

NSDI’13 Sánchez et al. 31 Pushing Experiments to the Internet’s Edge

  • 47%

44% 41% 38% 35% 32% 29% 26% 23%

Average fraction

Challenges: Availability and churn

39-43% of day’s total

Peers online per hour

20

slide-32
SLIDE 32

NSDI’13 Sánchez et al. 32 Pushing Experiments to the Internet’s Edge

  • 47%

44% 41% 38% 35% 32% 29% 26% 23%

Average fraction

Challenges: Availability and churn

39-43% of day’s total

Peers online per hour

52-63% of day’s ASes

20

slide-33
SLIDE 33

NSDI’13 Sánchez et al. 33 Pushing Experiments to the Internet’s Edge

  • Challenges: Load-control on experiments

80% download utilization 80% upload utilization

Delayed probes per peer

21

slide-34
SLIDE 34

NSDI’13 Sánchez et al. 34 Pushing Experiments to the Internet’s Edge

  • Challenges: Load-control on experiments

80% download utilization 80% upload utilization

For 85% of peers, scheduled probes can be launched immediately

Delayed probes per peer

21

slide-35
SLIDE 35

NSDI’13 Sánchez et al. 35 Pushing Experiments to the Internet’s Edge

  • Illustrating its unique perspective

Revisiting past experiments: Routing asymmetry, King Questioning old assumptions: AS-level connectivity Performing novel experiments: Evaluating a recently-proposed DNS extension

22

slide-36
SLIDE 36

NSDI’13 Sánchez et al. 36 Pushing Experiments to the Internet’s Edge

  • CDNs and DNS-based localization

Content Origin End Host

23

slide-37
SLIDE 37

NSDI’13 Sánchez et al. 37 Pushing Experiments to the Internet’s Edge

  • CDNs and DNS-based localization

CDN Replica Content Origin CDN Replica End Host

23

slide-38
SLIDE 38

NSDI’13 Sánchez et al. 38 Pushing Experiments to the Internet’s Edge

  • CDNs and DNS-based localization

CDN Replica Content Origin CDN Replica End Host Google DNS

23

slide-39
SLIDE 39

NSDI’13 Sánchez et al. 39 Pushing Experiments to the Internet’s Edge

  • CDNs and DNS-based localization

CDN Replica Content Origin CDN Replica End Host Google DNS

23

slide-40
SLIDE 40

NSDI’13 Sánchez et al. 40 Pushing Experiments to the Internet’s Edge

  • DNS extension approach

Idea: Avoid impact of remote DNS usage by directly providing client location A EDNS0 extension “edns-client-subnet” Resolver adds client’s IP prefix to request

Is it effective?

24

slide-41
SLIDE 41

NSDI’13 Sánchez et al. 41 Pushing Experiments to the Internet’s Edge

  • Understanding performance benefits

Access to large set of vantage points Vantage points located around the world Interrelated measurement probes Flexible

25

slide-42
SLIDE 42

NSDI’13 Sánchez et al. 42 Pushing Experiments to the Internet’s Edge

  • Evaluating EDNS

Oceania (4.4%)

  • N. America (41.9%)
  • W. Europe (37.6)

Higher savings in North America

26

slide-43
SLIDE 43

NSDI’13 Sánchez et al. 43 Pushing Experiments to the Internet’s Edge

  • Evaluating EDNS

Oceania (4.4%)

  • N. America (41.9%)
  • W. Europe (37.6)

ECS savings in Oceania 70–90% Higher savings in North America

26

slide-44
SLIDE 44

NSDI’13 Sánchez et al. 44 Pushing Experiments to the Internet’s Edge

  • Dasu’s first child namehelp

… more than just better CDN performance

– Faster lookups with proactive caching – Automatic, personalized server selection – Graceful handling of DNS outages …

http://aqualab.cs.northwestern.edu/projects/namehelp

As of this morning – 52,800 users

  • ver 147 countries!

27

slide-45
SLIDE 45

NSDI’13 Sánchez et al. 45 Pushing Experiments to the Internet’s Edge

  • Summary

Experimental platform for the network edge Relies on a direct incentive model for adoption

– Rather than relying on the kindness of strangers

Participants collectively offer

– Broad network coverage – High availability – Fine-grained control

Contact us to play with it

28
