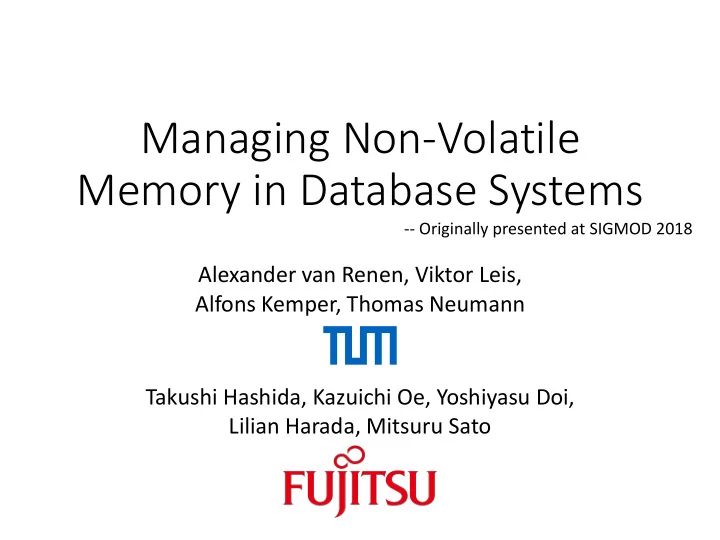

Managing Non-Volatile Memory in Database Systems

Alexander van Renen, Viktor Leis, Alfons Kemper, Thomas Neumann Takushi Hashida, Kazuichi Oe, Yoshiyasu Doi, Lilian Harada, Mitsuru Sato

- Originally presented at SIGMOD 2018

SLIDE 2

2

Terminology, Assumptions, and Background

For this talk: NVM (PMem, NVRAM, SCM, NVMM)
NVM assumptions:
NVM is byte addressible
NVM has a higher access latency than DRAM
NVM has lower cost/GB than DRAM
NVM has higher capacity than DRAM
Sources:
Paper: https://db.in.tum.de/~leis/papers/nvm.pdf
Video: https://youtu.be/6RRe_cmDl0U

SLIDE 3

3

Database Architectures

Main Memory DBs

Primary data location in DRAM
Snapshots written to SSD
Logging to SSD

Disk-based DBs

Primary data location on disk
Loaded to DRAM for processing
Logging to SSD

SLIDE 4

4

Database Architectures

Main Memory DBs

Primary data location in DRAM
Snapshots written to SSD
Logging to SSD

How do we change dbs architecture for the NVM ?

Disk-based DBs

Primary data location on disk
Loaded to DRAM for processing
Logging to SSD

SLIDE 5

NVM-direct Approach

5

In-place updates

Requires failure atomicity
High NVM latency
No DRAM
No SSD

CDDS-Tree [VLDB 2015], NV-Tree [FAST 2015], wB-Tree [VLDB 2015], FP-Tree [SIGMOD 2016], WO[A]RT/ART+CoW [FAST 2017], HiKV [USENIX ATC 2017], Bz-Tree [VLDB 2018], BDCC+NVM [ICDE 2018], SAP Hana for NVM [VLDB 2017]

Root pointer

SLIDE 6

NVM-direct Data Structures

[Data Management on Non-Volatile Memory: A Perspective @Datenbank-Spektrum 18]

SLIDE 7

NVM-direct Approach

7

In-place updates

Requires failure atomicity
High NVM latency
No DRAM
No SSD

CDDS-Tree [VLDB 2015], NV-Tree [FAST 2015], wB-Tree [VLDB 2015], FP-Tree [SIGMOD 2016], WO[A]RT/ART+CoW [FAST 2017], HiKV [USENIX ATC 2017], Bz-Tree [VLDB 2018], BDCC+NVM [ICDE 2018], SAP Hana for NVM [VLDB 2017]

Root pointer

SLIDE 8

Buffered Approach

8

Out-of-place updates

No byte-addressability
No SSD

FOEDUS [SIGMOD 2015], SAP Hana for NVM [VLDB 2017]

SLIDE 9

State of the Art

9

SLIDE 10

The Ideal System: “Dream Chart”

10

SLIDE 11

1. Cache-Line-Grained Loading

11

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

SLIDE 12

1. Cache-Line-Grained Loading

12

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

SLIDE 13

1. Cache-Line-Grained Loading

13

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

SLIDE 14

1. Cache-Line-Grained Loading

14

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

SLIDE 15

1. Cache-Line-Grained Loading

15

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

San Diego

SLIDE 16

1. Cache-Line-Grained Loading

16

We transfer individual cache lines (64Byte) instead of entire pages (16KB) between DRAM and NVM.

San Diego

SLIDE 17

2. Mini Pages

17

We implement mini pages which store only 16 cache lines (~1KB instead of 16KB).

SLIDE 18

2. Mini Pages

18

We implement mini pages which store only 16 cache lines (~1KB instead of 16KB).

San Diego

SLIDE 19

2. Mini Pages

19

We implement mini pages which store only 16 cache lines (~1KB instead of 16KB).

San Diego

SLIDE 20

3. Pointer Swizzling

20

We use pointer swizzling and low-overhead replacement strategies to reduce the buffer manager cost.

SLIDE 21

Performance Impact of Techniques

21

Buffer management needs to be tuned for NVM.

SLIDE 22

The Ideal System: “Dream Chart”

22

SLIDE 23

4. Utilize SSDs

23

By using fixed-size pages, we can extend the maximum possible workload size with SSDs.

SLIDE 24

Conclusion

24
