Main Title Date & Location San Francisco Bike Share Service Area and Station Location Planning Heath Maddox 1 ITE Luncheon, February 20, 2014 Regional Pilot: Bay Area Bike Share Launched in Lead Agency: BAAQMD August 2013 with:

slide-1
SLIDE 1

Main Title

Date & Location

1

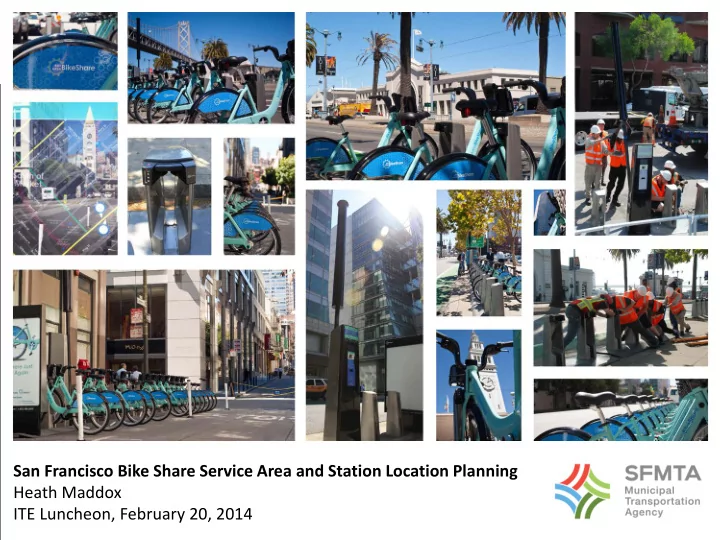

San Francisco Bike Share Service Area and Station Location Planning Heath Maddox ITE Luncheon, February 20, 2014

slide-2
SLIDE 2

Regional Pilot: Bay Area Bike Share

  • Lead Agency: BAAQMD
  • 1,000 bicycles
  • 100 stations:

– San Francisco (50) – Redwood City (10) – South Bay (40)

  • Palo Alto
  • Mountain View
  • San Jose

Launched in August 2013 with:

  • 70 Stations
  • 700 Bikes
  • One membership
slide-3
SLIDE 3

3

Planning for Stations: Service Area

T

slide-4
SLIDE 4

SF Service Area

  • 35 stations
  • 1.78 sq mi.
  • Dense
  • Mixed Use
  • Transit Rich
  • Flat
  • Bikeable
slide-5
SLIDE 5

Bike Share Suitability Analysis

  • 1. Retail Job Density
  • 2. Population Density
  • 3. Employment Density
  • 4. Zoning
  • 5. Slope
  • 6. Pedestrian Commuters per Square Mile
  • 7. Bicycle Commuters/Square Mile
  • 8. Bicycle Infrastructure
  • 9. Transit
  • 10. Tourist Sites
  • 11. Per Capita Income

Raster-based GIS overlay using 11 factors:

slide-6
SLIDE 6

SF Bicycle Sharing Suitability

slide-7
SLIDE 7

7

  • Paris Benchmark: 300-meter grid
  • 1 station every 2-3.5 blocks
  • 28 stations per sq. mile
  • 50 stations
  • 50 ÷ 28 = 1.75 sq. mile service area

SF Service Area Planning

slide-8
SLIDE 8

Bicycle Sharing Suitability

slide-9
SLIDE 9

Station Elements

  • Battery

powered

  • Secured by
  • wn weight
  • No excavation
  • Modular

Solar Charged

Map & Sponsorship Panel Payment Kiosk

slide-10
SLIDE 10

Typical Station Locations

slide-11
SLIDE 11

DRAFT

Site Plan

slide-12
SLIDE 12

Station Placement Opportunities & Constraints

slide-13
SLIDE 13

…and community support

Station Placement Opportunities & Constraints

slide-14
SLIDE 14

Station Placement Opportunities & Constraints

slide-15
SLIDE 15

2014 Expansion

slide-16
SLIDE 16

17 new stations:

  • Mission
  • Upper Market
  • Castro
  • Hayes Valley
  • Mission Bay

2014 Expansion

slide-17
SLIDE 17
slide-18
SLIDE 18

Station Crowdsourcing

slide-19
SLIDE 19

Crowdsourcing Heatmap

slide-20
SLIDE 20
slide-21
SLIDE 21
  • 2,500 – 3,000 Bikes
  • Break-Even: 2,000 Bikes
  • 9.5 sq. miles
  • 42% of residents
  • Cost: $21-$23M

Full Expansion

slide-22
SLIDE 22

Full Expansion: Satellite Scenarios

Major Developments & “Islands of Suitability”:

  • SF State/Parkmerced
  • City College/Balboa Park
  • Treasure Island
  • Hunters Point/

Candlestick Point Shipyard

slide-23
SLIDE 23

23

Heath Maddox SFMTA | Municipal Transportation Agency Livable Streets heath.maddox@sfmta.com 415.701.4605

bayareabikeshare.com
