Main Street:: Transformed _______________________________________________________________ MAIN STREET: TRANSFORMED A Conceptual Design Proposal Planning & Development Department for Main Street Stakeholders, Wednesday, March 3, 2010 Main

slide-1
SLIDE 1

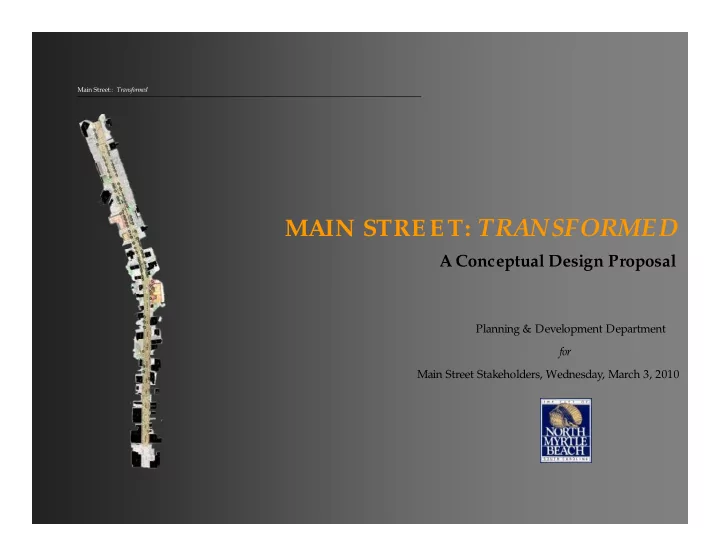

MAIN STREET: TRANSFORMED

A Conceptual Design Proposal

Planning & Development Department for Main Street Stakeholders, Wednesday, March 3, 2010

Main Street:: Transformed

_______________________________________________________________

slide-2
SLIDE 2

Goals

Main Street… What are we trying to accomplish?

  • Inviting gateway
  • Safety
  • Livability
  • Enhanced community experience

Main Street:: Transformed

_______________________________________________________________

slide-3
SLIDE 3

Objective

Produce a concept plan that enhances Main Street by implementing the following elements: Attractive entry

  • Street furniture/lighting
  • Safer sidewalks
  • Increased tree canopy
  • Flower boxes/baskets
  • Frame the streetscape
  • Main Street:: Transformed

_______________________________________________________________

slide-4
SLIDE 4

Techniques

Purpose: Frame the streetscape to provide an

inviting and safe experience.

Methods:

Event signage at U.S. Highway 17 intersection Widen and enhance the pedestrian space Re-task bicycle lane Plant large and medium sized canopy trees Install pedestrian-scaled lighting and seating Incorporate color with flower baskets and

boxes

Main Street:: Transformed

_______________________________________________________________

slide-5
SLIDE 5

Inspiration

  • Niagara-on-the-Lake,

Ontario

  • Greenville, South Carolina
  • Complete Streets

Main Street:: Transformed

_______________________________________________________________

slide-6
SLIDE 6

Context

2 separate sections…but integrating the design

Upper – from US Hwy 17 to Cedar Avenue Lower – from Cedar Avenue to Ocean Boulevard

(1996 streetscape project)

Main Street:: Transformed

_______________________________________________________________

slide-7
SLIDE 7

Exploring Main Street…

slide-8
SLIDE 8
slide-9
SLIDE 9

Existing Conditions: Approaching U.S. Hwy 17

slide-10
SLIDE 10

Existing Conditions: Upper

slide-11
SLIDE 11

Existing Conditions: Upper

slide-12
SLIDE 12

Existing Conditions: Upper

slide-13
SLIDE 13

Existing Conditions: Upper

slide-14
SLIDE 14

Existing Conditions: Upper

slide-15
SLIDE 15

Existing Conditions: Upper Existing Conditions: Upper/Lower Transition at Cedar Avenue

slide-16
SLIDE 16

Existing Conditions: Lower

slide-17
SLIDE 17

Existing Conditions: Lower

slide-18
SLIDE 18

Existing Conditions: Lower

slide-19
SLIDE 19

Existing Conditions: Lower

slide-20
SLIDE 20
slide-21
SLIDE 21

Existing Conditions: Lower

slide-22
SLIDE 22

Existing Conditions: Lower

slide-23
SLIDE 23

Existing Conditions: Lower

slide-24
SLIDE 24

Existing Conditions: Lower

slide-25
SLIDE 25

Existing Conditions: Lower

slide-26
SLIDE 26

Existing Conditions: Lower/Upper Transition at Cedar Avenue

slide-27
SLIDE 27

Existing Conditions: Upper

slide-28
SLIDE 28

Existing Conditions: Upper

slide-29
SLIDE 29

Existing Conditions: Upper

slide-30
SLIDE 30

Existing Conditions: Upper

slide-31
SLIDE 31

Existing Conditions: Upper

slide-32
SLIDE 32

Possibilities…

slide-33
SLIDE 33

Context: Upper

slide-34
SLIDE 34
  • Re-task existing bicycle lane and include canopy trees

planted at 35 – 40’ intervals.

  • Remove bicycle lane signage.
  • Pedestrian-scaled lighting with flower baskets at 75’

intervals.

  • Potential redesign of Kroger parking lot, including shuttle

stop.

  • Add a planted center median on Main Street and Ye Old

Kings Highway.

  • Relocate existing gas station driveway.
  • Reduce travel lane widths.
  • Add “Z-crosswalk” across Main to Kroger - additional

crosswalks throughout.

slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37

Context: Upper

slide-38
SLIDE 38
  • Re-task existing bicycle lane and include canopy trees

planted at 35 – 40’ intervals.

  • Pedestrian-scaled lighting with flower baskets at 75’

intervals.

  • Additional plantings in median.
  • Reduce lane widths.
  • Opportunity for infill development.
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41

Context: Lower

slide-42
SLIDE 42
  • Re-task existing bicycle lane and include canopy trees

planted at 35 – 40’ intervals.

  • Bicycle lane ends and begins at Cedar Avenue.
  • Pedestrian-scaled lighting with flower baskets at 75’

intervals.

  • Extend curb on Cedar Avenue to match existing bulb-out.
  • Reduce lane widths.
  • Opportunity for infill development.
slide-43
SLIDE 43

Context: Lower

slide-44
SLIDE 44
slide-45
SLIDE 45

Context: Lower

slide-46
SLIDE 46
  • Everything stays mostly the same but with a few additional

plantings as indicated.

  • Additional plants and palms in the median would enhance

existing vegetation and reinforce the original design.

  • Include a new sculpture as a tribute to North Myrtle Beach’s

Shag history and add new directional signage for McLean Park.

  • Opportunity to enhance the viewshed and create a new

approach into McLean Park from Main Street at the intersection of Oak Drive (long-term).

slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51

Context: Lower

slide-52
SLIDE 52
  • Additional plantings as indicated.
  • Consolidate bulb-outs to create 2 additional parking spaces.
  • Additional plants and palms in the median would enhance

existing vegetation and reinforce the original design.

  • The horseshoe was not part of this study.
slide-53
SLIDE 53
slide-54
SLIDE 54

Transformation…

slide-55
SLIDE 55
slide-56
SLIDE 56
slide-57
SLIDE 57
slide-58
SLIDE 58
slide-59
SLIDE 59
slide-60
SLIDE 60
slide-61
SLIDE 61
slide-62
SLIDE 62
slide-63
SLIDE 63
slide-64
SLIDE 64

Programmatic Recommendations for Main Street

  • Main Street Façade Improvement Program:

– Dedicate a pot of funds each year (recommend $30k - $60k) – Main Street property owner can apply for a façade improvement grant, not to exceed $7,500 per grant. – Grant must have at least a 100% match from property owner. – Funds to be used to pay for architectural improvements to Main Street building facades: Examples:

  • New awnings.
  • Painting of buildings.
  • Addition of windows, doors, etc.
  • Removal of inappropriate façade elements.
  • New signage of appropriate design.

– Administered by City staff, working with an advisory committee consisting of a downtown property owner, an architect or other design professional, and perhaps a contractor. – Property owner agrees to accept Committee’s design standards in exchange for receiving the funds.

slide-65
SLIDE 65

Programmatic Recommendations for Main Street

  • Main Street Property Improvement

Award Program:

– Would recognize and acknowledge property owner’s efforts to improve their buildings or signage, through a certificate and/or perhaps some monetary prize ($500?) Categories for:

  • Best sign improvement project
  • Best façade improvement project
  • Best window display or interior refit
  • Best outdoor seating area

– Façade Improvement Grant Committee could judge the nominees.

slide-66
SLIDE 66

Programmatic Recommendations for Main Street

  • Main Street Design Overlay District

– Similar to Highway 17 overlay, but allowing for the very different context of Main Street, versus Highway 17. – Would help protect City’s investment in the road corridor by ensuring private development enhances the streetscape.

slide-67
SLIDE 67

Estimated Project Costs

* includes a 25% contingency

$1,566,242 Pro ject Total $1,0 50 ,575 Overall Engineering Total $515,667 Overall Landscaping Total
