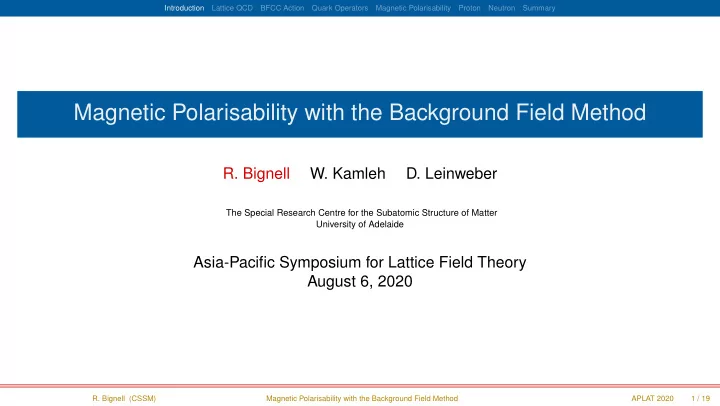

Magnetic Polarisability with the Background Field Method

  • R. Bignell
  • W. Kamleh
  • D. Leinweber

The Special Research Centre for the Subatomic Structure of Matter University of Adelaide

Asia-Pacific Symposium for Lattice Field Theory August 6, 2020

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 1 / 19

slide-2
SLIDE 2

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

βp Status

◮ The magnetic polarisability is a fundamental property of a system of charged particles ◮ Describes the response to an external magnetic field ◮ Provides a description of hadron structure ◮ Experimentally measured in Compton scattering experiments ◮ What is the magnetic polarisability of the proton and neutron?

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 2 / 19

slide-3
SLIDE 3

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

βp Status

0.0 0.1 0.2 0.3 0.4 0.5 0.6 m2 ( GeV2) 1 2 3 4 5 6 7

p (10 4 fm3)

Experiment: MacGibbon Experiment: Pasquini Experiment: PDG Experiment: McGovern Experiment: Beane Experiment: Blanpied Experiment: Olmos de León

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 2 / 19

slide-4
SLIDE 4

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

βp Status

0.0 0.1 0.2 0.3 0.4 0.5 0.6 m2 ( GeV2) 1 2 3 4 5 6 7

p (10 4 fm3)

Lattice: Chang: 1506.05518 Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 2 / 19

slide-5
SLIDE 5

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Energy & Two-point Correlation Function

◮ Directly calculate hadron energies in an external magnetic field ◮ The energy of a baryon in an external magnetic field is

E(B) = M + µ · B + |qe B| 2 M − 4 π 2 β B2 + O

  • B3

◮ Evaluate two point correlation functions G(

p, t) ∝

α e−Eα t

x

Two point correlation function quark-flow diagram for a baryon

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 3 / 19

slide-6
SLIDE 6

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Background Field Method

◮ Introduce a background field on the lattice

Continuum:Dµ → DQCD

µ

+ iqe Aµ Lattice:Uµ (x) → ei a qe Aµ(x) Uµ (x)

◮ Choose

A appropriately to generate constant magnetic field B = +B ˆ z

◮ Periodic spatial boundary conditions impose a quantisation for a uniform field

a2 qe B2 = 2 πk Nx Ny

◮ kd = 0, 1, 2, . . . for the field strength experienced by the d quark

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 4 / 19

slide-7
SLIDE 7

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Wilson Term Mass Renormalisation

◮ Wilson term causes unphysical quark mass renormalisation in background magnetic field ◮ In free-field limit this change is

m[w] (B) = m (0) + a 2 |qe B|

◮ Observe through investigation of QCD-free (connected) neutral pion energies ◮ First discussed by Bali et al. 1510.03899, 1707.05600

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 5 / 19

slide-8
SLIDE 8

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Wilson Term Mass Renormalisation

0.00 0.02 0.04 0.06

eBa2

0.10 0.15 0.20 0.25

aE(B)

+ u d

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 5 / 19

slide-9
SLIDE 9

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Clover term

0.00 0.02 0.04 0.06

eBa2

0.075 0.100 0.125 0.150 0.175 0.200 0.225 0.250

aE(B)

+ u d

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 6 / 19

slide-10
SLIDE 10

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Clover term

◮ Careful examination of the clover term

a ccl

  • µ<ν

σµν Fµν

◮ reveals it cancels the Landau shift induced by the Wilson term in the free-field limit ◮ This condition is modified by inclusion of QCD ◮ Allow QCD and electromagnetic field strengths to have different clover coefficients

ccl → CSW F QCD

µν

+ CEM F EM

µν

◮ and set CEM such that Wilson Landau shift is cancelled

CEM = CTree

EM

◮ 1910.14244

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 6 / 19

slide-11
SLIDE 11

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Quark Operators

◮ Standard lattice QCD interpolators are inefficient at isolating energy eigenstates in a

background magnetic field

◮ Quarks are charged! ◮ Quarks experience Landau type effects ◮ QCD causes quarks to hadronise for composite Landau energy ◮ Competing effects, introduce a quark projection operator that includes QCD and QED

Figure: Left: Mode for the lowest quantised magnetic field strength kd = 1. Right: Two degenerate eigenmodes of second quantised field strength kd = 2.

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 7 / 19

slide-12
SLIDE 12

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

SU(3) × U(1) Projection Operator

◮ Two-dimensional lattice Laplacian operator

∆

x, x′ = 4 δ x, x′ −

  • µ=1,2

Uµ

  • x
  • δ

x+ˆ µ, x′ + U† µ

  • x − ˆ

µ

  • δ

x−ˆ µ, x′,

◮ Use low-lying eigenmodes of the 2D Laplacian

  • ψi

B

  • to project the propagator

Pn

  • x, t;

x′, t′ =

n

  • i=1
  • x, t
  • ψi,

B

ψi

B

  • x′, t′

δzz′ δtt′

◮ Projected propagator is

Sn( x, t; 0, 0) =

  • x′

Pn( x, t; x′, t) S( x′, t; 0, 0)

◮ Also project hadronic level Landau effects for proton- using lattice Landau levels

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 8 / 19

slide-13
SLIDE 13

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Energy Shifts

◮ Recall the energy-field relation for an external magnetic field

E(B) = M + µ · B + |qe B| 2 M − 4 π 2 β B2 + O

  • B3

◮ Construct energy difference E(B) − m for aligned and anti-aligned spin-field orientations and

combine G(+s, +B) + G(−s, −B) G(+s, 0) + G(−s, 0) G(+s, −B) + G(−s, +B) G(+s, 0) + G(−s, 0)

  • = e−(2 δ E) t

◮ Extract effective energy shift in standard manner ◮ Hence determine β using

δ E(B, t) = +|qe B| 2 M − 4 π 2 β B2 + O

  • B4
  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 9 / 19

slide-14
SLIDE 14

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Proton Energy Shift

16 18 20 22 24 26 28 30 32

t

0.20 0.15 0.10 0.05 0.00 0.05 0.10 0.15 0.20

E(B) (GeV)

kB = 1,

2 dof = 1.0 len =6

kB = 2,

2 dof = 0.43 len =6

kB = 3,

2 dof = 0.15 len =6

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 10 / 19

slide-15
SLIDE 15

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Polarisability Fit

◮ Fit to these energy shifts δ E(B, t)

δ E(B, t) − |qe B| 2 M = −4 π 2 β B2 = c2 k2

◮ where k is the field quanta from background magnetic field quantisation condition

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 11 / 19

slide-16
SLIDE 16

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Polarisability Fit

1 2 3 4

kB

0.05 0.04 0.03 0.02 0.01 0.00 0.01 0.02 0.03

E (GeV)

= 0.13727 q = 1 constrained c2 k2,

2 dof = 1.099

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 11 / 19

slide-17
SLIDE 17

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Ensemble Details

κud mπ (MeV) Number of Sources Number of configurations 0.13700 702 5 399 0.13727 570 4 400 0.13754 411 6 450 0.13770 296 7 400

◮ Available through the International Lattice Data Grid and PACS-CS Collaboration: Phys. Rev.

D79 (2009) 034503

◮ Lattice Volume: 323 × 64 ◮ 2 + 1 flavour dynamical-fermion QCD ◮ Physical lattice spacing a = 0.0907 fm ◮ Electroquenched - “sea” quarks experience no background magnetic field

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 12 / 19

slide-18
SLIDE 18

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Lattice Results

0.0 0.1 0.2 0.3 0.4 m2 ( GeV2) 1 2 3 4 5

p (10 4 fm3)

Lattice Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 13 / 19

slide-19
SLIDE 19

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Making Contact With Experiment

◮ Use a chiral effective field theory analysis to

  • 1. Account for finite volume effects
  • 2. Model sea-quark-loop contributions to β using techniques of partially quenched χPT

p p n π+

u d d d u u u u d u d d u u d d u u

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 14 / 19

slide-20
SLIDE 20

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Making Contact With Experiment

0.0 0.1 0.2 0.3 0.4 m2 ( GeV2) 1 2 3 4 5

p (10 4 fm3)

Lattice Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 14 / 19

slide-21
SLIDE 21

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Making Contact With Experiment

0.0 0.1 0.2 0.3 0.4 m2 ( GeV2) 1 2 3 4 5

p (10 4 fm3)

Full-QCD Infinite Volume Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 14 / 19

slide-22
SLIDE 22

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Making Contact With Experiment

◮ Use a chiral effective field theory analysis to

  • 1. Account for finite volume effects
  • 2. Model sea-quark-loop contributions to β using techniques of partially quenched χPT
  • 3. Perform a chiral extrapolation to the physical point

◮ Use the techniques of ◮ J. M. M. Hall, D. B. Leinweber, and R. D. Young, Phys. Rev. D89, 054511 (2014),

arXiv:1312.5781 [hep-lat]

◮ R. Bignell, J. Hall, W. Kamleh, D. Leinweber, and M. Burkardt, Phys. Rev. D98, 034504

(2018), arXiv:1804.06574 [hep-lat]

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 14 / 19

slide-23
SLIDE 23

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Making Contact With Experiment

0.0 0.1 0.2 0.3 0.4 m2 ( GeV2) 1 2 3 4 5

p (10 4 fm3)

Full-QCD Infinite Volume EFT Extrapolation Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 14 / 19

slide-24
SLIDE 24

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Neutron Energy Shift

◮ Identical process for neutron correlation functions ◮ A different fit function used

δ E(B, t) = −4 π 2 β B2 = c2 k2

◮ No Hadronic U1 Landau wavefunction projection

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 15 / 19

slide-25
SLIDE 25

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Neutron Energy Shift

20 25 30 35

t

0.20 0.15 0.10 0.05 0.00 0.05 0.10

E(B) (GeV)

kd = 1,

2 dof =1.0, len =6

kd = 2,

2 dof =0.42, len =5

kd = 3,

2 dof =0.59, len =4

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 15 / 19

slide-26
SLIDE 26

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Polarisability Fit

1 2 3 4

kd

0.12 0.10 0.08 0.06 0.04 0.02 0.00

E (GeV)

= 0.13727 c2 k2,

2 dof = 0.8754

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 16 / 19

slide-27
SLIDE 27

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Neutron Extrapolation

0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45

m2 ( GeV2 )

1 2 3 4 5 6 7

n (10 4 fm) Full-QCD Infinite Volume EFT Extrapolation Experiment

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 17 / 19

slide-28
SLIDE 28

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

βp − βn = 0.80 (28) (4) × 10−4 fm3

0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45

m2 ( GeV2 )

2.5 2.0 1.5 1.0 0.5 0.0 0.5 1.0 1.5

p n (10 4 fm)

  • Inf. Vol.

FV Corr. This work Experiment: PDG Reggeon Dom. : GHLR 2015

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 18 / 19

slide-29
SLIDE 29

Introduction Lattice QCD BFCC Action Quark Operators Magnetic Polarisability Proton Neutron Summary

Summary

◮ Removed the additive mass renormalisation due to the Wilson term in a background magnetic

field

◮ Calculated the magnetic polarisability of the proton and neutron using lattice QCD and

background field method

◮ Specialised projection techniques have been used to account Landau effects ◮ Enabling energy shift plateaus ◮ Chiral effective field theory analysis has been performed to connect lattice results to

experiment.

◮ Techniques are applicable to further elements of the hadronic spectrum

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 19 / 19

slide-30
SLIDE 30

BONUS SLIDES

Neutron βn

0.0 0.1 0.2 0.3 0.4 m2 ( GeV2) 1.0 1.5 2.0 2.5 3.0 3.5

n (10 4 fm3)

  • inf. volume extrapolation

Finite volume 3.0 fm Finite volume 4.0 fm Finite volume 5.0 fm Finite volume 6.0 fm Finite volume 7.0 fm Full-QCD Infinite Volume Results Lattice Results

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 1 / 3

slide-31
SLIDE 31

BONUS SLIDES

Results

Table: Magnetic polarisability values for the neutron and proton at each quark mass. The numbers in parantheses describe statistical (systematic) uncertainties. The value at mπ = 0.140 GeV is the result of our chiral extrapolation.

mπ (GeV) βn fm3 × 10−4

nχ2 dof

βp fm3 × 10−4

pχ2 dof

0.702 1.91(12) 0.85 1.91(19) 0.96 0.570 1.68(10) 0.88 1.89(18) 1.10 0.411 1.58(29) 0.74 2.03(21) 0.67 0.296 1.42(37) 0.91 2.08(22) 0.33 0.140 2.06(26)(20) 2.79(22)(18)

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 2 / 3

slide-32
SLIDE 32

BONUS SLIDES

Review of Nucleon Polarisabilities

Figure: Magnetic dipole polarizability βM1 of the nucleon. Figure from 2006.16124

  • R. Bignell (CSSM)

Magnetic Polarisability with the Background Field Method APLAT 2020 3 / 3
