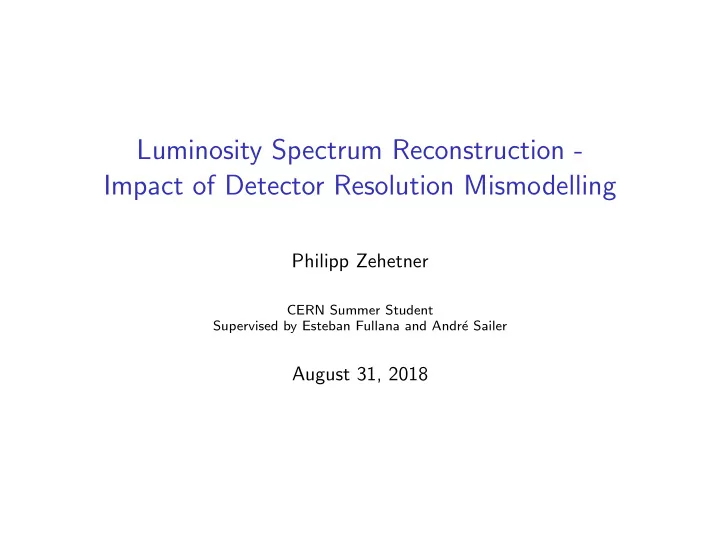

SLIDE 1

Luminosity Spectrum Reconstruction - Impact of Detector Resolution Mismodelling

Philipp Zehetner

CERN Summer Student Supervised by Esteban Fullana and Andr´ e Sailer

August 31, 2018

SLIDE 2

Preview

1. Short Introduction to Luminosity Spectra
2. Simulating the Luminosity Spectrum
3. Motivation for my Project
4. Analysis and Results
5. Outlook

SLIDE 3

What is the Luminosity Spectrum?

E [GeV] 500 1000 1500 dN/dE

7

10

6

10

5

10

4

10

3

10

2

10 Figure: Simulated CLIC luminosity spectrum for 3 TeV

SLIDE 4

Why is it not a delta-distribution?

SLIDE 5

Why is it not a delta-distribution?

◮ Beam-energy-spread Particles’ energy depend on their longitudinal position within the

bunch. This is a property of the accelerator.

SLIDE 6

Why is it not a delta-distribution?

◮ Beam-energy-spread Particles’ energy depend on their longitudinal position within the

bunch. This is a property of the accelerator.

◮ Pinch-effect Small beams generate large electrical fields. These fields squeeze the beam and defelct the particles towards the center.

SLIDE 7

Why is it not a delta-distribution?

◮ Beam-energy-spread Particles’ energy depend on their longitudinal position within the

bunch. This is a property of the accelerator.

◮ Pinch-effect Small beams generate large electrical fields. These fields squeeze the beam and defelct the particles towards the center. ◮ Beamstrahlung Deflected particles radiate photons and thus reduce the particle’s energy.

SLIDE 8

Why is it not a delta-distribution?

◮ Beam-energy-spread Particles’ energy depend on their longitudinal position within the

bunch. This is a property of the accelerator.

◮ Pinch-effect Small beams generate large electrical fields. These fields squeeze the beam and defelct the particles towards the center. ◮ Beamstrahlung Deflected particles radiate photons and thus reduce the particle’s energy. ◮ Correlation between energies If a particle collides with a particle at the front it is less likeley to have radiated beamstrahlung as it travelled less in the other particles’ field.

SLIDE 9

Beam-Energy-Spread

m] µ Z [

150 -100
50

50 100 150

Beam

E/E ∆

0.01

0.01

(a) Energy dependece on longitudinal position

Beam

E/E ∆ x=

0.004-0.002

0.002 0.004 dN/dx 100 200 300 400 Energy spread

(b) Beam-energy-spread as simulated by GuineaPig

SLIDE 10

Energy Correlation

1

10 1 10

2

10

3

10

Beam

/E

1

E 0.5 1

Beam

/E

2

E 0.5 1

Energy spectrum simulated with GuineaPig for 3 TeV

SLIDE 11

Why do we care?

SLIDE 12

Why do we care?

◮ Cross-sections depend on the centre-of-mass energy Assuming that all particles have the nominal energy is just wrong and would yield large errors on the cross-sections which propagate in many other measurements

SLIDE 13

Why do we care?

◮ Cross-sections depend on the centre-of-mass energy Assuming that all particles have the nominal energy is just wrong and would yield large errors on the cross-sections which propagate in many other measurements ◮ Lorentz boost depends on energy difference and observables measured in the lab-frame depend on the Lorentz

boost. If one particle has lost energy, lab frame and centre-of-mass

frame are not identical anymore

SLIDE 14

How can we ’calculate’ it?

SLIDE 15

How can we ’calculate’ it?

◮ We can’t (at least not directly) The pinch effect and thus the Beamstrahlung highly depend on the exact geometry of the bunch which can’t be measured

SLIDE 16

How can we ’calculate’ it?

◮ We can’t (at least not directly) The pinch effect and thus the Beamstrahlung highly depend on the exact geometry of the bunch which can’t be measured ◮ It can be measured indirectly using Bhabha scattering E.g. as described in Luminosity Spectrum Reconstruction at Linear Colliders by St´ ephane Poss and Andr´ e Sailer.

SLIDE 17

The Model

The model consists of four different parts: ◮ Peak: No particle radiated beamstrahlung ◮ Body: Both particles radiated beamstrahlung ◮ Arm1: Particle 2 radiated beamstrahlung ◮ Arm2: Particle 1 radiated beamstrahlung

7

10

6

10

5

10

4

10

3

10

1

x 0.97 0.98 0.99 1 1.01

2

x 0.97 0.98 0.99 1 1.01 Peak Peak

7

10

6

10

5

10

4

10

3

10

1

x 0.97 0.98 0.99 1 1.01

2

x 0.97 0.98 0.99 1 1.01 Arm1 Arm1

7

10

6

10

5

10

4

10

3

10

1

x 0.97 0.98 0.99 1 1.01

2

x 0.97 0.98 0.99 1 1.01 Arm2 Arm2

7

10

6

10

5

10

4

10

3

10

1

x 0.97 0.98 0.99 1 1.01

2

x 0.97 0.98 0.99 1 1.01 Body Body

SLIDE 18

Mathematical Model

L (x1, x2) = pPeakδ (1 − x1) ⊗ BES

x1; [p]1

Peak

δ (1 − x2) ⊗ BES
x2; [p]2

Peak

+pArm1δ (1 − x1) ⊗ BES
x1; [p]1

Arm1

BB
x2; [p]2

Arm1, βArm Limit

+pArm2BB
x1; [p]1

Arm2, βArm Limit

δ (1 − x2) ⊗ BES
x2; [p]2

Arm2

+pBodyBG
x1; [p]1

Body, βBody Limit

BG
x2; [p]2

Body, βBody Limit

(1)

◮ 19 free parameters

SLIDE 19

Extracting the Luminosity Spectrum

MC events generated according to the model Events simulated with GuineaPig later: Data

SLIDE 20

Extracting the Luminosity Spectrum

MC events generated according to the model Events simulated with GuineaPig later: Data after Bhabha scattering after Bhabha scattering

BHWIDE BHWIDE

SLIDE 21

Extracting the Luminosity Spectrum

MC events generated according to the model Events simulated with GuineaPig later: Data after Bhabha scattering after Bhabha scattering

BHWIDE BHWIDE

Detector Level Detector Level

Gaussian

Smearing

Gaussian

Smearing

SLIDE 22

Extracting the Luminosity Spectrum

MC events generated according to the model Events simulated with GuineaPig later: Data after Bhabha scattering after Bhabha scattering

BHWIDE BHWIDE

Detector Level Detector Level

Gaussian

Smearing

Gaussian

Smearing Fitted model as good approximation for the luminosity spectrum

SLIDE 23

Error Propagation

◮ Create 38 new luminosity spectra by shifting each parameter by ±σ ◮ The error on the top mass for each parameter is the difference between the nominal value and the one obtained by the shifted luminosity spectrum ◮ The total error is the square sum of the errors taking in account the covariance matrix

SLIDE 24

Reference

◮ All plots shown so far were taken from Luminosity Spectrum Reconstruction at Linear Colliders written by St´ ephane Poss and Andr´ e Sailer ◮ They were assuming the final energy stage of 3 TeV

E u r . P h y s . J . C m a n u s c r i p t N

.

( w i l l b e i n s e r t e d b y t h e e d i t

r

)

Luminosity Spectrum Reconstruction at Linear Colliders

S t ´ e p h a n e P

s

s

a,1

, A n d r ´ e S a i l e r

b,1 1CERN, 1211 Geneva 23, Switzerland Received: date / Accepted: date

A b s t r a c t A g

d

k n

w

l e d g e

f

t h e l u m i n

s

i t y s p e c t r u m i s m a n d a t

r

y f

r

m a n y m e a s u r e m e n t s a t f u t u r e e

+

e

−

c

l

l i d e r s . A s t h e b e a m

p

a r a m e t e r s d e t e r m i n i n g t h e l u m i n

s

i t y s p e c

t

r u m c a n n

t

b e m e a s u r e d p r e c i s e l y , t h e l u m i n

s

i t y s p e c t r u m h a s t

b

e m e a s u r e d t h r

u

g h a g a u g e p r

c

e s s w i t h t h e d e

t

e c t

r

. T h e m e a s u r e d d i s t r i b u t i

n

s , u s e d t

r

e c

n

s t r u c t t h e s p e c t r u m , d e p e n d

n

I n i t i a l S t a t e R a d i a t i

n

, c r

s

s

s

e c t i

n

, a n d F i n a l S t a t e R a d i a t i

n

. T

e

x t r a c t t h e b a s i c l u m i n

s

i t y s p e c t r u m , a p a r a m e t r i c m

d

e l

f

t h e l u m i n

s

i t y s p e c t r u m i s c r e a t e d , i n t h i s c a s e t h e s p e c t r u m a t t h e 3 T e V C

m

p a c t L i n

e

a r C

l

l i d e r ( C L I C ) . T h e m

d

e l i s u s e d w i t h i n a r e w e i g h t i n g t e c h n i q u e t

e

x t r a c t t h e l u m i n

s

i t y s p e c t r u m f r

m

m e a s u r e d B h a b h a e v e n t

b

s e r v a b l e s , t a k i n g a l l r e l e v a n t e f f e c t s i n t

a

c

c
u

n t . T h e c e n t r e

f
m

a s s e n e r g y s p e c t r u m i s r e c

n

s t r u c t e d w i t h i n 5 %

v

e r t h e f u l l v a l i d i t y r a n g e

f

t h e m

d

e l . T h e r e

c
n

s t r u c t e d s p e c t r u m d

e

s n

t

r e s u l t i n a s i g n i fi c a n t b i a s

r

s y s t e m a t i c u n c e r t a i n t y i n t h e e x e m p l a r y p h y s i c s b e n c h m a r k p r

c

e s s

f

s m u

n

p a i r p r

d

u c t i

n

. K e y w

r

d s L i n e a r C

l

l i d e r · L u m i n

s

i t y S p e c t r u m · C L I C 1 I n t r

d

u c t i

n

S m a l l , n a n

m

e t r e

s

i z e d b e a m s a r e n e c e s s a r y t

r

e a c h t h e r e

q

u i r e d l u m i n

s

i t y a t f u t u r e l i n e a r c

l

l i d e r s . T

g

e t h e r w i t h t h e h i g h e n e r g y , t h e s m a l l b e a m s c a u s e l a r g e e l e c t r

m

a g

n

e t i c fi e l d s d u r i n g t h e b u n c h c r

s

s i n g . T h e s e i n t e n s e fi e l d s a t t h e i n t e r a c t i

n

p

i

n t s q u e e z e t h e b e a m s . T h i s s

c

a l l e d p i n c h e f f e c t i n c r e a s e s t h e i n s t a n t a n e

u

s l u m i n

s

i t y . H

w
e

v e r , t h e d e fl e c t i

n
f

t h e p a r t i c l e s a l s

l

e a d s t

t

h e e m i s s i

n
f

B e a m s t r a h l u n g p h

t
n

s – w h i c h r e d u c e t h e n

m

i n a l e n

e

r g y

f

c

l

l i d i n g p a r t i c l e s – a n d p r

d

u c e s c

l

l i s i

n

s b e l

w

t h e n

m

i n a l c e n t r e

f
m

a s s e n e r g y [ 1 , 2 , 3 , 4 ] . T h e r e s u l t i n g
