LOWER MAIN STREET RECONSTRUCTION N B R I D G T O N , M A I N E A U G U S T 2 8 , 2 0 1 8 PROJECT INFORMATION Milone & MacBroom has been tasked with the reconstruction and streetscaping design of Lower Main Street in Bridgton, Maine. The

slide-1

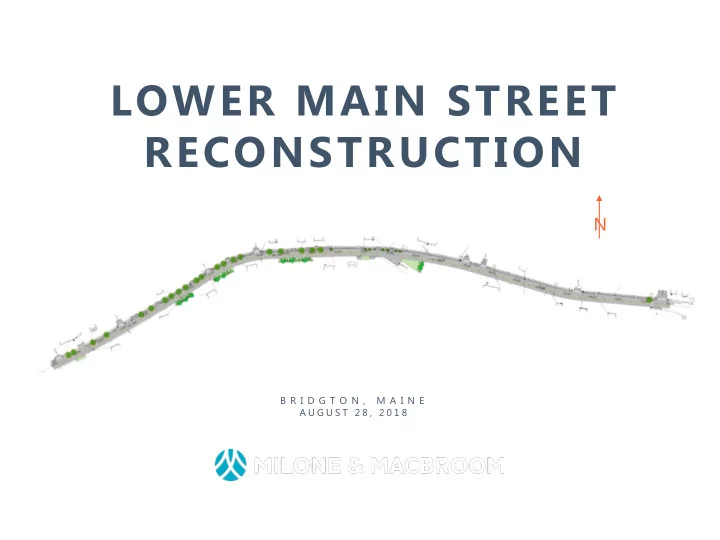

SLIDE 1

B R I D G T O N , M A I N E A U G U S T 2 8 , 2 0 1 8

LOWER MAIN STREET RECONSTRUCTION

N

slide-2
SLIDE 2

Milone & MacBroom has been tasked with the reconstruction and streetscaping design of Lower Main Street in Bridgton, Maine. The reconstruction will result in improved roadway geometry and improved pedestrian facilities. Key Facts:

  • Extends Eastwardly down Lower Main Street from Mechanic St to Cross St.
  • Length: Approx. 2500 ft
  • Width: 34’ Total (10’ lane, 2’ shoulder, 5’ esplanade (Up to Kansas Rd), 5’ sidewalk)
  • Full depth asphalt reclamation and full depth construction
  • Curbing
  • Granite - Mechanic St to Kansas Rd
  • Bituminous - Kansas Rd to Cross St
  • Sidewalks:
  • Concrete - Mechanic St to Kansas Rd
  • Bituminous - Kansas Rd to Cross St
  • Utilities: Full storm drainage reconstruction, re-alignment of power poles, relocation of fire hydrants
  • Landscaping: Grassed and stamped concrete esplanade up to Kansas Rd, Street Trees and Street Lighting (to match Upper Main

Street), Improved Sidewalk layout, removal of invasive knotweed along southern side of roadway

PROJECT INFORMATION

slide-3
SLIDE 3

CURRENT CONDITION

Looking East from intersection with Mechanic St.

slide-4
SLIDE 4

CURRENT CONDITION

Looking West from intersection with Cross St

slide-5
SLIDE 5

LOWER MAIN STREET LAYOUT

slide-6
SLIDE 6

LOWER MAIN STREET LAYOUT

slide-7
SLIDE 7

LOWER MAIN STREET TYPICAL SECTIONS

slide-8
SLIDE 8

STREETSCAPE

SIDEWALK GRANITE CURBING GRASS PAVER/STAMPED CONCRETE TREE BOX STREET TREE

TREE BOX DETAIL

GRANITE CURBING 2” FLEXI PAVE SIDEWALK 6” CRUSHED STONE ROADWAY TREE

slide-9
SLIDE 9

LANDSCAPING

ARROWWOOD VIBURNUM ILEX VERTICILATTA – “WINTER BERRY” RED TWIG DOGWOOD HORNBEAM COLUMNAR MAPLE AMELANCHIER – “AUTUMN BRILLANCE”

slide-10
SLIDE 10

STREET TREE BASES

slide-11
SLIDE 11

ENGINEER ESTIMATE

CONTACT WORK: $1,174,000 10% CONTINGENCY: $117,400 TOTAL: $1,291,400
