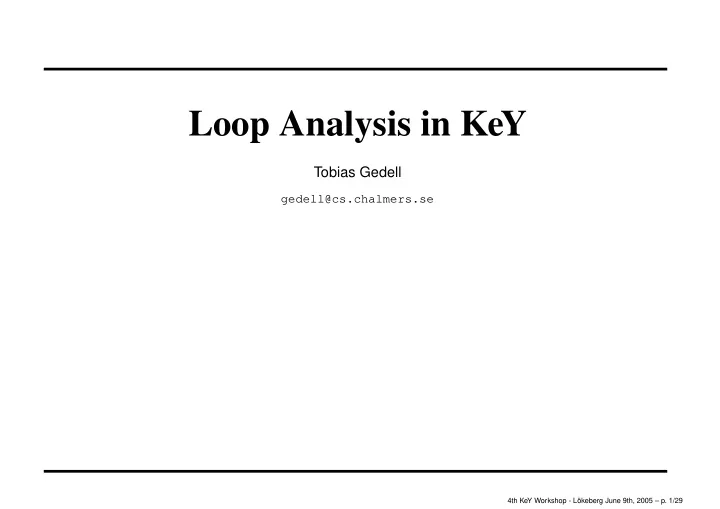

Loop Analysis in KeY

Tobias Gedell

gedell@cs.chalmers.se

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 1/29

Introduction

There are currently two ways of handling loops in KeY:

⊲ Symbolic execution - repeated unwinding of loops

Can be performed automatically by the system, but time consuming and not always possible.

⊲ Induction

Hard to use and cannot automatically be applied by the system.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 2/29

Symbolic execution - drawbacks

Example: for(int i = 0; i < a.length; i++) a[i] = i;

⊲ Time consuming: If a.length is large than we need to execute

the loop many times.

⊲ Not possible: If a.length is unknown we do not know when to

stop. We want to do better!

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 3/29

Symbolic execution - how it works

for(int i = 0; i < a.length; i++) a[i] = i; ...

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 4/29

Symbolic execution - how it works

for(int i = 0; i < a.length; i++) a[i] = i; ... {a[0] := 0} for(int i = 1; i < a.length; i++) a[i] = i; ...

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 5/29

Symbolic execution - how it works

for(int i = 0; i < a.length; i++) a[i] = i; ... {a[0] := 0} for(int i = 1; i < a.length; i++) a[i] = i; ... {a[0] := 0, a[1] := 1} for(int i = 2; i < a.length; i++) a[i] = i; ...

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 6/29

Symbolic execution - how it works

for(int i = 0; i < a.length; i++) a[i] = i; ... {a[0] := 0} for(int i = 1; i < a.length; i++) a[i] = i; ... {a[0] := 0, a[1] := 1} for(int i = 2; i < a.length; i++) a[i] = i; ... {a[0] := 0, a[1] := 1, a[2] := 2, . . .} ...

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 7/29

Symbolic execution - how it works

for(int i = 0; i < a.length; i++) a[i] = i; ... {a[0] := 0} for(int i = 1; i < a.length; i++) a[i] = i; ... {a[0] := 0, a[1] := 1} for(int i = 2; i < a.length; i++) a[i] = i; ... {a[0] := 0, a[1] := 1, a[2] := 2, . . .} ... We iteratively construct the update describing all side-effects of the loop.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 8/29

Symbolic execution - how it works

For this example the update could have been constructed in a much more direct way! We can see that for each iteration of the loop the update {a[I] := I} will be added. We also know that these updates do not clash with each other. We can, therefore, skip the execution of the loop and instead directly construct the update:

{∀I ∈ [0, a.length − 1]. a[I] := I, i := a.length}

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 9/29

Loop Analysis - the idea

The idea behind the new treatment of loops is that we systematically:

• 1. Calculate the update of the loop body and abstract over the value
• f the loop variable,

{a[I] := I}

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 10/29

Loop Analysis - the idea

The idea behind the new treatment of loops is that we systematically:

• 1. Calculate the update of the loop body and abstract over the value
• f the loop variable,

{a[I] := I}

• 2. calculate the range of the loop variable,

[0, a.length - 1]

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 11/29

Loop Analysis - the idea

The idea behind the new treatment of loops is that we systematically:

• 1. Calculate the update of the loop body and abstract over the value
• f the loop variable,

{a[I] := I}

• 2. calculate the range of the loop variable,

[0, a.length - 1]

• 3. make sure that some properties are fulfilled by the loop,

For example no clashing.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 12/29

Loop Analysis - the idea

The idea behind the new treatment of loops is that we systematically:

• 1. Calculate the update of the loop body and abstract over the value
• f the loop variable,

{a[I] := I}

• 2. calculate the range of the loop variable,

[0, a.length - 1]

• 3. make sure that some properties are fulfilled by the loop,

For example no clashing.

• 4. replace the loop by the abstracted update, quantified over by the

range of the loop variable.

{∀I ∈ [0, a.length − 1]. a[I] := I, i := a.length}

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 13/29

Loop Analysis - calculating the update

When calculating the abstract update for the loop body, there are mainly two ways to go:

⊲ We can create a program analysis that calculates all assignments

that are made. Pros: could be tailor made for specific purposes like checking for clashes. Cons: much implementation work, can already be done by KeY.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 14/29

Loop Analysis - calculating the update

When calculating the abstract update for the loop body, there are mainly two ways to go:

⊲ We can create a program analysis that calculates all assignments

that are made. Pros: could be tailor made for specific purposes like checking for clashes. Cons: much implementation work, can already be done by KeY.

⊲ We can also let KeY compute the update.

Pros: little implementation work, can check additional properties.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 15/29

Loop Analysis - soundness properties

Observation: What we want to do is quite similar to loop vectorization and parallelization. Instead of executing the loop in a sequential order we execute it in parallel. This can only be done when some properties are fulfilled:

⊲ The loop variable is monotonically increasing/decreasing.

(The order of the updates must be clear.)

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 16/29

Loop Analysis - soundness properties

Observation: What we want to do is quite similar to loop vectorization and parallelization. Instead of executing the loop in a sequential order we execute it in parallel. This can only be done when some properties are fulfilled:

⊲ The loop variable is monotonically increasing/decreasing.

(The order of the updates must be clear.)

⊲ The loop condition is of the form, i op e, where the value of e is not

modified by the loop body. (We need to be able to calculate the range of the loop variable.)

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 17/29

Loop Analysis - soundness properties

Observation: What we want to do is quite similar to loop vectorization and parallelization. Instead of executing the loop in a sequential order we execute it in parallel. This can only be done when some properties are fulfilled:

⊲ The loop variable is monotonically increasing/decreasing.

(The order of the updates must be clear.)

⊲ The loop condition is of the form, i op e, where the value of e is not

modified by the loop body. (We need to be able to calculate the range of the loop variable.)

⊲ The loop body does not terminate the loop by executing a break,

raising an exception or something similar.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 18/29

Loop Analysis - soundness properties

Observation: What we want to do is quite similar to loop vectorization and parallelization. Instead of executing the loop in a sequential order we execute it in parallel. This can only be done when some properties are fulfilled:

⊲ The loop variable is monotonically increasing/decreasing.

(The order of the updates must be clear.)

⊲ The loop condition is of the form, i op e, where the value of e is not

modified by the loop body. (We need to be able to calculate the range of the loop variable.)

⊲ The loop body does not terminate the loop by executing a break,

raising an exception or something similar.

⊲ There is no dependence between the loop iterations.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 19/29

Loop Analysis - soundness properties

There are mainly two different kinds of dependencies: for(int i = 0; i <= 10; i++) s: a[i] = a[i - 1];

sv - the statement s where the loop variable has the value v. ⊲ Data dependence

A statement sk writes to a location that is read by a statement sl. If k < l, (a[i] = a[i - 1]), we cannot execute the loop in parallel. If k > l, (a[i] = a[i + 1]), we execute it in parallel and replace a on the RHS with an array containing the original values of a.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 20/29

Loop Analysis - soundness properties

There are mainly two different kinds of dependencies:

⊲ Output dependence

A statement sk writes to a location that is overwritten by a statement sl. Both the cases where k > l and l < k, (a = f(i)), can be handled by using a last-win clash semantics for the constructed quantified updates. We must only make sure that the updates comes in the right order.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 21/29

Loop Analysis - benefits of KeY

Traditionally, in the field of loop vectorization and parallelization, the test for dependence gives just a boolean answer. If some part of the program is unknown, it must approximate and say that there is a dependence. We, on the other hand, have a theorem prover backing us up!

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 22/29

Loop Analysis - benefits of KeY

Traditionally, in the field of loop vectorization and parallelization, the test for dependence gives just a boolean answer. If some part of the program is unknown, it must approximate and say that there is a dependence. We, on the other hand, have a theorem prover backing us up! Consider for example: for(i = 0; i <= 10; i = i + 1) a[i] = b[i + c];

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 23/29

Loop Analysis - benefits of KeY

Traditionally, in the field of loop vectorization and parallelization, the test for dependence gives just a boolean answer. If some part of the program is unknown, it must approximate and say that there is a dependence. We, on the other hand, have a theorem prover backing us up! Consider for example: for(i = 0; i <= 10; i = i + 1) a[i] = b[i + c]; Question: Is there any dependence between the loop iterations?

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 24/29

Loop Analysis - benefits of KeY

Answer: It depends on the value of a, b and c. for(i = 0; i <= 10; i = i + 1) a[i] = b[i + c]; If a and b are the same array and c is between -10 and -1 then there is a dependence.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 25/29

Loop Analysis - benefits of KeY

Answer: It depends on the value of a, b and c. for(i = 0; i <= 10; i = i + 1) a[i] = b[i + c]; If a and b are the same array and c is between -10 and -1 then there is a dependence. Instead of giving up and approximating, we calculate a constraint describing when no dependence is present. If we can then show that the constraint is fulfilled, we can replace the loop with a quantified update.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 26/29

Loop Analysis - example

Example: for(i = 0; i <= 10; i = i + 1) a[i] = b[i + c]; Constraint for non-dependence: (a != b \/ 0 > 10 + c \/ -1 < c) New rule for loops:

LOOP Γ ⊢ <{.. old-rule(loop) ...}>φ, ∆, c Γ ⊢ <{.. replace-by-update(loop) ...}>φ, ∆, !c Γ ⊢ <{.. loop ...}>φ, ∆

where

loop ≡ for(..; ..; ..).. c = non-dependence-constraint(loop)

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 27/29

Loop Analysis - In practice

How many loops can we handle with this method? DeMoney & IButtonAPI & SafeApplet Yes Need extensions No 3 3 4 Extensions:

⊲ Transform offset += LEN_KEY

into

• ffset

= offset0 + LEN_KEY * i. (2)

⊲ Create objects in updates. (1)

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 28/29

Loop Analysis - observations

⊲ The dependence analysis is tailor made for solving constraints of a

certain kind and the more information KeY gives to it, the better result do we get. The dependence analysis can be seen as a specialized prover for a limited subset of integer problems.

⊲ We need quantified updates with a deterministic semantics for

clashes—last-win clash semantics.

⊲ Only works for a special class of loops.

4th KeY Workshop - L¨

• keberg June 9th, 2005 – p. 29/29
