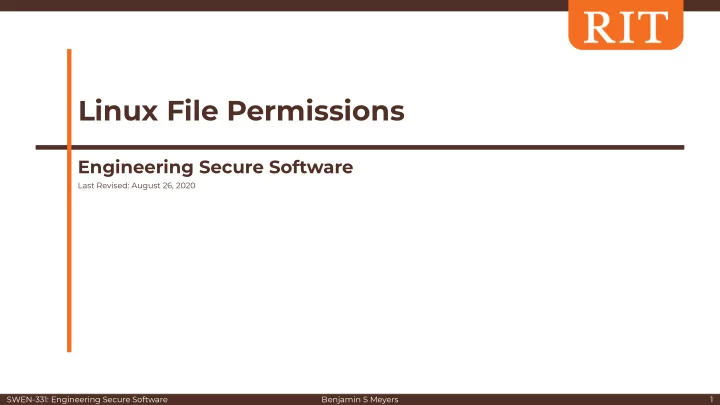

SLIDE 1

SWEN-331: Engineering Secure Software Benjamin S Meyers

Linux File Permissions

Engineering Secure Software

Last Revised: August 26, 2020 1

SLIDE 2

SWEN-331: Engineering Secure Software Benjamin S Meyers

Review: Principle of Least Privilege

Every user, thread, process, module needs permissions to run
Give the least amount of privilege necessary to function
Dangers of sudo
e.g. secretary vs. custodian vs. salesperson vs. developer

2

SLIDE 3

SWEN-331: Engineering Secure Software Benjamin S Meyers

Linux File Permissions

Each file and directory has bits for:

○ Read: r ○ Write: w ○ Execute: x

Bits work like you expect for files
For directories:

○ r → “can list files in a directory” (but not read a given file) ○ w → “can create, change, delete files in a directory” ○ x → “cannot cd (change directory) to that directory”

3

SLIDE 4

SWEN-331: Engineering Secure Software Benjamin S Meyers

Linux File Permissions

Thus, you may only read a file IFF you:

○ Have read (r) permissions to the file AND ○ Have execute (x) permissions to that file’s directory

Files and directories have 3 levels of permissions:

○ Owner, Group, and Everyone Else ○ aka: User (u), Group (g), Other (o)

4

SLIDE 5

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb

5

SLIDE 6

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
. (one dot) → current directory
.. (two dots) → parent directory

6

SLIDE 7

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
d → directory
→ regular file
l → symlink (that’s a lowercase “L”, not the number “1”)

7

SLIDE 8

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Octets

○ user/owner permissions ○ group permissions ○

ther permissions

8

SLIDE 9

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy execute myprog.py?

9

SLIDE 10

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy execute myprog.py?

○ No, andy is not the owner of myprog.py, and the faculty group (which andy is a member of) does not have permission to execute (x) myprog.py

10 10

SLIDE 11

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can both kal and andy execute ourprog.rb?

11 11

SLIDE 12

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can both kal and andy execute ourprog.rb?

○ Yes, everyone in the faculty group can execute (x) ourprog.rb

12 12

SLIDE 13

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy read ourprog.rb?

13 13

SLIDE 14

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy read ourprog.rb?

○ Yes, because andy has read (r) permissions to the ourprog.rb and execute (x) permissions to ourprog.rb’s parent directory

14 14

SLIDE 15

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy change directory (cd) into mydir?

15 15

SLIDE 16

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can andy change directory (cd) into mydir?

○ No, because the faculty group (which andy is a member of) does not have execute (x) permissions for mydir

16 16

SLIDE 17

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can jane (member of the student group) read ourprog.rb?

17 17

SLIDE 18

SWEN-331: Engineering Secure Software Benjamin S Meyers

Output of ls

List permissions of a file/directory: ls -l

permissions user group file/dir name drwxr-x--- [...] kal faculty [...] . drwx------ [...] kal faculty [...] ..

rwxrwxrwx [...] kal faculty [...] allopen.sh

drwx------ [...] kal faculty [...] mydir

rw------- [...] kal faculty [...] myfile.txt
rwx------ [...] kal faculty [...] myprog.py

drwxrwx--- [...] kal faculty [...] ourdir

rwxrwx--- [...] andy faculty [...] ourprog.rb
Can jane (member of the student group) read ourprog.rb?

○ Yes, if the student group is a member of the faculty group ○ Otherwise, no

18 18

SLIDE 19

SWEN-331: Engineering Secure Software Benjamin S Meyers

Changing Permissions w/ chmod

chmod <options> <file/dir name>

○ Set (=), add (+), remove (-) ○ Set user to rw, not x: chmod u=rw . ○ Set user, groups to only w: chmod ug=w . ○ Set user, groups to rx, recursively: chmod -R ug=rx . ○ Add “groups can rw”: chmod g+rw . ○ Add “everyone can read”: chmod a+r . ○ Remove “group can write”: chmod g-w .

19 19

SLIDE 20

SWEN-331: Engineering Secure Software Benjamin S Meyers

Changing Permissions w/ chmod

Octal notation

○ e.g. chmod 755 file.txt ○ Good for setting, not adding/removing ○ 1, 2, 3 are seldom used for files

20 20

rwx

-x
w-
wx

r-- r-x rw- rwx binary 000 001 010 011 100 101 110 111 decimal 1 2 3 4 5 6 7

SLIDE 21

SWEN-331: Engineering Secure Software Benjamin S Meyers

Default Permissions (umask)

When a file is created…

○ User mask (umask) is consulted for permissions ○ Owner = user that created the file ○ The resulting default permission C = (P & ~Q), where:

■ Q is the mask and P is 666 for files and 777 for directories ■ e.g. is mask is 077, a file’s permission C = 666 & ~(077) = 600 or

rw-------

○ Or subtract octally, “digit by digit”

■ Tricky when the mask has a 7 in it ■ e.g. if mask is 022, a directory’s permission C = 777-022=755 or drwxr-xr-x

21 21

SLIDE 22

SWEN-331: Engineering Secure Software Benjamin S Meyers

Default Permissions (umask)

nitron.se.rit.edu default: rw------- (or 077)
Common default: rw-r--r-- (or 022)
Common umask for shared group stuff: rw-rw---- (or 007)
Programs can change their own umask

○ Blessing for good developers, but a curse for system admins

Why is this evil? chmod -R 777 /

22 22

SLIDE 23

SWEN-331: Engineering Secure Software Benjamin S Meyers

Executing as Users

Normally, when executing

○ OS ignores the owner of the program file ○ Runs the program as you (assuming you have permission) ○ e.g. prog.sh owned by root gets run as you

This allows for root to have files that cannot be modified, but

can be executed

○ e.g. passwd (change password) should not be tampered with

sudo: execute this program as root user (“superuser do”)

○ e.g. sudo /etc/init.d/apache start

su: change the current user to someone else

23 23

SLIDE 24

SWEN-331: Engineering Secure Software Benjamin S Meyers

File Permissions in Windows

Windows file permissions are handled by

the Operating System

○ Users and groups ○ Read, write, execute ○ Privilege escalation

24 24 Source: https://www.howtogeek.com Source: https://helpdeskgeek.com/ Source: https://www.raymond.cc/blog/

SLIDE 25

SWEN-331: Engineering Secure Software Benjamin S Meyers

setuid and setgid

Set special user and group ID bits on files

○ chmod ug+s ./prog.sh ○ “Execute as the owner’s rights, not as the executing user’s rights” (assuming you have permission to execute it)

Files owned by root with setuid are highly risky

○ Arbitrary code execution vulnerability? Executing as root. ○ App developers should almost never use this ○ OS commands have a lot of these (e.g. passwd is owned by root with setuid)

Repudiation (auditability) becomes a major threat with

setuid and setgid

25 25

SLIDE 26

SWEN-331: Engineering Secure Software Benjamin S Meyers

setuid and setgid

Set special user and group ID bits on directories

○ setuid on directories is ignored in Linux ○ setgid means new files inherit the group ID

Sticky bit

○ Only a file’s owner, the owner of the file’s directory, or root can delete the file

26 26

SLIDE 27

SWEN-331: Engineering Secure Software Benjamin S Meyers

Example

larry $ umask 007 larry $ mkdir dir larry $ touch dir/file.sh larry $ ls -l dir/ drwx------ [...] larry stooges [...] . → ./dir drwx------ [...] larry stooges [...] .. → ./dir/..

rw------- [...] larry stooges [...] file.sh

larry $ ./dir/file.sh bash: ./dir/file.sh: Permission denied larry $ chmod -R ug+x . curly $ ./dir/file.sh [Success!] curly $ ls -l ./dir bash: ./dir/: Permission denied

27 27

SLIDE 28

SWEN-331: Engineering Secure Software Benjamin S Meyers

Example

larry $ umask 007 larry $ mkdir dir larry $ touch dir/file.sh larry $ ls -l dir/ drwx------ [...] larry stooges [...] . → ./dir drwx------ [...] larry stooges [...] .. → ./dir/..

rw------- [...] larry stooges [...] file.sh

larry $ ./dir/file.sh bash: ./dir/file.sh: Permission denied larry $ chmod -R ug+x . curly $ ./dir/file.sh [Success!] curly $ ls -l ./dir bash: ./dir/: Permission denied

28 28

curly can execute because of ug+x curly can’t ls because he doesn’t have read access on ./dir

SLIDE 29

SWEN-331: Engineering Secure Software Benjamin S Meyers

Beware of sudo

“He sees you when you’re sleeping, he knows when you’re awake,

he’s copied on /var/spool/mail/root, so be good for goodness’ sake!”

29 29

Source: https://xkcd.com/838/
