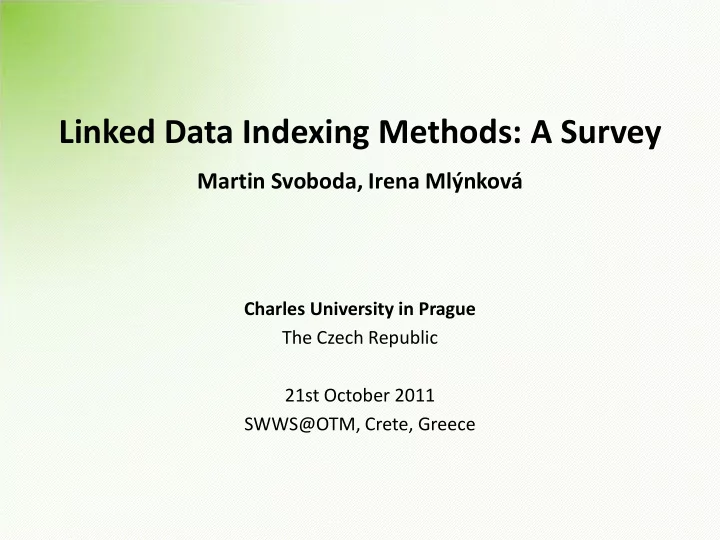

Linked Data Indexing Methods: A Survey

Martin Svoboda, Irena Mlýnková

Charles University in Prague The Czech Republic 21st October 2011 SWWS@OTM, Crete, Greece

Linked Data Indexing Methods: A Survey 2 SWWS@OTM, Crete, Greece 21st October 2011

Outline

• Introduction
• Dimensions
• Approaches
• Observations
• Challenges
• Conclusion

Linked Data Indexing Methods: A Survey 3 SWWS@OTM, Crete, Greece 21st October 2011

Introduction

• Motivation
• Web of Documents
• Web of Data
• Linked Data
• Principles

‒ Unique identifiers (URIs) ‒ Useful description (HTTP, RDF) ‒ Links

Linked Data Indexing Methods: A Survey 4 SWWS@OTM, Crete, Greece 21st October 2011

Introduction

• RDF (Resource Description Framework)
• Triples

‒ Subject Predicate Object.

• Graph

‒ Directed labeled multigraph ‒ Vertices for subjects and objects ‒ Edges for particular triples

Linked Data Indexing Methods: A Survey 5 SWWS@OTM, Crete, Greece 21st October 2011

Intent

• Querying framework
• Architecture

‒ Compromise between local and distributed approaches

• Issues

‒ Physical storage ‒ Index structures ‒ Query processor

• Problems

‒ Data scalability, distribution and dynamicity

Linked Data Indexing Methods: A Survey 6 SWWS@OTM, Crete, Greece 21st October 2011

Intent

• Architecture
• Local

‒ Efficient processing ‒ Independent data ‒ Storage requirements

• Distributed

‒ Runtime requests ‒ Up-to-date data ‒ Network throughput

Linked Data Indexing Methods: A Survey 7 SWWS@OTM, Crete, Greece 21st October 2011

Dimensions

• Aspects
• Data
• Index
• Querying
• Dimensions
• Not all combinations make sense

Linked Data Indexing Methods: A Survey 8 SWWS@OTM, Crete, Greece 21st October 2011

Dimensions

• Data distribution
• Local, distributed or global data
• Data units
• Triples, quads, documents or other sources
• Data dynamicity
• Durable, changeable or volatile data
• Index organization
• Local or distributed model

Linked Data Indexing Methods: A Survey 9 SWWS@OTM, Crete, Greece 21st October 2011

Dimensions

• Index items
• Keywords, triples, quads, trees, paths or areas
• Index content
• Pure data, statistics or summaries about data
• Index dynamicity
• Dynamic or static structures
• Access patterns
• Universal or limited approaches

Linked Data Indexing Methods: A Survey 10 SWWS@OTM, Crete, Greece 21st October 2011

Dimensions

• Querying layer
• Syntactic, structural or semantic querying
• Query models
• Full text querying or graph patterns
• Query evaluation
• Local or distributed processing
• Query results
• Complete or incomplete results

Linked Data Indexing Methods: A Survey 11 SWWS@OTM, Crete, Greece 21st October 2011

Categories

• Main approach types
• Querying systems

‒ Local or distributed data ‒ Structural queries ‒ Complete results

• Searching engines

‒ Global data cloud ‒ Full text queries ‒ Imprecise results

Linked Data Indexing Methods: A Survey 12 SWWS@OTM, Crete, Greece 21st October 2011

Approaches

• Source selection

‒ Andreas Harth et al.: Data Summaries for On-Demand Queries over Linked Data

• Data transformation

‒ 3-dimenisonal space ‒ Hash functions

• Q-trees based on R-trees

‒ Overlapping bounding boxes ‒ Buckets with summaries

Dataset A 87 Dataset B 14 (5, 10, 5) (15, 20, 25)

Linked Data Indexing Methods: A Survey 13 SWWS@OTM, Crete, Greece 21st October 2011

Approaches

• BitMat index

‒ Medha Atre et al.: Matrix "Bit"loaded: A Scalable Lightweight Join Query Processor for RDF Data

• 3-dimensional matrix

‒ Bit values 0 or 1

• 2-dimensional slices

‒ S-O, O-S, P-O, P-S slices

• Implementation

‒ Compressed bit runs

knows lives in

predicates

• bjects

subjects

John Peter 1 1

Linked Data Indexing Methods: A Survey 14 SWWS@OTM, Crete, Greece 21st October 2011

Observations

• String compression
• Repeating string values

‒ URIs and literals

• Unique integer identifiers

‒ Efficient processing ‒ Space requirements

• Translation maps

‒ Both directions ‒ Based on B-trees

Linked Data Indexing Methods: A Survey 15 SWWS@OTM, Crete, Greece 21st October 2011

Observations

• Data pruning
• Idea

‒ Query optimization ‒ Relevant data

• Methods

‒ Filtering selections ‒ Join ordering

• Problem

‒ Partial knowledge

Linked Data Indexing Methods: A Survey 16 SWWS@OTM, Crete, Greece 21st October 2011

Challenges

• Data distribution
• Motivation

‒ Datasets are distributed ‒ Appropriate compromise

• Problems

‒ Network drawbacks ‒ Space requirements ‒ Independent datasets

Linked Data Indexing Methods: A Survey 17 SWWS@OTM, Crete, Greece 21st October 2011

Challenges

• Data scalability
• Motivation

‒ Web of Data size explosion

• September 2011:
• 295 datasets, 31 billion triples, 504 million links
• Problems

‒ Scalable storages and indices ‒ Efficient query evaluation ‒ Quality, provenance and trust

Linked Data Indexing Methods: A Survey 18 SWWS@OTM, Crete, Greece 21st October 2011

Challenges

• Data dynamicity
• Motivation

‒ Data tend to ageing

• Problems

‒ Continuous updates ‒ Dynamic structures

Linked Data Indexing Methods: A Survey 19 SWWS@OTM, Crete, Greece 21st October 2011

Conclusion

• Problem
• Linked Data indexing methods
• Contributions
• Approaches comparison

‒ Dimensions ‒ Observations ‒ Challenges

Thank you for your attention…

Faculty of Mathematics and Physics

Charles University in Prague
