Lighting Models Maksim Lind Computer Graphics Seminar MTAT.03.296 Spring 2014 University of Tartu Lighting Models Local lighting models Global lighting models Global lighting https://en.wikipedia.org/wiki/File:Global_illumination.JPG

slide-1
SLIDE 1

Lighting Models

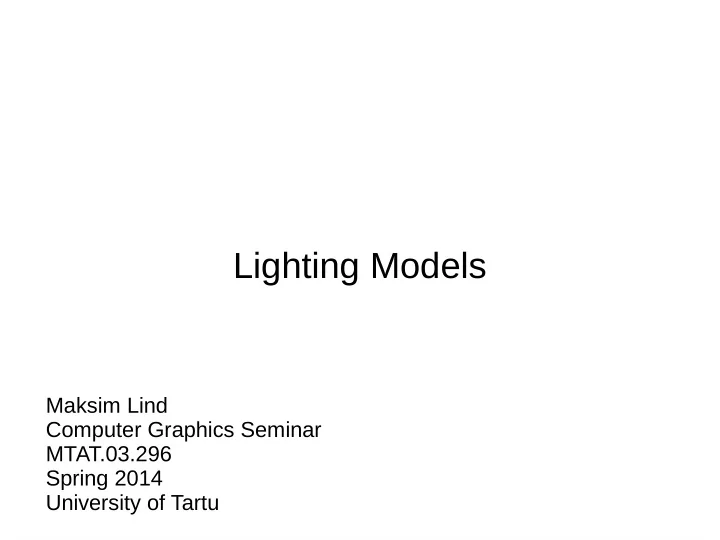

Maksim Lind Computer Graphics Seminar MTAT.03.296 Spring 2014 University of Tartu

slide-2
SLIDE 2

Lighting Models

  • Local lighting models
  • Global lighting models
slide-3
SLIDE 3

Global lighting

https://en.wikipedia.org/wiki/File:Global_illumination.JPG

slide-4
SLIDE 4

Local lightning

https://en.wikipedia.org/wiki/File:Local_illumination.JPG

slide-5
SLIDE 5

Local vs Global

slide-6
SLIDE 6

Local vs Global

  • Global illumination needs more processing

power

  • More realistic with global illumination
  • = not fast, but accurate
slide-7
SLIDE 7

Global lighting

https://en.wikipedia.org/wiki/File:Global_illumination.JPG

slide-8
SLIDE 8

Ray tracing

https://en.wikipedia.org/wiki/File:Ray_trace_diagram.svg

slide-9
SLIDE 9

Ray tracing

  • http://www.pcper.com/reviews/Graphics-Cards

/Ray-Tracing-and-Gaming-Quake-4-Ray-Traced- Project/Quake-4-Ray-traced

slide-10
SLIDE 10

Ray tracing

https://en.wikipedia.org/wiki/File:Halo3-gameplay.png

slide-11
SLIDE 11

Local lightning

https://en.wikipedia.org/wiki/File:Local_illumination.JPG

slide-12
SLIDE 12

Local Lighting

  • Constant (flat)
  • Smooth
slide-13
SLIDE 13

Constant shading

https://commons.wikimedia.org/wiki/File:Flat-shading-sample.jpg

slide-14
SLIDE 14

Smooth shading

https://commons.wikimedia.org/wiki/File:Phong-shading-sample.jpg

slide-15
SLIDE 15

Gouraud shading

https://en.wikipedia.org/wiki/File:D3D_Shading_Modes.png

slide-16
SLIDE 16

Gouraud shading

https://en.wikipedia.org/wiki/File:Gouraud_low_anim.gif

slide-17
SLIDE 17

Gouraud shading

http://www.giantbomb.com/gouraud-shading/3015-4864/games/ http://www.edge-online.com/features/brief-history-3d/2/

  • Quake III uses gouraud shading for player and

weapon, and optionally for the maps

  • Star Wars: TIE Fighter, released in 1994
slide-18
SLIDE 18

Gouraud shading

https://en.wikipedia.org/wiki/File:Quake_III_Arena_q3dm0.png

slide-19
SLIDE 19

Phong shading

https://commons.wikimedia.org/wiki/File:Phong-shading-sample.jpg

slide-20
SLIDE 20

Lambertian reflection model

  • Model of diffuse reflection
  • Reflection = normal (dot) light_direction * color *

intensity_of_light

https://en.wikipedia.org/wiki/File:Lambert2.gif

slide-21
SLIDE 21

Phong reflection model

  • Specular highlight of shiny surfaces
  • Less expensive that ray tracing

https://en.wikipedia.org/wiki/File:Phong_components_version_4.png

slide-22
SLIDE 22

Phong reflection model

  • Crytek's CryEngine
  • Valve's Source Engine
  • Epic's Unreal Engine 3.

http://www.giantbomb.com/phong-shading/3015-7940/

slide-23
SLIDE 23

Bill-Phong reflection model

https://en.wikipedia.org/wiki/File:Blinn_Vectors.svg http://www.arcsynthesis.org/gltut/Illumination/Tut11 BlinnPhong Model.html

slide-24
SLIDE 24

Questions?

slide-25
SLIDE 25
