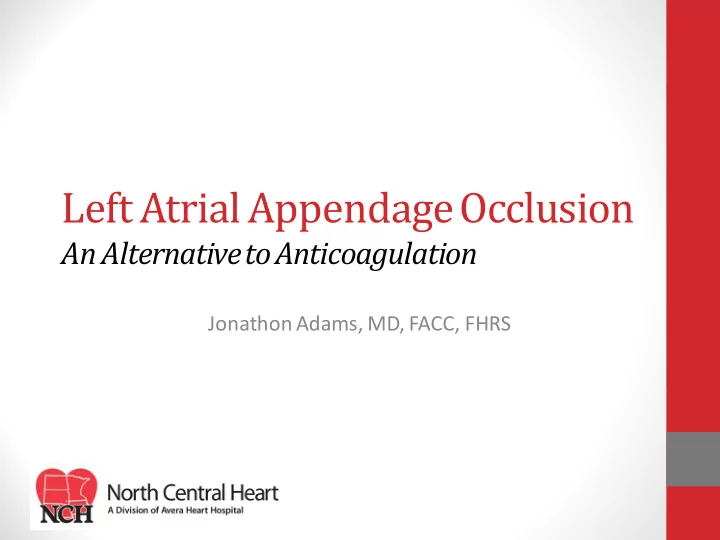

Left Atrial Appendage Occlusion

An Alternative to Anticoagulation

Jonathon Adams, MD, FACC, FHRS

DISCLOSURE

Relevant Financial Relationship(s)

None

Off Label Usage

None

Acknowledgement

Ken Huber, MD, FACC

OBJECTIVES

• Background
• What is left atrial appendage occlusion?
• How do the efficacy and safety of LAAC compare to OAC?
• Who to refer for evaluation?

Atrial Fibrillation → An Epidemic

Savelieva, et al. Clin Cardiol2008;31

5 Million 10 Million

Distribution of AF by Age

Over 50% of AF occurs in the 6% of the population ≥ 75 years of age

WM Feinberg, et al. Arch Int Med 1995;155:469-73

Atrial Fibrillation → Stroke Risk

• AF increases the risk of stroke 5-fold (5-6% annual risk)
• AF is responsible for 15-20% of all strokes

D.R. Holmes. Seminars in Neurology. 2010;30:528 Heart Disease and Stroke Statistical Update: 2009 Circulation, 1-27-09 Stroke 1991;22(18)

0% 10% 20% 30% 40% 50–59 60–69 70–79 80–89 % AF Strokes Age (years)

• 800,000 strokes/yr in U.S. = 100,000 AF strokes/yr

Thrombosis/Embolization

Electrical Fibrillation Insufficient contraction of LAA Stagnant blood flow Thrombosis / clot formation Thromboembolism Stroke

Johnson, EurJ Cardiothoracic Surg 2000;17

LAA – Culprit

Location of Thrombi in Left Atrium

20 40 60 80 100

Stoddard: JACC, '95 Manning: Circ, '94 Aberg: Acta Med Scan, '69 Tsai: JFMA, '90 Klein: Int J Card Imag: '93 Manning: Circ, '94 Klein: Circ, '94 Leung: JACC, '94 Hart: Stroke, '94 Total

Left Atrial Appendage Left Atrium

Blackshear et al., Ann Thoracic Surg, 1996;61:755

Location Frequency (%)

90% in LAA

LAA : Variable Structure

Stroke Prevalence Based Upon Left Atrial Appendage Morphology

5 10 15 20

Chicken Wing Windsock Cactus Cauliflower

OR 0.2 (.04-0.8) OR 1.1 (0.4-3.2) OR 2.5 (1.0-6.1) OR 2.0 (0.2-7.2)

4% 12% 2 4 6 8 10 12 14 Chicken Wing Non-Chicken Wing

Stroke Rate (%) Stroke Rate (%)

Di Biase, L, et al. JACC 2012

ANTICOAGULATION

Eur Heart J 2012;33:2719-2747

Hypertrophic Cardiomyopathy

WHAT ABOUT ASPIRIN?

AVERROES Study

Outcome Apixaban (N=2808) Aspirin (N=2791) Hazard Ratio (95% CI) P Value Stroke or systemic embolism 51 (1.6% per yr) 113 (3.7% per yr) 0.45 (0.32-0.62) <0.001 Hospitalizationfor cardiovascular cause 367 (12.6% per yr) 455 (15.9% per yr) 0.79 (0.69-0.91) <0.001 Major bleeding 44 (1.4% per yr) 39 (1.2% per yr) 1.13 (0.74-1.75) 0.57 Connolly, et al. NEJM 364;9, 2011

Preventing Stroke in Non-Valvular AF

Imputed Benefit of Different Strategies (vs. Control)

Limitations of Anticoagulation

Warfarin

• Bleeding risk
• Daily regimen
• Noncompliance
• INR monitoring
• Drug interactions

DOAC

• Bleeding risk
• Daily or BID regimen
• Noncompliance
• High cost
• Lack of reversal agents
• Except Dabigatran

Major Bleeding

Treatment Drug D/C Rate Major Bleeding

Warfarin 17-28% 3.1-3.6% Dabigatran(150 mg) 21% 3.3% Rivaroxaban(20 mg) 24% 3.6% Apixaban(5 mg) 25% 2.1% Edoxaban (60 mg) 33% 2.8%

1Connolly, S. NEJM 2009; 361:1139-1151 – 2 yrs follow-up (Corrected) 2Patel, M. NEJM 2011; 365:883-891 – 1.9 yrs follow-up, ITT 3Granger, C NEJM 2011; 365:981-992 – 1.8 yrs follow-up, 4Giugliano, R. NEJM 2013; 369(22): 2093-2104 – 2.8 yrs follow-up.

NVAF: Odds of Intracranial Hemorrhage & Age in 145 Case-patients (INR 2.0-3.0) and 870 Controls

MC Fang et al. Ann Int Med 2004;141:745

1 2 3 4 5 < 60 60-64 65-69 70-74 75-79 80-84 ≥85

Intracerebral (> INR) Subdural (> Trauma) Age (yrs) Relative Odds

Significant Undertreatment

44.3% 58.1% 60.7% 57.3% 35.4% 0% 10% 20% 30% 40% 50% 60% 70% < 55 55-64 65-74 75-84 85+

% Use of Warfarin

Age (years)

• Especially those at high risk

40 to 50% not treated

• Levy S, Circulation1999 • Baker WL, J Man Care Pharm2009
• Samsa, Arch Int Med 2000 • Reynolds MR, Am J Cardiol2006

Low Warfarin Use in High-risk Patients

• Medicare claims

data, 2006-2007 – 27,174 patients – Warfarin use less than 60%

• Piccini. Heart Rhythm 2012

0% 20% 40% 60% 80% 100% 1 2 3 4 5 6 CHADS2 Score

Warfarin Use by CHADS2 Score

p<0.001

Bleeding Risk Assessment

Lip GY, JACC 2011 Apostolakis et al. JACC 2013;Dec 12

ATRIA / HEMORR2HAGES / HAS-BLED

HAS-BLED

• Similar predictors for stroke and bleed
• Primarily identifies patients at risk for extracranial bleeding

Letter Clinical Characteristic Points Awarded H Hypertension 1 A Abnormal renal and liver function (1 point each) 1 or 2 S Stroke 1 B Bleeding 1 L Labile INRs 1 E Elderly (e.g., age > 65 years) 1 D Drugs or Alcohol (1 point each) 1 or 2 Maximum 9 points

Net Benefit: Risk / Reward

• Balance difficult → specific patient

CHA2DS2VASC 1 2 3 4 5 % Stroke 1.3 2.2 3.2 4.0 6.7 % Bleed 0.9 3.4 4.1 5.8 8.9 9.1 HAS-BLED 1 2 3 4 5 ? ? ?

Mod High Low High Mod Low

Fundamental Treatment Dilemma

Atrial Fibrillation – Stroke

Non-pharmacologic Treatment

Non-Pharmacologic Options

WATCHMAN LAAC Device

• FDA approved alternative to anticoagulation for stroke risk

reduction in non-valvular AF

• Only device with long-term data from RCTs and multicenter

registries

• Noninferior to warfarin for stroke risk reduction in nonvalvular

AF

• Statistically superior to warfarin for hemorrhagic stroke,

disabling stroke, and cardiovascular death over long-term follow-up

• 1. Reddy, V et al. JAMA 2014; Vol. 312, No. 19.
• 2. Reddy, V et al. Watchman I: First Report of the 5-Year PROTECT-AF and Extended

PREVAIL Results. TCT 2014.

WATCHMANTMDevice

Minimally Invasive, Local Solution

• Available sizes: 21, 24, 27, 30, 33 mm diameter

Intra-LAA design

• Avoids contact with left atrial wall to help prevent

complications

Nitinol Frame

• Conforms to unique anatomy of the LAA to reduce

embolization risk

• 10 active fixation anchors - designed to engage

tissue for stability

Proximal Face

• Minimizes surface area facing the left atrium to

reduce post-implant thrombus formation

• 160 micron membrane PET cap designed to block

emboli and promote healing

Warfarin Cessation

• 92% after 45 days, >99% after 12 months1
• 95% implant success rate1

Anchors 160 Micron Membrane

Who is Eligible?

The WATCHMAN™ Device is indicated to reduce the risk of thromboembolism from the LAA in patients with non-valvular atrial fibrillation who:

• Are at increased risk for stroke and systemic embolism based on

CHADS2 or CHA2DS2-VASc scores and are recommended for anticoagulation therapy

• Are deemed by their physicians to be suitable for short-term

warfarin

• Have an appropriate rationale to seek a non-pharmacologic

alternative to warfarin, taking into account the safety and effectiveness of the device compared to warfarin.

Who is Eligible?

• Non-valvular atrial fibrillation
• i.e. NOT due to mitral stenosis or prior mitral valve surgery
• Stroke risk
• CHADS2 ≥ 2
• CHADS2VASc ≥ 3
• Reason to seek non-pharmacologic alternative
• Bleeding
• Falls
• Intolerant of anticoagulation
• Compliance issues
• Ability to tolerate short-term warfarin (~6 weeks)

Implantation Procedure

• One-time implant that does not need to be replaced
• Performed in a cardiac cath lab/EP suite, or hybrid OR
• Performed by a Watchman Team (EP, IC, Imaging, Anesthesia)
• Catheter advanced to the LAA via the femoral vein

(Does not require open heart surgery)

• General anesthesia*
• 1 hour procedure*
• 1-2 day hospital stay*

* Typical to patient treatment in U.S. clinical trials

WATCHMANTM Device

Device Endothelialization

Canine Model – 30 Day Canine Model – 45 Day Human Pathology - 9 Months Post-implant (Non-device related death)

Post-Implant Management

Implant TEE 45 Days 6 Months (from implant Indefinite Warfarin + ASA 81 ASA 325 + Clopidogrel ASA 325

Warfarin Cessation

p = 0.04

Study 45-day 12-month

PROTECT AF 87% >93% CAP 96% >96% PREVAIL 92% >99%

Implant success defined as deployment and release of the device into the left atrial appendage

Warfarin Cessation

PREVAIL Implant Success

No difference between new and experienced operators

Experienced Operators

• n=26
• 96%

New Operators

• n=24
• 93%

p = 0.28

PROTECT AF

5-Year Results

Event Rate (per 100 Pt-Yrs) Rate Ratio (95% CrI) Posterior Probability WATCHMAN Warfarin Non-inferiority Superiority Primary efficacy 2.2 3.7 0.61 (0.42, 1.07) >99.9% 95.4% Stroke (all) 1.5 2.2 0.68 (0.42, 1.37) 99.9% 83% Systemic embolism 0.2 0.0 N/A

• Death

(CV/unexplained) 1.0 2.3 0.44 (0.26, 0.90) >99.9% 98.9%

Source: FDA Oct 2014 Panel Sponsor Presentation.

Meta-Analysis

HR p-value

Efficacy 0.79 0.22 All stroke or SE 1.02 0.94

Ischemic stroke or SE

1.95 0.05

Hemorrhagic stroke

0.22 0.004

Ischemic stroke or SE >7 days

1.56 0.21 CV/unexplained death 0.48 0.006 All-cause death 0.73 0.07 Major bleed, all 1.00 0.98 Major bleeding, nonprocedure-related 0.51 0.002 Series1, 0.785, 8.8 Series1, 1.02, 7.8 Series1, 1.951, 6.8 Series1, 0.216, 6.1 Series1, 1.556, 5.2 Series1, 0.478, 4.3 Series1, 0.734, 3 Series1, 0.995, 2.2 Series1, 0.508, 1.2 Favors WATCHMAN   Favors warfarin Hazard Ratio (95% CI)

Source: Holmes DR, et al. Holmes, DR et al. JACC 2015; In Press. Combined data set of all PROTECT AF and PREVAIL WATCHMAN patients versus chronic warfarin patients

1 0.1 0.01 10

PROTECT AF: 5 Year Mortality WATCHMAN vs. Warfarin

• V. Reddy, H. Sievert, J. Halperin et al. JAMA 2014;312:1988

RRR 60% RRR 34%

Preventing Stroke in Non-Valvular AF

Imputed Benefit of Different Strategies (vs. Control)

Complications – All Studies

Reddy VR, J. Am. Coll Cardiol. 2017;69(3)

SUMMARY

• AF is common & associated with increased risk of stroke
• Anticoagulation is the standard first line therapy for stroke risk

reduction in patients with risk factors

• Not all patients tolerate systemic anticoagulation
• Left atrial appendage occlusion offers a safe and effective

therapy for stroke risk reduction in these patients

Who to Refer?

• Patients with non-valvular AF who have:
• Risk factors for stroke
• Concerns about safety of long-term anticoagulation
