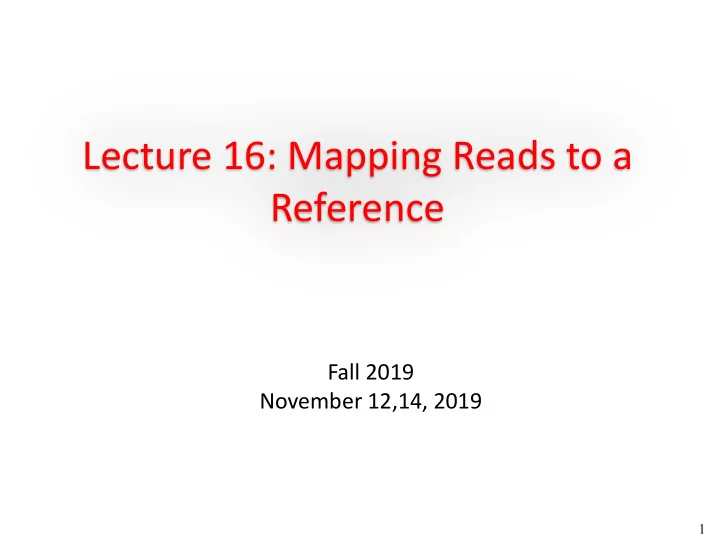

Lecture 16: Mapping Reads to a Reference

1

Fall 2019 November 12,14, 2019

Next-Gen Sequencing Read Mapping

— Align reads to genome/transcriptome — Input: Many reads, length l strings R1,...,Rm and approximate

reference genome string G

— Output: positions in G where reads match — Complications:

• Millions of reads to analyze
• Repetitive regions: non-unique mapping
• Mutations/errors: imperfect match, incorrect mapping
• Paired end reads
• Numbers: ~100M reads, |G| ~ 3x109, read length: 100-200bp

2

Solution – Suffix Tree

— Build suffix tree for G — For each read Ri

• Find matches of Ri to G by tree traversal

— Time complexity?

3

Solution – Suffix Tree

— Build suffix tree for G — For each read Ri

• Find matches of Ri to G by tree traversal

— Time complexity: O(lm+|G|) for exact matching — Can store human genome text in 750M bytes (6G bits) but, need

~64G bytes for the tree

— Large constants, hard to implement

4

Solution – Hashed Index

— Preprocessing:

– Create hash-table H – For each position p=l,...,|G| Hash (key=G[p,...,p + l -1], value=p) in H

— For each Ri report H(Si) — Time complexity?

5

Solution – Hashed Index

— Preprocessing:

– Create hash-table H – For each position p=l,...,|G| Hash (key=G[p,...,p + l -1], value=p) in H

— For each Ri report H(Si) — Time complexity: O(l(m+|G|)) — Problems:

• Only exact matching, memory O(|G|)
• Implemented by PASS

6

Campagna D, Albiero A, Bilardi A, Caniato E, Forcato C, Manavski S, Vitulo N, Valle

• G. PASS: a program to align short sequences. Bioinformatics. 2009 Apr 1;25(7):967-8

Improvements

— Pack strings into bit vectors — Do not hash every position

7

• TGAGTGTGAC

11100010111011100001

Solution – Hashed Reads

— Hash the reads, and scan using the genome. — Implemented by the MAQ tool — Memory usage: depends on number of reads

8

Mapping short DNA sequencing reads and calling variants using mapping quality scores. Li H, Ruan J, Durbin R. Genome Res. 2008 Nov;18(11):1851-8.

Handling mismatches

— If a read has one mismatch with

respect to its correct position, then partitioning that read into two makes sure one part is still exactly matched.

— For two mismatches: create six

templates, some of which are noncontiguous, so that each template covers half the read and has a partner template that complements it to form the full read.

— Related to the idea of spaced seeds

9

les. hash

• and

T1 T2 T3 T4 T5 T6

Solution - Burrows-Wheeler Transform (BWT) acaacg$

$acaacg aacg$ac acaacg$ acg$aca caacg$a cg$acaa g$acaac

gc$aaac

Burrows-Wheeler Matrix (BWM) BWT

Solution - Burrows-Wheeler Transform (BWT) acaacg$

$acaacg aacg$ac acaacg$ acg$aca caacg$a cg$acaa g$acaac

gc$aaac

BWT(G) is often highly compressible BWT

Burrows-Wheeler Matrix

$acaacg aacg$ac acaacg$ acg$aca caacg$a cg$acaa g$acaac

Burrows-Wheeler Matrix

$acaacg aacg$ac acaacg$ acg$aca caacg$a cg$acaa g$acaac

See the suffix array?

3 1 4 2 5 6

Bowtie/BWA

Bowtie/BWA: the first methods to use BWT for read mapping

• Optimized to run against mammalian sized genomes
• Genome is indexed using the Burrows-Wheeler algorithm to

keep the memory footprint small

– The human genome can be stored in ~2Gb

BWA: http://bio-bwa.sourceforge.net Bowtie: http://bowtie-bio.sourceforge.net/ (Bowtie) Ultrafast and memory-efficient alignment of short DNA sequences to the human genome, Langmead et al, Genome Biology 2009, 10:R25 (BWA) Fast and Accurate Short Read Alignment with Burrows-Wheeler Transform, Li Heng and Richard Durbin, (2009) 25:1754–1760

Lots of Read Mappers!

15

See: http://wwwdev.ebi.ac.uk/fg/hts_mappers/ and the corresponding paper Tools for mapping high-throughput sequencing data Nuno A. Fonseca, Johan Rung, Alvis Brazma and John C. Marioni DNA: blue, RNA: in red, miRNA: green Bisulphite: purple.

Phred Quality Scores

16

Qs = -10 log10 Pr(base is incorrect)

Using Phred Scores

— Mappers typically use Phred scores in one of two ways:

• Incorporate them into the score of a match
• Trim the 3’ end of a read when its quality is deemed too low (takes

advantage of the fact that for the Illumina platform, sequencing accuracy decreases from 5’ to 3’)

17

Read mapping software

— General mappers (BLAT, SSAHA, Exonerate) were designed for

aligning any sequences and the source of data is irrelevant.

— Some mappers are designed for data coming from a specific

platform (e.g. Illumina, SOLiD).

— Some mappers exploit specific biases associated with a

sequencing platform.

— Some mappers use Phred quality scores for scoring a match.

18

Ungapped vs. Spliced Alignment

— Unspliced reads (Black)

• Map within exactly one exon

— Spliced reads (Blue)

• Overlap two or more exons
• A more challenging problem than ungapped read mapping

Splice Sites

— Canonical Splice Site Consensus: GT---AG — GT Occurs about 1 billion times in the 3 Billion nucleotide long

human DNA

— Donor consensus

• A64G73G100T100A62A68G84T63

— Acceptor consensus

• C65A100G100

20 Donor splice site (5’) Acceptor splice site (3’)

PALMapper

— Strategy:

• Identify unspliced alignments and seed regions for spliced reads using a

fast indexing tool.

• Infer spliced alignments from seed regions.

De Bona, F. et al., Optimal Spliced Alignments of Short Sequence Reads, ECCB08/Bioinformatics, 24 (16):i174, 2008. Images from http://www.raetschlab.org/lectures/qpalma-ismb08-short-SIG.pdf

QPALMA:Optimal Spliced Alignments of Reads

— Based on PALMA

• Uses Computational Splice Site Prediction

— Q = Quality

• Uses a read’s quality information

— Information Used in QPALMA

• Read quality
• Splice site models
• Intron length models

Splice site prediction

— Splice site classifiers (support vector machine)

• Predictions of donor sites
• Predictions of acceptor sites

— Training

• Known Acceptor & Donor Sites

– Obtained by aligning EST and cDNA sequences using BLAT (or any program for spliced alignments for long sequences) – High quality alignments can be used as positive examples – Other decoy sites used as negative examples – Window of length 141 nt around the splice site

PALMapper uses Smith Waterman

— PALMapper is an “Intelligent” variant of SW that changes

the scoring matrix in certain ways to incorporate

• Sequence Quality Scores
• Donor & Acceptor Splice Site Prediction Scores
• Intron Length Model

— To perform spliced alignments of short read sequences

against a genome

24

Smith Waterman

25

Classical scoring f : Σ × Σ → R Source of Information Sequence matches

Extensions of SW

Source of Information Sequence matches Computational splice site predictions

26

Penalizes the scoring if the classifier does not consider that there is a plausible intron.

Extensions of SW

Source of Information Sequence matches Computational splice site predictions Intron length model

27

Penalizes the scoring if the intron length is not “expected”

Incorporating Quality Scores

Quality scoring f : (Σ × R) × Σ → R Source of Information Sequence matches Computational splice site predictions Intron length model Read quality information

28

Incorporating Quality Scores

— QE(i): the quality score of the read at position i

The Extended SW

—

go = intron opening score

—

ge = intron extension score

—

facc(i) = score of an acceptor site

—

fdon(i) = score of a donor site

Intron scoring

Training

31

Performance of Various Extensions

— (% of correct alignments)

Error depends on where the read falls within an intron

33

Summary

— As read length becomes larger more reads require spliced

alignment

— There are many tools for this task: v TopHat (uses Bowtie for ungapped mapping) v MapSplice (uses Bowtie) v RUM (uses Bowtie and BLAT) v PASS v ARYANA

34

A comparison of spliced alignment tools

35

Figure from: Systematic evaluation of spliced alignment programs for RNA-seq data Nature Methods (2013) http://www.nature.com/nmeth/journal/vaop/ncurrent/full/nmeth.2722.html
