Lecture 10: Sequential Networks: Timing and Retiming CSE 140: Components and Design Techniques for Digital Systems Diba Mirza Dept. of Computer Science and Engineering University of California, San Diego 1 So far . Combinational CLK


slide-1
SLIDE 1

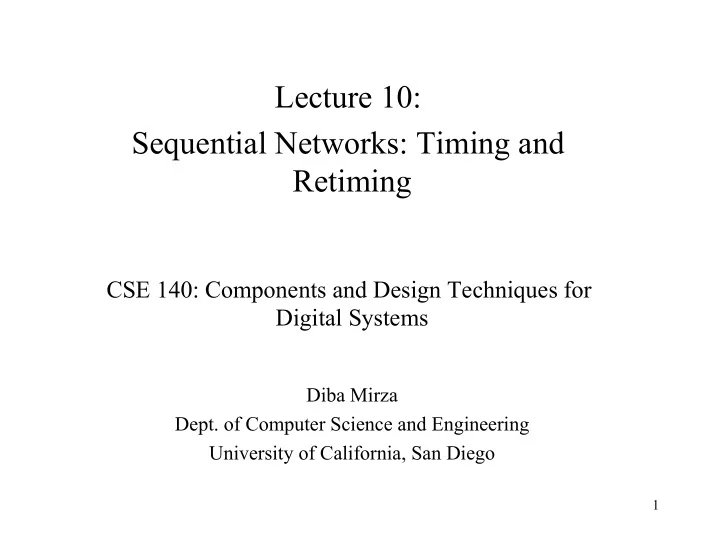

Lecture 10: Sequential Networks: Timing and Retiming

CSE 140: Components and Design Techniques for Digital Systems

Diba Mirza

  • Dept. of Computer Science and Engineering

University of California, San Diego

1

slide-2
SLIDE 2

So far ….

Combinational CLK

Logic-level analysis

slide-3
SLIDE 3

This lecture …

  • Our seemingly logically correct design can go wrong
  • How can we design a circuit that works under real constraints?

Combinational CLK

slide-4
SLIDE 4

Timing Constraints of flip flops

D Q Q’ CLK

4

  • The input to a flip-flop should be stable for a period of time

around the rising edge of the clock

slide-5
SLIDE 5

Input Constraints: Set up and hold time

5

CLK tsetup D thold ta

I. Setup time: tsetup Time before the clock edge that data must be stable (i.e. not change)

  • II. Hold time: thold

Time after the clock edge that data must be stable Aperture time: ta Time around clock edge that data must be stable (ta = tsetup + thold) D Q Q’

slide-6
SLIDE 6

PIQ: Which of the following signals can cause a setup-time

violation for this flip flop?

  • A. The input signal D(t)
  • B. The output signal Q(t)
  • C. Both A and B
  • D. None of the above

6

D Q Q’ D(t) CLK Q(t)

slide-7
SLIDE 7

Output characteristics of flip flops

7

I. Minimum delay of Q Time after the clock edge for which Q is sure to not change

  • II. Maximum delay of Q

Time after the clock edge following which Q is sure to have stabilized D Q Q’

slide-8
SLIDE 8

Output characteristics of flip flops

I. Min delay of flip flop, also called Contamination delay or min CLK to Q delay: tccq Time after clock edge that Q might be unstable (i.e., start changing) II. Max delay of flip flop, also called Propagation delay or maximum CLK to Q delay: tpcq Time after clock edge that the output Q is guaranteed to be stable (i.e., to stop changing)

CLK tccq tpcq Q

8

D Q Q’

slide-9
SLIDE 9

Fact 1: Once a flip flop has been ‘built’ we are stuck with its timing characteristics: tsetup , thold, tccq, tpcq Now let’s look at the timing characteristics of the combinational part

9

R1 Combinational CLK R2 CLK D1 Q1 D2

slide-10
SLIDE 10

Combinational Logic Timing

10

I. Min delay of a gate, also called Contamination delay: tcd

Minimum time from when an input changes until the output starts to change

II. Max delay of a gate, also called Propagation delay: tpd

Maximum time from when an input changes until the output is guaranteed to reach its final value (i.e., stop changing)

slide-11
SLIDE 11

Combinational Logic: Output timing constraints

11

A B C D Y PI Q: Which path in the above circuit determines the contamination delay of the circuit (assuming the delay of all the gates is the same)?

  • A. Green path
  • B. Red path
  • C. Both
  • D. Neither
slide-12
SLIDE 12

Combinational Logic: Output timing constraints

12

A B C D Y PI Q: Which path in the above circuit determines the propagation delay of the circuit (assuming the delay of all the gates is the same)?

  • A. Green path
  • B. Red path
  • C. Both
  • D. Neither
slide-13
SLIDE 13

13

  • If the input to a flip flop doesn’t stabilize in time BEFORE the

rising edge of the clock we have a setup time violation

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

Timing Issues

slide-14
SLIDE 14

14

Why would the input (D2) not stabilize in time?

  • D2 changes because of Q1
  • Flip flop has maximum delay, Q1 stabilizes after this maximum

delay from the clock edge

  • The combinational circuit has a maximum delay, so even after Q1

has stabilized, D2 takes a while to stabilize

  • If D2 doesn’t stabilize on time we have a setup violation

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

slide-15
SLIDE 15

15

  • If the input to a flip flop changes too quickly AFTER the rising

edge of the clock we have a hold time violation

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

Timing Issues

slide-16
SLIDE 16

16

Why would the input (D2) change too quickly?

  • D2 changes because of Q1
  • Flip flop has minimum delay, Q1 will start changing only after this

minimum delay

  • The combinational circuit has a minimum delay, after which the
  • utput of CL (D2) will start reacting to a changing input.
  • If D2 starts changing too quickly we have a hold time violation

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

slide-17
SLIDE 17

Why timing in Sequential Circuits can go wrong?

17

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

Which of the following violations would occur if the min delay of R1 was 0 and the combinational circuit was just a wire?

  • A. Hold time violation for R2
  • B. Setup violation for R2
  • C. Hold time violation for R1
  • D. Setup violation for R1
  • E. None of the above
slide-18
SLIDE 18

Meeting the hold time constraint

18

To meet the hold time constraint: C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

thold < min delay(flipflop) + min delay(combinational)

  • Input to a flip-flop comes from the output of another flip flop,

through a combinational circuit

  • The flipflop and combinational circuit have a min and max delay
slide-19
SLIDE 19

Why timing in Sequential Circuits can go wrong?

19

  • Input to a flip-flop comes from the output of another flip flop,

through a combinational circuit

  • The flipflop and combinational circuit have a min and max delay

C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

Which of the following violations would

  • ccur if the max delay of R1 was 0 and the

max delay of the combinational circuit was equal to the clock period

  • A. Hold time violation for R2
  • B. Setup violation for R2
  • C. Hold time violation for R1
  • D. Setup violation for R1
  • E. None of the above
slide-20
SLIDE 20

Meeting the setup time constraint

20

To meet the setup time constraint: C L CLK CLK R1 R2 Q1 D2 (a) CLK Q1 D2 (b) Tc

Tc ≥ max delay(flipflop) + max delay(combinational)+ tsetup

  • Input to a flip-flop comes from the output of another flip flop,

through a combinational circuit

  • The flipflop and combinational circuit have a min and max delay
slide-21
SLIDE 21

Formalizing the hold time constraint in Sequential Circuits

21

To meet the hold time constraint:

thold < min delay(flipflop) + min delay(combinational) thold < tccq + tcd CLK Q1 D2 tccq tcd thold C L CLK CLK Q1 D2 R1 R2

slide-22
SLIDE 22

Formalizing the setup time constraints in Sequential Circuits

22

To meet the setup time constraint:

Tc ≥ max delay(flipflop) + max delay(combinational)+ tsetup Tc ≥ tpcq + tpd + tsetup CLK Q1 D2 Tc tpcq tpd tsetup C L CLK CLK Q1 D2 R1 R2

slide-23
SLIDE 23

Timing Analysis

CLK CLK A B C D X' Y' X Y

Timing Characteristics

tccq = 30 ps tpcq = 50 ps tsetup = 60 ps thold = 70 ps tpd = 35 ps tcd = 25 ps

tpd (CL)= tcd (CL)= Setup time constraint: Tc ≥ fc = 1/Tc = Hold time constraint: tccq + tcd (CL)> thold ?

23

slide-24
SLIDE 24

Timing Analysis

CLK CLK A B C D X' Y' X Y

Timing Characteristics

tccq = 30 ps tpcq = 50 ps tsetup = 60 ps thold = 70 ps tpd = 35 ps tcd = 25 ps

tpd = 3 x 35 ps = 105 ps tcd = 25 ps Setup time constraint: Tc ≥ (50 + 105 + 60) ps = 215 ps fc = 1/Tc = 4.65 GHz Hold time constraint: tccq + tcd > thold ? (30 + 25) ps > 70 ps ? No!

24

slide-25
SLIDE 25

Fixing Hold Time Violation

Timing Characteristics

tccq = 30 ps tpcq = 50 ps tsetup = 60 ps thold = 70 ps tpd = 35 ps tcd = 25 ps

tpd = tcd = Setup time constraint: Tc ≥ fc = Hold time constraint: tccq + tcd > thold ?

CLK CLK A B C D X' Y' X Y

Add buffers to the short paths:

25

slide-26
SLIDE 26

Fixing Hold Time Violation

Timing Characteristics

tccq = 30 ps tpcq = 50 ps tsetup = 60 ps thold = 70 ps tpd = 35 ps tcd = 25 ps

tpd = 3 x 35 ps = 105 ps tcd = 2 x 25 ps = 50 ps Setup time constraint: Tc ≥ (50 + 105 + 60) ps = 215 ps fc = 1/Tc = 4.65 GHz Hold time constraint: tccq + tcd > thold ? (30 + 50) ps > 70 ps ? Yes!

CLK CLK A B C D X' Y' X Y

Add buffers to the short paths:

26
