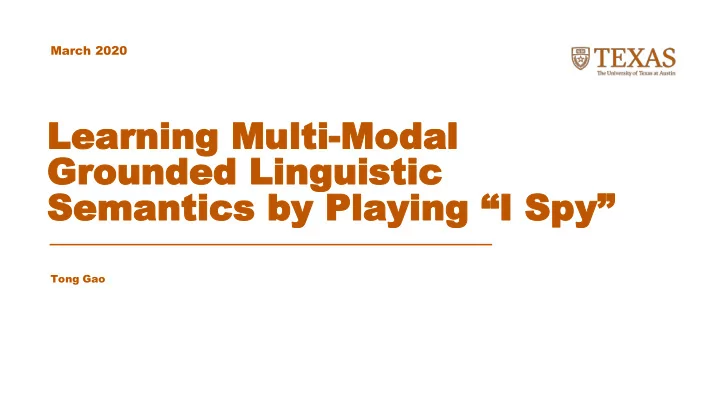

Lear Learning M ning Multi ulti-Moda Modal l Grounded Lingu - - PowerPoint PPT Presentation

Tong Gao

March 2020

Lear Learning M ning Multi ulti-Moda Modal l Grounded Lingu Grounded Linguistic istic Semantics by Playing “I Spy”

Introduction

• Early work on grounded language learning enabled a

machine to map from adjectives and nouns to objects in a scene

• But other sensory modalities such as haptic and auditory are

also useful

• This paper proposes the first robotic system to perform

natural language grounding using multi-modal sensors perception

Robot Configuration

• Kinova MICO arm

mounted on top of a custom-built mobile base

• Perception:

–

Sensors in each motors

–

a microphone

–

Xtion Asus Pro RGBD camera

Robot Actions

• Grasp
• Lift
• Hold
• Lower
• Drop
• Push
• Press

Objects in the Dataset

• 32 common household items

–

Cups

–

Bottles

–

Cans

–

…

• Some contains liquids/other contents
• Others are empty

Sensory Data Gathering

• Given a context 𝑑 ∈ 𝐷, object 𝑗 ∈

𝑃,

• Performed full sequence of

exploratory actions on object 𝑗 for five different times, let the set 𝑌𝑗

𝐷

contain all five features vectors.

Visual Context

• Robot performs look

action which produces:

–

RGB color histogram, 8 bins per channel

–

Fast point feature histogram (fpfh) shape features

–

Deep visual features from 16-layer VGG network

Multimodal Context

Record haptic and auditory sensory modalities during executing actions; Record proprioceptive information during the grasp action.

• Haptics & proprioception: joint

efforts & joint positions, recorded for 6 joints at 15 Hz

• Audio: Discrete Fourier Transform, 65

frequency bins

“I Spy” Task

• Human and robot take turns describing objects from among

4 on a tabletop

• Participants describe objects using attributes - robot guess

–

E.g. “black rectangle” as opposed to “whiteboard eraser”

• Robot describe a random object with up to 3 predicates -

participants guess

“I Spy” Task

• Metrics: robot guess and human guess
• Compare performance of two playing systems: multi-modal

and vision-only

Predicate Classifier

𝐻𝑞 𝜆𝑑2 × 𝑁𝑑2 𝑌𝑗

𝑑2

𝜆𝑑1 × 𝑁𝑑1 𝑌𝑗

𝑑1

𝜆𝑑18 × 𝑁𝑑18 𝑌𝑗

𝑑18

… 𝜆𝑑 ∈ [0,1], Cohen’s Kappa, measuring the performance of 𝑁𝑑 on the ground truth labels # contexts: 18 𝑁𝑑(𝑌𝑗

𝑑) ∈ [−1,1], a quadratic-kernel

SVM For each language predicate 𝑞, a classifier 𝑯𝒒 ∈ [−1,1] is learned to decide whether objects possessed the attribute 𝑞:

For example…

• With wide & yellow cylinder, we want to determine whether “fat” is

applicable to it

• 𝐻𝑔𝑏𝑢 𝑥𝑗𝑒𝑓 − 𝑧𝑓𝑚𝑚𝑝𝑥 − 𝑑𝑧𝑚𝑗𝑜𝑒𝑓𝑠 = 0.137

– Correlated since the sign is positive – With confidence 0.137 = 0.137

• 𝜆𝑕𝑠𝑏𝑡𝑞,𝑏𝑣𝑒𝑗𝑢𝑝𝑠𝑧 = 0.515

– In 𝐻𝑔𝑏𝑢, we are confident on the decision made by classifier 𝑁𝑕𝑠𝑏𝑡𝑞,𝑏𝑣𝑒𝑗𝑢𝑝𝑠𝑧

Grounded Language Learning – Human Turn

• Participant pick one of the four objects and describe it in one

phrase

• Robot

–

Strip out stopwords, remaining words are treated as a set 𝐼𝑞 of language predicates

–

Compute the sum of scores 𝐻𝑞 for 𝑞 ∈ 𝐼𝑞 for each object

–

Guess objects in descending order by score

• Ties are broken randomly

–

Add positive training example for all 𝑞 ∈ 𝐼𝑞 after a correct guess

Grounded Language Learning – Robot Turn

• Robot attempted to describe the object with predicates (not

ambiguously)

• Denote 𝑃𝑈 the set of objects on the table during a given
• game. For the chosen object 𝑗∗, compute the score 𝑆 for a

predicate 𝑞 as:

• Choose up to 3 highest scoring predicates ෠

𝑄

Grounded Language Learning – Follow up

• In addition to ෠

𝑄, robot also selects 5 − | ෠ 𝑄| additional predicates, whose confidences are likely to be close to zero

• Asks participants whether or not 𝑞 can be applied to the
• bject 𝑗∗

–

Collect more positive/negative examples.

Experiments

• 42 human participants
• Undergraduate & graduate students + some staff at our

university

• Divide 32-object dataset into 4 folds
• ≥ 10 human participants played “I Spy” on both systems for

each fold.

• Each participant played 4 games

Experiments

• For fold 0, the systems were undifferentiated and so only
• ne set of 2 games was played by each participant
• For subsequent folds, the systems were incrementally

trained using labels from previous folds only, such that the systems were always being tested against novel, unseen

• bjects

Quantitative Results – Robot Guess

Quantitative Results – Human Guess

• Human guesses hovered around 2.5 throughout all levels of

training and sets of objects.

• Reflection: Confidence 𝜆 can easily reaches 1 with only few

examples – can system perform better if 𝑆 favored predicates trained with many examples?

Quantitative Results – Predicate Agreement

• Train the predicate classifiers using leave-one-out cross

validation over objects

Qualitative Results – when multi-model helps?

Qualitative Results – Correlations to physical properties

• Compute Pearson’s correlation 𝑠 between the decision and the object’s

weight, height and width

• Vision only – no predicates correlated against these physical object

features

• Multi-model:

– Tall - height (0.521) – Small - width (-0.665) – Water - weight (0.814) – Blue - weight (0.549, spurious)

Critique

• Do pre-defined actions really produce informative audios?
• To what extend the robot should apply the force, so that sound can be produced

while the object is not destroyed?

• While some features might be too complicated for SVM, some other might be

redundant - Ablation study

• Lack of generalization ability to new predicates?

–

Classify new predicates by their distance to learned predicates in Wordnet or word embeddings?

• Qualitative results only cared about the weight, height and width

–

If that’s all what they want, why not measure these properties with ruler & weight scale?

–

Should select some physical properties that can only be obtained by multi-modal system.
