Large-scale data processing [with Apache Hadoop] [and friends] [at - - PowerPoint PPT Presentation

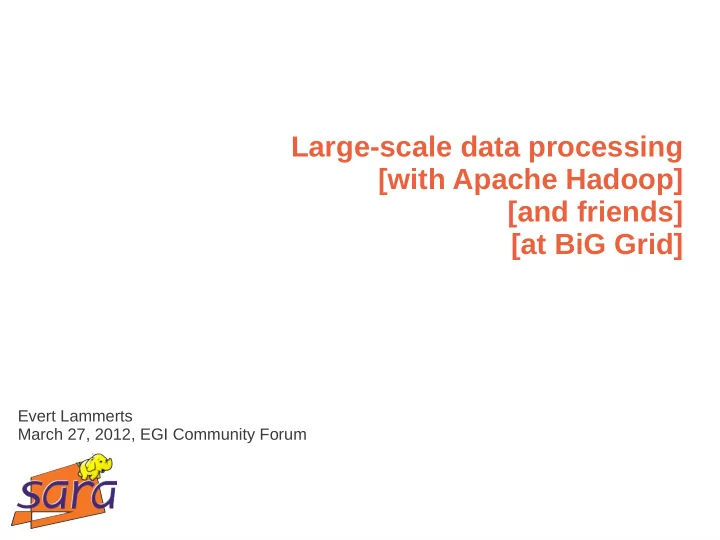

Large-scale data processing [with Apache Hadoop] [and friends] [at BiG Grid]

Evert Lammerts March 27, 2012, EGI Community Forum

Who's who?

Who's who?

BiG Grid

• Dutch NGI

Who's who?

BiG Grid

• Dutch NGI

SARA

• National center for academic computing & eScience
• Partner in BiG Grid

Who's who?

BiG Grid

• Dutch NGI

SARA

• National center for academic computing & eScience
• Partner in BiG Grid

Me

• Consultant eScience & Cloud Services
• Lead Hadoop infrastructure
• Tech lead LifeWatch-NL

In this talk

• Working on scale ( @ SARA & BiG Grid )
• An introduction to Hadoop & MapReduce
• Hadoop @ SARA & BiG Grid

Working on scale ( @ SARA & BiG Grid ) An introduction to Hadoop & MapReduce Hadoop @ SARA & BiG Grid

SARA the national center for scientific computing

Facilitating Science in The Netherlands with Equipment for and Expertise on Large-Scale Computing, Large-Scale

Data Storage, High-Performance Networking, eScience, and Visualization

Different types of computing

Parallelism

• Data parallelism
• Task parallelism

Architectures

• SIMD: Single Instruction Multiple Data
• MIMD: Multiple Instruction Multiple Data
• MISD: Multiple Instruction Single Data
• SISD: Single Instruction Single Data (Von Neumann)

Parallelism: Amdahl's law

Data parallelism

Compute @ SARA & BiG Grid

What's different about Hadoop? No more do-it-yourself parallelism – it's hard! But rather linearly scalable data parallelism Separating the what from the how The Datacenter as your computer

(NYT, 14/06/2006)

Working on scale ( @ SARA & BiG Grid ) An introduction to Hadoop & MapReduce Hadoop @ SARA & BiG Grid

A bit of history

Nutch*

2002 2004

MR/GFS**

2006 2004

Hadoop

* http://nutch.apache.org/ ** http://labs.google.com/papers/mapreduce.html http://labs.google.com/papers/gfs.html

http://wiki.apache.org/hadoop/PoweredBy

2010 - 2012: A Hype in Production

Core principals

• Scale out, not up
• Move processing to the data
• Process data sequentially, avoid random reads
• Seamless scalability

(Jimmy Lin, University of Maryland / Twitter, 2011)

A typical data-parallel problem in abstraction

1.Iterate over a large number of records 2.Extract something of interest 3.Create an ordering in intermediate results 4.Aggregate intermediate results 5.Generate output MapReduce: functional abstraction of step 2 & step 4

(Jimmy Lin, University of Maryland / Twitter, 2011)

MapReduce

Programmer specifies two functions

• map(k, v) → <k', v'>*
• reduce(k', v') → <k', v'>*

All values associated with a single key are sent to the same reducer The framework handles the rest

The rest? Scheduling, data distribution, ordering, synchronization, error handling...

An overview of a Hadoop cluster

The ecosystem Apache Pig Data-flow language Hbase Key/value store Giraph Graph processing Hive, HCatalog, Elephantbird, and many, many

• thers...

Data-processing as a commodity

• Cheap Clusters
• Simple programming models
• Easy-to-learn scripting

Anybody with the know-how can generate insights!

Note: “the know-how” = Data Science

DevOps Programming algorithms Domain knowledge

Working on scale ( @ SARA & BiG Grid ) An introduction to Hadoop & MapReduce Hadoop @ SARA & BiG Grid

Timeline

2009: Piloting Hadoop on Cloud 2010: Test cluster available for scientists 6 machines * 4 cores / 24 TB storage / 16GB RAM Just me! 2011: Funding granted for production service 2012: Production cluster available (~March) 72 machines * (8 cores / 8 TB storage / 64GB RAM) Integration with Kerberos for secure multi-tenancy 3 devops, team of consultants

Architecture

We already offer... Hadoop, Pig We will offer... Hbase, Hive, HCatalog, Oozie, and probably more...

What is it being used for?

• Information Retrieval
• Natural Language Processing
• Machine Learning
• Econometry
• Bioinformatics
• Ecoinformatics
• Collaboration with industry!

Machine learning: Infrawatch, Hollandse Brug

Structural health monitoring

145 sensors 100 Hz 60 seconds 60 minutes 24 hours 365 days x x x x x = large data

(Arno Knobbe, LIACS, 2011, http://infrawatch.liacs.nl)

NLP & IR

• e.g. ClueWeb: a ~13.4 TB webcrawl
• e.g. Twitter gardenhose data
• e.g. Wikipedia dumps
• e.g. del.ico.us & flickr tags
• Finding named entities: [person company place] names
• Creating inverted indexes
• Piloting real-time search
• Personalization
• Semantic web

How do we embrace Hadoop?

• Parallelism has never been easy… so we teach!
• December 2010: hackathon (~50 participants - full)
• April 2011: Workshop for Bioinformaticians
• November 2011: 2 day PhD course (~60 participants – full)
• June 2012: 1 day PhD course
• The datascientist is still in school... so we fill the gap!
• Devops maintain the system, fix bugs, develop new functionality
• Technical consultants learn how to efficiently implement algorithms
• Users bring domain knowledge
• Methods are developing faster than light (don't quote me :)... so we

build the community!

• Netherlands Hadoop User Group

Final thoughts

• Hadoop is the first to provide commodity computing
• Hadoop is not the only
• Hadoop is probably not the best
• Hadoop has momentum
• What degree of diversification of infrastructure should we

embrace?

• MapReduce fits surprisingly well as a programming model

for data-parallelism

• Where is the data scientist?
• Teach. Teach. Work together.

Any questions? evert.lammerts@sara.nl @eevrt @sara_nl
