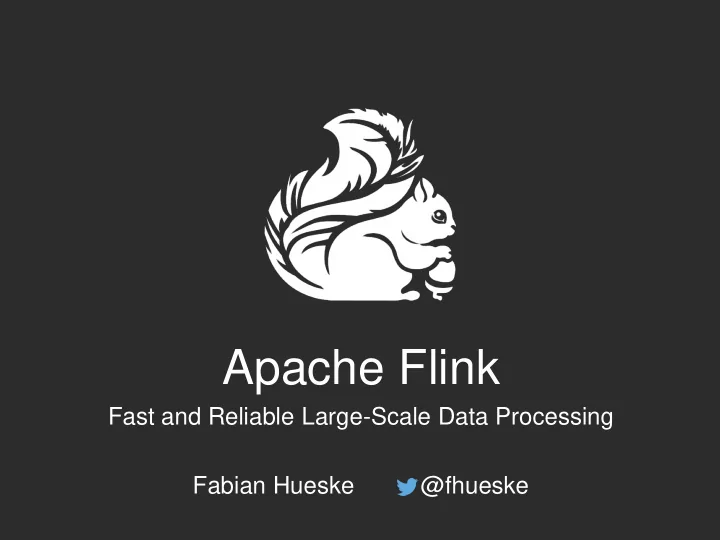

SLIDE 1

Apache Flink

Fast and Reliable Large-Scale Data Processing Fabian Hueske @fhueske

1

SLIDE 2

What is Apache Flink?

Distributed Data Flow Processing System

Focused on large-scale data analytics
Real-time stream and batch processing
Easy and powerful APIs (Java / Scala)
Robust execution backend

2

SLIDE 3

What is Flink good at?

It‘s a general-purpose data analytics system

Real-time stream processing with flexible windows
Complex and heavy ETL jobs
Analyzing huge graphs
Machine-learning on large data sets
...

3

SLIDE 4

4

Flink in the Hadoop Ecosystem

Table API Gelly Library ML Library

Apache SAMOA

Optimizer DataSet API (Java/Scala) DataStream API (Java/Scala) Stream Builder Runtime Local Cluster

Yarn Apache Tez

Embedded

Apache MRQL Dataflow HDFS S3 JDBC HCatalog

Apache HBase Apache Kafka Apache Flume

RabbitMQ Hadoop IO ...

Data Sources Environments Flink Core Libraries

SLIDE 5

Flink in the ASF

Flink entered the ASF about one year ago

– 04/2014: Incubation – 12/2014: Graduation

Strongly growing community

20 40 60 80 100 120 Nov.10 Apr.12 Aug.13 Dec.14

#unique git committers (w/o manual de-dup)

5

SLIDE 6

Where is Flink moving?

A "use-case complete" framework to unify batch & stream processing Flink

Data Streams

Kafka
RabbitMQ
...

“Historic” data

HDFS
JDBC
...

Analytical Workloads

ETL
Relational processing
Graph analysis
Machine learning
Streaming data analysis

6

Goal: Treat batch as finite stream

SLIDE 7

HOW TO USE FLINK?

Programming Model & APIs

7

SLIDE 8

Unified Java & Scala APIs

Fluent and mirrored APIs in Java and Scala
Table API for relational expressions
Batch and Streaming APIs almost identical ...

... with slightly different semantics in some cases

8

SLIDE 9

DataSets and Transformations

ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment(); DataSet<String> input = env.readTextFile(input); DataSet<String> first = input .filter (str -> str.contains(“Apache Flink“)); DataSet<String> second = first .map(str -> str.toLowerCase()); second.print(); env.execute();

Input First Second filter map

9

SLIDE 10

Expressive Transformations

Element-wise

– map, flatMap, filter, project

Group-wise

– groupBy, reduce, reduceGroup, combineGroup, mapPartition, aggregate, distinct

Binary

– join, coGroup, union, cross

Iterations

– iterate, iterateDelta

Physical re-organization

– rebalance, partitionByHash, sortPartition

Streaming

– Window, windowMap, coMap, ...

10

SLIDE 11

Rich Type System

Use any Java/Scala classes as a data type

– Tuples, POJOs, and case classes – Not restricted to key-value pairs

Define (composite) keys directly on data types

– Expression – Tuple position – Selector function

11

SLIDE 12

Counting Words in Batch and Stream

12

case class Word (word: String, frequency: Int) val lines: DataStream[String] = env.fromSocketStream(...) lines.flatMap {line => line.split(" ") .map(word => Word(word,1))} .window(Count.of(1000)).every(Count.of(100)) .groupBy("word").sum("frequency") .print() val lines: DataSet[String] = env.readTextFile(...) lines.flatMap {line => line.split(" ") .map(word => Word(word,1))} .groupBy("word").sum("frequency") .print()

DataSet API (batch): DataStream API (streaming):

SLIDE 13

Table API

Execute SQL-like expressions on table data

– Tight integration with Java and Scala APIs – Available for batch and streaming programs

val orders = env.readCsvFile(…) .as('oId, 'oDate, 'shipPrio) .filter('shipPrio === 5) val items = orders .join(lineitems).where('oId === 'id) .select('oId, 'oDate, 'shipPrio, 'extdPrice * (Literal(1.0f) - 'discnt) as 'revenue) val result = items .groupBy('oId, 'oDate, 'shipPrio) .select('oId, 'revenue.sum, 'oDate, 'shipPrio)

13

SLIDE 14

Libraries are emerging

As part of the Apache Flink project

– Gelly: Graph processing and analysis – Flink ML: Machine-learning pipelines and algorithms – Libraries are built on APIs and can be mixed with them

Outside of Apache Flink

– Apache SAMOA (incubating) – Apache MRQL (incubating) – Google DataFlow translator

14

SLIDE 15

WHAT IS HAPPENING INSIDE?

Processing Engine

15

SLIDE 16

System Architecture

Cost-based

ptimizer

Type extraction stack Memory manager Out-of-core algos Task scheduling Recovery metadata Data serialization stack

Client (pre-flight) Master Workers

...

Flink Program

...

Pipelined or Blocking Data Transfer Coordination

16

SLIDE 17

Cool technology inside Flink

Batch and Streaming in one system
Memory-safe execution
Built-in data flow iterations
Cost-based data flow optimizer
Flexible windows on data streams
Type extraction and serialization utilities
Static code analysis on user functions
and much more...

17

SLIDE 18

STREAM AND BATCH IN ONE SYSTEM

Pipelined Data Transfer

18

SLIDE 19

Stream and Batch in one System

Most systems are either stream or batch systems
In the past, Flink focused on batch processing

– Flink‘s runtime has always done stream processing – Operators pipeline data forward as soon as it is processed – Some operators are blocking (such as sort)

Stream API and operators are recent contributions

– Evolving very quickly under heavy development

19

SLIDE 20

Pipelined Data Transfer

Pipelined data transfer has many benefits

– True stream and batch processing in one stack – Avoids materialization of large intermediate results – Better performance for many batch workloads

Flink supports blocking data transfer as well

20

SLIDE 21

Pipelined Data Transfer

Large Input Small Input Small Input Result join Large Input map Interm. DataSet Build HT Result

Program Pipelined Execution

Pipeline 1 Pipeline 2

join Probe HT map

No intermediate materialization!

21

SLIDE 22

MEMORY SAFE EXECUTION

Memory Management and Out-of-Core Algorithms

22

SLIDE 23

Memory-safe Execution

Challenge of JVM-based data processing systems

– OutOfMemoryErrors due to data objects on the heap

Flink runs complex data flows without memory tuning

– C++-style memory management – Robust out-of-core algorithms

23

SLIDE 24

Managed Memory

Active memory management

– Workers allocate 70% of JVM memory as byte arrays – Algorithms serialize data objects into byte arrays – In-memory processing as long as data is small enough – Otherwise partial destaging to disk

Benefits

– Safe memory bounds (no OutOfMemoryError) – Scales to very large JVMs – Reduced GC pressure

24

SLIDE 25

Going out-of-core

Single-core join of 1KB Java objects beyond memory (4 GB) Blue bars are in-memory, orange bars (partially) out-of-core

25

SLIDE 26

GRAPH ANALYSIS

Native Data Flow Iterations

26

SLIDE 27

Native Data Flow Iterations

Many graph and ML algorithms require iterations
Flink features native data flow iterations

– Loops are not unrolled – But executed as cyclic data flows

Two types of iterations

– Bulk iterations – Delta iterations

Performance competitive with specialized systems

27

2 1 5 4 3

0.1 0.5 0.2 0.4 0.7 0.3 0.9

SLIDE 28

Iterative Data Flows

Flink runs iterations „natively“ as cyclic data flows

– Operators are scheduled once – Data is fed back through backflow channel – Loop-invariant data is cached

Operator state is preserved across iterations!

initial result interm. result result reduce join interm. result

ther

datasets Replace

28

SLIDE 29

Delta Iterations

Delta iteration computes

– Delta update of solution set – Work set for next iteration

Work set drives computations of next iteration

– Workload of later iterations significantly reduced – Fast convergence

Applicable to certain problem domains

– Graph processing

5000000 10000000 15000000 20000000 25000000 30000000 35000000 40000000 45000000 1 6 11 16 21 26 31 36 41 46

# of elements updated # of iterations

29

SLIDE 30

Iteration Performance

PageRank on Twitter Follower Graph

30 Iterations 61 Iterations (Convergence)

30

SLIDE 31

WHAT IS COMING NEXT?

Roadmap

31

SLIDE 32

Flink’s Roadmap

Mission: Unified stream and batch processing

Exactly-once streaming semantics with

flexible state checkpointing

Extending the ML library
Extending graph library
Interactive programs
Integration with Apache Zeppelin (incubating)
SQL on top of expression language
And much more…

32

SLIDE 33

tl;dr – What’s worth to remember?

Flink is general-purpose analytics system
Unifies streaming and batch processing
Expressive high-level APIs
Robust and fast execution engine

34

SLIDE 34

I Flink, do you? ;-)

If you find this exciting, get involved and start a discussion on Flink‘s ML

r stay tuned by

subscribing to news@flink.apache.org or following @ApacheFlink on Twitter

35

SLIDE 35

36

SLIDE 36

BACKUP

37

SLIDE 37

Data Flow Optimizer

Database-style optimizations for parallel data flows
Optimizes all batch programs
Optimizations

– Task chaining – Join algorithms – Re-use partitioning and sorting for later operations – Caching for iterations

38

SLIDE 38

Data Flow Optimizer

val orders = … val lineitems = … val filteredOrders = orders .filter(o => dataFormat.parse(l.shipDate).after(date)) .filter(o => o.shipPrio > 2) val lineitemsOfOrders = filteredOrders .join(lineitems) .where(“orderId”).equalTo(“orderId”) .apply((o,l) => new SelectedItem(o.orderDate, l.extdPrice)) val priceSums = lineitemsOfOrders .groupBy(“orderDate”) .sum(“l.extdPrice”);

39

SLIDE 39

Data Flow Optimizer

DataSource

rders.tbl

Filter DataSource

lineitem.tbl

Join

Hybrid Hash

buildHT probe broadcast forward Combine Reduce sort[0,1] DataSource

rders.tbl

Filter DataSource

lineitem.tbl

Join

Hybrid Hash

buildHT probe hash-part [0] hash-part [0] hash-part [0,1] Reduce sort[0,1]

Best plan depends on relative sizes

f input files

partial sort[0,1]

40
