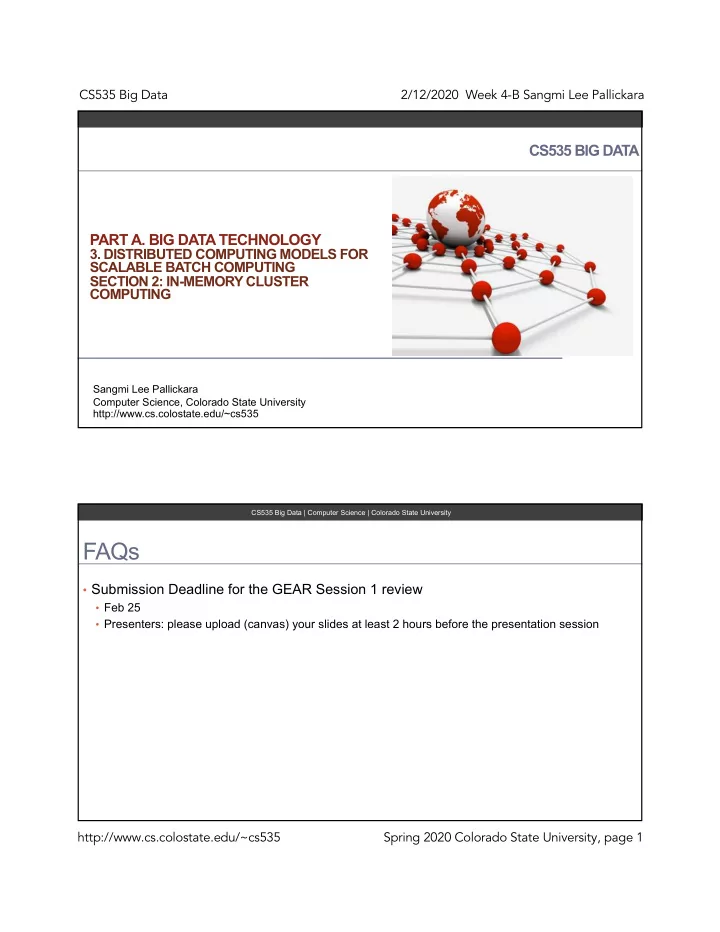

SLIDE 1

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 1

CS535 BIG DATA PART A. BIG DATA TECHNOLOGY

3. DISTRIBUTED COMPUTING MODELS FOR

SCALABLE BATCH COMPUTING SECTION 2: IN-MEMORY CLUSTER COMPUTING

Sangmi Lee Pallickara Computer Science, Colorado State University http://www.cs.colostate.edu/~cs535

FAQs

Submission Deadline for the GEAR Session 1 review
Feb 25
Presenters: please upload (canvas) your slides at least 2 hours before the presentation session

CS535 Big Data | Computer Science | Colorado State University

SLIDE 2

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 2

Topics of Todays Class

3. Distributed Computing Models for Scalable Batch Computing
Data Frame
Spark SQL
Datasets
4. Real-time Streaming Computing Models: Apache Storm and Twitter Heron
Apache storm model
Parallelism
Grouping methods

CS535 Big Data | Computer Science | Colorado State University

In-Memory Cluster Computing: Apache Spark

SQL, DataFrames and Datasets

CS535 Big Data | Computer Science | Colorado State University

SLIDE 3

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 3

What is the Spark SQL?

Spark module for structured data processing
Interface is provided by Spark
SQL and the Dataset API
Spark SQL is to execute SQL queries
Available with the command-line or over JDBC/ODBC

CS535 Big Data | Computer Science | Colorado State University

What is the Datasets?

Dataset is a distributed collection of data
New interface added in Spark (since V1.6) provides
Benefits of RDDs (Storing typing, ability to use lambda functions)
Benefits of Spark SQL’s optimized execution engine
Available in Scala and Java
Python does not support Datasets APIs

CS535 Big Data | Computer Science | Colorado State University

SLIDE 4

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 4

What is the DataFrames?

DataFrame is a Dataset organized into named columns
Like a table in a relational database or a data frame in R/Python
Strengthened optimization scheme
Available with Scala, Java, Python, and R

CS535 Big Data | Computer Science | Colorado State University

In-Memory Cluster Computing: Apache Spark SQL, DataFrames and Datasets

Getting Started

CS535 Big Data | Computer Science | Colorado State University

SLIDE 5

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 5

Create a SparkSession: Starting Point

SparkSession
The entry point into all functionality in Spark

import org.apache.spark.sql.SparkSession val spark = SparkSession .builder() .appName("Spark SQL basic example") .config("spark.some.config.option", "some-value") .getOrCreate() // For implicit conversions like converting RDDs to DataFrames import spark.implicits._ Find full example code at the Spark repo examples/src/main/scala/org/apache/spark/examples/sql/SparkSQLExample.scala

CS535 Big Data | Computer Science | Colorado State University

Creating DataFrames

With a SparkSession, applications can create DataFrames from
Existing RDD
Hive table
Spark data sources

val df = spark.read.json("examples/src/main/resources/people.json") // Displays the content of the DataFrame to stdout df.show() // +----+-------+ // | age| name | // +----+-------+ // |null|Michael| // | 30| Andy | // | 19| Justin | // +----+-------+

CS535 Big Data | Computer Science | Colorado State University

SLIDE 6

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 6

Untyped Dataset Operation (A.K.A. DataFrame Operations)

DataFrames are just Dataset of Rows in Scala and Java API
Untyped transformations
“typed operations”?
Strongly typed Scala/Java Datasets

// This import is needed to use the $-notation import spark.implicits._ // Print the schema in a tree format df.printSchema() // root // |-- age: long (nullable = true) // |-- name: string (nullable = true)

CS535 Big Data | Computer Science | Colorado State University

Untyped Dataset Operation (A.K.A. DataFrame Operations)

// Select only the "name" column df.select("name").show() // +-------+ // | name| // +-------+ // |Michael| // | Andy| // | Justin| // +-------+

CS535 Big Data | Computer Science | Colorado State University

SLIDE 7

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 7

Untyped Dataset Operation (A.K.A. DataFrame Operations)

// Select everybody, but increment the age by 1 df.select($"name", $"age" + 1).show() // +-------+---------+ // | name. |(age + 1)| // +-------+---------+ // |Michael| null| // | Andy. | 31| // | Justin| 20| // +-------+---------+

CS535 Big Data | Computer Science | Colorado State University

Untyped Dataset Operation

// Select people older than 21 df.filter($"age" > 21).show() // +---+----+ // |age|name| // +---+----+ // | 30|Andy| // +---+----+

CS535 Big Data | Computer Science | Colorado State University

SLIDE 8

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 8

Running SQL Queries

SELECT * FROM people

// Register the DataFrame as a SQL temporary view df.createOrReplaceTempView("people") val sqlDF = spark.sql("SELECT * FROM people") sqlDF.show() // +----+-------+ // | age| name| // +----+-------+ // |null|Michael| // | 30| Andy| // | 19| Justin| // +----+-------+

CS535 Big Data | Computer Science | Colorado State University

Global Temporary View

Temporary views in Spark SQL
Session-scoped
Will disappear if the session that creates it terminates
Global temporary view
Shared among all sessions and keep alive until the Spark application terminates
A system preserved database

CS535 Big Data | Computer Science | Colorado State University

SLIDE 9

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 9

Global Temporary View

SELECT * FROM people

// Register the DataFrame as a global temporary view df.createGlobalTempView("people") // Global temporary view is tied to a system preserved database `global_temp` spark.sql("SELECT * FROM global_temp.people").show() // +----+-------+ // | age| name | // +----+-------+ // |null|Michael| // | 30 | Andy | // | 19 | Justin| // +----+-------+

CS535 Big Data | Computer Science | Colorado State University

Global Temporary View

// Global temporary view is cross-session spark.newSession().sql("SELECT * FROM global_temp.people").show() // +----+-------+ // | age| name. | // +----+-------+ // |null|Michael| // | 30 | Andy | // | 19 | Justin| // +----+-------+

CS535 Big Data | Computer Science | Colorado State University

SLIDE 10

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 10

Creating Datasets

Datasets are similar to RDDs
Serializes object with Encoder (not standard java/Kryo serialization)
Datasets are using non-standard serialization library (Spark’s Encoder)
Many of Spark Dataset operations can be performed without deserializing object

case class Person(name: String, age: Long) // Encoders are created for case classes val caseClassDS = Seq(Person("Andy", 32)).toDS() caseClassDS.show() // +----+---+ // |name|age| // +----+---+ // |Andy| 32| // +----+---+

CS535 Big Data | Computer Science | Colorado State University

Creating Datasets

// Encoders for most common types are automatically provided by importing spark.implicits._ val primitiveDS = Seq(1, 2, 3).toDS() primitiveDS.map(_ + 1).collect() // Returns: Array(2, 3, 4) // DataFrames can be converted to a Dataset by providing a class. // Mapping will be done by name val path = "examples/src/main/resources/people.json" val peopleDS = spark.read.json(path).as[Person] peopleDS.show() // +----+-------+ // | age| name| // +----+-------+ // |null|Michael| // | 30 | Andy. | // | 19 | Justin| // +----+-------+

CS535 Big Data | Computer Science | Colorado State University

SLIDE 11

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 11

In-Memory Cluster Computing: Apache Spark SQL, DataFrames and Datasets

Interacting with RDDs

CS535 Big Data | Computer Science | Colorado State University

Interoperating with RDDs

Converting RDDs into Datasets
Case 1: Using reflections to infer the schema of an RDD
Case 2: Using a programmatic interface to construct a schema and then apply it to an existing

RDD

CS535 Big Data | Computer Science | Colorado State University

SLIDE 12

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 12

Interoperating with RDDs: 1. Using Reflection

Automatic converting of an RDD (containing case classes) to a DataFrame
The case class defines the schema of the table
E.g. the names of the arguments to the case class are read using reflection
become the names of the columns
Case classes can also be nested or contain complex types such as Seqs or Arrays
RDD will be implicitly converted to a DataFrame and then be registered as a table

CS535 Big Data | Computer Science | Colorado State University

Interoperating with RDDs: 1. Using Reflection

// For implicit conversions from RDDs to DataFrames import spark.implicits._ // Create an RDD of Person objects from a text file, convert it to a Dataframe val peopleDF = spark.sparkContext .textFile("examples/src/main/resources/people.txt") .map(_.split(",")) .map(attributes => Person(attributes(0), attributes(1).trim.toInt)) .toDF() // Register the DataFrame as a temporary view peopleDF.createOrReplaceTempView("people") // SQL statements can be run by using the sql methods provided by Spark val teenagersDF = spark.sql("SELECT name, age FROM people WHERE age BETWEEN 13 AND 19")

CS535 Big Data | Computer Science | Colorado State University

SLIDE 13

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 13

Interoperating with RDDs : 2. Specifying the Schema Programmatically

When case classes cannot be defined ahead of time
Step 1: Create an RDD of Rows from the original RDD
Steo 2: Create the schema represented by a StructType matching the structure
f Rows in the RDD created in Step 1
Step 3: Apply the schema to the RDD of Rows via createDataFrame method

provided by SparkSession.

CS535 Big Data | Computer Science | Colorado State University

import org.apache.spark.sql.types._ // Create an RDD val peopleRDD = spark.sparkContext.textFile("examples/src/main/resources/people.txt") // The schema is encoded in a string val schemaString = "name age" // Generate the schema based on the string of schema val fields = schemaString.split(" ") .map(fieldName => StructField(fieldName, StringType, nullable = true)) val schema = StructType(fields) // Convert records of the RDD (peopleRDD) to Rows val rowRDD = peopleRDD .map(_.split(",")) .map(attributes => Row(attributes(0), attributes(1).trim))

Interoperating with RDDs : 2. Specifying the Schema Programmatically

CS535 Big Data | Computer Science | Colorado State University

SLIDE 14

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 14

// Apply the schema to the RDD val peopleDF = spark.createDataFrame(rowRDD, schema) // Creates a temporary view using the DataFrame peopleDF.createOrReplaceTempView("people") // SQL can be run over a temporary view created using DataFrames val results = spark.sql("SELECT name FROM people") // The results of SQL queries are DataFrames and support all the RDD operations // The columns of a row in the result can be accessed by field index or by field results.map(attributes => "Name: " + attributes(0)).show() // +-------------+ // | value| // +-------------+ // |Name: Michael| // | Name: Andy| // | Name: Justin| // +-------------+

Interoperating with RDDs : 2. Specifying the Schema Programmatically

CS535 Big Data | Computer Science | Colorado State University

Datasets and Type Safety

Datasets are composed of typed objects
transformation syntax errors (e.g. a typo in the

method name) and analysis errors (e.g. an incorrect input variable type) can be caught at compile time

DataFrames are composed of untyped

Row objects

only syntax errors can be caught at compile time
Spark SQL is composed of a string
syntax errors and analysis errors are only caught

at runtime

CS535 Big Data | Computer Science | Colorado State University

SLIDE 15

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 15

CS535 BIG DATA

PART A. BIG DATA TECHNOLOGY

4. REAL-TIME STREAMING COMPUTING

MODELS: APACHE STORM AND TWITTER HERON

Sangmi Lee Pallickara Computer Science, Colorado State University http://www.cs.colostate.edu/~cs535

This material is built based on

Ankit Toshniwal, Siddarth Taneja, Amit Shukla, Karthik Ramasamy, Jignesh M. Patel,

Sanjeev Kulkarni, Jason Jackson, Krishna Gade, Maosong Fu, Jake Donham, Nikunj Bhagat, Sailesh Mittal, and Dmitriy Ryaboy. 2014. Storm@twitter. In Proceedings of the 2014 ACM SIGMOD International Conference on Management of Data (SIGMOD '14). ACM, New York, NY, USA, 147-156. DOI: https://doi.org/10.1145/2588555.2595641

Sanjeev Kulkarni, Nikunj Bhagat, Maosong Fu, Vikas Kedigehalli, Christopher Kellogg,

Sailesh Mittal, Jignesh M. Patel, Karthik Ramasamy, and Siddarth Taneja. 2015. Twitter Heron: Stream Processing at Scale. In Proceedings of the 2015 ACM SIGMOD International Conference on Management of Data (SIGMOD '15). ACM, New York, NY, USA, 239-250. DOI: https://doi.org/10.1145/2723372.2742788

Storm programming guide
http://storm.apache.org/releases/2.0.0-SNAPSHOT/index.html

CS535 Big Data | Computer Science | Colorado State University

SLIDE 16

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 16

4. Real-time Streaming Computing Models:

Apache Storm and Twitter Heron

Apache Storm Model

CS535 Big Data | Computer Science | Colorado State University

Storm Model

One-at-a-time stream processing
Represents the entire stream processing pipeline as a graph of computation called a

topology

A single program is deployed across a cluster
A stream is represented an infinite sequence of tuples
A tuple: a named list of values

Data stream Tuple Tuple Tuple Tuple Tuple Tuple

CS535 Big Data | Computer Science | Colorado State University

SLIDE 17

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 17

Why use Storm?

Distributed real-time computation system
Realtime analytics
Online machine learning
Continuous computation
Distributed RPC
ETL
Use Case
Twitter
Amazon Kinesis and Storm
KinesisSpoutConfig
KinesisSpout

CS535 Big Data | Computer Science | Colorado State University

Spout in the Storm model

Spout
A source of streams in a topology
A spout can read from a Kestrel or Kafka queue
Turns the data into a tuple stream

Data stream Tuple Tuple Tuple Tuple Data stream Tuple Tuple Tuple Tuple

CS535 Big Data | Computer Science | Colorado State University

SLIDE 18

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 18

Bolt in the Storm model

Bolt
Performs actions on streams
Takes any number of streams as input and produces any number of streams as output
Runs functions, filters data, computes aggregations, does streaming joins, updates database, etc.

Data stream Tuple Tuple Tuple Data stream Tuple Tuple Tuple Data stream Tuple Tuple

CS535 Big Data | Computer Science | Colorado State University

Topology in the Storm model

Topology
A network of spouts and bolts with each edge representing a bolt that processes the output stream of

another spout or bolt

Task
Each instance of a spout or bolt

CS535 Big Data | Computer Science | Colorado State University

SLIDE 19

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 19

4. Real-time Streaming Computing Models:

Apache Storm and Twitter Heron Apache Storm

Word Count Example

CS535 Big Data | Computer Science | Colorado State University

Word count topology: Sentence Spout

Sentence spout
Emits a stream of single-value tuples continuously with the key name

“sentence” and a string value {“sentence”:”my dog has fleas”}

Sentence Spout Split Sentence Bolt Word Count Bolt Report Bolt

CS535 Big Data | Computer Science | Colorado State University

SLIDE 20

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 20

Word count topology: Split Sentence

Split Sentence Bolt
Subscribes to the sentence spout’s tuple stream

{“word”:”my”} {“word”:”dog”} {“word”:”has”} {“word”:”fleas”}

Sentence Spout Split Sentence Bolt Word Count Bolt Report Bolt

CS535 Big Data | Computer Science | Colorado State University

Word count topology: Word Count

Word count bolt
Subscribes to the output of the SplitSentenceBolt class
Keeps a count of how many times it has seen a particular word
Whenever it receives a tuple, it will increment the counter and emit
{“word”:”dog”, “count”:5}

Sentence Spout Split Sentence Bolt Word Count Bolt Report Bolt

CS535 Big Data | Computer Science | Colorado State University

SLIDE 21

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 21

Word count topology: Report

Report bolt
Subscribes to the output of the WordCountBolt class
Keeps a count of how many times it has seen a particular word
Whenever it receives a tuple, it will update the table and print the contents

to the console

Sentence Spout Split Sentence Bolt Word Count Bolt Report Bolt

CS535 Big Data | Computer Science | Colorado State University

SentenceSpout.java

public class SentenceSpout extends BaseRichSpout { private SpoutOutputCollector collector; private String[] sentences = { "my dog has fleas", "i like cold beverages", "the dog ate my homework", "don't have a truck", "i don't think i like fleas" }; private int index = 0; public void declareOutputFields(OutputFieldsDeclarer declarer) { declarer.declare(new Fields(“sentence")); }

CS535 Big Data | Computer Science | Colorado State University

SLIDE 22

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 22

SentenceSpout.java: Continued

public void open(Map config, TopologyContext context, SpoutOutputCollector collector) { this.collector = collector; } public void nextTuple() { this.collector.emit(new Values(sentences[index])); index ++; if (index > = sentences.length) { index = 0; } Utils.waitForMillis(1); } }

CS535 Big Data | Computer Science | Colorado State University

SplitSentenceBolt.java

public class SplitSentenceBolt extends BaseRichBolt{ private OutputCollector collector; public void prepare( Map config, TopologyContext context, OutputCollector collector) { this.collector = collector; } public void execute(Tuple tuple) { String sentence = tuple.getStringByField(“sentence"); String[] words = sentence.split(" "); for(String word : words) { this.collector.emit(new Values(word)); } } public void declareOutputFields(OutputFieldsDeclarer declarer) { declarer.declare(new Fields(“word")); } }

CS535 Big Data | Computer Science | Colorado State University

SLIDE 23

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 23

WordCountBolt.java

public class WordCountBolt extends BaseRichBolt{ private OutputCollector collector; private HashMap < String, Long > counts = null; public void prepare(Map config, TopologyContext context, OutputCollector collector) { this.collector = collector; this.counts = new HashMap < String, Long >(); } public void execute(Tuple tuple) { String word = tuple.getStringByField(“word"); Long count = this.counts.get(word); if(count == null){ count = 0; } count ++; this.counts.put(word, count); this.collector.emit(new Values(word, count)); } public void declareOutputFields( OutputFieldsDeclarer declarer) { declarer.declare(new Fields(“word", "count")); } }

CS535 Big Data | Computer Science | Colorado State University

ReportBolt.java

public class ReportBolt extends BaseRichBolt { private HashMap < String, Long > counts = null; public void prepare(Map config, TopologyContext context, OutputCollector collector) { this.counts = new HashMap < String, Long >(); } public void execute(Tuple tuple) { String word = tuple.getStringByField(“word"); Long count = tuple.getLongByField(“count"); this.counts.put(word, count); } public void declareOutputFields(OutputFieldsDeclarer declarer) {//no output} public void cleanup() { System.out.println("--- FINAL COUNTS ---"); List < String > keys = new ArrayList < String >(); keys.addAll( this.counts.keySet()); Collections.sort(keys); for (String key : keys) { System.out.println(key + " : " + this.counts.get(key)); } } }

CS535 Big Data | Computer Science | Colorado State University

SLIDE 24

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 24

WordCountTopology.java

public class WordCountTopology { private static final String SENTENCE_SPOUT_ID = "sentence-spout"; private static final String SPLIT_BOLT_ID = "split-bolt"; private static final String COUNT_BOLT_ID = "count-bolt"; private static final String REPORT_BOLT_ID = "report-bolt"; private static final String TOPOLOGY_NAME = "word-count-topology"; public static void main( String[] args) throws Exception { SentenceSpout spout = new SentenceSpout(); SplitSentenceBolt splitBolt = new SplitSentenceBolt(); WordCountBolt countBolt = new WordCountBolt(); ReportBolt reportBolt = new ReportBolt(); TopologyBuilder builder = new TopologyBuilder(); builder.setSpout(SENTENCE_SPOUT_ID, spout); // SentenceSpout --> SplitSentenceBolt builder.setBolt(SPLIT_BOLT_ID, splitBolt).shuffleGrouping(SENTENCE_SPOUT_ID);

CS535 Big Data | Computer Science | Colorado State University

WordCountTopology.java Continued

// SplitSentenceBolt--> WordCountBolt builder.setBolt(COUNT_BOLT_ID, countBolt) .fieldsGrouping(SPLIT_BOLT_ID, new Fields(“word")); // WordCountBolt --> ReportBolt builder.setBolt(REPORT_BOLT_ID, reportBolt) .globalGrouping(COUNT_BOLT_ID); Config config = new Config(); LocalCluster cluster = new LocalCluster(); cluster.submitTopology(TOPOLOGY_NAME, config, builder.createTopology()); waitForSeconds(10); cluster.killTopology(TOPOLOGY_NAME); cluster.shutdown(); } }

CS535 Big Data | Computer Science | Colorado State University

SLIDE 25

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 25

Results

-- FINAL COUNTS ---

a : 1426 ate : 1426 beverages : 1426 cold : 1426 cow : 1426 dog : 2852 don't : 2851 fleas : 2851 has : 1426 have : 1426 homework : 1426 i : 4276 like : 2851 man : 1426 my : 2852 the : 1426 think : 1425

CS535 Big Data | Computer Science | Colorado State University
4. Real-time Streaming Computing Models:

Apache Storm and Twitter Heron Apache Storm

Parallelism in Storm

CS535 Big Data | Computer Science | Colorado State University

SLIDE 26

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 26

Components of the Storm cluster

Nodes (machines)
Executes portions of a topology
Workers (JVMs)
Independent JVM processes running on a node
Each node is configured to run one or more workers
A topology may request one or more workers to be assigned to it
Executors (threads)
Java threads running within a worker JVM process
Multiple tasks can be assigned to a single executor
Unless explicitly overridden, Storm will assign one task to each executor
Tasks (bolt/ spout instances)
Instances of spouts and bolts whose nextTuple() and execute() methods are called by executor

threads

CS535 Big Data | Computer Science | Colorado State University

Parallelism in the WordCount topology

In our example, we have NOT used any of Storm’s parallelism
Default setting is a factor of one
Topology execution flow

Executor (Thread) Task (Sentence spout) Executor (Thread) Task (Report Bolt) Executor (Thread) Task (Word Count Bolt) Executor (Thread) Task (Split Sentence Bolt)

Worker (JVM) Node

CS535 Big Data | Computer Science | Colorado State University

SLIDE 27

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 27

Adding workers to a topology

Through configuration
Through APIs
Passing Config object to the submitTopology() method
Bolts and spouts do not have to change

Config config = new Config(); config.setNumWorkers(2);

CS535 Big Data | Computer Science | Colorado State University

Adding executors and tasks

Specify the number of executors when defining a stream grouping
builder.setSpout(SENTENCE_SPOUT_ID, spout, 2);
Assigns two tasks and each task is assigned its own executor thread

2 executors to a single worker

CS535 Big Data | Computer Science | Colorado State University

SLIDE 28

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 28

Two spout tasks (if we are using one worker)

Executor (Thread) Task (Sentence spout) Executor (Thread) Task (Report Bolt) Executor (Thread) Task (Word Count Bolt) Executor (Thread) Task (Split Sentence Bolt)

Worker (JVM) Node

Executor (Thread) Task (Sentence spout)

CS535 Big Data | Computer Science | Colorado State University

builder.setBolt(SPLIT_BOLT_ID, splitBolt, 2) .setNumTasks(4) .shuffleGrouping(SENTENCE_SPOUT_ID);

In SplitSentenceBolt and WordCountBolt,

Set up the split sentence bolt to execute as 4 tasks and 2 executors
Parallelism hint
Storm will run 2 tasks per executor (thread)
Each executor thread will be assigned two tasks to execute
How many workers will work for this example?

2 executors to a single worker Total tasks are 4

CS535 Big Data | Computer Science | Colorado State University

SLIDE 29

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 29

builder.setBolt(SPLIT_BOLT_ID, splitBolt, 2) .setNumTasks(4) .shuffleGrouping(SENTENCE_SPOUT_ID);

In SplitSentenceBolt and WordCountBolt,

Set up the split sentence bolt to execute as 4 tasks and 2 executors
Parallelism hint
Storm will run 2 tasks per executor (thread)
Each executor thread will be assigned two tasks to execute
How many workers will work for this example?
Answer: 2 workers (JVMs)
2 executors per worker

2 executors to a single worker Total tasks are 4

CS535 Big Data | Computer Science | Colorado State University

4. Real-time Streaming Computing Models:

Apache Storm and Twitter Heron Apache Storm

Stream Groupings

CS535 Big Data | Computer Science | Colorado State University

SLIDE 30

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 30

Stream groupings

How a stream’s tuples are distributed among bolt tasks in a topology
E.g. SplitSentenceBolt class was assigned four tasks in the topology
Which tuples will be processed in which task?
The stream grouping determines which one of those tasks will receive a given tuple

CS535 Big Data | Computer Science | Colorado State University

Seven built-in stream groupings (1/3)

Shuffle grouping
Randomly distributes tuples across the target bolt’s tasks
Fields grouping
Routes tuples to bolt tasks based on the values of the fields specified in the grouping
Grouped on the “word” field
Tuples with the same value for the “word” field will always be routed to the same bolt task
All grouping
Replicates the tuple stream across all bolt tasks

CS535 Big Data | Computer Science | Colorado State University

SLIDE 31

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 31

Seven built-in stream groupings (2/3)

Global grouping
Routes all tuples in a stream to a single task
Chooses the task with the lowest task ID value
None grouping
Functionally equivalent to the shuffle grouping
Reserved for future use
Direct grouping
The source stream decides which component will receive a given tuple
By calling the emitDirect() method
Only for streams that have been declared as direct streams

CS535 Big Data | Computer Science | Colorado State University

Seven built-in stream groupings (3/3)

Local or shuffle grouping
Shuffles tuples among bolt tasks running in the same worker process, if any
Otherwise, performs shuffle grouping
Depending on the parallelism of a topology, the local or shuffle grouping can increase topology

performance by limiting network transfer

CS535 Big Data | Computer Science | Colorado State University

SLIDE 32

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 32

Custom Grouping Stream

public interface CustomStreamGrouping extends Serializable { void prepare( WorkerTopologyContext context, GlobalStreamId stream, List < Integer > targetTasks ); List < Integer > chooseTasks(int taskId, List < Object > values); }

CS535 Big Data | Computer Science | Colorado State University

Example of grouping (1/2)

nextTuple() method of SentenceSpout
-- FINAL COUNTS ---

a : 2 ate : 2 beverages : 2 cold : 2 cow : 2 dog : 4 don't : 4 fleas : 4 has : 2 have : 2 homework : 2 i : 6 like : 4 man : 2 my : 4 the : 2 think : 2

public void nextTuple() {

if(index < sentences.length){ this.collector.emit(new Values(sentences[index])); index ++; } Utils.waitForMillis(1); }

CS535 Big Data | Computer Science | Colorado State University

SLIDE 33

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 33

Example of grouping (2/2)

Now change the grouping on the

CountBolt parameter to a shuffle grouping and rerun the topology:

-- FINAL

COUNTS --- a : 1 ate : 2 beverages : 1 cold : 1 cow : 1 dog : 2 don't : 2 fleas : 1 has : 1 have : 1 homework : 1 i : 3 like : 1 man : 1 my : 1 the : 1 think : 1

WHY

?

-- FINAL

COUNTS --- a : 2 ate : 2 beverages : 2 cold : 2 cow : 2 dog : 4 don't : 4 fleas : 4 has : 2 have : 2 homework : 2 i : 6 like : 4 man : 2 my : 4 the : 2 think : 2

builder.setBolt(COUNT_BOLT_ID, countBOLT, 4)

.shuffleGrouping(SPLIT_BOLT_ID);

CS535 Big Data | Computer Science | Colorado State University

builder.setBolt(SPLIT_BOLT_ID, splitBolt).shuffleGrouping(SENTENCE_SPOUT_ID); builder.setBolt(COUNT_BOLT_ID, countBolt) .fieldsGrouping(SPLIT_BOLT_ID, new Fields(“word")); builder.setBolt(REPORT_BOLT_ID, reportBolt) .globalGrouping(COUNT_BOLT_ID);

Why?

The CountBolt parameter is stateful
It maintains a count for each word it’s seen
Shuffle grouping will not capture the total count of appearances of a word

CS535 Big Data | Computer Science | Colorado State University

SLIDE 34

CS535 Big Data 2/12/2020 Week 4-B Sangmi Lee Pallickara http://www.cs.colostate.edu/~cs535 Spring 2020 Colorado State University, page 34

Questions?

CS535 Big Data | Computer Science | Colorado State University
