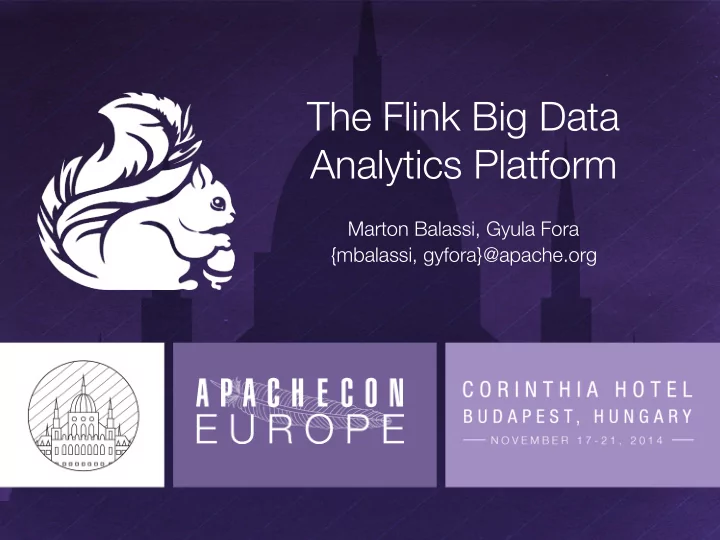

The Flink Big Data Analytics Platform

Marton Balassi, Gyula Fora {mbalassi, gyfora}@apache.org

slide-2
SLIDE 2

What is Apache Flink?

  • Started in 2009 by the Berlin-based database

research groups

  • In the Apache Incubator since mid 2014
  • 61 contributors as of the 0.7.0 release

Open Source

  • Fast, general purpose distributed data processing

system

  • Combining batch and stream processing
  • Up to 100x faster than Hadoop

Fast + Reliable

  • Programming APIs for Java and Scala
  • Tested on large clusters

Ready to use

11/18/2014 2 Flink - M. Balassi & Gy. Fora

slide-3
SLIDE 3

What is Apache Flink?

Master Worker Worker

Flink Cluster

Analytical Program Flink Client & Op0mizer

11/18/2014 3 Flink - M. Balassi & Gy. Fora

slide-4
SLIDE 4

This Talk

  • Introduction to Flink
  • API overview
  • Distinguishing Flink
  • Flink from a user perspective
  • Performance
  • Flink roadmap and closing

11/18/2014 4 Flink - M. Balassi & Gy. Fora

slide-5
SLIDE 5

Open source Big Data Landscape

MapReduce Hive Flink Spark Storm Yarn Mesos HDFS Mahout Cascading Tez Pig Data processing engines App and resource management Applica3ons Storage, streams KaCa HBase Crunch …

11/18/2014 5 Flink - M. Balassi & Gy. Fora

slide-6
SLIDE 6

Flink stack

Common API Storage Streams Hybrid Batch/Streaming Run0me

HDFS

Files S3

Cluster Manager YARN EC2 Na0ve Flink Op0mizer Scala API

(batch)

Graph API

(„Spargel“)

JDBC

Redis Rabbit MQ KaCa Azure

…

Java Collec0ons Streams Builder Apache Tez Python API Java API

(streaming)

Apache MRQL Batch Streaming Java API

(batch)

Local Execu0on

11/18/2014 6 Flink - M. Balassi & Gy. Fora

slide-7
SLIDE 7

Flink APIs

slide-8
SLIDE 8

Programming model

DataSet/Stream A A (1) A (1) A (2) A (2) B (1) B (1) B (2) B (2) C (1) C (1) C (2) C (2) X X Y Y

Program Parallel Execution X Y Operator X Operator Y Data abstractions: Data Set, Data Stream

DataSet/Stream B DataSet/Stream C

11/18/2014 8 Flink - M. Balassi & Gy. Fora

slide-9
SLIDE 9

Flexible pipelines

Reduce Join Map Reduce Map Iterate Source Sink Source

Map, FlatMap, MapPartition, Filter, Project, Reduce, ReduceGroup, Aggregate, Distinct, Join, CoGoup, Cross, Iterate, Iterate Delta, Iterate-Vertex-Centric, Windowing

11/18/2014 9 Flink - M. Balassi & Gy. Fora

slide-10
SLIDE 10

WordCount, Java API

DataSet<String> text = env.readTextFile(input); DataSet<Tuple2<String, Integer>> result = text .flatMap((str, out) -> { for (String token : value.split("\\W")) {

  • ut.collect(new Tuple2<>(token, 1));

}) .groupBy(0) .sum(1);

11/18/2014 10 Flink - M. Balassi & Gy. Fora

slide-11
SLIDE 11

WordCount, Scala API

val input = env.readTextFile(input); val words = input flatMap { line => line.split("\\W+") } val counts = words groupBy { word => word } count()

11/18/2014 11 Flink - M. Balassi & Gy. Fora

slide-12
SLIDE 12

WordCount, Streaming API

DataStream<String> text = env.readTextFile(input); DataStream<Tuple2<String, Integer>> result = text .flatMap((str, out) -> { for (String token : value.split("\\W")) {

  • ut.collect(new Tuple2<>(token, 1));

}) .groupBy(0) .sum(1);

11/18/2014 12 Flink - M. Balassi & Gy. Fora

slide-13
SLIDE 13

Is there anything beyond WordCount?

11/18/2014 13 Flink - M. Balassi & Gy. Fora

slide-14
SLIDE 14

Beyond Key/Value Pairs

DataSet<Page> pages = ...; DataSet<Impression> impressions = ...; DataSet<Impression> aggregated = impressions .groupBy("url") .sum("count"); pages.join(impressions).where("url").equalTo("url") .print() // outputs pairs of matching pages and impressions class Impression { public String url; public long count; } class Page { public String url; public String topic; } // outputs pairs of pages and impressions

11/18/2014 14 Flink - M. Balassi & Gy. Fora

slide-15
SLIDE 15

Preview: Logical Types

DataSet<Row> dates = env.readCsv(...).as("order_id", "date"); DataSet<Row> sessions = env.readCsv(...).as("id", "session"); DataSet<Row> joined = dates .join(session).where("order_id").equals("id"); joined.groupBy("date").reduceGroup(new SessionFilter()) class SessionFilter implements GroupReduceFunction<SessionType> { public void reduce(Iterable<SessionType> value, Collector out){ ... } } public class SessionType { public String order_id; public Date date; public String session; }

11/18/2014 15 Flink - M. Balassi & Gy. Fora

slide-16
SLIDE 16

Distinguishing Flink

slide-17
SLIDE 17

Hybrid batch/streaming runtime

  • Batch and stream processing in the same system
  • No micro-batches, unified runtime
  • Competitive performance
  • Code reusable from batch processing to streaming,

making development and testing a piece-of-cake

11/18/2014 17 Flink - M. Balassi & Gy. Fora

slide-18
SLIDE 18

Flink Streaming

  • Most Data Set operators are also available for

Data Streams

  • Temporal and streaming specific operators

– Window/mini-batch operators – Window join, cross etc.

  • Support for iterative stream processing
  • Connectors for different data sources

– Kafka, Flume, RabbitMQ, Twitter etc.

11/18/2014 18 Flink - M. Balassi & Gy. Fora

slide-19
SLIDE 19

Flink Streaming

//Build new model on every second of new data DataStream<Double[]> model= env .addSource(new TrainingDataSource()) .window(1000) .reduceGroup(new ModelBuilder()); //Predict new data using the most up-to-date model DataStream<Integer> prediction = env .addSource(new NewDataSource()) .connect(model) .map(new Predictor());

11/18/2014 19 Flink - M. Balassi & Gy. Fora

slide-20
SLIDE 20

Lambda architecture

Source: https://www.mapr.com/developercentral/lambda-architecture

11/18/2014 20 Flink - M. Balassi & Gy. Fora

slide-21
SLIDE 21

Lambda architecture in Flink

11/18/2014 21 Flink - M. Balassi & Gy. Fora

slide-22
SLIDE 22

Dependability

JVM Heap

Flink Managed Heap

Network Buffers

Unmanaged Heap

(next version unifies network buffers and managed heap)

User Code Hashing/Sor0ng/Caching

  • Flink manages its own memory
  • Caching and data processing happens in a dedicated

memory fraction

  • System never breaks the


JVM heap, gracefully spills Shuffles/Broadcasts

11/18/2014 22 Flink - M. Balassi & Gy. Fora

slide-23
SLIDE 23
  • serializes data every time



  Highly robust, never gives up on you

  • works on objects, RDDs may be stored serialized



 Serialization considered slow, only when needed

  • makes serialization really cheap:



  partial deserialization, operates on serialized form
  Efficient and robust!

Operating on Serialized Data

11/18/2014 23 Flink - M. Balassi & Gy. Fora

slide-24
SLIDE 24

Operating on Serialized Data

Microbenchmark

  • Sorting 1GB worth of (long, double) tuples
  • 67,108,864 elements
  • Simple quicksort

11/18/2014 24 Flink - M. Balassi & Gy. Fora

slide-25
SLIDE 25

Memory Management

public class WC { public String word; public int count; }

empty page

Pool of Memory Pages

  • Works on pages of bytes, maps objects transparently
  • Full control over memory, out-of-core enabled
  • Algorithms work on binary representation
  • Address individual fields (not deserialize whole object)
  • Move memory between operations

11/18/2014 25 Flink - M. Balassi & Gy. Fora

slide-26
SLIDE 26

Flink from a user perspective

slide-27
SLIDE 27

Flink programs run everywhere

Cluster (Batch) Cluster (Streaming) Local Debugging

Fink Run3me or Apache Tez As Java Collec0on Programs

Embedded (e.g., Web Container)

11/18/2014 27 Flink - M. Balassi & Gy. Fora

slide-28
SLIDE 28

Migrate Easily

Flink out-of-the-box supports

  • Hadoop data types (writables)
  • Hadoop Input/Output Formats
  • Hadoop functions and object model

Input Map Reduce Output

DataSet DataSet DataSet

Red Join

DataSet

Map

DataSet Output

S

Input

11/18/2014 28 Flink - M. Balassi & Gy. Fora

slide-29
SLIDE 29
  • Requires no memory thresholds to configure

– Flink manages its own memory

  • Requires no complicated network configs

– Pipelining engine requires much less memory for data exchange

  • Requires no serializers to be configured

– Flink handles its own type extraction and data representation

  • Programs can be adjusted to data automatically

– Flink’s optimizer can choose execution strategies automatically

Little tuning or configuration required

11/18/2014 29 Flink - M. Balassi & Gy. Fora

slide-30
SLIDE 30

Understanding Programs

Visualizes the operations and the data movement of programs

Analyze after execution

Screenshot from Flink’s plan visualizer

11/18/2014 30 Flink - M. Balassi & Gy. Fora

slide-31
SLIDE 31

Understanding Programs

Analyze after execution (times, stragglers, …)

11/18/2014 31 Flink - M. Balassi & Gy. Fora

slide-32
SLIDE 32

Iterations in other systems

Step Step Step Step Step

Client

Loop outside the system

Step Step Step Step Step

Client

Loop outside the system

11/18/2014 32 Flink - M. Balassi & Gy. Fora

slide-33
SLIDE 33

Iterations in Flink

Streaming dataflow
 with feedback

map join red. join

System is iteration-aware, performs automatic optimization

11/18/2014 33 Flink - M. Balassi & Gy. Fora

slide-34
SLIDE 34

Automatic Optimization for Iterative Programs

Caching Loop-invariant Data Pushing work
 „out of the loop“ Maintain state as index

11/18/2014 34 Flink - M. Balassi & Gy. Fora

slide-35
SLIDE 35

Performance

slide-36
SLIDE 36

Distributed Grep

Filter Term 1

HDFS

Filter Term 2 Filter Term 3

Matches Matches Matches

  • 1 TB of data (log files)
  • 24 machines with
  • 32 GB Memory
  • Regular HDDs
  • HDFS 2.4.0
  • Flink 0.7-incubating-

SNAPSHOT

  • Spark 1.2.0-SNAPSHOT

Flink up to 2.5x faster

11/18/2014 36 Flink - M. Balassi & Gy. Fora

slide-37
SLIDE 37

Distributed Grep: Flink Execution

11/18/2014 37 Flink - M. Balassi & Gy. Fora

slide-38
SLIDE 38

Distributed Grep: Spark Execution

Filter Term 1

HDFS

Matches

Spark executes the job in 3 stages:

Stage 1

Filter Term 2

HDFS

Matches

Stage 2

Filter Term 3

HDFS

Matches

Stage 3

11/18/2014 38 Flink - M. Balassi & Gy. Fora

slide-39
SLIDE 39

Spark in-memory pinning

Filter Term 1

HDFS

Filter Term 2 Filter Term 3

Matches Matches Matches

In- Memory RDD Cache in-memory to avoid reading the data for each filter

JavaSparkContext sc = new JavaSparkContext(conf); JavaRDD<String> file = sc.textFile(inFile).persist(StorageLevel.MEMORY_AND_DISK()); for(int p = 0; p < patterns.length; p++) { final String pattern = patterns[p]; JavaRDD<String> res = file.filter(new Function<String, Boolean>() { … }); }

11/18/2014 39 Flink - M. Balassi & Gy. Fora

slide-40
SLIDE 40

Spark in-memory pinning

37 minutes 9 minutes

RDD is 100% in- memory Spark starts spilling RDD to disk

11/18/2014 40 Flink - M. Balassi & Gy. Fora

slide-41
SLIDE 41

PageRank

  • Dataset:

– Twitter Follower Graph – 41,652,230 vertices (users) – 1,468,365,182 edges (followings) – 12 GB input data

11/18/2014 41 Flink - M. Balassi & Gy. Fora

slide-42
SLIDE 42

PageRank results

11/18/2014 42 Flink - M. Balassi & Gy. Fora

slide-43
SLIDE 43

Why is there a difference?

  • Lets have a look at the iteration times:

Flink average: 48 sec., Spark average: 99 sec.

11/18/2014 43 Flink - M. Balassi & Gy. Fora

slide-44
SLIDE 44

PageRank on Flink with Delta Iterations

  • The algorithm runs 60 iterations until convergence (runtime

includes convergence check)

100 minutes 8.5 minutes

11/18/2014 44 Flink - M. Balassi & Gy. Fora

slide-45
SLIDE 45

Again, explaining the difference

On average, a (delta) interation runs for 6.7 seconds

Flink (Bulk): 48 sec. Spark (Bulk): 99 sec.

11/18/2014 45 Flink - M. Balassi & Gy. Fora

slide-46
SLIDE 46

Streaming performance

11/18/2014 46 Flink - M. Balassi & Gy. Fora

slide-47
SLIDE 47

Flink Roadmap

  • Flink has a major release every 3 months,

with >=1 big-fixing releases in-between

  • Finer-grained fault tolerance
  • Logical (SQL-like) field addressing
  • Python API
  • Flink Streaming, Lambda architecture support
  • Flink on Tez
  • ML on Flink (e.g., Mahout DSL)
  • Graph DSL on Flink
  • … and more

11/18/2014 47 Flink - M. Balassi & Gy. Fora

slide-48
SLIDE 48

11/18/2014 48 Flink - M. Balassi & Gy. Fora

slide-49
SLIDE 49

Marton Balassi, Gyula Fora {mbalassi, gyfora}@apache.org

http://flink.incubator.apache.org github.com/apache/incubator-flink @ApacheFlink
