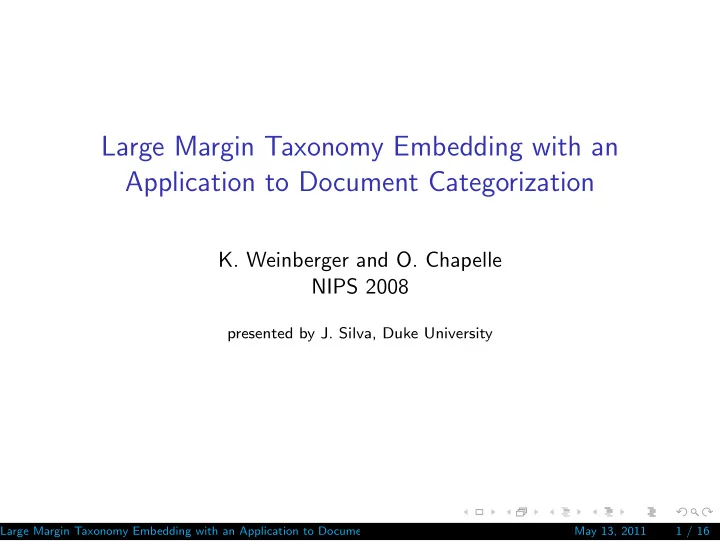

Large Margin Taxonomy Embedding with an Application to Document Categorization

• K. Weinberger and O. Chapelle

NIPS 2008

presented by J. Silva, Duke University

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 1 / 16

Problem

Multi-class classification

◮ Application: document categorization

The classes (topics) follow a taxonomy (e.g., a hierarchy) Misclassification errors are not all the same. Examples:

◮ It is worse to misclassify a male pedestrian as a traffic light than as a

female pedestrian

◮ ...or to misclassify a medical journal on heart attack as a publication on

athlete’s foor than on coronary disease

The proposed approach is cost-sensitive, and aims to move beyond hierarchical representations to discover a continuous latent semantic space

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 2 / 16

Multi-class classification of documents based on a taxonomy of topics

• xi is the i-th document
• pα is the protype for the α-th class

P, W are mappings to latent semantic space

Note: All figures adapted from the original paper Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 3 / 16

Contributions

A supervised regression algorithm called taxem (taxonomy embedding) is presented The algorithm learns the regression for the documents and the placement of the topic prototypes in a single optimization The regression is done by solving a convex semi-definite programming (SDP) problem In this case, the SDP admits a particular form that can be solved efficiently for large datasets

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 4 / 16

Outline of the presentation

Notation Two-step method

◮ Topic embedding ◮ Document regression

One-step combined large margin optimization Results on the OHSUMED medical journal database Discussion

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 5 / 16

Notation

Documents x1, . . . , xn ∈ X of dimensionality d

◮ Can be, e.g., bag-of-word indicators or tf-idf scores

y1, . . . , yn ∈ {1, . . . , c} are topic labels in some taxonomy T Indices

◮ i, j ∈ {1, . . . , n} for documents ◮ α, β ∈ {1, . . . , c} for classes

The taxonomy gives rise to a cost matrix C ∈ Rc×c, where Cαβ ≥ 0 is the cost of misclassifying class α as β and Cαα = 0 We wish to represent

◮ each topic α as a prototype

pα ∈ F

◮ each document

xi as a low-dimensional vector zi ∈ F

We assume C is given

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 6 / 16

Two-step approach: embedding topic prototypes

Find prototypes p1, . . . , pc ∈ F based on C Define P = [ p1 · · · pc] ∈ Rc×c (note: it is assumed throughout the paper that F = Rc) How to derive P from C?

◮ Simplest: ignore C and set P = Ic×c; all topics in the corners of a

(c-1)-dimensional simplex, denoted PI

◮ Better: solve

Pmds = arg min

P c

• α,β=1

( pα − pβ2

2 − Cαβ)2

where mds means metric dimensional scaling, as in ISOMAP

◮ The solution is Pmds =

√ ΛV, obtained from the decomposition ¯ C = VΛV⊤ where ¯ C = − 1

2HCH and H = I − 1 c 11⊤

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 7 / 16

Two-step approach: document regression

Assume we have P Find mapping W : X → F so that xi with label yi is placed near pyi Solve the linear ridge regression W = arg min

W n

• i=1

( pyi − W xi2

2 + λW2 F

The solution has the closed form PJX⊤(XX⊤ + λI)−1 where X = [ x1 · · · xn] and J ∈ {0, 1}c×n, with Jαi = 1 iff yi = α

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 8 / 16

Inference and performance measure

Inference (for new documents)

◮ Given a new document

xt, first map it into F and then estimate its label via the nearest-neighbor rule ˆ yt = arg min

α

pα − W xt2

2

Performance measure

◮ For a given set of labeled documents (

x1, y1), . . . , ( xn, yn), the quality

• f the regression is assessed via the averaged cost-sensitive

misclassification loss E = 1 n

n

• i=1

Cyi ˆ

yi

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 9 / 16

One-step method

Learning the prototypes independently of the data is not optimal Untangle the mutual dependence between W and P (“chicken-and-egg” problem)

◮ Define

A = JX⊤(XX⊤ + λI)−1

◮ We have W = PA; A is independent of P, and can be pre-computed

Now find P

◮ Let

x′

i = A

xi and eα = [0 · · · 1 · · · 0]⊤ with 1 in the α-th position

◮ Rewrite

pα = P eα and zi = P x′

i

◮ We can’t optimize E w.r.t. P directly (the objective is non-continuous

and non-differentiable)

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 10 / 16

One-step method (cont.)

Surrogate loss function

Minimize

i,α ξiα s.t.

P( eyi − x′

i )2 2 + Cyiα ≤ P(

eα − x′

i )2 2 + ξiα

ξiα ≥ 0 This enforces a large-margin condition, so that prototypes which would incur larger misclassification loss are farther away The surrogate loss is an upper bound on E

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 11 / 16

One-step method (cont.)

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 12 / 16

One-step method: upper bound on E

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 13 / 16

One-step method: convex formulation and regularization

The above optimization is not convex, due to quadratic constraints Make the problem invariant to rotations by defining Q = P⊤P and writing distances w.r.t. Q P( eα − x′

i )2 2 = (

eα − x′

i )⊤Q(

eα − x′

i ) =

eα − x′

i 2 Q

µ is a regularization parameter

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 14 / 16

Results

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 15 / 16

Results

Large Margin Taxonomy Embedding with an Application to Document Categorization May 13, 2011 16 / 16
