SLIDE 1

with Montoya Land Use Consulting, Inc.

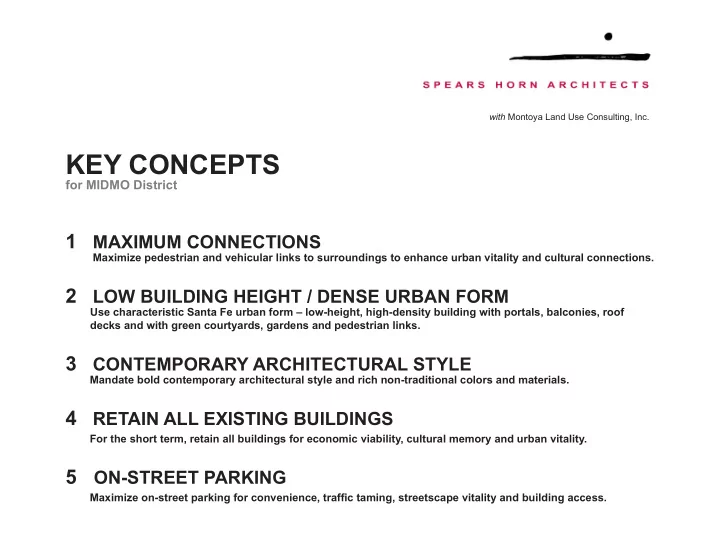

KEY CONCEPTS

for MIDMO District

1 MAXIMUM CONNECTIONS

Maximize pedestrian and vehicular links to surroundings to enhance urban vitality and cultural connections.

2 LOW BUILDING HEIGHT / DENSE URBAN FORM

Use characteristic Santa Fe urban form – low-height, high-density building with portals, balconies, roof decks and with green courtyards, gardens and pedestrian links.

3 CONTEMPORARY ARCHITECTURAL STYLE

Mandate bold contemporary architectural style and rich non-traditional colors and materials.

4 RETAIN ALL EXISTING BUILDINGS

For the short term, retain all buildings for economic viability, cultural memory and urban vitality.

5 ON-STREET PARKING

Maximize on-street parking for convenience, traffjc taming, streetscape vitality and building access.

SLIDE 2

MIDMO

STAGE 1 STAGE 2 OFFICES GREER GARSON THEATRE DRISCOLL FITNESS CENTER MUSIC HALL CULTURAL MUSEUM CULTURAL COMMONS PERFORMANCE THEATRE SFAI SHELLABERGER TENNIS CENTER STAGE 1 STAGE 2 OFFICES F I L M S T U D I O NEW MEDIA + PRODUCTION N E W E N T R Y ( R E M O D E L ) N E W E N T R Y ( R E M O D E L ) N E W E N T R Y ( R E M O D E L ) TEEN CENTER MEADOW HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL O N E W A Y O N E W A Y O N E W A Y GARSON STUDIO COMPLEX STAGE 1 STAGE 2 WORK COURT MILL / MAKER SPACES O N E W A Y O N E W A Y N E W E N T R Y ( R E M O D E L ) N E W E N T R Y ( R E M O D E L ) DAYCARE + SENIOR CENTER O N E W A Y ART CENTER QUAD FOGELSON LIBRARY PRE-K SCHOOL M I D T O W N L I N C O V E R L A Y D I S T R I C T B O U N D A R Y

ST. MICHAEL'S DRIVE

CERRILLOS ROAD S I R I N G O R O A D

LLANO STREET CHAMISA STREET PINON STREET LLANO STREET HOPEWELL STREET CHAMA AVE OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE NM STATE LIBRARY + ARCHIVES STATE SFPS SFPS SFPS

ST. MICHAEL'S

SELF STORAGE K-MART OFFICES STATE STATE STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY SHOPPING CENTER FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL INDIA HOUSE AUTOZONE LAMPLIGHTER INN O'RILEY'S ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SANTA FE KIA STATE STATE ARTISAN'S MACLOVIA ST Y U C C A S T R A N C H O S I R I N G O R D RANCHO SIRINGO DR A R R O Y O D E L O S P I N O S ALAMOSA PL ALAMOSA DR PRACTILLIANO DR SAN LORENZO DR FLORA DR TIERRA DR CAM REDONDO CAMINO CARLOS REY VELARDE RD SANTA CLARA DR LA JUNTA ST CAMINO DEL GUSTO CALLE MARGARITA CALLE DE SUENOS CALLE LA RESOLANA

S I R I N G O R O A D S I R I N G O R O A D

ALAMOSA DR C A L L E D E S U E N O S CALLE LA RESOLANA CAMINO CARLOS REY C A L L E F L O R I N D A C A L L E D E O R I E N T E CALLE DE ORIENTE EAST C A L L E D E O R I E N T E N O R T H CLARK CT ESCONDIDA CT PSO NORTENO CALLE DEL SUR C L A R K R D

CERRILLOS ROAD

ST. MICHAEL'S DRIVE

RAILRUNNER

C L A R K R D S I L E R R D R U F I N A S T C L A R K R D CALLE DE COMERCIO HARRISON RD JORGENSEN LN MAEZ RD INDUSTRIAL RD C A M I N O C A R L O S R E Y C A L L E S O T E R O L A C I E N E G U I T A HARRISON RD MAEZ RD ROSINA ST MACLOVIA ST GALLEGOS LN G ISABEL ST DECLOVINA ST LUJAN ST VITALIA ST APACHE AVE ROSINA ST ISLETA AVE CAMINO CARLOS REY CAMINO CARLOS REY O N E W A Y 5TH STREET L L A N O S T R E E T 5 T H S T R E E T L L A N O S T R E E T 5 T H S T R E E T THOMAS AVE P L A Z A T H O M A S AVE DE LAS ALTURAS T H O M A S A V E C A M C L A R O C A M L A D O CAM LADO C A L L E S O M B R A CALLE PERDIZ WARNER AVE WARNER CIR 5TH STREET 6TH STREET H O P E W E L L S T R E E T MANN STREET ESPINACITAS STREET 5TH STREET 6 T H S T R E E T 4TH STREET 3RD STREET QUAPAW STREET QUAPAW PL ESPINACITAS STREET J A Y S T R E E T B E R R Y A V E QUAPAW STREET H O P E W E L L S T R E E T 2 N D S T R E E T L E N A S T R E E T C D E B A C A L N SALAZAR ELEMENTARY SCHOOL STATE CITY NAVA ELEMENTARY SCHOOL SANTA FE HIGH SCHOOL GENERAL FRANKLIN E MILES PARK STATE STATE MAZDA VOLVO SHOPPING CENTER JACAKLOPE BIG JO HARDWARE PEP BOYS SALVATION ARMY FIESTA HYUNDAI FIESTA NISSAN MUSIC COURT BANDSHELL COMMUNITY CONFERENCE CENTER TENNIS COURTS + REC AREA FILM STUDIO FILM STUDIO OFFICES STAGE 1 STAGE 2 OUTDOOR FITNESS PARK CAFETERIA

SLIDE 3

MIDMO

EXISTING BUILDINGS

NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL ONE WAY ONE WAY ONE WAY ONE WAY ONE WAY NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) ONE WAY

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE ARROYO DE LOS PINOS

SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S SELF STORAGE

STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY CARL JR'S JIMMY JOHN'S SHOPPING CENTER DONATION CENTER SFPS FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL WENDY'S (VACANT) LUCIA'S INDIA HOUSE AUTOZONE LAMPLIGHTER INN BURRITO SPOT TITLE LOAN TAX SERVICE LIFE LINK Y'S K NTAIN TIRE REPAIR ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SHOPPING CENTER FARMER'S INSURANCE BATTERIES PLUS ENTERPRISE RENTAL RYAN'S SEWING AND VAC SHOPPING CENTER SFPS SFPS STATE STATE ARTISAN'S

MACLOVIA ST YUCCA RANCHO SIRINGO RD

LUKE HALL GREER GARSON THEATRE ADMINISTRATION BUILDING SW ANNEX APT APT APT APT LASALLE HALL KING HALL ONATE HALL DRISCOLL FITNESS CENTER ALEXIS HALL ALUMNI HALL BENILDUS HALL MOUTON HALL HEALTH CENTER STORAGE (DEN) MARION CENTER CULTURAL MUSEUM CULTURAL COMMONS PERFORMANCE THEATRE SANTA FE ART INSTITUTE SHELLABERGER TENNIS CENTER FILM STUDIO FILM STUDIO NEW MEDIA + PRODUCTION TEEN CENTER MEADOW TENNIS COURTS TENNIS COURTS OUTDOOR FITNESS PARK GARSON STUDIO COMPLEX WORK COURT MILL / MAKER SPACES TENNIS COURTS TENNIS COURTS BAND SHELL SECURITY COMMUNITY CONFERENCE CENTER DAYCARE + SENIOR CENTER TISHMAN HALL TIPTON HALL THAW ART HISTORY CENTER QUAD FOGELSON LIBRARY PRE-K SCHOOL CAFETERIA REC. AREA KENNEDY HALL FORUM MUSIC COURT

NEW BUILDINGS SITE ELEMENTS PARKING + RAINWATER HARVESTING CALCULATIONS

SLIDE 4

SLIDE 5 = NEW PARKING (ON-STREET AND SURFACE LOT) = NEW PEDESTRIAN ZONE - PAVED

EXISTING BUILDINGS

= EXISTING BUILDINGS TO BE RETAINED = EXISTING BUILDINGS TO BE PHASED OUT OVER TIME = EXISTING BUILDINGS - RELOCATED HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE ARROYO DE LOS PINOS

SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S SELF STORAGE

STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY CARL JR'S JIMMY JOHN'S SHOPPING CENTER DONATION CENTER SFPS FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL WENDY'S (VACANT) LUCIA'S INDIA HOUSE AUTOZONE LAMPLIGHTER INN BURRITO SPOT TITLE LOAN TAX SERVICE LIFE LINK EY'S OK UNTAIN TIRE REPAIR ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SHOPPING CENTER FARMER'S INSURANCE BATTERIES PLUS ENTERPRISE RENTAL RYAN'S SEWING AND VAC SHOPPING CENTER SFPS SFPS STATE STATE ARTISAN'S

MACLOVIA ST YUCCA RANCHO SIRINGO RD

EXISTING

N 1" = 100'

NEW BUILDINGS

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

SITE ELEMENTS

= NEW PEDESTRIAN ZONE - LANDSCAPED = NEW SITE WALL OR FENCE WITH VEGETATION = EXISTING BUILDINGS - OFF SITE = NEW OPEN-AIR ZAGUAN (PUBLIC ACCESS) = BUS ROUTES = BIKEWAYS

PARKING + RAINWATER HARVESTING CALCULATIONS

SHARED PARKING SPACES TOTAL ON-STREET PARKING SPACES = ±1,578 SPACES TOTAL SURFACE LOT PARKING SPACES = ±647 SPACES = ±2225 TOTAL SPACES PARKING : BUILDING AREA RATIO 1 SPACE PER ±1,200 GSF RAINWATER HARVESING (FOR NEW BUILDINGS) NEW BUILDING ROOFED AREA = 1,069,284 GSF CUBIC FEET OF RAINWATER HARVESTED = 891,070 CF (10"/YR AVERAGE RAIN HARVEST) = 6,237,490 GALLONS

BUILDING AREA CALCULATIONS

EXISTING BUILDING AREA EXISTING BUILDING AREA (ALL FLOORS) = 498,384 SF NEW BUILDING AREA 1 STORY BUILDING AREA = 141,220 GSF 2 STORY BUILDING AREA (INCLUDES BOTH FLOORS) = 1,856,128 GSF 3RD FLOOR AREA = 194,420 GSF = 2,191,768 GSF TOTAL SITE BUILDING AREA = 2,690,152 GSF

1965 1962 1970 1970 1998 1998 1964 2010 1990 1962 1967 1962 1991 1945 1993 1964 1968 1963 2005 2010 1981 1976 1998 1945 1994 1990 1962 1970

= EXISTING BUILDINGS TO BE RETAINED = EXISTING BUILDINGS TO BE PHASED OUT OVER TIME

SLIDE 6 = NEW PARKING (ON-STREET AND SURFACE LOT) = NEW PEDESTRIAN ZONE - PAVED

EXISTING BUILDINGS

= EXISTING BUILDINGS TO BE RETAINED = EXISTING BUILDINGS TO BE PHASED OUT OVER TIME = EXISTING BUILDINGS - RELOCATED NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL ONE WAY ONE WAY ONE WAY ONE WAY ONE WAY NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) ONE WAY

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE ARROYO DE LOS PINOS

SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S SELF STORAGE

STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY CARL JR'S JIMMY JOHN'S SHOPPING CENTER DONATION CENTER SFPS FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL WENDY'S (VACANT) LUCIA'S INDIA HOUSE AUTOZONE LAMPLIGHTER INN BURRITO SPOT TITLE LOAN TAX SERVICE LIFE LINK EY'S OK UNTAIN TIRE REPAIR ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SHOPPING CENTER FARMER'S INSURANCE BATTERIES PLUS ENTERPRISE RENTAL RYAN'S SEWING AND VAC SHOPPING CENTER SFPS SFPS STATE STATE ARTISAN'S

MACLOVIA ST YUCCA RANCHO SIRINGO RD

LUKE HALL GREER GARSON THEATRE ADMINISTRATION BUILDING SW ANNEX APT APT APT APT LASALLE HALL KING HALL ONATE HALL DRISCOLL FITNESS CENTER ALEXIS HALL ALUMNI HALL BENILDUS HALL MOUTON HALL HEALTH CENTER STORAGE (DEN) MARION CENTER CULTURAL MUSEUM CULTURAL COMMONS PERFORMANCE THEATRE SANTA FE ART INSTITUTE SHELLABERGER TENNIS CENTER FILM STUDIO FILM STUDIO NEW MEDIA + PRODUCTION TEEN CENTER MEADOW TENNIS COURTS TENNIS COURTS OUTDOOR FITNESS PARK GARSON STUDIO COMPLEX WORK COURT MILL / MAKER SPACES TENNIS COURTS TENNIS COURTS BAND SHELL SECURITY COMMUNITY CONFERENCE CENTER DAYCARE + SENIOR CENTER TISHMAN HALL TIPTON HALL THAW ART HISTORY CENTER QUAD FOGELSON LIBRARY PRE-K SCHOOL CAFETERIA REC. AREA KENNEDY HALL FORUM MUSIC COURT

BUILDING HEIGHTS

N 1" = 100'

NEW BUILDINGS

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

SITE ELEMENTS

= NEW PEDESTRIAN ZONE - LANDSCAPED = NEW SITE WALL OR FENCE WITH VEGETATION = EXISTING BUILDINGS - OFF SITE = NEW OPEN-AIR ZAGUAN (PUBLIC ACCESS) = BUS ROUTES = BIKEWAYS

PARKING + RAINWATER HARVESTING CALCULATIONS

SHARED PARKING SPACES TOTAL ON-STREET PARKING SPACES = ±1,578 SPACES TOTAL SURFACE LOT PARKING SPACES = ±647 SPACES = ±2225 TOTAL SPACES PARKING : BUILDING AREA RATIO 1 SPACE PER ±1,200 GSF RAINWATER HARVESING (FOR NEW BUILDINGS) NEW BUILDING ROOFED AREA = 1,069,284 GSF CUBIC FEET OF RAINWATER HARVESTED = 891,070 CF (10"/YR AVERAGE RAIN HARVEST) = 6,237,490 GALLONS

BUILDING AREA CALCULATIONS

EXISTING BUILDING AREA EXISTING BUILDING AREA (ALL FLOORS) = 498,384 SF NEW BUILDING AREA 1 STORY BUILDING AREA = 141,220 GSF 2 STORY BUILDING AREA (INCLUDES BOTH FLOORS) = 1,856,128 GSF 3RD FLOOR AREA = 194,420 GSF = 2,191,768 GSF TOTAL SITE BUILDING AREA = 2,690,152 GSF

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

SLIDE 7 SIDEWALK PARKING DRIVE 2-WAY SIDEWALK 10'-0" 10'-0" 7'-0" 15'-0" 9'-0" 58'-0" ROW PARKING 7'-0" 34'-0" CURB TO CURB SOLAR PHOTOVOLTAIC PANELS SIDEWALK DRIVE 1-WAY SIDEWALK 10'-0" 7'-0" 7'-0" 10'-0" 41'-0" ROW PARKING SOLAR PHOTOVOLTAIC PANELS SOLAR PHOTOVOLTAIC PANELS 7'-0" PARKING 24'-0" CURB TO CURB

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

EXISTING BUILDING AREA (ALL FLOORS) = 498,384 SF NEW BUILDING AREA 1 STORY BUILDING AREA = 141,220 GSF 2 STORY BUILDING AREA (INCLUDES BOTH FLOORS) = 1,856,128 GSF 3RD FLOOR AREA = 194,420 GSF = 2,191,768 GSF TOTAL SITE BUILDING AREA = ±2,700,000 GSF

SLIDE 8 = NEW PARKING (ON-STREET AND SURFACE LOT) = NEW PEDESTRIAN ZONE - PAVED

EXISTING BUILDINGS

= EXISTING BUILDINGS TO BE RETAINED = EXISTING BUILDINGS TO BE PHASED OUT OVER TIME = EXISTING BUILDINGS - RELOCATED HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE ARROYO DE LOS PINOS

SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S SELF STORAGE

STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY CARL JR'S JIMMY JOHN'S SHOPPING CENTER DONATION CENTER SFPS FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL WENDY'S (VACANT) LUCIA'S INDIA HOUSE AUTOZONE LAMPLIGHTER INN BURRITO SPOT TITLE LOAN TAX SERVICE LIFE LINK EY'S OK UNTAIN TIRE REPAIR ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SHOPPING CENTER FARMER'S INSURANCE BATTERIES PLUS ENTERPRISE RENTAL RYAN'S SEWING AND VAC SHOPPING CENTER SFPS SFPS STATE STATE ARTISAN'S

MACLOVIA ST YUCCA RANCHO SIRINGO RD

PEDESTRAIN CITY

N 1" = 100'

NEW BUILDINGS

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

SITE ELEMENTS

= NEW PEDESTRIAN ZONE - LANDSCAPED = NEW SITE WALL OR FENCE WITH VEGETATION = EXISTING BUILDINGS - OFF SITE = NEW OPEN-AIR ZAGUAN (PUBLIC ACCESS) = BUS ROUTES = BIKEWAYS

PARKING + RAINWATER HARVESTING CALCULATIONS

SHARED PARKING SPACES TOTAL ON-STREET PARKING SPACES = ±1,578 SPACES TOTAL SURFACE LOT PARKING SPACES = ±647 SPACES = ±2225 TOTAL SPACES PARKING : BUILDING AREA RATIO 1 SPACE PER ±1,200 GSF RAINWATER HARVESING (FOR NEW BUILDINGS) NEW BUILDING ROOFED AREA = 1,069,284 GSF CUBIC FEET OF RAINWATER HARVESTED = 891,070 CF (10"/YR AVERAGE RAIN HARVEST) = 6,237,490 GALLONS

BUILDING AREA CALCULATIONS

EXISTING BUILDING AREA EXISTING BUILDING AREA (ALL FLOORS) = 498,384 SF NEW BUILDING AREA 1 STORY BUILDING AREA = 141,220 GSF 2 STORY BUILDING AREA (INCLUDES BOTH FLOORS) = 1,856,128 GSF 3RD FLOOR AREA = 194,420 GSF = 2,191,768 GSF TOTAL SITE BUILDING AREA = 2,690,152 GSF

= NEW PEDESTRIAN ZONE - PAVED = NEW PEDESTRIAN ZONE - LANDSCAPED = NEW SITE WALL / FENCE

SLIDE 9

SLIDE 10 = NEW PARKING (ON-STREET AND SURFACE LOT) = NEW PEDESTRIAN ZONE - PAVED

EXISTING BUILDINGS

= EXISTING BUILDINGS TO BE RETAINED = EXISTING BUILDINGS TO BE PHASED OUT OVER TIME = EXISTING BUILDINGS - RELOCATED HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE ARROYO DE LOS PINOS

SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S SELF STORAGE

STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY CARL JR'S JIMMY JOHN'S SHOPPING CENTER DONATION CENTER SFPS FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL WENDY'S (VACANT) LUCIA'S INDIA HOUSE AUTOZONE LAMPLIGHTER INN BURRITO SPOT TITLE LOAN TAX SERVICE LIFE LINK EY'S OK UNTAIN TIRE REPAIR ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA SHOPPING CENTER FARMER'S INSURANCE BATTERIES PLUS ENTERPRISE RENTAL RYAN'S SEWING AND VAC SHOPPING CENTER SFPS SFPS STATE STATE ARTISAN'S

MACLOVIA ST YUCCA RANCHO SIRINGO RD

STREETS + PARKING

N 1" = 100'

NEW BUILDINGS

= NEW ONE STORY BUILDING AREA = NEW TWO STORY BUILDING AREA = NEW THREE STORY BUILDING AREA

SITE ELEMENTS

= NEW PEDESTRIAN ZONE - LANDSCAPED = NEW SITE WALL OR FENCE WITH VEGETATION = EXISTING BUILDINGS - OFF SITE = NEW OPEN-AIR ZAGUAN (PUBLIC ACCESS) = BUS ROUTES = BIKEWAYS

PARKING + RAINWATER HARVESTING CALCULATIONS

SHARED PARKING SPACES TOTAL ON-STREET PARKING SPACES = ±1,578 SPACES TOTAL SURFACE LOT PARKING SPACES = ±647 SPACES = ±2225 TOTAL SPACES PARKING : BUILDING AREA RATIO 1 SPACE PER ±1,200 GSF RAINWATER HARVESING (FOR NEW BUILDINGS) NEW BUILDING ROOFED AREA = 1,069,284 GSF CUBIC FEET OF RAINWATER HARVESTED = 891,070 CF (10"/YR AVERAGE RAIN HARVEST) = 6,237,490 GALLONS

BUILDING AREA CALCULATIONS

EXISTING BUILDING AREA EXISTING BUILDING AREA (ALL FLOORS) = 498,384 SF NEW BUILDING AREA 1 STORY BUILDING AREA = 141,220 GSF 2 STORY BUILDING AREA (INCLUDES BOTH FLOORS) = 1,856,128 GSF 3RD FLOOR AREA = 194,420 GSF = 2,191,768 GSF TOTAL SITE BUILDING AREA = 2,690,152 GSF

SHARED PARKING SPACES TOTAL ON-STREET PARKING SPACES = ±1,578 SPACES TOTAL SURFACE LOT PARKING SPACES = ±647 SPACES = ±2225 TOTAL SPACES

PARKING : BUILDING AREA = 1 SPACE PER ±1,200 GSF

SLIDE 11 STAGE 1 STAGE 2 OFFICES

GREER GARSON THEATRE DRISCOLL FITNESS CENTER MUSIC HALL CULTURAL MUSEUM CULTURAL COMMONS PERFORMANCE THEATRE SFAI SHELLABERGER TENNIS CENTER

STAGE 1 STAGE 2 OFFICES FILM STUDIO

NEW MEDIA + PRODUCTION

NEW ENTRY (REMODEL) NEW ENTRY (REMODEL) NEW ENTRY (REMODEL)

TEEN CENTER MEADOW HIGHER EDUCATION CENTER LA FARGE LIBRARY MILAGRO MIDDLE SCHOOL

ONE WAY ONE WAY ONE WAY

GARSON STUDIO COMPLEX

STAGE 1 STAGE 2

WORK COURT MILL / MAKER SPACES

ONE WAY ONE WAY NEW ENTRY (REMODEL) NEW ENTRY (REMODEL)

DAYCARE + SENIOR CENTER

ONE WAY

ART CENTER QUAD FOGELSON LIBRARY PRE-K SCHOOL

MIDTOWN LINC OVERLAY DISTRICT BOUNDARY

S T . M I C H A E L ' S D R I V E C E R R I L L O S R O A D S I R I N G O R O A D

LLANO STREET C H A M I S A S T R E E T P I N O N S T R E E T L L A N O S T R E E T H O OSAGE AVE VITALIA ST APACHE AVE LUJAN ST DECLOVINA ST LUANA ST ASPEN DRIVE MORRIS PLACE SMITH'S HOBBY LOBBY ACE HARDWARE NM BANK & TRUST STATE STATE SFPS SFPS SFPS

ST. MICHAEL'S

SELF STORAGE STATE CITY STATE SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER SHOPPING CENTER STATE CUTTERY FED FED FED FED FED CITY WECK'S DION'S SMITH'S FUEL INDIA HOUSE AUTOZONE LAMPLIGHTER INN EY'S ADVENTURE DENTAL FIRST NATIONAL BANK JIFFY LUBE TOYOTA STATE STATE ARTISAN'S MACLOVIA ST YUCCA ST RANCHO SIRINGO RD ARROYO DE LOS PINOS CITY MUSIC COURT BANDSHELL COMMUNITY CONFERENCE CENTER TENNIS COURTS + REC AREA FILM STUDIO FILM STUDIO

OFFICES STAGE 1 STAGE 2

OUTDOOR FITNESS PARK CAFETERIA

= MIXED USE BUILDINGS = COMMUNITY BUILDINGS = CULTURAL BUILDINGS = EDUCATIONAL BUILDINGS = FILM BUILDINGS

SLIDE 12

FOOTPRINT COMPARISON: The size and scale of the Midtown site is similar to Downtown Santa Fe

= DOWNTOWN BUILDINGS = MIDTOWN BUILDINGS = DOWNTOWN PLAZA
