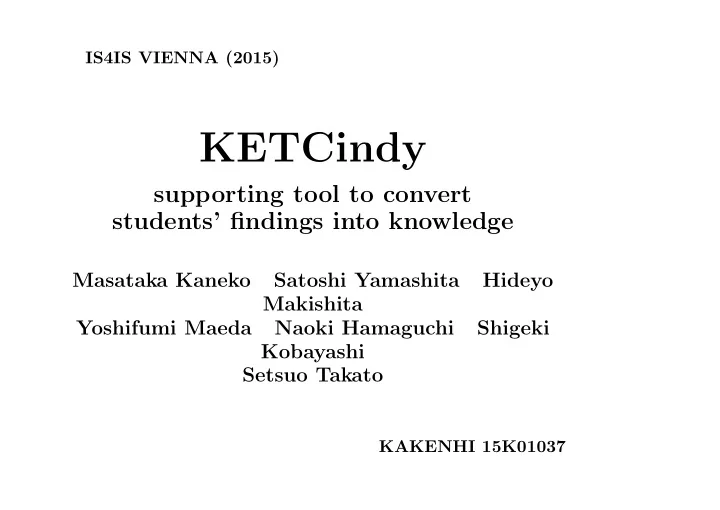

IS4IS VIENNA (2015) KETCindy supporting tool to convert students findings into knowledge Masataka Kaneko Satoshi Yamashita Hideyo Makishita Yoshifumi Maeda Naoki Hamaguchi Shigeki Kobayashi Setsuo Takato KAKENHI 15K01037 CONTENTS

slide-1
SLIDE 1

IS4IS VIENNA (2015)

KETCindy

supporting tool to convert students’ findings into knowledge

Masataka Kaneko Satoshi Yamashita Hideyo Makishita Yoshifumi Maeda Naoki Hamaguchi Shigeki Kobayashi Setsuo Takato

KAKENHI 15K01037

slide-2
SLIDE 2

CONTENTS

  • 1. Activities in math classroom
  • 2. ICT support in math classroom
  • 3. Linkage to T

EX edition

  • 4. Problem of T

EX edition

  • 5. Approach using CAS (KETpic)
  • 6. Approach using DGS (KETCindy)
slide-3
SLIDE 3
  • 1. Activities in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

slide-4
SLIDE 4
  • 1. Activities in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

Simulation, Observation, Conjecture

slide-5
SLIDE 5
  • 1. Activities in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

Simulation, Observation, Conjecture Calculation, Interpretation, Proof

slide-6
SLIDE 6
  • 1. Activities in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

Simulation, Observation, Conjecture Calculation, Interpretation, Proof Memorization, Exercise

slide-7
SLIDE 7
  • 1. Activities in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

Simulation, Observation, Conjecture Calculation, Interpretation, Proof Memorization, Exercise, Reflection Application to other situations

slide-8
SLIDE 8
  • 2. ICT support in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge Simulation with CAS/DGS

slide-9
SLIDE 9
  • 2. ICT support in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge Calculation and Proof with the aid of CAS/DGS

slide-10
SLIDE 10
  • 2. ICT support in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge Web based Training

slide-11
SLIDE 11
  • 2. ICT support in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge Materials accumulated

  • n the Web
slide-12
SLIDE 12
  • 2. ICT support in math classroom

Inductive Reasoning Deductive Reasoning Establishment of Knowledge Application of Knowledge

Paper and Pencil based learning is indispensable

slide-13
SLIDE 13
  • 3. Linkage to T

EX edition

From CAS to T EX

Π 2

Π x 1 1 y

slide-14
SLIDE 14
  • 3. Linkage to T

EX edition

From CAS to T EX

π 2 π 1 −1 x y O

slide-15
SLIDE 15
  • 3. Linkage to T

EX edition

From DGS to T EX Simulation via DGS screen calculation via T EX document

slide-16
SLIDE 16
  • 3. Linkage to T

EX edition

x y

slide-17
SLIDE 17
  • 3. Linkage to T

EX edition

α − 2 α − 1 y = x2 y = x2 − 4 y = 2αx − α2 y = 2(α + 1)x − (α + 1)2 x y

slide-18
SLIDE 18
  • 3. Linkage to T

EX edition

x y

slide-19
SLIDE 19
  • 4. Problem of T

EX edition

Characteristics of edition via T EX

  • 1. high quality in graphics
  • 2. limitation in computing and programming

capability

  • 3. generated table tends to be inappropriate
  • 4. page layout can not be set flexibly
slide-20
SLIDE 20
  • 4. Problem of T

EX edition

Characteristics of edition via T EX

  • 1. high quality in graphics
  • 2. limitation in computing and programming

capability

  • 3. generated table tends to be inappropri-

ate

  • 4. page layout can not be set flexibly
slide-21
SLIDE 21
  • 4. Problem of T

EX edition

x · · · π 6 · · · 5π 6 · · · 2π y′ + − + y 2 ↗ π 6 + √ 3 ↘ 5π 6 − √ 3 ↗ 2 + 2π

slide-22
SLIDE 22
  • 4. Problem of T

EX edition

x · · · π 6 · · · 5 6π · · · 2π y′ + − + y 2 ↗ π 6 + √ 3 ↘ 5 6π − √ 3 ↗ 2 + 2π

slide-23
SLIDE 23
  • 4. Problem of T

EX edition

f(x) g(x) ↗ ↗ ↘ ↘ ↗ ↗ O x y π 2 π f(x) g(x)

slide-24
SLIDE 24
  • 4. Problem of T

EX edition

Characteristics of edition via T EX

  • 1. high quality in graphics
  • 2. limitation in computing and programming

capability

  • 3. generated table tends to be inappropriate
  • 4. page layout can not be set flexibly
slide-25
SLIDE 25
  • 4. Problem of T

EX edition

x y

slide-26
SLIDE 26
  • 4. Problem of T

EX edition

x y

slide-27
SLIDE 27
  • 4. Problem of T

EX edition

x y

slide-28
SLIDE 28
  • 4. Problem of T

EX edition

slide-29
SLIDE 29
  • 4. Problem of T

EX edition

Crossing

slide-30
SLIDE 30
  • 4. Problem of T

EX edition

Crossing

Bezier curves can be generated via KETCindy.

slide-31
SLIDE 31
  • 5. CAS+KETpic

\input Compile Mod. CAS Plot Data Tpic code T EXfile PDF file K ETpic

http://ketpic.com

slide-32
SLIDE 32
  • 5. CAS+KETpic

x y O

   dx dt = x(t) · (1 − y(t)) dy dt = 0.5 · y(t) · (x(t) − 1)

slide-33
SLIDE 33
  • 5. CAS+KETpic

\input Compile Mod. CAS Plot Data Tpic code T EXfile PDF file K ETpic

slide-34
SLIDE 34
  • 5. CAS+KETpic

x y O

S1=NDSolve[{x’(t)==x[t]*(1-y[t]),y’[t]==0.5*y[t]*(x[t]-1), x[0]==**,y[0]==**},{x,y},{t,10}]; PS1=ParametricPlot[Evaluate[{x[t],y[t]}/.S1],{t,0,10}];

slide-35
SLIDE 35
  • 5. CAS+KETpic

\input Compile Mod. CAS Plot Data Tpic code T EXfile PDF file K ETpic

slide-36
SLIDE 36
  • 5. CAS+KETpic

x y O

Openfile(’’fig.tex’’,’’1cm’’); Drwline(PS1); Closefile(’’1’’);

slide-37
SLIDE 37
  • 5. CAS+KETpic

x y O

ketlayer

slide-38
SLIDE 38
  • 5. CAS+KETpic

10 20 30 40 50 60 70 80 900 10 20 30 40 50 60 70 80 90 100 110 120 130 \usepackage{ketpic, ketlayer} \begin{layer}{160}{90} \end{layer}

slide-39
SLIDE 39
  • 5. CAS+KETpic

10 20 30 40 50 60 70 80 900 10 20 30 40 50 60 70 80 90 100 110 120 130

x y O

\usepackage{ketpic, ketlayer} \begin{layer}{160}{90} \putnotese{5}{20}{\input{fig.tex}} \end{layer}

slide-40
SLIDE 40
  • 5. CAS+KETpic

10 20 30 40 50 60 70 80 900 10 20 30 40 50 60 70 80 90 100 110 120 130

x y O

\usepackage{ketpic, ketlayer} \begin{layer}{160}{90} \putnotese{5}{20}{\input{fig.tex}} \arrowlineseg{40}{61}{40}{25} \end{layer}

slide-41
SLIDE 41
  • 5. CAS+KETpic

x y O

\usepackage{ketpic, ketlayer} \begin{layer}{160}{0} \putnotese{5}{20}{\input{fig.tex}} \arrowlineseg{40}{61}{40}{25} \end{layer}

slide-42
SLIDE 42
  • 6. DGS+KETCindy

From CAS to DGS

  • 1. DGS may be inferior to CAS in computation

and programming capability.

  • 2. Interactive drawing of T

EX graphics (while checking the final output) should be helpful.

  • 3. It is desirable that the burden of writing com-

mand is reduced.

slide-43
SLIDE 43
  • 6. DGS+KETCindy

Plot Data Tpic code CAS KETCindy K ETpic TeX file DGS PDF file

https://sites.google.com/sites/ketcindy/home

slide-44
SLIDE 44
  • 6. DGS+KETCindy

Plot Data Tpic code CAS KETCindy K ETpic TeX file DGS PDF file batch processing

slide-45
SLIDE 45
  • 6. DGS+KETCindy

x y

slide-46
SLIDE 46
  • 6. DGS+KETCindy

Animation

slide-47
SLIDE 47
  • 6. DGS+KETCindy

Plot Data Tpic code CAS KETCindy K ETpic TeX file DGS PDF file

slide-48
SLIDE 48

6.DGS+KETCindy

Start End

slide-49
SLIDE 49

6.DGS+KETCindy

Start End

slide-50
SLIDE 50

6.DGS+KETCindy

Start End

slide-51
SLIDE 51

6.DGS+KETCindy

Start End

slide-52
SLIDE 52

6.DGS+KETCindy

Start End

slide-53
SLIDE 53

6.DGS+KETCindy

Start End

slide-54
SLIDE 54

6.DGS+KETCindy

Start End

slide-55
SLIDE 55

6.DGS+KETCindy

Start End

slide-56
SLIDE 56

6.DGS+KETCindy

Start End

slide-57
SLIDE 57

6.DGS+KETCindy

Start End

slide-58
SLIDE 58

6.DGS+KETCindy

Start End

slide-59
SLIDE 59

6.DGS+KETCindy

Start End

slide-60
SLIDE 60

6.DGS+KETCindy

Start End

slide-61
SLIDE 61

6.DGS+KETCindy

Start End

slide-62
SLIDE 62

6.DGS+KETCindy

Start End

slide-63
SLIDE 63

6.DGS+KETCindy

Start End

slide-64
SLIDE 64

6.DGS+KETCindy

Start End

slide-65
SLIDE 65

6.DGS+KETCindy

Start End

slide-66
SLIDE 66

6.DGS+KETCindy

Start End

slide-67
SLIDE 67

6.DGS+KETCindy

Start End

slide-68
SLIDE 68

6.DGS+KETCindy

Start End

slide-69
SLIDE 69

Tnank you very much for your attentions!!
