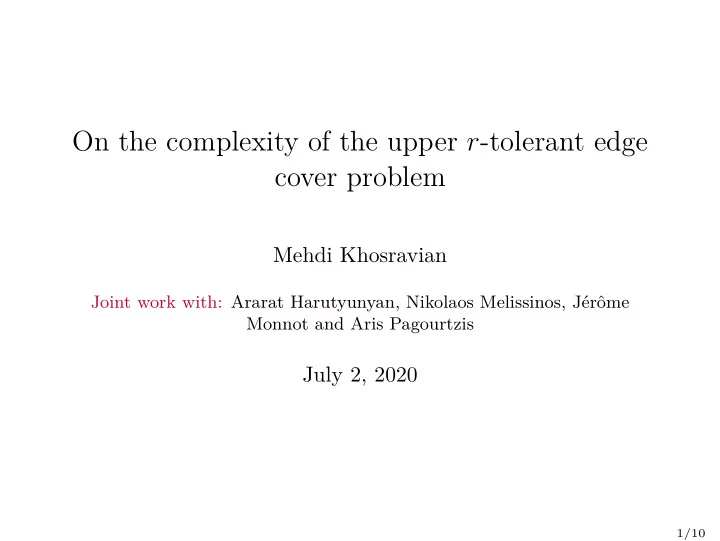

SLIDE 1
On the complexity of the upper r-tolerant edge cover problem
Mehdi Khosravian
Joint work with: Ararat Harutyunyan, Nikolaos Melissinos, Jérôme Monnot and Aris Pagourtzis
July 2, 2020
1/10
Tolerant Edge Cover Problems
2/10
On the complexity of the upper r -tolerant edge cover problem Mehdi - - PowerPoint PPT Presentation
On the complexity of the upper r -tolerant edge cover problem Mehdi - - PowerPoint PPT Presentation
On the complexity of the upper r -tolerant edge cover problem Mehdi Khosravian Joint work with: Ararat Harutyunyan, Nikolaos Melissinos, Jrme Monnot and Aris Pagourtzis July 2, 2020 1/10 Tolerant Edge Cover Problems 2/10 Tolerant Edge
SLIDE 2
SLIDE 3
Tolerant Edge Cover Problems
An edge subset S ⊆ E of G = (V, E) is a tolerant edge cover, if:
◮ S is an edge cover i.e., each vertex of G is an endpoint of at least
- ne edge in S,
◮ S is minimal (with respect to inclusion) i.e., no proper subset of
S is an edge cover.
2/10
SLIDE 4
Tolerant Edge Cover Problems
An edge subset S ⊆ E of G = (V, E) is a tolerant edge cover, if:
◮ S is an edge cover i.e., each vertex of G is an endpoint of at least
- ne edge in S,
◮ S is minimal (with respect to inclusion) i.e., no proper subset of
S is an edge cover.
Min Edge Cover
Goal: Finding a tolerant edge cover of minimum size.
2/10
SLIDE 5
Tolerant Edge Cover Problems
An edge subset S ⊆ E of G = (V, E) is a tolerant edge cover, if:
◮ S is an edge cover i.e., each vertex of G is an endpoint of at least
- ne edge in S,
◮ S is minimal (with respect to inclusion) i.e., no proper subset of
S is an edge cover.
Min Edge Cover → Polynomial Solvable
Goal: Finding a tolerant edge cover of minimum size.
2/10
SLIDE 6
Tolerant Edge Cover Problems
An edge subset S ⊆ E of G = (V, E) is a tolerant edge cover, if:
◮ S is an edge cover i.e., each vertex of G is an endpoint of at least
- ne edge in S,
◮ S is minimal (with respect to inclusion) i.e., no proper subset of
S is an edge cover.
Min Edge Cover → Polynomial Solvable
Goal: Finding a tolerant edge cover of minimum size.
Upper Edge Cover
Goal: Finding a tolerant edge cover of maximum size.
2/10
SLIDE 7
Tolerant Edge Cover Problems
An edge subset S ⊆ E of G = (V, E) is a tolerant edge cover, if:
◮ S is an edge cover i.e., each vertex of G is an endpoint of at least
- ne edge in S,
◮ S is minimal (with respect to inclusion) i.e., no proper subset of
S is an edge cover.
Min Edge Cover → Polynomial Solvable
Goal: Finding a tolerant edge cover of minimum size.
Upper Edge Cover → NP-hard [Manlove - 1999]
Goal: Finding a tolerant edge cover of maximum size.
2/10
SLIDE 8
r-Tolerant Edge Cover Problems
3/10
SLIDE 9
r-Tolerant Edge Cover Problems
Given an integer r ≥ 1, an edge subset S ⊆ E of G = (V, E) is a r-tolerant edge cover, if:
◮ S is an r-edge cover i.e., deletion of any set of at most r − 1
edges from S maintains an edge cover,
◮ removing of any edge from S yields a set which is not an r-edge
cover.
3/10
SLIDE 10
r-Tolerant Edge Cover Problems
Given an integer r ≥ 1, an edge subset S ⊆ E of G = (V, E) is a r-tolerant edge cover, if:
◮ S is an r-edge cover i.e., deletion of any set of at most r − 1
edges from S maintains an edge cover,
◮ removing of any edge from S yields a set which is not an r-edge
cover.
r- Edge Cover (r-EC)
Input: A graph G = (V, E) of minimum degree r. Output: An r-tolerance edge cover S ⊆ E of minimum size.
3/10
SLIDE 11
r-Tolerant Edge Cover Problems
Given an integer r ≥ 1, an edge subset S ⊆ E of G = (V, E) is a r-tolerant edge cover, if:
◮ S is an r-edge cover i.e., deletion of any set of at most r − 1
edges from S maintains an edge cover,
◮ removing of any edge from S yields a set which is not an r-edge
cover.
r- Edge Cover (r-EC)
Input: A graph G = (V, E) of minimum degree r. Output: An r-tolerance edge cover S ⊆ E of minimum size.
Upper r- Edge Cover (Upper r-EC)
Input: A graph G = (V, E) of minimum degree r. Output: An r-tolerance edge cover S ⊆ E of maximum size.
3/10
SLIDE 12
r-Tolerant Edge Cover Problems
4/10
SLIDE 13
r-Tolerant Edge Cover Problems
G = (V, E) r = 2 A B C D E F
4/10
SLIDE 14
r-Tolerant Edge Cover Problems
G = (V, E) r = 2 A B C D E F 2-EC A B C D E F
4/10
SLIDE 15
r-Tolerant Edge Cover Problems
G = (V, E) r = 2 A B C D E F 2-EC A B C D E F Upper 2-EC A B C D E F
4/10
SLIDE 16
Basic properties of r-tolerant solutions
5/10
SLIDE 17
Basic properties of r-tolerant solutions
Let r ≥ 1. S is an r-tec solution of G = (V, E) if and only if the following conditions meet on GS = (V, S):
◮ V = V1(S) ∪ V2(S) where V1(S) = {v ∈ V : dGS(v) = r} and
V2(S) = {v ∈ V : dGS(v) > r}.
◮ V2(S) is an independent set of GS.
5/10
SLIDE 18
Basic properties of r-tolerant solutions
Let r ≥ 1. S is an r-tec solution of G = (V, E) if and only if the following conditions meet on GS = (V, S):
◮ V = V1(S) ∪ V2(S) where V1(S) = {v ∈ V : dGS(v) = r} and
V2(S) = {v ∈ V : dGS(v) > r}.
◮ V2(S) is an independent set of GS.
V1(S) V1(S) V1(S)
. . . . . .
V2(S) V2(S) V2(S)
Contradicts to r-tolerancy
5/10
SLIDE 19
Basic properties of r-tolerant solutions
Let r ≥ 1. S is an r-tec solution of G = (V, E) if and only if the following conditions meet on GS = (V, S):
◮ V = V1(S) ∪ V2(S) where V1(S) = {v ∈ V : dGS(v) = r} and
V2(S) = {v ∈ V : dGS(v) > r}.
◮ V2(S) is an independent set of GS.
V1(S) V1(S) V1(S)
. . . . . .
V2(S) V2(S) V2(S)
Contradicts to r-tolerancy
5/10
SLIDE 20
Basic properties of r-tolerant solutions
Let r ≥ 1. S is an r-tec solution of G = (V, E) if and only if the following conditions meet on GS = (V, S):
◮ V = V1(S) ∪ V2(S) where V1(S) = {v ∈ V : dGS(v) = r} and
V2(S) = {v ∈ V : dGS(v) > r}.
◮ V2(S) is an independent set of GS.
V1(S) V1(S) V1(S)
. . . . . .
V2(S) V2(S) V2(S)
Contradicts to r-tolerancy
5/10
SLIDE 21
Basic properties of r-tolerant solutions
6/10
SLIDE 22
Basic properties of r-tolerant solutions
Let r ≥ 1, for all graphs G = (V, E) of minimum degree at least r, 2ecr(G) ≥ uecr(G).
6/10
SLIDE 23
Basic properties of r-tolerant solutions
Let r ≥ 1, for all graphs G = (V, E) of minimum degree at least r, 2ecr(G) ≥ uecr(G). 1− 2ecr(G) =
v∈V dGS(v) ≥ rn where |V | = n.
6/10
SLIDE 24
Basic properties of r-tolerant solutions
Let r ≥ 1, for all graphs G = (V, E) of minimum degree at least r, 2ecr(G) ≥ uecr(G). 1− 2ecr(G) =
v∈V dGS(v) ≥ rn where |V | = n. V1(S) V1(S) V1(S)
. . . . . .
V2(S) V2(S) V2(S)
6/10
SLIDE 25
Basic properties of r-tolerant solutions
Let r ≥ 1, for all graphs G = (V, E) of minimum degree at least r, 2ecr(G) ≥ uecr(G). 1− 2ecr(G) =
v∈V dGS(v) ≥ rn where |V | = n.
2− uecr(G) ≤ r|V1(S)| ≤ rn.
6/10
SLIDE 26
Hardness of Exact Computation
7/10
SLIDE 27
Hardness of Exact Computation
Theorem
Let G = (V, E) be an (r + 1)-regular graph with r ≥ 2. Then, uecr(G) = |E| − eds(G).
7/10
SLIDE 28
Hardness of Exact Computation
Theorem
Let G = (V, E) be an (r + 1)-regular graph with r ≥ 2. Then, uecr(G) = |E| − eds(G).
7/10
SLIDE 29
Hardness of Exact Computation
Theorem
Let G = (V, E) be an (r + 1)-regular graph with r ≥ 2. Then, uecr(G) = |E| − eds(G). eds(G) = 2
7/10
SLIDE 30
Hardness of Exact Computation
Theorem
Let G = (V, E) be an (r + 1)-regular graph with r ≥ 2. Then, uecr(G) = |E| − eds(G). Finding an edge dominating set of minimum size in cubic planar graphs is NP-hard. [Demange et. al. - 2014]
7/10
SLIDE 31
Hardness of Exact Computation
Theorem
Let G = (V, E) be an (r + 1)-regular graph with r ≥ 2. Then, uecr(G) = |E| − eds(G). Finding an edge dominating set of minimum size in cubic planar graphs is NP-hard. [Demange et. al. - 2014]
Theorem
Let Upper (r + 1)-EC is NP-hard in graphs of maximum degree ∆ + 1 if Upper r-EC is NP-hard in graphs of maximum degree ∆, and this holds even for bipartite graphs.
7/10
SLIDE 32
Hardness of Exact Computation
8/10
SLIDE 33
Hardness of Exact Computation
Theorem
Double Upper EC is NP-hard in split graphs.
8/10
SLIDE 34
Hardness of Exact Computation
Theorem
Double Upper EC is NP-hard in split graphs.
8/10
SLIDE 35
Hardness of Exact Computation
Theorem
Double Upper EC is NP-hard in split graphs.
A polynomial reduction from 2-tuple Dominating Set problem.
8/10
SLIDE 36
Hardness of Exact Computation
Theorem
Double Upper EC is NP-hard in split graphs.
A polynomial reduction from 2-tuple Dominating Set problem. let G = (V, E) be an instance of 2-tuple DS, where V = {v1, ..., vn}:
8/10
SLIDE 37
Hardness of Exact Computation
. . . V ∗ . . . V ′ . . . V ′′ . . . V ′′′ add four copies of V
8/10
SLIDE 38
Hardness of Exact Computation
. . . V ∗ . . . V ′ . . . V ′′ . . . V ′′′ if vj ∈ NG(vi), then add three edges v∗
i v′ j, v∗ i v′′ j , v∗ i v′′ j
8/10
SLIDE 39
Hardness of Exact Computation
. . . V ∗ . . . V ′ . . . V ′′ . . . V ′′′ if vj ∈ NG(vi), then add three edges v∗
i v′ j, v∗ i v′′ j , v∗ i v′′ j
8/10
SLIDE 40
Hardness of Exact Computation
. . . V ∗ . . . V ′ . . . V ′′ . . . V ′′′ add a K2,3 component
u1 u2
8/10
SLIDE 41
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ make a Kn+2 by adding edges
u1 u2
Kn+2
8/10
SLIDE 42
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ 2-t DS of size k in G iff Double UEC of size 8n − 2k + 6 in G′
u1 u2
Kn+2
8/10
SLIDE 43
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ Suppose S is a 2-t DS of size k
u1 u2
Kn+2
8/10
SLIDE 44
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ Suppose S is a 2-t DS of size k
u1 u2
Kn+2
8/10
SLIDE 45
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ Suppose S is a 2-t DS of size k
u1 u2
Kn+2
8/10
SLIDE 46
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ Suppose S′ is a Double UEC of size k′
u1 u2
Kn+2
8/10
SLIDE 47
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ 1- dS′(v) = 2 for all v ∈ V ′, V ′′, V ′′′
u1 u2
Kn+2
8/10
SLIDE 48
Hardness of Exact Computation
. . . . . . V ′ . . . V ′′ . . . V ′′′ 2- if dS′(v) = 2 for v ∈ V ∗, then NS(v) = {u1, u2}
u1 u2
Kn+2
8/10
SLIDE 49
Hardness of Approximation
9/10
SLIDE 50
Hardness of Approximation
Theorem
It is NP-hard to approximate the solution of Upper EC to within 593
594 in graphs of max degree 4.
9/10
SLIDE 51
Hardness of Approximation
Theorem
It is NP-hard to approximate the solution of Upper EC to within 593
594 in graphs of max degree 4.
An approximation preserving reduction from Min Vertex Cover problem.
9/10
SLIDE 52
Hardness of Approximation
1 2 3 4
G = (V, E) an instance of Min VC
9/10
SLIDE 53
Hardness of Approximation
1 2 3 4
G = (V, E) an instance of Min VC
1 2 3 4
9/10
SLIDE 54
Hardness of Approximation
1 2 3 4
G = (V, E) an instance of Min VC
1 2 3 4
9/10
SLIDE 55
Hardness of Approximation
1 2 3 4
G = (V, E) an instance of Min VC
1 2 3 4
G′ = (V ′, E′) an instance of Upper EC vertex cover of G of size k iff Upper EC of size 2|V | + |E| − k
9/10
SLIDE 56
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S is a vertex cover of G
9/10
SLIDE 57
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S is a vertex cover of G
9/10
SLIDE 58
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S is a vertex cover of G
9/10
SLIDE 59
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S is a vertex cover of G
9/10
SLIDE 60
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S′ is an Upper EC of G′ S′ does not contain any P4 (a collection of stars)
9/10
SLIDE 61
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S′ is an Upper EC of G′ S′ does not contain any P4 (a collection of stars)
9/10
SLIDE 62
Hardness of Approximation
1 2 3 4 1 2 3 4
Suppose S′ is an Upper EC of G′ S′ does not contain any P4 (a collection of stars)
9/10
SLIDE 63
Hardness of Approximation
Theorem
It is NP-hard to approximate the solution of Upper EC to within 593
594 in graphs of max degree 4.
An approximation preserving reduction from Min Vertex Cover problem. Min VC can not be approximated to within a factor 100
99 in
3-regular graphs. [Chlebik et. al. - 2006]
9/10
SLIDE 64
Hardness of Approximation
Theorem
It is NP-hard to approximate the solution of Upper EC to within 593
594 in graphs of max degree 4.
An approximation preserving reduction from Min Vertex Cover problem. Min VC can not be approximated to within a factor 100
99 in
3-regular graphs. [Chlebik et. al. - 2006]
Theorem
It is NP-hard to approximate the solution of Double Upper EC to within 883
884 in graphs of max degree 6.
9/10
SLIDE 65
Thanks for your attention!
10/10
