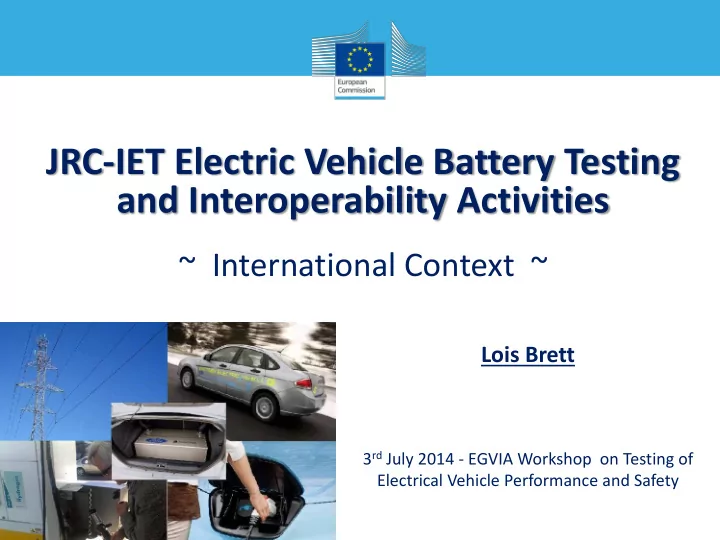

JRC-IET Electric Vehicle Battery Testing and Interoperability Activities

~ International Context ~

Lois Brett

3rd July 2014 - EGVIA Workshop on Testing of Electrical Vehicle Performance and Safety

Outline

• JRC-IET
• E-mobility and interoperability
• Battery testing project
• Facilities
• Activities
• International aspects

Panorama of the European Union

European Parliament ENV European Court of Auditors The Council of the European Union The Committee of the Regions Court of Justice Economic and Social Committee RELEX ENTR MOVE ENER RTD JRC

IPSC

IET

IHCP ITU IPTS IES IRMM

CLIMA Máire Geoghegan- Quinn Commissioner Commissioner Commissioner Commissioner European Commission (28 Commission members)

JRC-IET

• Mission:
• To provide support to Community policies and technology innovation related to both:
• Energy - to ensure sustainable, safe, secure and efficient energy production,

distribution and use and

• Transport - to foster sustainable and efficient mobility in Europe.

Petten, NL Ispra, IT

Institute for Energy and Transport (IET)

 Independent of national or commercial interests….for the European citizen ~ 375 Staff ~ 285 Petten ~ 90 Ispra

JRC-IET

Interoperability

Interoperability

… focusing on electric vehicle interoperability with charging and smart grid equipment…

Letter of Intent:

2 Interoperability Centres

Technology harmonisation  Product innovation  Establishment global standards for electric mobility

• EV performance

evaluation

• Testing EV

charging station

• Road testing EV
• Grid simulations
• Grid architecture
• Communication

interfaces

IET Interoperability Centre E-Vehicle testing Component testing Smart grid

• EV performance under variation of driving and environmental

conditions  Input for advanced vehicle technologies

• Evaluation of range, efficiency

and energy consumption and conductive/inductive charging at different temperatures

• Direct

air pollutant and CO2 emissions (from hybrids), including modelling.

• Recharge and interoperability tests at different temperatures

(i.e. -20℃, -30℃, 20℃, and 40℃), with several EVSE and EVs/PHEVs

• Electromagnetic compatibility (including charging technologies)
• Indirect emissions (from all EVs), Well to Wheels Analysis in

cooperation with other groups and JRC Institutes.

E-vehicle testing at JRC Ispra

Safe Electrification of Transport

Battery Energy Storage Testing for

Battery cell/material performance testing Battery pack performance testing Battery cell safety testing

Batteries: a key-enabling technology for e-mobility and interoperability

1 2 3

Component testing

Safe Electrification of Transport

Battery Energy Storage Testing for

Battery cell/material performance testing Battery pack performance testing Battery cell safety testing

• How far will my battery take

me?

• How long will my battery last?
• Independent testing emerging

technologies – reference role

• Technology innovation

validation

• Numerical modelling
• How can 'in-use' performance

be optimised?

• Predicting battery behavior in

the vehicle

• 'Seeing' inside cycling pack
• Designing safer battery packs
• What happens when

something goes wrong?

• What tests suitably

evaluate safety?

• Battery hazards and safety

considerations

• Impartial safety evaluation
• f new chemistries

BESTEST – Key issues

1 2 3

• Battery cell performance testing/material studies
• Cyclers (5 with 85 channels)
• 3 potentiostats
• 2 environmental chambers
• 8 temperature chambers
• IR camera thermal imaging
• 2 Glove boxes
• STA with FTIR&GS/MS analysis

Experimental Facilities [1]

• Battery pack performance testing
• 2 cyclers (100/160 kW – 2 channels)
• Walk in climate chamber (limit 100 kWh)
• X-ray Computer Tomography System for in-situ imaging of modules (limit 25 kWh)

Experimental Facilities [2]

• SLI battery pack (LiFePO4; 160 Ah/12 V; c. 50 cm x 20 cm x 30 cm)

Experimental Facilities [2]

• Battery cell abuse facility
• 4 abuse chambers (limit 450 Wh)
• 3 ARCs – cell and modules
• Mechanical, electrical and thermal abuse capabilities
• FTIR/GC/MS – gas emission analysis

Experimental Facilities [3]

• Support to policy customers
• Global Technical Regulation on EV Safety – UNECE WP29  DG ENTR
• IEA - IA for HEV (Task 10 Electrochemistry and Task 21 Accelerated Ageing

Testing for Li-ion Batteries)  DG ENTR/RTD

• Industry needs
• EUROBAT – MoU signed November 2012
• EGVIA – Collaboration under consideration
• Transatlantic Business Council (TABC)
• JRC-Industry WG on e-mobility – alignment of JRC with industry's need
• Standardisation needs…..
• International – ISO/IEC
• European – CEN/CENELEC
• Other – SAE/UL/JIS
• Harmonisation

Activity areas

 Extended for a 5-year period (starting 14 October 2013) Facilitate collaborations with US DOE labs and JRC w.r.t.:

• Hydrogen
• Batteries (NREL, Argonne, Sandia)
• PVs
• Smart grids
• Energy efficiency

Further International Activities

1997 "Agreement for Scientific and Technological Cooperation between the European Community and the Government of United States of America"

Further International Activities

In 2011 the executive committee of 1998 Agreement approved establishment of two working groups on:

• EV safety
• EV environmental issues

IG on EV Safety Development of GTR on unique safety risks posed by EVs and their components by end 2014 2015 to limit these risks:  In use and post-crash  Electrical shock and other hazards related to rechargeable energy storage systems (REESS)

• E-mobility and interoperability:

new activity at JRC

• Battery performance and

safety testing

• Serving the interests of the EU

citizens

• Embedded in international

context

Conclusion

Contact:

lois.brett@ec.europa.eu +31 224 56 50 65 https://ec.europa.eu/jrc

Contact data of colleagues available on request

JRC

Serving society Stimulating innovation Supporting legislation
