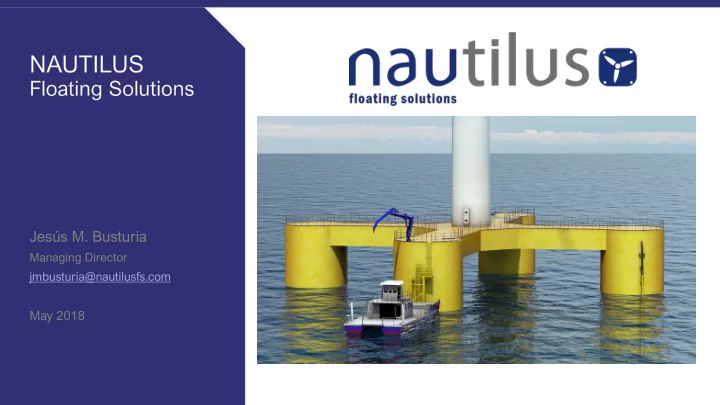

SLIDE 1
Jesús M. Busturia
Managing Director jmbusturia@nautilusfs.com
Jess M. Busturia Managing Director jmbusturia@nautilusfs.com May - - PowerPoint PPT Presentation
Jess M. Busturia Managing Director jmbusturia@nautilusfs.com May - - PowerPoint PPT Presentation
Jess M. Busturia Managing Director jmbusturia@nautilusfs.com May 2018 Vision: Mission: To be a global player To Design & Manufacture in the coming market for floating foundations Floating Offshore Wind for Offshore Wind Located in
SLIDE 2
SLIDE 3
SLIDE 4
Located in the Basque Country
Companies in the North of Spain are participating in the offshore wind value chain, being cost conscious to support the necessary reduction in LCoE Home of offshore wind world leaders Well positioned to serve North Atlantic markets Good current suppliers for offshore wind
SLIDE 5
5 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. May 2018
And also to new coming Southern markets
SLIDE 6
Floating Offshore Wind
Limited shallow water locations. Most of the wind resource lies in deep waters with less turbulence. Reduced environmental impact
- Less restrictions for deployment and reduced visual impact
Huge potential around the world. Access to markets without extended continental shelf: USA, Japan, Norway, France, Portugal, Spain, … Even in the North Sea there are areas with high wind resource in deep waters Coastal areas with high energy demand.
May 2018 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. 6
Reasons to go deeper
Source: Carbon Trust, Floating Offshore Wind: Market and Technology Review, 2015
Source ORECCA
The available continental shelf is very small 80% of the offshore wind resource in Europe is located in Deep Waters > than 60 m
Giles Dickson, CEO WindEurope, FOWT 2017, Marseille
SLIDE 7
NAUTILUS Concept
May 2018 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. 7
Four-columns semisubmersible floating sub-structure Rigid ring pontoon connecting the columns with flat lower surface Main deck consisting of four rectangular shaped connections between column´s upper end and transition piece (TP) Simple support structure to manufacture
▪ Compact dimensions ▪ Few parts ▪ No tubular joints ▪ Steel construction ▪ Standard catenary mooring ▪ No need for large investment in port facilities
Draft adjustment and mean heel angle compensation through active water ballasting Simple installation procedure using a small number of low-cost vessels.
SLIDE 8
May 2018 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. 8
Third Party Verification & Certification
Conceptual Design (2017) CDR Ramboll Feasibility DNVGL Detailed Design (2018-19) PDR Design Basis CDR Design Certif. Technology & Market Assessment ORE Catapult Project risk management Patent pending EP 16382658.9
Design validation
Tank Testing (2014) 1:60 UC Cork (2018) ≈1:35 Ifremer (2014) 1:35 IH Cantabria (2018) SINTEF OCEAN
NREL 5MW, DTU 10MW, others
Commercial WT
Wind Turbine
2012 - 2013 2014 - 2016 2017 - 2018 2018 - 2019 2020 - 2021
Technical Feasibility Conceptual Design Economical Feasibility Basic Design / FEED Detailed Design Full scale manufacturing & deployment
Design Phases
Detailed Design Preliminary Design
Roadmap
SLIDE 9
R&D Activities
May 2018 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. 9
Participating in various Regional, National and European R&D Projects
H2020 SME Instrument
- New Floating Platform for offshore wind in deep
waters
- Phase 1 awarded
- EU contribution: 50.000 €
H2020 – LCE2: EERA Wind LIFES 50+ Project
- Optimize and qualify to a TRL 5, of two innovative
substructure designs for 10MW turbines
- Budget: 7.3 MM€
DNV-GL Joint Industry Project CDTI – CIEN: FLOCAN2GRID
- New Solutions for Innovative Platforms and
Technologies associated to the evacuation and network integration of Floating Offshore Wind Farms.
- Budget: 9.5 MM€
SODERCAN: I+C=+C
- SAFE: Development of a Motion Compensated
Gangway to Access Marine Energy devices
- Budget: 1.1 MM€
HAZITEK 2016 – Basque Country
- Development of a Structure for Floating Offshore
Wind
- Budget: 210 k€
HAZITEK 2017 – Basque Country
- FLOW
- Budget: 3.2 MM€
SLIDE 10
Final Remarks
NAUTILUS has developed a patent pending Floating Offshore Wind Foundation concept that has been recognized by various third parties:
- Well-known Engineering Companies
- Certification bodies
- R&D institutions
NAUTILUS is facing a detailed design process that will lead to the manufacturing and installation of a 1:1 scale prototype. NAUTILUS design and installation procedures are in line with industry requirements to provide a LCoE reduction from current developments. NAUTILUS is very well known in the industry
- Participating in the largest R&D EU financed Project regarding FOWT (Lifes50+)
- Attending Conferences, Exhibitions and Events all over Europe and Japan
- Establishing relationships with potential customers, suppliers and partners.
NAUTILUS is performing a fund rising to secure enough financial resources to go ahead with its Strategic Plan
May 2018 This information is confidential and belongs to NAUTILUS Floating Solutions, S.L. No copy or transmission is allowed without a written approval. 10
SLIDE 11
Thank you, for your attention
Nautilus Floating Solutions, S.L.
Parque Científico y Tecnológico de Bizkaia Edificio 612, Off. 11 E-48160 Derio, Bizkaia Spain
nautilusfs.com
Contact:
Jesús M. Busturia
Managing Director jmbusturia@nautilusfs.com
