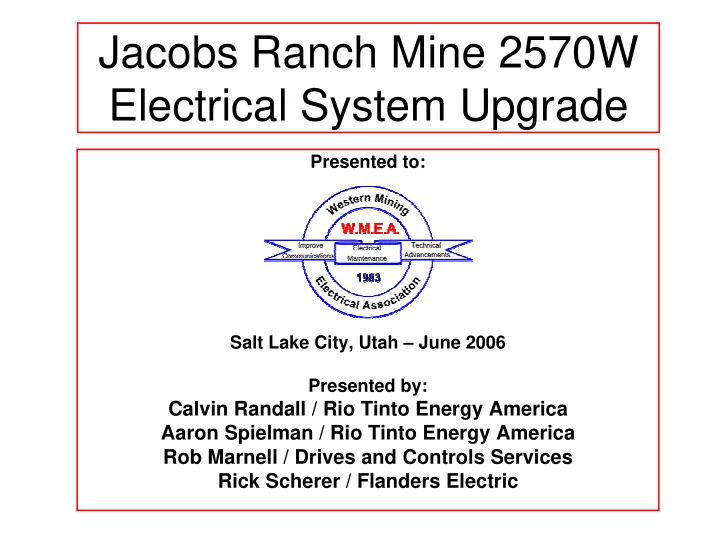

Jacobs Ranch Mine 2570W Electrical System Upgrade Presented to: Salt Lake City, Utah June 2006 Presented by: Calvin Randall / Rio Tinto Energy America Aaron Spielman / Rio Tinto Energy America Rob Marnell / Drives and Controls Services

slide-1
SLIDE 1

Jacobs Ranch Mine 2570W Electrical System Upgrade

Presented to: Salt Lake City, Utah – June 2006 Presented by:

Calvin Randall / Rio Tinto Energy America Aaron Spielman / Rio Tinto Energy America Rob Marnell / Drives and Controls Services Rick Scherer / Flanders Electric

slide-2
SLIDE 2
slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

Motor Comparison Table

Motor MD-622M MD-822 HP @ 475 Vdc 1245 HP 1045 HP Rated Amps 2100 Amps 1760 Amps Max Operating Volts 660 Vdc 600 Vdc Peak HP @ 600 V 1875 HP 1560 HP RPM 740 RPM 740 RPM

slide-21
SLIDE 21

622M Upgrade vs 622 and / or 822

Lengthened Armature and Field Iron Increased Air Flow with Larger Blower Revised Insulation System / Class H Wet Wound Welded Pole Face Bar Connections Brush Arm Rocker Ring made Adjustable V-Ring Commutator 100% Equalized on Drive End

slide-22
SLIDE 22

MD-622M Benefits

Higher Horse Power with Same Foot Print Cooler Running Temps ~ Longer Life at 822 Values Increased Armature Circuit Current α Torque Ease of Maintenance / Reduced Maintenance Higher RMS is not Detrimental to 836KW Generators, Case Study in Service since 1994 RTD’s in Comm Coil, Pole Face Bar, Shunt Field,

  • ptional Telemetry RTD on Armature

Internal Split Connections for Ease of Maintenance Each Machine is Black Band Tested

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27

622M vs 822 Temperature Rise Test Parameters

490 Vdc 1950 Amps 1 Hour 9050 Ft Lbs 743 RPM 1281 HP 93 Volts 67 Volts Armature Voltage Armature Current Run Time Torque RPM HP 622M Field Voltage 822 Field Voltage

slide-28
SLIDE 28

Temperature Test Results

Degrees Celsius MD-622M MD-822 Commutator 117 134 Armature 148 158 Comm Coil 70 82 PF Bars 97 126 Shunt Fields * 115 94 Intake / Exhaust 30 / 46 30 / 48

* 622M Served as Generator at Higher Field Amps * 822 Served as Motor at Lower Field Amps

slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46
slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51
slide-52
SLIDE 52
slide-53
SLIDE 53
slide-54
SLIDE 54
slide-55
SLIDE 55
slide-56
SLIDE 56
slide-57
SLIDE 57
slide-58
SLIDE 58
slide-59
SLIDE 59
slide-60
SLIDE 60
slide-61
SLIDE 61
slide-62
SLIDE 62
slide-63
SLIDE 63
slide-64
SLIDE 64
slide-65
SLIDE 65
slide-66
SLIDE 66
slide-67
SLIDE 67
slide-68
SLIDE 68
slide-69
SLIDE 69
slide-70
SLIDE 70
slide-71
SLIDE 71
slide-72
SLIDE 72
slide-73
SLIDE 73
slide-74
SLIDE 74
slide-75
SLIDE 75
slide-76
SLIDE 76
slide-77
SLIDE 77
slide-78
SLIDE 78
slide-79
SLIDE 79
slide-80
SLIDE 80
slide-81
SLIDE 81
slide-82
SLIDE 82
slide-83
SLIDE 83
slide-84
SLIDE 84
slide-85
SLIDE 85
slide-86
SLIDE 86
slide-87
SLIDE 87

Questions ?

Thank You
