It Doesnt Have to Be So Hard: Efficient Symbolic Reasoning for CRCs Vaibhav Sharma, Navid Emamdoost, Seonmo Kim, Stephen McCamant University of Minnesota, Minneapolis, MN, USA Motivation Cyclic Redundancy Check (CRC) is commonly used

slide-1
SLIDE 1

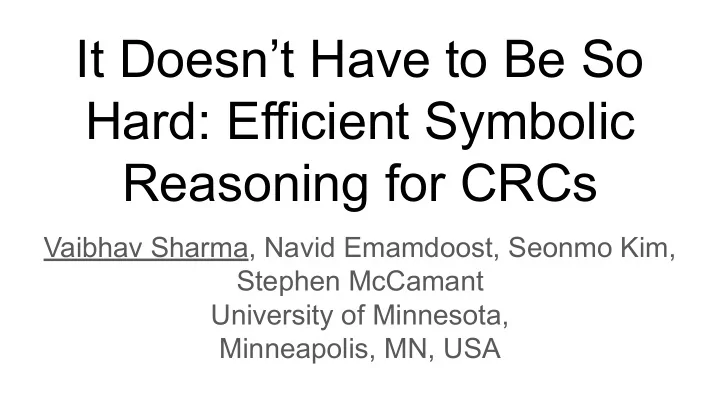

It Doesn’t Have to Be So Hard: Efficient Symbolic Reasoning for CRCs

Vaibhav Sharma, Navid Emamdoost, Seonmo Kim, Stephen McCamant University of Minnesota, Minneapolis, MN, USA

slide-2
SLIDE 2

Motivation

  • Cyclic Redundancy Check (CRC) is commonly used for error detection
  • Not resistant to adversarial modification

○ WEP, SSHv1

  • Sometimes used as an obstacle to symbolic execution

○ Jung et al., USENIX Security 2019

  • Is analysis of CRC difficult?
slide-3
SLIDE 3
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-4
SLIDE 4
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-5
SLIDE 5

CRC symbolic pre-image computation

int main() { char sym_str[LEN];// set to symbolic bytes unsigned int sym_crc = crc(sym_str, LEN); char conc_str[LEN]; srand(time(NULL)); for (int i = 0; i < LEN; i++) conc_str[i] = (char) rand(); if (sym_crc == crc(conc_str, LEN)) { printf("found the pre-image\n"); } return 0; }

slide-6
SLIDE 6
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-7
SLIDE 7
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-8
SLIDE 8
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

Used by Jung et al. to defeat symbolic execution

slide-9
SLIDE 9

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); } message points to

symbolic bytes

slide-10
SLIDE 10

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

slide-11
SLIDE 11

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

slide-12
SLIDE 12

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

slide-13
SLIDE 13

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

slide-14
SLIDE 14

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

slide-15
SLIDE 15

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

  • Both sides of branch

feasible

  • Executed once for every bit

in message

  • Causes path explosion
  • Can be easily alleviated

with path-merging

slide-16
SLIDE 16

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

CRC Implementation Type #1

Summarize both sides of branch into single formula crc =(int)(crc ^ byte) < 0 ? (crc << 1) ^ 0x04C11DB7 : crc << 1

slide-17
SLIDE 17

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); }

CRC Implementation Type #1

  • Summarize both sides of branch

into single formula

  • Write side-effects of summary into

local variable (crc)

  • Skip branching, jump to immediate

post-dominator of branch instruction

slide-18
SLIDE 18
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

Used to make CRC computation faster

slide-19
SLIDE 19

CRC Implementation Type #2

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

slide-20
SLIDE 20

CRC Implementation Type #2

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; } buf points to

symbolic bytes

slide-21
SLIDE 21

CRC Implementation Type #2

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

slide-22
SLIDE 22

CRC Implementation Type #2

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

slide-23
SLIDE 23

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

CRC Implementation Type #2

slide-24
SLIDE 24

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

CRC Implementation Type #2

  • Concrete table lookup with symbolic

index a. Branch for every entry b. Read table contents into If-Then-Else expression c. Use theory of arrays d. Use the structure of the table to summarize its contents

slide-25
SLIDE 25

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

CRC Implementation Type #2

  • Concrete table lookup with symbolic

index a. Branch for every entry b. Read table contents into If-Then-Else expression c. Use theory of arrays d. Use the structure of the table to summarize its contents

slide-26
SLIDE 26

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

CRC Implementation Type #2

  • Concrete table lookup with symbolic

index a. Branch for every entry b. Read table contents into If-Then-Else expression c. Use theory of arrays d. Use the structure of the table to summarize its contents

slide-27
SLIDE 27

unsigned int cgc_crc32(char *buf, int len) { unsigned int c = 0xffffffff; int n; for (n = 0; n < len; n++) c = table[(c ^ buf[n]) & 0xff] ^ (c >> 8); return c ^ 0xffffffff; }

CRC Implementation Type #2

  • CRC lookup tables have special

property ○ T[i XOR j]=T[i] XOR T[j]

  • Compute all values in table using a

spine ○ Table with 256 entries has 8 elements in spine ○ Elements at positions 1, 2, 4, 8, 16, 32, 64, 128, 256 form spine

slide-28
SLIDE 28
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-29
SLIDE 29
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ■ Use path-merging to alleviate path explosion ○ update CRC using lookup table (for every 8 bits in input)

Our Contribution

slide-30
SLIDE 30
  • It is not difficult to analyze CRC implementations
  • Use symbolic execution to compute pre-image of CRC
  • Explore two kinds of CRC implementations

○ update CRC once for every input bit ■ Use path-merging to alleviate path explosion ○ update CRC using lookup table (for every 8 bits in input) ■ Summarize table using its structure

Our Contribution

slide-31
SLIDE 31

Evaluation

  • Ran branching-based CRC implementation with and without path-merging

○ angr, Java Ranger (extension of Symbolic PathFinder)

  • Ran table-based CRC implementation with FuzzBALL

○ ITE table treatment ○ theory-of-arrays support ○ GF(2)-linear table

  • Used #sym input bytes ranging from 1 to 8192
  • Time limit = 2 hours
slide-32
SLIDE 32

Evaluation: Branching-based CRC

slide-33
SLIDE 33

Evaluation: Branching-based CRC

slide-34
SLIDE 34

Evaluation: Lookup-table-based CRC32

slide-35
SLIDE 35

Evaluation: Lookup-table-based CRC64

slide-36
SLIDE 36

Discussion

  • Did not analyze in an end-to-end run of Jung et al.’s AntiHybrid technique

○ Used CRC as hash function because it is lightweight

  • Found some variations of lookup-table-based CRC

○ Apache Hadoop CRC uses a 2048 entry table (8 tables, each with 256 entries)

  • Related to

○ MultiSE (Sen et al., FSE 2015), Veritesting (Avgerinos et al., ICSE 2014) ○ Mayhem (Cha et al., IEEE S&P 2012) - bucketization with linear functions to create balanced index search tree

slide-37
SLIDE 37

Conclusion

  • Symbolic execution of CRC is not difficult

○

Anti-fuzzing techniques should use a different lightweight hash function

  • Path-merging techniques accelerate branching-based CRC symbolic

execution

  • Proposed a new technique to improve scalability of symbolic CRC pre-image

computation

○ Utilizes linear structure of CRC lookup tables

Questions

slide-38
SLIDE 38

Questions

slide-39
SLIDE 39

CRC Implementation Type #1

unsigned int fuzzification_crc32 (unsigned char *message) { int i, j; unsigned int byte, crc; i = 0; crc = 0xFFFFFFFF; while (message[i] != 0) { byte = reverse(message[i]); for (j = 0; j <= 7; j++) { if ((int)(crc ^ byte) < 0) crc = (crc << 1) ^ 0x04C11DB7; else crc = crc << 1; byte = byte << 1; } i = i + 1; } return reverse(~crc); } OK, because CRC(A XOR B) = CRC(A) XOR CRC(B)
