Is Anybody Out There? Breakthrough Listen and SETI@home Search for ET Dan Werthimer University of California, Berkeley http://seti.berkeley.edu Drake Equation N=R f s f p n e f l f i f c L N = number of communicating civilizations in our

slide-1
SLIDE 1

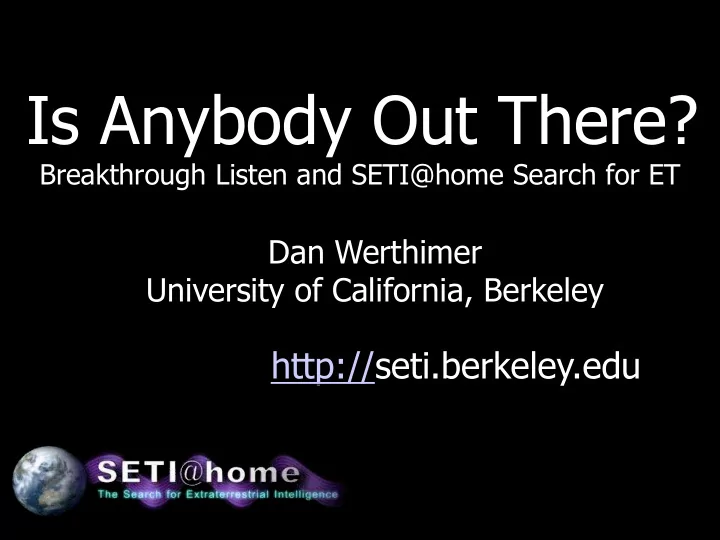

Is Anybody Out There?

Breakthrough Listen and SETI@home Search for ET

Dan Werthimer University of California, Berkeley

http://seti.berkeley.edu

slide-2
SLIDE 2

Drake Equation

N=R fs fp ne fl fi fc L

N = number of communicating civilizations in our galaxy

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5

Jupiter’s Moon: Europa

Sub-Crust Ocean

.

slide-6
SLIDE 6
slide-7
SLIDE 7

SETI before CASPER

slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12

Porno in space:

FUNDED!

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15

Signal Types

  • 1. Artifact (radio, radar, ~TV, ????)
  • 2. Deliberate (easy to decode, pictures,

language lessons)

First civilization we contact is likely to be a billion years ahead of us. (ray norris, 2002)

slide-16
SLIDE 16

First Radio SETI

  • Nikola Tesla (1899)

– Announces “coherent signals from Mars”

  • Guglielmo Marconi (1920)

– Strange signals from ET

  • Frank Drake (1960)

– Project Ozma – one channel, 1420-1420.4 MHz

slide-17
SLIDE 17

Collaborators

BERKELEY SETI RESEARCH CENTER

BERKEL KELEY EY ASTRONOMY DEPARTMEN ENT
slide-18
SLIDE 18

Berkeley SETI Group

Zuhra Abdurashidova, David Anderson, Jeff Cobb, Steve Croft, David DeBoer, Matt Dexter, Emilio Enriquez, Walt Fitelson, Griffin Foster, Vishal Gajjar, Greg Hellbourg, Jack Hickish, Howard Isaacson, Eric Korpela, Matt Lebofsky, Dave MacMahon, Danny Price, Chris Schodt, Isaac Shivvers, Andrew Siemion, Nate Tellis, Ed Wishnow, Dan Werthimer

Breakthrough Foundation, NSF , NASA, Donors Keysight, Intel, Seagate, Xilinx

slide-19
SLIDE 19

Berkeley SETI Research Center Experiments

  • Radio SETI

– SERENDIP VI (Arecibo) – SERENDIP VI (Greenbank) – LOFAR SETI – GBT Targeted Time Domain SETI – SETI@home – Astropulse

  • Optical/IR SETI

– Spectral Search for Laser Lines from KOI – Searches for ET artifacts in light curves – IR SETI with the Infrared Spatial Interferometer – IR photodetector system

  • Panchromatic SETI
slide-20
SLIDE 20

Technosignatures…

slide-21
SLIDE 21

Microwave Window

slide-22
SLIDE 22

Searching Across the Electromagnetic Spectrum

Using multiple telescopes, we can search across the electromagnetic spectrum for indicators of advanced technology.

Low Frequency Array Arecibo Green Bank Telescope Infrared Spatial Interferometer Optical Telescopes

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29

NAIC Arecibo Observatory, Puerto Rico

slide-30
SLIDE 30

Breakthough Prize Foundation “LISTEN” SETI Project

  • $100M over 10 years
  • Starting with Green Bank and Parkes Radio Telescopes
  • Lick Observatory (optical SETI)
  • 1,000,000 stars; 1000 galaxies; galactic plane; all sky
  • New instrumentation: 10 GHz bandwidth (20 billion channels)
  • SETI@home participants will analyze interesting parts of data
  • Open source data, hardware, software, gpuware, gateware
slide-31
SLIDE 31

The Breakthrough Listen Initiative: Telescopes

Automated Planet Finder (Lick Observatory)

  • Search for extremely narrow emission lines from

artificial lasers

  • Extremely high resolution “Levy Spectrometer”

374 - 950 nm, λ/Δλ= 105

Green Bank Telescope (Green Bank, WV)

  • Radio search focusing on targeted and raster
  • bservations
  • Nearly continuous frequency coverage 300 MHz - 100

GHz

  • Flexible IF system can deliver up to 10 GHz dual-pol

analog bandwidth

Parkes Telescope (New South Wales, Australia)

  • Radio search focusing on surveys
  • Southern hemisphere location gives great access to

galactic plane

  • Multi-beam receiver allows very efficient L-band (1.2 - 1.5

GHz) sky surveys

slide-32
SLIDE 32

Meerkat Commensal SETI – 64 beams

slide-33
SLIDE 33

The Breakthrough Listen Initiative: http://breakthroughinitiatives.org 1 Million Stars 1000 Galaxies

1 day of Breakthrough Listen = 1 year of any previous search

10 years - 108 dollars

slide-34
SLIDE 34
slide-35
SLIDE 35

LISTEN SETI Data Rates

slide-36
SLIDE 36

Listen Data Products (Open Data)

  • Candidate Signals: raw data [voltage(t)]
  • Voltage Surveys (Parkes Galactic Plane survey)
  • SETI@home raw data (mostly Southern Sky Survey)
  • High Spectral Resolution Data

(SETI, Galactic Structure and Evolution)

  • High Time Cadence Spectral Data

(Pulsars,Fast Radio Bursts,Primordial Black Holes,Transients,SETI)

slide-37
SLIDE 37

Public Data Access and Outreach

  • Web Site, GitHub, Facebook, Twitter, YouTube
  • Data Analysis Tutorials and Example Software
  • APF, GBT, Parkes, example data sets

(Voyager 1…)

  • Data Analysis Challenges and Projects
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41

Power Spectrum Auto Correlation

An example… Binary Phase Shift Keying (BPSK)

BROADBAND EMISSION

✴ Modern radio

communication largely broadband

✴ Wide bandwidths permit

rich information content

slide-42
SLIDE 42

High performance data storage silo Arecibo Observatory UC Berkeley Space Sciences Lab Public Volunteers

slide-43
SLIDE 43

SETI@Home

slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46

SETI@home Breakthrough Pipeline

Example Cluster

On On Off Off Off On

Cluster

slide-47
SLIDE 47

Public Participation Scientific Supercomputing

aka “Distributed Computing” aka “edge resource aggregation”

slide-48
SLIDE 48

Projects

  • Astronomy

– SETI@home (Berkeley) – Astropulse (Berkeley) – Einstein@home: gravitational pulsar search (Caltech,…) – PlanetQuest (SETI Institute) – Stardust@home (Berkeley, Univ. Washinton,…)

  • Earth science

– Climateprediction.net (Oxford)

  • Biology/Medicine

– Folding@home, Predictor@home (Stanford, Scripts) – FightAIDSathome: virtual drug discovery

  • Physics

– LHC@home (Cern)

  • Other

– Web indexing/search – Internet Resource mapping (UC Berkeley)

slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51
slide-52
SLIDE 52
slide-53
SLIDE 53

Rosetta Screensaver

slide-54
SLIDE 54

Thinking@Home

Stardust@home...

slide-55
SLIDE 55

Stardust January 2009

19

Stardust (NASA)

slide-56
SLIDE 56

Citizen Science Projects

  • SETI@home and Astropulse

(UC Berkeley)

  • Stardust@home

(UC Berkeley)

  • SetiQuest

(Seti Institute)

  • Galaxy Zoo (Galaxy Classification)
  • Audubon Society's Christmas Bird Count (1900)
  • Community Collaborative Rain, Hail & Snow Monitor Network
  • Clickworkers

(mars crater identficiation - NASA)

  • Ebird, NestWatch, FeederWatch, Urban Birds (Cornell Univ.)
  • ParkScan (monitor San Francisco Parks)
  • ScienceForCitizens.net
  • ENERGY@home
slide-57
SLIDE 57
slide-58
SLIDE 58

Infrared Spatial Interferometer heterodyne detection at 27 THz w/ CO2 laser LOs

  • Mt. Wilson, CA

3 telescope system 4,8,12m early 2006 Currently ~35m triangular baselines

2008 @ Mt. Wilson

slide-59
SLIDE 59

Simultaneous Digital Backends

Piggyback, Commensal, Sky Surveys

Signal Splitter

Pulsar Spectrometer

Galactic Spectrometer Extra Galactic Spectrometer SETI Spectrometer Baseband Data Recorder

Analog Power Splitters (ARECIBO Multibeam)

  • r

Digital Data Splitter (FAST Multibeam)

slide-60
SLIDE 60

SETI and FRB search at Arecibo/GBT

SERENDIP VI and ALFABURST

Lorimer, Chennamangalam, Armour, Karastergiou, Golpayegani, Rajwade, Werthimer,….

slide-61
SLIDE 61

Serendip VI & ALFABURST UCB, WVU, Oxford, Arecibo, GBT

slide-62
SLIDE 62

FAST 500 meter telescope

slide-63
SLIDE 63

Five-hundred-meter Aperture Spherical radio Telescope (FAST)

FAST (2016.5) 500 m

100 meters

GBT 100 m Arecibo 300 m

slide-64
SLIDE 64

HERA Array 352 x 14 meter dishes

slide-65
SLIDE 65

All Sky All the Time (low duty cycle search)

  • 1973 Troitsky et al, Sporadic Radiation Resulting

from Technological Activity of Extraterrestrial Civilization (Baku, USSR) (cross correlation of several dipoles)

  • Phase Array Feeds on the Ground

(Mike Garret, Ron Ekers)

  • IR/OSETI All Sky Workshop - 2016
  • Radio All Workshop – 2017 ??
slide-66
SLIDE 66

PANORAMIC-SETI: Pulsed All-sky Near-infrared Optical SETI

PANO-SETI

Shelley Wright, Paul Horowitz, Jerome Maire, Frank Drake, Eliot Gillum, Andrew Howard, Geoffrey Marcy, Andrew Siemion, Remington Stone, Richard Treffers, Dan Werthimer

slide-67
SLIDE 67
slide-68
SLIDE 68
slide-69
SLIDE 69

Avalanche Photo Diode Arrays visible, near-IR

Near-infrared (900 – 1700 nm) Optical Multi-pixel photon counting (MPPC) Detectors by Hamamatsu (400-1000) - 3mm

slide-70
SLIDE 70

Phased Array Feed – 64 beams

slide-71
SLIDE 71

All Sky All the Time Radio SETI

(7 PAF’s on the ground – Ron Ekers)

OSS - Ron Ekers 71 |

4m

  • 94 dual pol elements/PAF
  • Total elements 1316
  • 10 sqm area
  • 3 degree beams
  • FoV 100x100 degrees
  • Form 1000 simultaneous

beams

  • Sited in the worlds most

RFI quiet site

  • Exquisite rfi monitor!
  • Provide copy of rfi signal for

adaptive cancelling

  • Track satellites across sky
slide-72
SLIDE 72

Embrace: 20K/10K elements, 160m^2, 500-1500 MHz

slide-73
SLIDE 73

HERA Array 352 x 14 meter dishes

slide-74
SLIDE 74

Moores Law – Instruments using FPGA’s: 2X per year (1,000,000 over 20 years)

slide-75
SLIDE 75
slide-76
SLIDE 76

Use Sun As Gravitational Lens

Place camera at focus 100 billion km Read License Plates on Extrasolar Planet

slide-77
SLIDE 77

Summary and Conclusion No ET so far Still working on it

slide-78
SLIDE 78

SETI HAIKU

slide-79
SLIDE 79

Searching for life Answers are revealed About ourselves

Paula Cook, Duke University

slide-80
SLIDE 80

One million earthlings Bounded by optimism Leave their PC’s on

Dan Seidner

slide-81
SLIDE 81
slide-82
SLIDE 82

Casper Commandments

Thou Shalt Share thy Knowledge Thou Shalt Help thy Neighbor Casperite Thou Shalt Covet thy Ethernet to Connect Everything Switches are Free (negative?)
