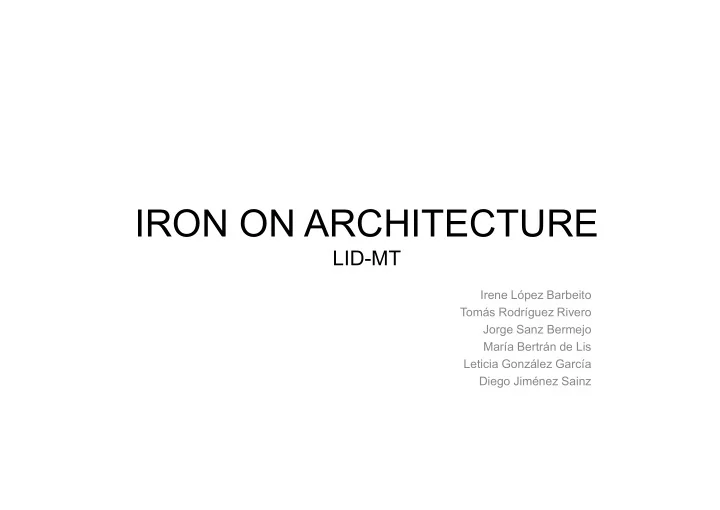

IRON ON ARCHITECTURE

LID-MT

Irene López Barbeito Tomás Rodríguez Rivero Jorge Sanz Bermejo María Bertrán de Lis Leticia González García Diego Jiménez Sainz

slide-2
SLIDE 2

Industrial Revolution, XVIII

slide-3
SLIDE 3

Cast iron Wrought iron Steel1790 – 1850: fire / useful area

slide-4
SLIDE 4

Bibliothèque Sainte Geneviève , Paris (1861)

slide-5
SLIDE 5

(1854)

slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8

HENRI LABROUSTE AND SANTA GENEVEVA LIBRARY

slide-9
SLIDE 9

MAIN CARACHTERISTICS OF IRON ARCHITECTURE

  • Slenderness
  • Diaphanous Spaces
  • Great Sections
  • Light Treatment
  • Transparence architecture
  • Prefab solutions
  • New styles and material possibilities
  • Conversation of architectural style

(Relation with our practice philosophy)

slide-10
SLIDE 10

SANTA GENEVEVA LIBRARY - HENRI LABROUSTE 1843 PARIS

slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

UNIVERSAL EXHIBITIONS

  • Overcoming the political and revolutionary rejection
  • National policy exaltacion
  • New techniques and materials exhibition
  • Commercialization and industrialization
  • Industrial palace
  • Monumentality
  • Universal exhibitions:

Londres París

slide-15
SLIDE 15

CRYSTAL PALACE JOSEPH PAXTON LONDRES 1851

  • First Universal Exhibition, precedent
  • Location: Hyde Park
  • Modular, detachable, fast assembly
  • Clearness y brightness
  • Great surface, 70.000 m2. Light structure
  • Big aflux: 6 million of visitors
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

EIFFEL TOWER GUSTAVE EIFFEL PARÍS 1889

  • Universal exhibition, commemorated The French Revolution

centenary

  • Location: Champs de Mars
  • Widely criticized
  • Articulated structure
  • Monumentality: 325m
  • Huge inlux: 32,4 million of visitors
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23

GALERY OF MACHINES DUTERT Y CONTAMIN PARÍS 1889

  • Universal exhibition, commemorated The French Revolution

centenary

  • Location: Champs de Mars
  • New structure: trusses.
  • Fully open space
  • Monumental building: 5 hectares
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27

IRON ARCHITECTURE IN SPAIN

Madrid Aranjuez Convento de Atocha Puerta de Atocha Observatorio astronómico Botanical garden

Atocha station, Alberto de Palacio 1888

slide-28
SLIDE 28

Glorieta del Emperador Carlos V

  • Santa María de la

Cabeza

  • Delicias
  • Ronda de

Valencia

  • Paseo del Prado
  • Atocha
  • Mendez Álvaro
  • Infanta María

Cristina

slide-29
SLIDE 29

First building

slide-30
SLIDE 30
  • Previous approach by Gerardo

de la Puente

  • 152m lenght
  • 27m high
  • 10 trusses, 48m long

Final project

slide-31
SLIDE 31

Current situation – Rafael Moneo

slide-32
SLIDE 32

Palacio de Cristal, Velázquez Bosco 1887

Parque del Retiro Inspiration: London Crystal Palace (Paxton)

slide-33
SLIDE 33
  • Metallic structure
  • Glass façade
  • 22,6m high
  • 28m width
  • 54m lengh
  • Lateral volumes: 11,6m high
  • It took 5 months to be built
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36

Current situation – has not changed

slide-37
SLIDE 37

CHICAGO SCHOOL

slide-38
SLIDE 38
  • In 1871 the city of Chicago burns down.
  • Reconstruction of the city.
  • Office buildings and big warehouses.
  • Skycrapers: vertical construction.
  • Rise in the price of the ground
  • Invention of the electric lift.
  • Steel structure covered with fireproof materials.

CHICAGO SCHOOL

slide-39
SLIDE 39

Marshall Field´s Richardson WareHouses 1890

  • Romanesque style.
  • Facade of stone as main element of construction.
  • Firm bossage.
  • No ornamentation.
  • Distinct horizontal lines.
slide-40
SLIDE 40
slide-41
SLIDE 41

Wainwright Sullivan 1892

  • Built up in Missouri, USA
  • Tripartite composition based on the structure of classical

column.

  • Noticeable ornamentation.
  • Main materials: red brick and terracotta.
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44

CONCLUSIONS

  • Opens new paths that extend in the S. XX.
  • No current architecture is unthinkable without steel.
  • Important technical and industrial developments.
  • New architectural typologies.
