IR & COMBUSTION SPECIALISTS IR & COMBUSTION SPECIALISTS SET POINT COM. DE EQUIP. INST.ELET. LTDA. Tel: - (11) 4367-4499 Fax. (11) 4368-2954 Avenida Artur de Queiros, 121 Bairro Casa Branca Santo Andr SP, Brazil

slide-1

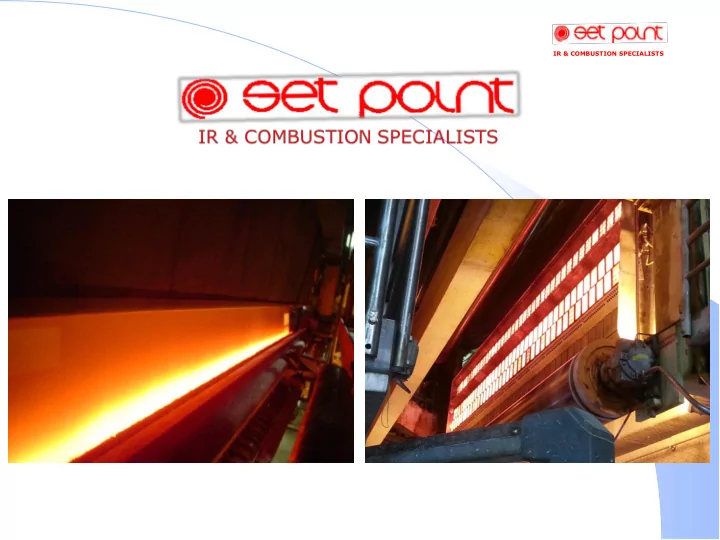

SLIDE 1

IR & COMBUSTION SPECIALISTS

slide-2
SLIDE 2

IR & COMBUSTION SPECIALISTS

SET POINT COM. DE EQUIP. INST.ELET. LTDA. Tel: - (11) 4367-4499 Fax. (11) 4368-2954 Avenida Artur de Queiros, 121 – Bairro Casa Branca Santo André – SP, Brazil

julian@setpoint.ind.br – gustavojjaramillo@comcast.net

www.setpoint.ind.br

slide-3
SLIDE 3

IR & COMBUSTION SPECIALISTS

WHAT WE DO

PAPER INDUSTRY (IR)

OIL PLATFORMS PETROCHEM FOOD INDUSTRY INDUSTRIAL BOILERS METALLURGY

slide-4
SLIDE 4

IR & COMBUSTION SPECIALISTS

COATING

  • Complete IR Systems
  • High Efficiency IR Emitters
  • Field Service Engineering
  • Maintenance & Spare Parts
  • Tech Audits: Quality issues, Process Optimization
  • Curl Control
  • Wet Edges

PAPER MACHINE PROPER

  • Drainage Improvement
  • Press Drying (bulk increase)
  • Pre-Heating (eliminates Picking, Hard Casing)
  • Tech Audits of the Steam & Condensate Systems
  • Drying Capacity Increase
  • Moisture Profile Control
  • Wet Edges elimination

PAPER INDUSTRY

slide-5
SLIDE 5

IR & COMBUSTION SPECIALISTS

COATING

  • Complete IR Systems
  • High Efficiency IR Emitters
  • Field Service Engineering
  • Maintenance & Spare Parts
  • Tech Audits: Quality issues, Process Optimization
  • Curl Control
  • Wet Edges
slide-6
SLIDE 6

IR & COMBUSTION SPECIALISTS

COMPLETE IR SYSTEMS

slide-7
SLIDE 7

IR & COMBUSTION SPECIALISTS

COMPLETE IR SYSTEMS

slide-8
SLIDE 8

IR & COMBUSTION SPECIALISTS

COMPLETE IR SYSTEMS

slide-9
SLIDE 9

IR & COMBUSTION SPECIALISTS

EMITTERS

slide-10
SLIDE 10

IR & COMBUSTION SPECIALISTS

EMITTERS

slide-11
SLIDE 11

IR & COMBUSTION SPECIALISTS

EMITTERS

slide-12
SLIDE 12

IR & COMBUSTION SPECIALISTS

EMITTERS

slide-13
SLIDE 13

IR & COMBUSTION SPECIALISTS

EMITTERS

slide-14
SLIDE 14

IR & COMBUSTION SPECIALISTS

FIELD SERVICE ENGINEERING & MAINTENANCE

slide-15
SLIDE 15

IR & COMBUSTION SPECIALISTS

COAT DRYING AUDITS

Uso Ref 0.1035 Velocidade (m/min) Planta Papirus Top Coat 500 210 g/m2 20.21 Grado Seco (g/m2) 183.30 12.00 195.30 Umidade (%) 6.70% x 9.4%

Temperatura final (°C) 59.4 Evaporação Total (kg/h.m) 146.0

Massa total (g/m2) 196.46 19.05 215.51 Temperatura (°C) 49 Papel Aditivos Papel + Aditivos

12.32 Arco de Secado (m) 7.28% Umidade Final (%)

42 48.38 Sólidos (%) x 63.0% 90.6% Massa de água (g/m2) 13.16 7.05

slide-16
SLIDE 16

IR & COMBUSTION SPECIALISTS

COAT DRYING AUDITS

slide-17
SLIDE 17

IR & COMBUSTION SPECIALISTS

CURL CONTROL

There are two types of curl: MD direction and CD direction Curl MD:

  • Usually mechanical in nature; must be dealt with as such

Curl CD:

  • Caused by a moisture unbalance between the two sides of the sheet
  • Traditionally corrected with dryer cylinders (upper-lower rows at different

steam pressures).

  • High thermal inertia/slow response system; besides, handicaps the actual

installed drying capacity of the PM.

slide-18
SLIDE 18

IR & COMBUSTION SPECIALISTS

slide-19
SLIDE 19

IR & COMBUSTION SPECIALISTS

slide-20
SLIDE 20

IR & COMBUSTION SPECIALISTS

WET EDGE DRYING

slide-21
SLIDE 21

IR & COMBUSTION SPECIALISTS

WET EDGE DRYING

slide-22
SLIDE 22

IR & COMBUSTION SPECIALISTS

DRYING OF WET EDGES

Coverage: as needed Retraction: optional Capacity: Size & power, as required

slide-23
SLIDE 23

IR & COMBUSTION SPECIALISTS

PAPER MACHINE PROPER

  • Drainage Improvement
  • Press Drying (bulk increase)
  • Pre-Heating (eliminates Picking, Hard Casing)
  • Drying Capacity Increase
  • Moisture Profile Control
slide-24
SLIDE 24

IR & COMBUSTION SPECIALISTS

BESTDRYER

INFRARED ENERGY

WHERE TO USE IT IN A PAPER MACHINE Pre-Heating Hot Pressing Increasing Drying Capcity of the PM proper Drainage increase

slide-25
SLIDE 25

IR & COMBUSTION SPECIALISTS

0.00 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

VISCOSITY TEMPERATURE (oC)

KINEMATIC VISCOSITY

CENTISTOKES

slide-26
SLIDE 26

IR & COMBUSTION SPECIALISTS

Drainage increase

INFRARED ENERGY

ON MACHINE

slide-27
SLIDE 27

IR & COMBUSTION SPECIALISTS

INFRARED ENERGY

ON FOURDRINIER

slide-28
SLIDE 28

IR & COMBUSTION SPECIALISTS

BULK INCREASE

IR HEAD OF LAST PRESS

Taber ~ Bulk1.6

slide-29
SLIDE 29

IR & COMBUSTION SPECIALISTS

HEAVY BOARD DRYING 100% INFRARED

Board sheets of 2.1 x 0.9 m (1.89 m2)

6.0/5.0/4.0/3.0/1.5 kg/sheet

Basis weight: 793 - 3174 g/m2

slide-30
SLIDE 30

IR & COMBUSTION SPECIALISTS

WATER VAPOR PRESSURE

100 200 300 400 500 600 700 800 10 20 30 40 50 60 70 80 90 100 110

TEMPERATURE (oC) PRESSURE (mmHg)

slide-31
SLIDE 31

IR & COMBUSTION SPECIALISTS

50 55 60 65 70 75 80 10 20 30 40 50 60 70 80 90 100 SURFACE TENSION TEMPERATURE (oC)

SURFACE TENSION

dynes/cm

slide-32
SLIDE 32

IR & COMBUSTION SPECIALISTS

VAPOR PRESSURE vs VISCOSITY

VAPOR PRESSURE (mm/Hg) VISCOSITY (cP)

TEMPERATURE (oC)

0.0 0.5 1.0 1.5 2.0 2.5 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 10 20 30 40 50 60 70 80 90 100

slide-33
SLIDE 33

IR & COMBUSTION SPECIALISTS

BESTDRYER TO

ELIMINATE PICKING AND HARD SURFACING

Pre-Heating

H=1.67D(µS/T)2/3 T=2.2µS(D/H)1.5

slide-34
SLIDE 34

IR & COMBUSTION SPECIALISTS

slide-35
SLIDE 35

IR & COMBUSTION SPECIALISTS

slide-36
SLIDE 36

IR & COMBUSTION SPECIALISTS

slide-37
SLIDE 37

IR & COMBUSTION SPECIALISTS

SHEET TEMP. 32ºC EMITTER TEMPERATURE 978C° ROWS 1 - 6 SHEET TEMPERATURE 72°C

slide-38
SLIDE 38

IR & COMBUSTION SPECIALISTS

Increase in Drying Capacity

PM DRY END

IR ENERGY

TO INCREASE DRYING CAPACITY

slide-39
SLIDE 39

IR & COMBUSTION SPECIALISTS 125

31 32

111 133 124 123

slide-40
SLIDE 40

IR & COMBUSTION SPECIALISTS

slide-41
SLIDE 41

IR & COMBUSTION SPECIALISTS

PRODUCTION INCREASE – COATED BOARD

slide-42
SLIDE 42

IR & COMBUSTION SPECIALISTS

PRODUCTION INCREASE – LINER & MEDIUM

slide-43
SLIDE 43

IR & COMBUSTION SPECIALISTS

DRYING OF CELLULOSE 100% INFRARED

White Cellulose

slide-44
SLIDE 44

IR & COMBUSTION SPECIALISTS

PRODUCTION INCREASE –BOARD

slide-45
SLIDE 45

IR & COMBUSTION SPECIALISTS

EFFICIENCY OF A STEAM DRYING SYSTEM

Inlet moisture 56% Pope reel moisture 7.0%

Boiler

$100 $85 $82

ΔP

Boiler efficiency depends upon numerous factors: excess air, flue gases temperature, working pressure, temperature of fuel, combustion air temperature, etc. Excess air has a decisive importance: Excess air (%) Boiler Efficiency (%) 10 84.8 100 78.5 140 75.0 Steam consumption: 1.2 - 1.8 kgsteam/kgwter Overall Efficiency: ~ 40%

$40

slide-46
SLIDE 46

IR & COMBUSTION SPECIALISTS

EFFICIENCY: IR vs STEAM

DRYING OF LINER/MEDIUM/BOARD 50 tons/day

Inlet moisture 56% Reel moisture 7.0% Boiler $100 $85 $82 ΔP $40

6536 mm Overall Efficiency:  54% 35% savings

Water treatment NOx emission control Piping: Steam, Condensate, etc. Much SMALLER footprint

Capital investment: MUCH LOWER  Dimension of building  Infra-extructure, etc.

Steam consumption: 1.2 - 1.8 kgsteam/kgwater Overall Efficiency: ~ 40%

slide-47
SLIDE 47

IR & COMBUSTION SPECIALISTS

DRYING OF LINER/MEDIUM 100% INFRARED

NO BOILER!
