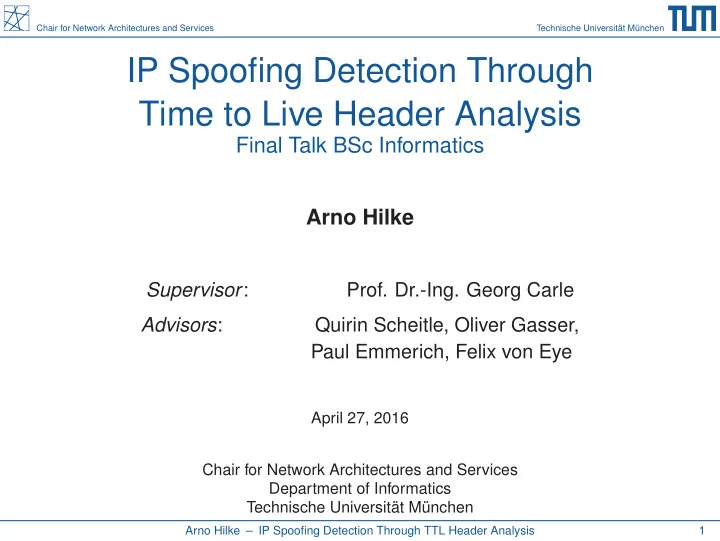

IP Spoofing Detection Through Time to Live Header Analysis

Final Talk BSc Informatics Arno Hilke

Supervisor:

• Prof. Dr.-Ing. Georg Carle

Advisors: Quirin Scheitle, Oliver Gasser, Paul Emmerich, Felix von Eye

April 27, 2016 Chair for Network Architectures and Services Department of Informatics Technische Universität München

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 1

Chair for Network Architectures and Services Technische Universität München

Introduction

Motivation Background

Research Questions Approach Results

Intermediate Format Flow Characteristics TTL Stability

Future Work Conclusion

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 2

Chair for Network Architectures and Services Technische Universität München

Motivation Goal detect anomalies passively

◮ TTL already available in packet header ◮ may be aided by active measurements

֒ → cf. Till Wickenheiser: „Correlating inbound Time to Live header data to network characteristics“

Basic Idea path lengths likely differ between authentic source and MWN, and adversary and MWN

◮ premise: source and MWN have communicated before ◮ adversary could test different TTL values, or try to measure

paths

֒ → but more effort, especially when using many IP addresses

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 3

Chair for Network Architectures and Services Technische Universität München

Background Time to Live (TTL) 8 bit field in IPv4/IPv6 header (Hop Count for IPv6)

◮ decreased by every router ◮ packet discarded when zero ◮ prevents loops

IP spoofing forging the source address of IP packet

◮ attacker does not care about responses ◮ conceal true source ◮ e.g. DNS amplification attack

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 4

Chair for Network Architectures and Services Technische Universität München

Research Questions Analyse captured data in respect to the following questions:

◮ Is TTL analysis for spoofing/anomaly detection viable?

◮ Are incoming TTL values for individual hosts or flows

stable?

◮ Are TTL values sufficiently spread, so that the chance of

the spoofed packet having coincidentally the correct TTL value is reasonably low?

◮ Can hosts be grouped together, e.g. as subnets?

◮ Is there a different behaviour between IPv4 and IPv6? ◮ Are there differences between TCP and UDP?

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 5

Chair for Network Architectures and Services Technische Universität München

Approach Challenge analyse 9 TiB of data efficiently in respect to research questions

◮ raw data: per IPv4 packet 18 byte, ordered by time of

arrival

Table: Raw data format for one packet

• Ext. IP

Protocol

• Ext. port
• Int. port

TTL Timestamp 4 B/16 B 1 B 2 B 2 B 1 B 8 B

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 6

Chair for Network Architectures and Services Technische Universität München

Solution create intermediate data format to accelerate run time of analysis programs

◮ reduce timestamps from 8 B to 4 B ◮ aggregate packets to flows

Flow Definition used in this thesis:

◮ identified by ext. IP address, protocol, int. and ext. port ◮ times out 10 minutes after last received packet

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 7

Chair for Network Architectures and Services Technische Universität München

Intermediate Data Format

Table: Intermediate data format for one flow

• Ext. IP Start End Ext. port Int. port Prot. # Dist. TTLs

4 B/16 B 4 B 4 B 2 B 2 B 1 B 1 B per dis- tinct TTL

• Start TTL

End TTL # Packets TTL value 4 B 4 B 4 B 1 B

◮ instead of 18 B per IPv4 packet, 18 B + 13 B per distinct

TTL for each flow

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 8

Chair for Network Architectures and Services Technische Universität München

Evaluation

◮ analyse intermediate data in respect to research questions

֒ → create CSV files with aggregated, specific data

◮ packets per flow ◮ flow duration ◮ TTL values in flow ◮ unique IP addresses

◮ use python to evaluate CSV data ◮ additionally matplotlib for diagram generation

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 9

Chair for Network Architectures and Services Technische Universität München

Results Memory Reduction

Table: Memory consumption for raw and intermediate data

Raw data Intermediate data Total 9.2 TiB 258.9 GiB (2.7%) IPv4 8.2 TiB 232.7 GiB (2.8%) IPv6 1.0 TiB 26.1 GiB (2.5%) Data Distribution

◮ 93% of recorded packets and flows were IPv4 ◮ 86% of captured packets employed TCP ◮ 49% of flows used TCP

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 10

Chair for Network Architectures and Services Technische Universität München

Packet Distribution

◮ most flows consist of only a few packets ◮ more than 80% of UDP flows consist of only one packet ◮ similar behaviour for IPv4 and IPv6

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 11

Chair for Network Architectures and Services Technische Universität München

Flow Duration

◮ ~90% of TCP flows are longer than respective UDP flows,

highest 10% roughly the same

◮ IPv6/TCP flows are longer than IPv4/TCP flows

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 12

Chair for Network Architectures and Services Technische Universität München

TTL Stability

Table: Percentage of flows with only one TTL

IPv4 IPv6 Flows All TCP UDP All TCP UDP All 96.33% 93.56% 99.01% 98.49% 96.41% 99.83% > 1 packet 93.03% 92.55% 95.16% 96.37% 95.80% 98.74%

◮ TTL values in flows are relatively stable ◮ two to five distinct TTLs increasingly unlikely, more than

five very rare

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 13

Chair for Network Architectures and Services Technische Universität München

Future Work Further evaluations for TTL Stability

◮ adjacency of TTL values ◮ frequency of TTL values

Additional Levels of Evaluation

◮ utilise port numbers to infer applications ◮ analyse on host/IP address level

Other Data Sets

◮ different time period ◮ other or more L4 protocols (e.g. ICMP

, SCTP)

◮ different vantage point in the internet

⇒ evaluate TTL based filter mechanism conclusively and possibly realise it

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 14

Chair for Network Architectures and Services Technische Universität München

Conclusion

◮ ~96% of flows have only one TTL value ◮ UDP flows are more stable than TCP flows ◮ IPv4/TCP flows are more stable for higher packet counts in

comparison

◮ viability of TTL filtering can’t be conclusively assessed yet ◮ evaluations show decent conditions, possibly with some

restrictions

Arno Hilke – IP Spoofing Detection Through TTL Header Analysis 15

Chair for Network Architectures and Services Technische Universität München

Thank you for your attention!

Any questions?
