A Reproducibility Study of IP Spoofing Detection in Inter-Domain Traffic Jasper Eumann October 9, 2019 iNET RG, Hamburg University of Applied Sciences Overview IP Spoofing Mitigation in General Detection in Inter-Domain Traffic

slide-1
SLIDE 1

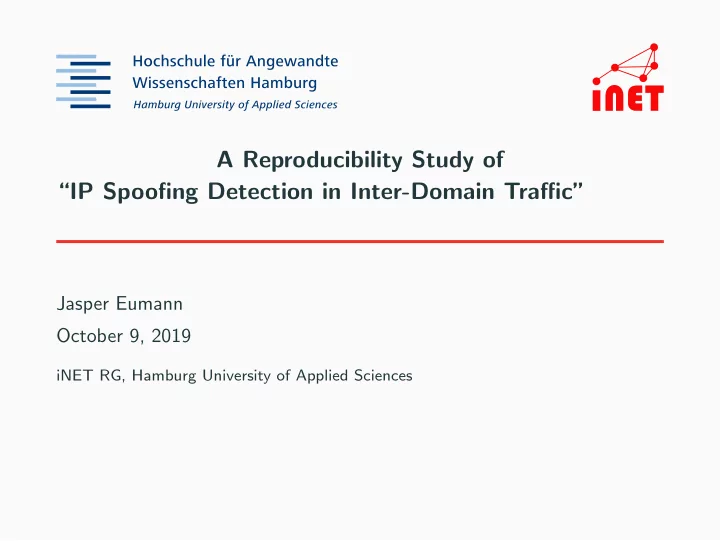

A Reproducibility Study of “IP Spoofing Detection in Inter-Domain Traffic”

Jasper Eumann October 9, 2019

iNET RG, Hamburg University of Applied Sciences

slide-2
SLIDE 2

Overview

IP Spoofing Mitigation in General Detection in Inter-Domain Traffic Results False Positive Indicators Conclusion

1

slide-3
SLIDE 3

IP Spoofing

slide-4
SLIDE 4

IP spoofing

  • IP spoofing injects packets that include a forged IP source

address which is not its own

  • Replys are directed to the address in the packet and not to

the origin

2

slide-5
SLIDE 5

Abuse potential

In combination with a distributed amplification, in which small requests trigger much larger replies, this leads to serious denial of service attacks in the current Internet [5, 10].

3

slide-6
SLIDE 6

Amplification and reflection attack using a DNS server

Request with spoofed

address of the victim

Regular request/response

AS2 IXP AS1 Attacker Attacker AS3 DNS server AS4 Victim

4

slide-7
SLIDE 7

Mitigation in General

slide-8
SLIDE 8

IP spoofing mitigation

  • The most effective mitigation of reflection attacks is ingress

filtering at the network of the attacker [3, 1]

  • This solution is not sufficiently deployed [4]
  • Can only be used in the area near the attacker

5

slide-9
SLIDE 9

A border router blocks incoming traffic using ingress filtering

Request with spoofed

address of the victim

Regular request/response

AS2 IXP AS1 Attacker Attacker AS3 DNS server AS4 Victim

6

slide-10
SLIDE 10

Detection in Inter-Domain Traffic

slide-11
SLIDE 11

Spoofing detection in inter-domain traffic

  • Packets passing through an IXP are forwarded by a peering AS
  • Use expectation of ”covered” prefixes to filter packets
  • Complicated by transit providers

7

slide-12
SLIDE 12

Customer cone IXP AS2 AS1 AS3 AS5 AS6 AS4 AS7 AS8

Upstream Peering Cone of AS1 Cone of AS2 Cone of AS3

A customer cone includes all ASes that receive (indirect) upstream via the IXP member (AS1, AS2, AS3)

8

slide-13
SLIDE 13

Amplification and reflection attack using a DNS server

IXP AS2 AS4

?

AS1

Traffic with spoofed

address of the victim

Regular traffic

AS2 IXP AS1 Attacker Attacker AS3 DNS server AS4 Victim

9

slide-14
SLIDE 14

IMC’17 methodology

  • Detection, Classification, and Analysis of Inter-Domain Traffic

with Spoofed Source IP Addresses published at ACM IMC’17

  • passive detection of packets with spoofed IP address
  • minimize false positive inferences [6, § 1]
  • Each packet that enters an IXP via an IXP member is checked

via a customer cone that covers the prefix of the origin AS

  • Paper presents three cone approaches

10

slide-15
SLIDE 15

Customer cone approaches

  • 1. Naive Approach: Uses public BGP information and considers

a packet is valid if it originates from an AS that is part of an announced path for its source prefix

BGP4MP|1522454399|A|206.197.187.10|14061| 185.160.179.0/24 | 14061 1299 12880 49148 |IGP|206.197.187.10|0|0||||

11

slide-16
SLIDE 16

Customer cone approaches

  • 1. Naive Approach: Uses public BGP information and considers

that a packet is valid if it originates from an AS that is part of an announced path for its source prefix

  • 2. CAIDA Customer Cone: Represents the business

relationships rather than the topology. Build from AS relationships data provided by CAIDA [8]

12

slide-17
SLIDE 17

Customer cone approaches

  • 1. Naive Approach: Uses public BGP information and considers

that a packet is valid if it originates from an AS that is part of an announced path for its source prefix

  • 2. CAIDA Customer Cone: Represents the business

relationships rather than the topology. Build from AS relationships data provided by CAIDA [8]

  • 3. Full Cone: Built from public BGP announcements. This

approach adds transitive relationships between peers. (Main method examined in the IMC’17 paper)

13

slide-18
SLIDE 18

Manual intervention

  • The authors of IMC’17 added “missing” links to the full cone

by hand (based on whois information)

  • In our opinion only a full scriptable method is usable in

practice

  • We show the properties of the cone approaches without

manual intervention .

14

slide-19
SLIDE 19

Classification classes

The full pipeline sorts packets into four classes:

  • Bogon: Address from a private network or other ineligible

routable prefixes [9, 2, 11]

  • Unrouted: Source is not included in any announcement
  • Invalid: Packet with a spoofed source address
  • Regular: Regular traffic without anomalies

15

slide-20
SLIDE 20

Classification pipeline

Traffic 127.0.0.0/8, 192.162.0.0/16, ...? Bogon not routable? Unrouted not in cone of member? Invalid Regular Yes No Yes No Yes No

16

slide-21
SLIDE 21

Reproduction procedure

  • 1. Collect sampled flows data at an IXP
  • 2. Apply scripts [7] kindly provided by the IMC’17 authors
  • We extended the implementation with missing functionality
  • 3. Enhance cone construction with features for classifying

payloads of spoofed traffic using libpcap1

1https://www.tcpdump.org/

17

slide-22
SLIDE 22

Results

slide-23
SLIDE 23

Comparison of classification results for invalid traffic

IMC 2017 Reproduced Results Bytes Packets Bytes Packets Bogon 0.003% 0.02% 0.0009% 0.0022% Unrouted 0.004% 0.02% 0.00001% 0.0001% Invalid Naive 1.1% 1.29% 0.579% 1.537% CAIDA 0.19% 0.3% 0.955% 1.563% Full 0.0099% 0.03% 0.2% 0.488%

18

slide-24
SLIDE 24

Time series of classified traffic distributions (Full)

00:00 00:00 00:00 00:00 00:00 00:00 00:00 00:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 Time 103 104 105 106 107 108 # Packets

Regular Bogon Unrouted Invalid Regular (IMC'17) Bogon (IMC'17) Invalid (IMC'17) Unrouted (IMC'17)

19

slide-25
SLIDE 25

Time series of classified traffic distributions

00:00 00:00 00:00 00:00 00:00 00:00 00:00 00:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 Time 103 104 105 106 107 108 # Packets

Regular Bogon Unrouted Invalid

Naive

00:00 00:00 00:00 00:00 00:00 00:00 00:00 00:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 Time 103 104 105 106 107 108 # Packets

Regular Bogon Unrouted Invalid

CAIDA

00:00 00:00 00:00 00:00 00:00 00:00 00:00 00:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 Time 103 104 105 106 107 108 # Packets

Regular Bogon Unrouted Invalid Regular (IMC'17) Bogon (IMC'17) Invalid (IMC'17) Unrouted (IMC'17)

Full

20

slide-26
SLIDE 26

CCDF: Fractions of invalid traffic per IXP member AS (Full)

10 10 10 ³ 10 ¹ 10 10²

% of total traffic (packets)

0.2 0.6 1

Fraction of members

Unrouted Bogon Invalid Invalid (IMC'17) 21

slide-27
SLIDE 27

CCDF: Fractions of invalid traffic per IXP member AS

10 10 10 ³ 10 ¹ 10 10²

% of total traffic (packets)

0.2 0.6 1

Fraction of members

Unrouted Bogon Invalid

Naive

10 10 10 ³ 10 ¹ 10 10²

% of total traffic (packets)

0.2 0.6 1

Fraction of members

Unrouted Bogon Invalid

CAIDA

10 10 10 ³ 10 ¹ 10 10²

% of total traffic (packets)

0.2 0.6 1

Fraction of members

Unrouted Bogon Invalid Invalid (IMC'17)

Full

22

slide-28
SLIDE 28

CDF: Packets sizes by category (Full)

500 1000 1500 Packet size [Bytes] 0.2 0.4 0.6 0.8 1.0 Fraction of Packets

Bogon Unrouted Invalid Regular Invalid (IMC'17) 23

slide-29
SLIDE 29

CDF: Packets sizes by category

500 1000 1500 Packet size [Bytes] 0.2 0.4 0.6 0.8 1.0 Fraction of Packets

Bogon Unrouted Invalid Regular

Naive

500 1000 1500 Packet size [Bytes] 0.2 0.4 0.6 0.8 1.0 Fraction of Packets

Bogon Unrouted Invalid Regular

CAIDA

500 1000 1500 Packet size [Bytes] 0.2 0.4 0.6 0.8 1.0 Fraction of Packets

Bogon Unrouted Invalid Regular Invalid (IMC'17)

Full

24

slide-30
SLIDE 30

Traffic mix per protocol and dst port of invalid packets (Full)

ICMP total 0.37% UDP 53 123 161 443 ephe.

  • ther

total 1.18% < 0.1% 0.35% 19.73% 0.94% 0.81% 20.36% TCP 80 443 27015 10100 ephe.

  • ther

total 3.50% 62.29% 0.00% 0.00% 6.75% 13.67% 79.45%

25

slide-31
SLIDE 31

False Positive Indicators

slide-32
SLIDE 32

False positive indicators

Idea: Check if we actually identified invalid traffic

  • 1. SSL over TCP
  • 2. HTTP responses
  • 3. ICMP echo replies
  • 4. TCP packets carrying ACKs
  • 5. Malformed packets (e.g., transport port 0)

26

slide-33
SLIDE 33

False positive indicators by approach

Naive CAIDA Full SSL over TCP 3.985% 4.166% 6.395% HTTP response 0.174% 0.134% 0.117% ICMP echo reply 0.056% 0.070% 0.043% TCP ACK 86.188% 69.197% 76.079% malformed 0.000% 0.000% 0.001%

27

slide-34
SLIDE 34

Conclusion

slide-35
SLIDE 35

Conclusion

  • The manual intervention has a significant effect on the results
  • Without strong adjustments the methodology cannot be used

in automatically fashion

28

slide-36
SLIDE 36

Questions?

Thanks for your attention!

29

slide-37
SLIDE 37

References i

  • F. Baker and P. Savola.

Ingress Filtering for Multihomed Networks. RFC 3704, IETF, March 2004.

  • M. Cotton and L. Vegoda.

Special Use IPv4 Addresses. RFC 5735, IETF, January 2010.

  • P. Ferguson and D. Senie.

Network Ingress Filtering: Defeating Denial of Service Attacks which employ IP Source Address Spoofing. RFC 2827, IETF, May 2000.

slide-38
SLIDE 38

References ii

David Freedman, Brian Foust, Barry Greene, Ben Maddison, Andrei Robachevsky, Job Snijders, and Sander Steffann. Mutually Agreed Norms for Routing Security (MANRS) Implementation Guide. RIPE Documents ripe-706, RIPE, June 2018. Mattijs Jonker, Alistair King, Johannes Krupp, Christian Rossow, Anna Sperotto, and Alberto Dainotti. Millions of Targets Under Attack: A Macroscopic Characterization of the DoS Ecosystem. In Proc. of the 2017 Internet Measurement Conference, IMC ’17, pages 100–113, New York, NY, USA, 2017. ACM.

slide-39
SLIDE 39

References iii

Franziska Lichtblau, Florian Streibelt, Thorben Kr¨ uger, Philipp Richter, and Anja Feldmann. Detection, Classification, and Analysis of Inter-Domain Traffic with Spoofed Source IP Addresses. In Proceedings of the 2017 Internet Measurement Conference, IMC ’17, pages 86–99, New York, NY, USA, 2017. ACM. Franziska Lichtblau, Florian Streibelt, Thorben Kr¨ uger, Philipp Richter, and Anja Feldmann. transitive closure cone, 2018. Accessed: 2019-08-28.

slide-40
SLIDE 40

References iv

Matthew Luckie, Bradley Huffaker, Amogh Dhamdhere, Vasileios Giotsas, and kc claffy. AS Relationships, Customer Cones, and Validation. In Conference on Internet Measurement Conference, IMC’13, pages 243–256, New York, NY, USA, 2013. ACM.

  • Y. Rekhter, B. Moskowitz, D. Karrenberg, G. J. de Groot, and
  • E. Lear.

Address Allocation for Private Internets. RFC 1918, IETF, February 1996.

slide-41
SLIDE 41

References v

Fabrice J. Ryba, Matthew Orlinski, Matthias W¨ ahlisch, Christian Rossow, and Thomas C. Schmidt. Amplification and DRDoS Attack Defense – A Survey and New Perspectives. Technical Report arXiv:1505.07892, Open Archive: arXiv.org, June 2015.

  • J. Weil, V. Kuarsingh, C. Donley, C. Liljenstolpe, and
  • M. Azinger.

IANA-Reserved IPv4 Prefix for Shared Address Space. RFC 6598, IETF, April 2012.

slide-42
SLIDE 42

Top port UDP DST distribution of invalid packets

Naive 443 53 4500 3074 ephemeral

  • ther

12.140% 4.040% 1.800% 1.218% 34.012% 44.664% CAIDA 443 53 3074 1193 ephemeral

  • ther

30.921% 3.637% 1.296% 0.951% 28.181% 33.507% Full 443 53 16759 161 ephemeral

  • ther

77.174% 5.472% 1.645% 1.406% 5.129% 8.157%
