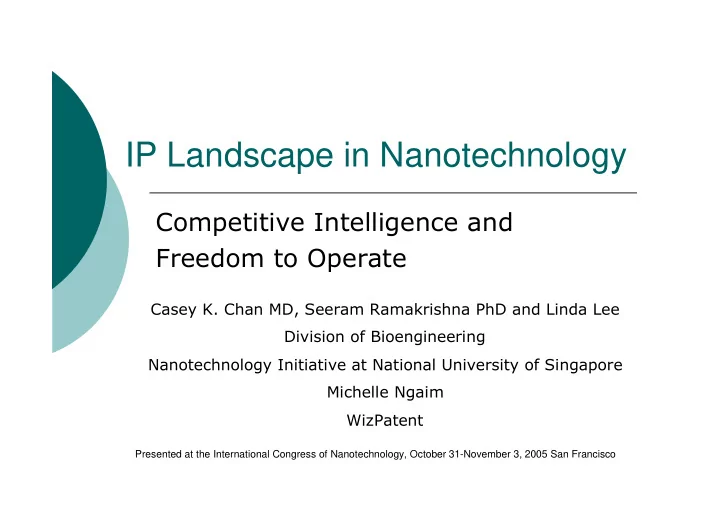

IP Landscape in Nanotechnology Competitive Intelligence and Freedom - - PowerPoint PPT Presentation

IP Landscape in Nanotechnology

Competitive Intelligence and Freedom to Operate

Casey K. Chan MD, Seeram Ramakrishna PhD and Linda Lee Division of Bioengineering Nanotechnology Initiative at National University of Singapore Michelle Ngaim WizPatent

Presented at the International Congress of Nanotechnology, October 31-November 3, 2005 San Francisco

Agenda

 Competitive intelligence  Freedom to Operate  Nanotechnology IP challenges  Our methodology  Results  Case studies

Competitive Intelligence

 Strategic knowledge about

competitors’ positions, research efforts, and trends

 Sources of Competitive Intelligence

 Scientific Literature  Conferences  Media  Patents

Patents as a Source of Competitive Intelligence

 Publicly available documents  Excellent source of info for emerging

technologies  Nanotechnology

 Mining of patent information, usually

bibliographic data reveals:

 Top inventors  Top assignees  Year  Patent classification  References to other patents  Referenced by other patents  Abstract

Bibliographic Data

 1st page of patent document  Contains:

 Inventor’s name and Country  Assignee and Country  Date filed, Date issued  Classification  References Cited  Referenced By  Abstract

How many Nanotech patents?

Nanotechnology Researchers Network of Japan 5613 in 2004 USPTO search on 17 Oct 2005 1377 in Class 977 Lux Research Report 3818 from 1985 to

• Mar. 2005

University of Arizona report 8630 in 2003 alone

 Different keyword searches and

databases leads to confusion

Nanotech-related patents (US, Japan, Europe, Worldwide) in 2004

1000 2000 3000 4000 5000 6000 U S A J a p a n G e r m a n y F r a n c e K

• r

e a U K T a i w a n C a n a d a N e t h e r l a n d s S w i t z e r l a n d Number of patents

Source: Nanotechnology Researchers Network of Japan

Adjusted to Size of Economy

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 J a p a n K

• r

e a S w i t z e r l a n d U S A G e r m a n y F r a n c e T a i w a n N e t h e r l a n d s U K C a n a d a # of patents / GDP (Billions of dollars)

Class 977 Breakdown in 2003

0% 10% 20% 30% 40% 50% 60% 70% US companies and universities Japanese companies German companies Australian companies non-US government Companies Universities Source: ETC Group

Nanotechnology IP Challenges

 Nanotech defines a scale of

measurement, not a particular application

 Lack of uniform definitions and

terminology for nanotechnology

 USPTO Class 977 “Nanotechnology”

 1) 1-100 nm  2) Novel properties due to nanoscale size

 “Patent land grab” and “patent

thickets”

Methodology (1)

 USPTO Issued Patents  1976 to Present  TXT data

 Robust  Forward and Backward citations

 Preliminary Search

 Nano$ in patent abstract

 Secondary Search

 Identify possible irrelevant patents (Nanomet$,

Nanogra$, Nanosec$, NaNO)

 Review individual patents and make decision

 Data Cleaning

Methodology (2)

Nano$

Nanogra$, nanomet$, nanosec$, NaNO Nano$ Irrelevant Relevant Irrelevant Relevant

Final Database

R1: Search by keyword(s) R2: Search on key inventor(s) R3: Search on key assignee(s) R4: Select pertinent patents from R1 + R2 + R3 R4: Select pertinent patents from R1 + R2 + R3 Identify most pertinent IPC code(s) from R4 R5: Search by IPC code(s) R6: Select pertinent patents in R5 R6: Select pertinent patents in R5 R7: Search patents that are cited by R6 (backward searching) R8: Search patents that cite patents in R6 (forward searching) Final Search Results = R4 + R6 + R9 Final Search Results = R4 + R6 + R9 R9: Select pertinent patents in R7 + R8 R9: Select pertinent patents in R7 + R8

Methodology(3)-Data Cleaning

 Patent analysis is further complicated by

inconsistent records of assignee or inventor names

 International Business Machines Corp.;

International Business Machine(s) Corporation; Internation Business Machines Corporation

 The Regents of the University of California;

The Regents, University of California; Regents of the University of California

 L’oreal; L’oreal SA, Societe L’oreal

 Data cleaning is time-consuming and

cannot be fully automated

US 6,260,795 Oya Computerized Glider

 Irrelevant patent that

was not eliminated in preliminary or secondary searches

 Modified hang-glider  “Nano” mentioned once in

patent abstract

 “…incorporates…nano wires, and

nano cables, for electrical connections and manual control levers.”

Hang-glider wing

1 2 3 4 5 6 7 8 9 10 11 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005*

Year

# Patents / # Patents (1995)

All Issued Patents Nano Related Patents

Dramatic Rise in Number of Nanotech-related Patents

*Estimated

Nanotech-related patents and patents across selected industries 1990-2005

1000 2000 3000 4000 5000 6000 7000 8000 9000 1 9 9 1 9 9 1 1 9 9 2 1 9 9 3 1 9 9 4 1 9 9 5 1 9 9 6 1 9 9 7 1 9 9 8 1 9 9 9 2 2 1 2 2 2 3 2 4 2 5 * Y ear Number of issued pate

Autom

• tive

Internet** N ucleicAcid Pharm aceutical Sem iconductor N ano$

*estimated

Nanotech-related patents and patents across selected industries 1995-2005

2 4 6 8 10 12 1 9 9 5 1 9 9 6 1 9 9 7 1 9 9 8 1 9 9 9 2 2 1 2 2 2 3 2 4 2 5 * year Number of issued patents/Number of issued patents in 1995

Automotive Internet** Nucleic acid Pharmaceutical Semiconductor Nano$

*estimated **Baseline 1998

Top Ten Inventors

40 30 28 27 27 27 26 26 26 24

10 20 30 40 50

1

Assignee Patents Issued

Yadav; Tapesh Mirkin; Chad A. Smith; Douglas M. Letsinger; Robert L. Schmidt; Helmut Forbes; Leonard Mucic; Robert C. Elghanian; Robert Storhoff; James J. Lan; Tie

Top Inventors – Pre- and Post-Y2K

5 10 15 20 25 30 35 40 45

Y a d a v ; T a p e s h M i r k i n ; C h a d A . S m i t h ; D

• u

g l a s M . L e t s i n g e r ; R

• b

e r t L . S c h m i d t ; H e l m u t F

• r

b e s ; L e

• n

a r d M u c i c ; R

• b

e r t C . E l g h a n i a n ; R

• b

e r t S t

• r

h

• f

f ; J a m e s J . L a n ; T i e R a m

• s

; T e r e s a W i l l i a m s ; R . S t a n l e y T a t

• n

; T h

• m

a s A . M

• y

; D a v i d H a n s e n n e ; I s a b e l l e H a r a d a ; A k i

• N

a k a y a m a ; Y

• s

h i k a z u

Number of patents 2000-2005 1990-1999

Top Ten Assignees

95 84 63 61 52 52 51 50 39 36 10 20 30 40 50 60 70 80 90 100

1

Assignee Number of patents

University of California International Business Machines Corporation Navy Hewlett-Packard Xerox Corporation LOreal Eastman Kodak Company Micron Technology, Inc. Massachusetts Institute of Technology Industrial Technology Research Institute

Top Ten US Classifications

467 128 98 91 80 72 72 66 64 63 63

100 200 300 400 500 9 7 7 / D I G . 1 4 2 4 / 4 8 9 4 2 8 / 4 3 5 2 4 / 4 4 5 4 3 5 / 6 4 2 8 / 4 2 3 1 3 / 3 9 4 2 4 / 4 1 4 2 3 / 4 4 7 . 1 4 2 4 / 4 9 4 2 8 / 3 2 3 UPC Count

Nanoparticles relating to drug applications such as drug delivery Nanomaterials as coating Nanotechnology

Top Ten Referenced Patents

Top R eference C ited

81 62 54 46 46 43 42 41 40 39 10 20 30 40 50 60 70 80 90

U S 5 9 9 4 7 9 U S 5 7 5 1 1 8 U S 5 5 5 2 4 6 9 U S 4 6 6 3 2 3 U S 6 9 7 1 3 8 U S 5 7 4 7 5 6 U S 5 2 6 2 3 5 7 U S 5 6 9 9 7 U S 5 5 3 7 U S 5 5 5 9 2 8

USPatent Num ber

• No. Times Cited

Semiconductor nanocrystals covalently bound to solid inorganic ….. Organo Luminescent semiconductor nanocrystal probes ……

Nanotech Patents by Assignee Type

21% 68% 4% 2% 5% Academic Commercial Government Individual Undetermined

By Assignee Type Over Time

500 1000 1500 2000 2500 1970-1979 1980-1989 1990-1999 2000-2005 Number of Patents Academic Commercial Government Individual Undetermined

Nanotech Patents by Structure

1% 15% 11% 3% 8% 2% 11% 3% 4% 2% 28% 12% Nanofiber Nanocomposite Nanotube Nanoclay Nanoporous Nanowire Nanocrystal Nanoemulsion Nanoceramic Nanocapsule Nanoparticle Nanofilm

Nanoparticle N a n

• f

i l m Nanocomposite Nanocrystals Nanotube

Nanotech Patents by Application

26% 2% 11% 9% 21% 31% Instrumentation, Tools, Metrology, Standards Environmental Science Medical Nanoscale Science in Materials Chemical Nanoelectronics

Chemical Nanoelectronics Instrumentation etc Medical

L’oreal: “Because I’m Worth It”

 World’s leading cosmetic company  $3 billion research investment in past

10 yrs (3% of sales)

 17 research labs in USA, France, and

Japan

 586 patents filed worldwide in 2004  52 USPTO nanotech-related patents

 Nanoparticles as photoprotective cosmetic

compounds

 Nanocapsules (130-600 nm) for effective

active ingredient delivery to skin

Tapesh Yadav: Most Prolific Inventor

 MIT Ph.D. and minor in business at

Sloan

 41 issued patents, of which 33

assigned to NanoProducts Corp.

 Founder and CEO of NanoProducts

• Corp. (Longmont, CO)

 45 issued patents, 45 patents pending  Produce commercial quantities of

nanomaterials

NanoProducts Corp.

 A different approach:

 A common trend in nanotechnology is for

companies to license patents from universities

 However, all patents developed and owned by

NanoProducts Corp.

 Diverse patent portfolio covering

production and engineering processes to products and applications

 Manufactures and sells nanoscale

powders, dispersions, and powder-based products, including single metal, multi- metal and doped oxides.

Who Controls Quantum Dots?

Bell Labs Ioffe Institute

 Paul Alivisatos “Inventor of

Quantum Dot technology”*

 Alex Ekimov “Father of Quantum

Dots”**

*www.qdots.com **www.evidenttech.com

Who Controls Quantum Dots?

400 patents and applications 22 (MIT and UC) Licensed patents 3 5 10 Assigned patents All other applications Nanosys Biological applications Evident Technologies Biological applications Quantum Dot Corp.

 Complicated by hidden license agreements  "If you want to look for a place where there

will be an intellectual property battle, this is it.” (Matthew Nordan, Lux Research)

The Future of Nanotech IP Landscape?

What is Freedom to Operate?

 The ability to commercialize a

product without being sued

 Bibliographic data is of no use  It is all in the claims  Careful examination and

interpretation of claim language is

• f utmost importance

 Cannot be automated

Ambiguity

I shot the monkey in my pajamas. Possible scenarios:

1.

I am wearing my pajamas and shot the monkey in the tree.

2.

The monkey is in the tree wearing my pajamas.

3.

I am wearing my pajamas and the monkey is hiding in the pant leg of my pajamas.

How to avoid ambiguity

Claim Construction:

By declaring specifically the elements of the invention.

Claim Interpretation:

By parsing into separate and more easily processed elements.

Characteristics of Patent Claims

1.

Define Invention

2.

Public Notice

3.

Claims allowed cover only patentable subject matter in a proffered patent specification.

Initial patent review

 Front Page

 Patent Number and Title  Applicant (s), Assignee  Issued Date/ File Date  Class and Field of Search  Attorney, Examiner  References  Abstract  Representative Drawing

 Back Page

 Claims

Five Types of Claims

 Independent Claim (3)

 Apparatus  Method  Composition of Matter

 Dependent Claim (2)

 Additional element  Restriction of an element

Object Oriented Programming

 Object = Element  Parent-Child Relation  Object (sub-object, attributes)  Child Object inherit Parent’s

characteristic

Review of Claim Structure

 Main Element +- attribute(s)

 Element +- attribute(s)

 Sub-element +-attribute(s)

 Element +- attribute(s)

 Sub-element +-attribute(s)

 Two types of elements

 Structural elements  Step elements

Punctuation of Claim

1.

One sentence with a comma after preamble (title) and a colon after transitional phrase.

2.

Element has it own paragraph ending with a semicolon

3.

The word “and” between the last two elements

4.

Each claim has only one period.

5.

Rule #2 does not apply to subelements

Claim Analysis

1. Vehicle storage battery system comprising  Storage battery

• 3 separate portions

 Main battery position  1st standby  2nd standby

• 1st + 2nd in series > voltage of main
• 1st, 2nd voltage < voltage of main
• 1st, 2nd < capacity then main
• 1st + 2nd capacity sufficient to start car

 Battery control

• 1st circuit

 Connecting 1st + 2nd in series

• For charging main

 Means for restricting current

• 2nd circuit

 Connecting 1st + 2nd in parallel

• For recharging 1st and 2nd

 Means for restricting current  Switch means

• Switching between 1st and 2nd circuit

US 4,564,797 US 4,564,797

Claim Analysis Segmentation and Tagging Natural Language Processing Regular Expressions

Take Home Message

 Rapid rise in number of nanotech

patents at the rate of 20%/year

 Careful interpretation of CI data

 How data derived  How data is presented

 Determination of FTO

 Cannot be automated  Will be an important issue in coming

years
