SLIDE 1
Zellescher Weg 12 Trefftz-Bau/HRSK 151 Phone +49 351 - 463 - 39871 Guido Juckeland (guido.juckeland@tu-dresden.de)
Center for Information Services and High Performance Computing (ZIH)
Slide 2 - Guido Juckeland
Introduction to High Performance Computing at ZIH Architecture of - - PowerPoint PPT Presentation
Introduction to High Performance Computing at ZIH Architecture of - - PowerPoint PPT Presentation

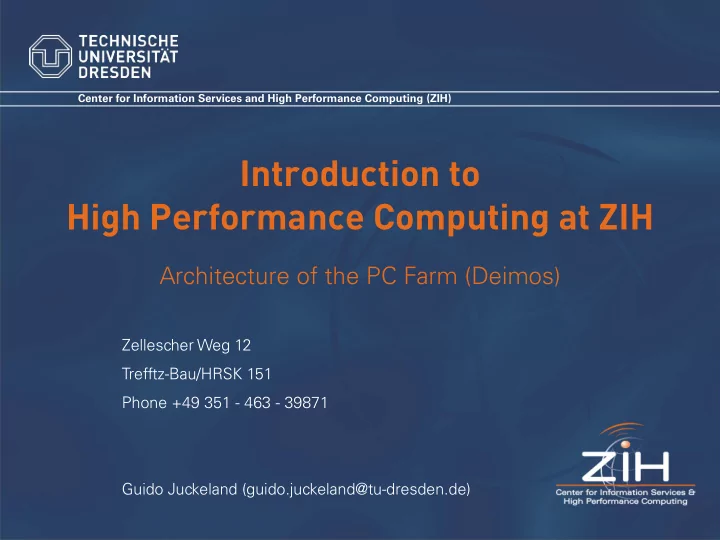

Center for Information Services and High Performance Computing (ZIH) Introduction to High Performance Computing at ZIH Architecture of the PC Farm (Deimos) Zellescher Weg 12 Trefftz-Bau/HRSK 151 Phone +49 351 - 463 - 39871 Guido Juckeland
SLIDE 2
SLIDE 3
Slide 3 - Guido Juckeland
PC Farm Components (Deimos)
SLIDE 4
Slide 4 - Guido Juckeland
Linux Networx PC-Farm (Deimos)
1292 AMD Opteron x85 Dual-Core CPUs (2,6 GHz) 726 Compute nodes with 2, 4 oder 8 CPU Cores Per core 2 GiByte main memory 2 Infiniband interconnects (MPI- and I/O-Fabric) 68 TByte SAN-Storage Per node 70, 150, 290 GByte scratch- disk OS: SuSE SLES 10 Batch system: LSF Compiler: Pathscale, PGI, Intel, Gnu 3rd party applications: Ansys100, CFX, Fluent, Gaussian, LS-DYNA, Matlab, MSC,…
SLIDE 5
Slide 5 - Guido Juckeland
Deimos - Partitions
2 Master Nodes – Not accessible for users, PC-Farm management 4 Login Nodes – 4 Core Nodes – Accessible with DNS Round Robin under deimos.hrsk.tu-dresden.de Single-, Dual- und Quad-Nodes – 1, 2 or 4 CPUs – 4, 8 or 16 GiByte main memory (24 Quads with 32 GiByte) – 80, 160 or 300 GByte local disks Setup in phase 1 and phase 2 nodes – Identical hardware – Differences in the connection to the MPI- and the I/O-Fabric (later)
SLIDE 6
Slide 6 - Guido Juckeland
AMD Opteron Processors und Systems
SLIDE 7
Slide 7 - Guido Juckeland
AMD Opteron CPU - Design
AMD Opteron x85 (2,6 GHz) Memory controller on-chip (2 memory channels with 3.2 GiByte/s transfer bandwidth each) Each Core 64 KiByte level 1 instruciton- and data cache 1 MiByte Level 2 Cache 64 Bit extension of IA-32 x86- architecture (x86-64, x64 oder EM64T) Now also as quad core CPUs available
SLIDE 8
Slide 8 - Guido Juckeland
AMD Opteron – Block diagram
Instr'n TLB Level 1 Instr'n Cache Fetch 2 - transit Pick Decode 1 Decode 2 Decode 1 Decode 2 Decode 1 Decode 2 Pack Pack Pack Decode Decode Decode 8-entry Scheduler 8-entry Scheduler 8-entry Scheduler ALU AGU ALU AGU ALU AGU FADD FMUL FMISC 36-entry Scheduler Data TLB Level 1 Data Cache ECC 2k Branch Targets 16k History Counter RAS & Target Address Level 2 Cache L2 ECC L2 Tags L2 Tag ECC System Request Queue (SRQ) Cross Bar (XBAR) Memory Controller & HyperTransport
TM
v
SLIDE 9
Slide 9 - Guido Juckeland
Deimos – Layout of a single-CPU node AMD Opteron 185
Memory
(4 GiByte)
Hypertransport Peripheral devices
(Infiniband, Ethernet, Disk)
SLIDE 10
Slide 10 - Guido Juckeland
Deimos – Layout of a dual-CPU nodes AMD Opteron 285 AMD Opteron 285
Memory
(4 GiByte)
Memory
(4 GiByte)
Hypertransport Hypertransport Peripheral devices
(Infiniband, Ethernet, Festplatte)
SLIDE 11
Slide 11 - Guido Juckeland
Deimos - Layout of a quad-CPU Node AMD Opteron 885 AMD Opteron 885
Memory
(4 GiByte)
Memory
(4 GiByte)
Hypertransport Hypertransport Peripheral devices
(Infiniband, Ethernet, Festplatte)
AMD Opteron 885 AMD Opteron 885
Memory
(4 GiByte)
Memory
(4 GiByte)
Hypertransport Hypertransport Hypertransport
SLIDE 12
Slide 12 - Guido Juckeland
Infiniband Networks
SLIDE 13
Slide 13 - Guido Juckeland
Basic Layout
SLIDE 14
Slide 14 - Guido Juckeland
More complicated structures
SLIDE 15
Slide 15 - Guido Juckeland
Infiniband-Stack
SLIDE 16
Slide 16 - Guido Juckeland
Consequences for the user
No standard Linux networks (eth0,...) No IP-addresses No direct traffic monitoring possible Very low MPI latency (about 5-15 μs) High MPI bandwidth (up to 900 MiByte/s) The batch system does not know about the state of the Infiniband fabric
SLIDE 17
Slide 17 - Guido Juckeland
Deimos Infiniband-Layout (rough sketch)
Node Node Node Node Node ... Node Node Node Node Node ... MPI Netzwerk IO Netzwerk
SLIDE 18
Slide 18 - Guido Juckeland
Deimos MPI-Fabric
+-------------------+ +--------------------+ +-------------------+ | Switch 1 | | Switch 2 | | Switch 3 | | | 30x | | 30x | | | Rack 05 |-------| Rack 20 |-------| Rack 25 | | | | | | | | all Phase1 Nodes | | Phase2 Duals+Quads | | Phase 2 Singles | +-------------------+ +--------------------+ +-------------------+
3 288-Port Voltaire ISR 9288 IB-Switches with 4x Infiniband Ports
SLIDE 19
Slide 19 - Guido Juckeland
Deimos I/O Fabric
Tree structure with – 1 192 Port Voltaire ISR 9288 IB-Switch with 4x Infiniband Ports (Rack 07) – 36 24 Port Mellanox IB-Switch (4x) passive Voltaire Core-Switch
24 Port Mellanox 24 Port Mellanox 24 Port Mellanox 24 Port Mellanox 24 Port Mellanox 24 Port Mellanox
