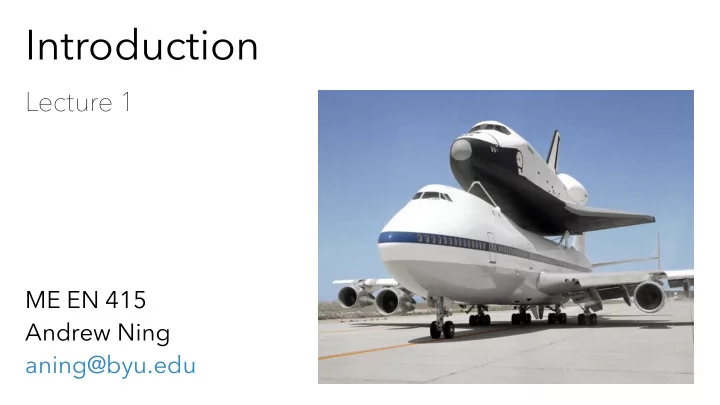

Introduction Lecture 1 ME EN 415 Andrew Ning aning@byu.edu Syllabus http://flow.byu.edu/me415/ 515 (595R): 510: Compressible 541: Computational Aerodynamics Fluid Flow Fluid Dynamics 415: Flight Vehicle 523: Aircraft 456/602: Design

slide-1
SLIDE 1

ME EN 415 Andrew Ning aning@byu.edu

Introduction

Lecture 1

slide-2
SLIDE 2

Syllabus

slide-3
SLIDE 3

http://flow.byu.edu/me415/

slide-4
SLIDE 4

415: Flight Vehicle Design 515 (595R): Aerodynamics 510: Compressible Fluid Flow 541: Computational Fluid Dynamics 426: Gas Turbine and Jet Engine Design 523: Aircraft Structures 456/602: Composites 431: Control Systems 634: Flight Dynamics and Control 575: Design Optimization ChE 693R: Dynamic Optimization

slide-5
SLIDE 5

Grading

Homework 400 Exams 400 Project 150 Quizzes 50 Total 1000

slide-6
SLIDE 6

Aircraft Industry

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9

Air travel has proved to be resilient to external shocks

World annual traffic (trillion RPKs)

Oil Crisis Gulf Crisis Oil Crisis Asian Crisis WTC Attack SARS Financial Crisis

x2

since 9/11

+60%

growth over the last 10 years 1 2 3 4 5 6 7 8 1966 1971 1976 1981 1986 1991 1996 2001 2006 2011 2016

Airbus Global Market Forecast 2017

slide-10
SLIDE 10

FAA Aerospace Forecast 2017

slide-11
SLIDE 11
slide-12
SLIDE 12

Air Transportation Economics

source: Javier Irastorza Mediavilla

slide-13
SLIDE 13

Air Transportation Safety

Aviation Safety Network

slide-14
SLIDE 14

1.5 3 4.5 6 Motorcycles Cars & Trucks Commuter Rail Subways Bus Plane 217 Deaths per billion passenger miles (USA)

slide-15
SLIDE 15

Air Transportation Efficiency

$0 $20 $40 $60 $80 $100 $120 $140 2000 2005 2010 2015 2020 2025 2030 2035 $ Per Barrel of Oil

Fiscal Year

U.S. Refiners' Acquistion Cost

Source: IHS Global Insight

slide-16
SLIDE 16

% of base (Comet 4)

Year of model introduction 1950 100 90 80 70 60 50 40 30 20 10 1960 1970 1980 1990 2000 2010 49% 82%

Comet 4 707-120 747-100 DC-8-63 747-400 Engine fuel consumption Aircraft fuel burn per seat 777-200 777-200 777-300ER 777-300ER A380 A380 787 787

Fuel efciency gains since the early jet age

slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

Design

slide-21
SLIDE 21

The Future of Airplanes The Future of Space Exploration

slide-22
SLIDE 22

Main Design Parameters

fmincon

Wingspan Chords Tail Sizing Volume Coefficients C.G. Landing Gear Furnishings Fuselage Wing Tail Engine Structure Battery Battery C.G. + Sizing Lattice (Tornado) Trim (Tornado) Parasitic CD L/D CL & CD at each flight stage Vclimb Vmax Vcruise Define Ultimate Loads Wing Loadings V-n Diagram Range Velocity Climb Time Efficiency 2D/3D View Performance Plots Inequality Constraints Equality Constraints Design Parameters Design Performance Global Assumptions Wing + Tail Sizing Component Masses Drag Polar Velocity Performance V-n Diagram Performance Calculation Aircraft Computation (optimization) xt

slide-23
SLIDE 23

Specifications Conceptual Design Preliminary Design Detail Design Flight Tests Operations Growth Versions History & Archive Market/Operations Research

Adapted from a Boeing flow chart
