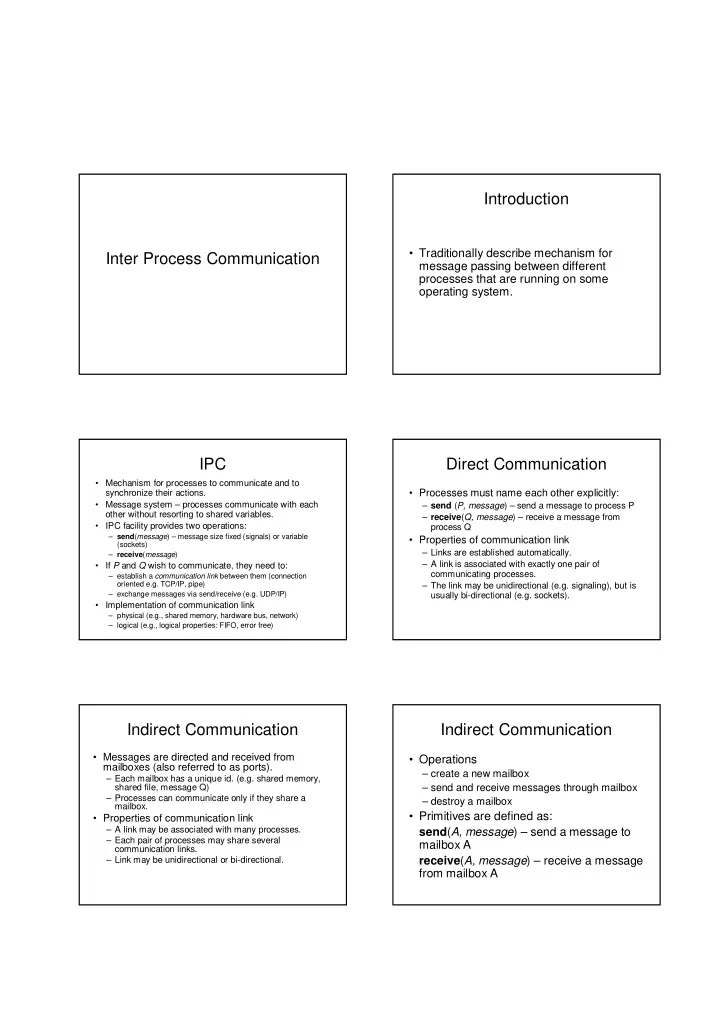

Inter Process Communication Introduction

• Traditionally describe mechanism for

message passing between different processes that are running on some

• perating system.

IPC

• Mechanism for processes to communicate and to

synchronize their actions.

• Message system – processes communicate with each
• ther without resorting to shared variables.
• IPC facility provides two operations:

– send(message) – message size fixed (signals) or variable (sockets) – receive(message)

• If P and Q wish to communicate, they need to:

– establish a communication link between them (connection

• riented e.g. TCP/IP, pipe)

– exchange messages via send/receive (e.g. UDP/IP)

• Implementation of communication link

– physical (e.g., shared memory, hardware bus, network) – logical (e.g., logical properties: FIFO, error free)

Direct Communication

• Processes must name each other explicitly:

– send (P, message) – send a message to process P – receive(Q, message) – receive a message from process Q

• Properties of communication link

– Links are established automatically. – A link is associated with exactly one pair of communicating processes. – The link may be unidirectional (e.g. signaling), but is usually bi-directional (e.g. sockets).

Indirect Communication

• Messages are directed and received from

mailboxes (also referred to as ports).

– Each mailbox has a unique id. (e.g. shared memory, shared file, message Q) – Processes can communicate only if they share a mailbox.

• Properties of communication link

– A link may be associated with many processes. – Each pair of processes may share several communication links. – Link may be unidirectional or bi-directional.

Indirect Communication

• Operations

– create a new mailbox – send and receive messages through mailbox – destroy a mailbox

• Primitives are defined as:

send(A, message) – send a message to mailbox A receive(A, message) – receive a message from mailbox A

Synchronization

• Message passing may be either blocking or non-

blocking.

• Blocking is considered synchronous
• Non-blocking is considered asynchronous
• send and receive primitives may be either

blocking or non-blocking.

• Buffering: Queue of messages attached to the

link; implemented usually with bounded capacity.

finite length of n messages. Sender must wait if link full.

Persistence

• Persistence: How long an IPC object of that type

remains in existence.

– Process persistence IPC (socket) – Kernel persistence IPC (message Q) – File-System persistence IPC (shared file)

Examples Direct Communication Signals

• The source process can "raise" a signal and

have it delivered to destination process. The destination process' signal handler is invoked and the process can handle it.

– A direct communication – Unidirectional channel is established automatically. – Processes must name each other explicitly using the process ID in order to send messages of fixed size. – Asynchronous. – Kernel persistence (e.g. SIGCHILD).

Pipes

• There is no form of IPC that is simpler than pipes.

– A direct communication in which unidirectional channels are established between “related” processes. – Basically, a call to the int pipe(int fd[2]) function returns a pair of file descriptors. – One of these descriptors is connected to the write end

• f the pipe, and the other is connected to the read end.

– On many systems, pipes will fill up after you write about 10K to them without reading anything out.

Example

#include <stdio.h> #include <stdlib.h> #include <sys/types.h> #include <unistd.h> int main() { int pfds[2]; char buf[30]; pipe(pfds); if (fork()==0) { printf(" CHILD: writing to the pipe\n"); write(pfds[1], "test", 5); //close pfds[0] printf(" CHILD: exiting\n"); exit(0); } else { printf("PARENT: reading from pipe\n"); read(pfds[0], buf, 5); //close pfds[1] printf("PARENT: read \"%s\"\n", buf); wait(NULL); } }

"ls | wc –l”

#include <stdio.h> #include <stdlib.h> #include <unistd.h> int main(void) { int pfds[2]; pipe(pfds); if (!fork()) { close(1); /* close normal stdout */ dup(pfds[1]); /* make stdout same as pfds[1] */ close(pfds[0]); /* we don't need this */ execlp("ls", "ls", NULL); } else { close(0); /* close normal stdin */ dup(pfds[0]); /* make stdin same as pfds[0] */ close(pfds[1]); /* we don't need this */ execlp("wc", "wc", "-l", NULL); } return 0; }

FIFO

• A FIFO is sometimes known as a named pipe. That is,

it's like a pipe, except that it has a name!

• In this case, the name is that of a file that multiple

processes can open and read and write to.

• Has to be open at both ends simultaneously before you

can proceed to do any input or output operations on it .

• Would you like to know more?

– int mkfifo(const char *path, mode_t mode); – mkfifo("/tmp/namedpipe" , 0666); – SIGPIPE

Producer

int main(void) { char s[300]; int num, fd; mkfifo("/tmp/namedpipe" , 0666); printf("waiting for readers...\n"); fd = open("/tmp/namedpipe", O_WRONLY); //blocked printf("got a reader--type some stuff\n"); while (gets(s), !feof(stdin)) { if ((num = write(fd, s, strlen(s))) == -1) perror("write"); else printf(“producer: wrote %d bytes\n", num); } return 0; }

Consumer

int main(void) { char s[300]; int num, fd; mkfifo ("/tmp/namedpipe", 0666); printf("waiting for writers...\n"); fd = open("/tmp/namedpipe", O_RDONLY); printf("got a writer\n"); do { if ((num = read(fd, s, 300)) == -1) perror("read"); else { s[num] = '\0'; printf(“consumer: read %d bytes: \"%s\"\n", num, s); } } while (num > 0); return 0; }

Examples Indirect Communication Message Queues

• Create:

int msgget(key_t key, int msgflg); key_t ftok(const char *path, int id); key = ftok(“somefile", 'b'); msqid = msgget(key, 0666 | IPC_CREAT);

• Send

int msgsnd(int msqid, const void *msgp, size_t msgsz, int msgflg =0);

• Receive:

int msgrcv(int msqid, void *msgp, size_t msgsz, long msgtyp, int msgflg);

• Destroy:

int msgctl(int msqid, int cmd, struct msqid_ds *buf); msgctl(msqid, IPC_RMID, NULL);

Example

#include <sys/types.h> #include <sys/ipc.h> #include <sys/msg.h> struct my_msgbuf { long mtype; char mtext[200]; };

Producer

int main(void) { struct my_msgbuf buf; int msqid; key_t key; key = ftok("ipc_example.c", 'B'); msqid = msgget(key, 0644 | IPC_CREAT); printf("Enter lines of text, ^D to quit:\n"); buf.mtype = 1; while(gets(buf.mtext), !feof(stdin)) { msgsnd(msqid, (struct msgbuf *)&buf, strlen(buf.mtext)+1, 0); } msgctl(msqid, IPC_RMID, NULL); return 0; }

Consumer

int main(void) { struct my_msgbuf buf; int msqid; key_t key; key = ftok("ipc_example.c", 'B'); msqid = msgget(key, 0644); for(;;) { msgrcv(msqid, (struct msgbuf *)&buf, sizeof(buf.mtext), 0, 0); printf("consumer: \"%s\"\n", buf.mtext); } return 0; }

Shared Memory Segments

• Create:

int shmget(key_t key, size_t size, int shmflg); key = ftok(“somefile", ‘b'); shmid = shmget(key, 1024, 0644 | IPC_CREAT);

• Use:

void *shmat(int shmid, void *shmaddr, int shmflg); int shmdt(void *shmaddr);

• Destroy:

shmctl(shmid, IPC_RMID, NULL); For synchronization use UNIX semaphores.
