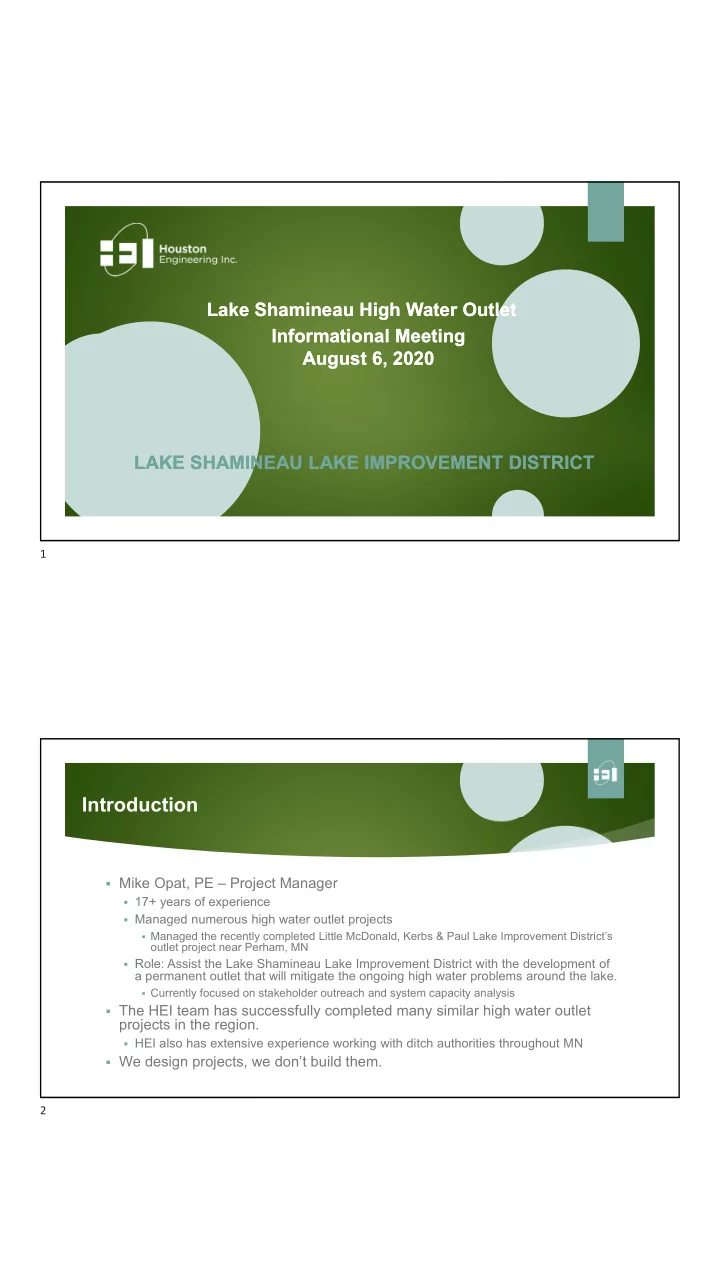

Introduction Mike Opat, PE Project Manager 17+ years of experience - - PDF document

Lake Shamineau High Water Outlet Lake Shamineau High Water Outlet LAKE SHAMINEAU LAKE IMPROVEMENT DISTRICT LAKE SHAMINEAU LAKE IMPROVEMENT DISTRICT Informational Meeting August 6, 2020 Informational Meeting August 6, 2020

• Mike Opat, PE – Project Manager
• 17+ years of experience
• Managed numerous high water outlet projects
• Managed the recently completed Little McDonald, Kerbs & Paul Lake Improvement District’s
• utlet project near Perham, MN
• Role: Assist the Lake Shamineau Lake Improvement District with the development of

a permanent outlet that will mitigate the ongoing high water problems around the lake.

• Currently focused on stakeholder outreach and system capacity analysis
• The HEI team has successfully completed many similar high water outlet

projects in the region.

• HEI also has extensive experience working with ditch authorities throughout MN
• We design projects, we don’t build them.

Introduction

1 2

• Review current scope of services and status
• System capacity analysis
• Project features
• Pump station
• Filters
• Route
• Downstream considerations
• Estimated costs
• Next steps
• Questions

Agenda

• System Capacity Analysis:
• Provide guidance to LSLID on pumping rates required to meet drawdown goals
• Investigate downstream waterways to determine capacity to handle additional flows
• Develop concept plan for pumping filtered water to County Road 203 ditch
• Prepare preliminary concept level cost estimates
• Prepare report
• Stakeholder Outreach:
• Assist the LSLID with initial outreach with regulatory agencies, landowners and the public
• Participate in informational meeting and annual meeting

HEI’s current scope of services

3 4

• Work Completed To-Date:
• Topographic survey of downstream waterways and other features
• Pumping rate analysis
• Downstream waterway capacity analysis
• Outlet concept plan
• Preliminary concept level cost estimates
• Report
• Assisted the LSLID with initial outreach with regulatory agencies, landowners and the public

HEI’s current scope of services Pumping Rate Analysis

• Common Terms:
• Cubic feet per second (cfs)
• Gallons per minute (gpm)
• Gallons per day (gpd)
• Million gallons per day (mgd)
• 1 cfs= 448.8 gpm
• 1cfs= 0.646 mgd; 1 mgd= 1.86 cfs

5 6

Pumping Rate Analysis

• 2018 HEI report:
• Recommended 20 cfs pumping rate (~13 mgd)
• High level No groundwater testing, monitoring or modeling
• Utilized available data and broad assumptions
• Intended to provide the LSLID with a maximum rate and associated ceiling for costs
• Conservative evaporation not factored in, groundwater assumptions
• Assumed 180 days to draw the lake down (to 1’ below OHW)
• 12 cfs to maintain current lake level + 8 cfs to evacuate excess water= 20cfs

Pumping Rate Analysis

• 2019 Widseth report:
• Recommended 10 cfs pumping rate (~6.5 MGD)
• Based on maximum annual increase in water levels (1.7 feet in 2014)
• Assumed 150 days to draw the lake down 1.7 feet

7 8

Pumping Rate Analysis

• 2020 HEI analysis:
• Closer look at evaporation and groundwater
• High level review No groundwater testing, monitoring or modeling
• Utilized available data and general assumptions
• Intended to provide the LSLID with a maximum rate and associated ceiling for costs
• Conservative estimate
• Evaporation from lake surface accounted for (with assumptions)
• Estimated groundwater inflow rates and volumes included
• Based on assumed soil types and groundwater contribution area

Pumping Rate Analysis

• 2020 HEI analysis:
• Baseline pumping rate to maintain current lake level: ~7 cfs
• Average annual runoff from contributing watershed: ~6 cfs
• Assumed maximum groundwater inflow rate: ~1 cfs
• Additional capacity to evacuate excess water:
• LSLID Board goal: Draw the lake down to OHW in 3-4 years
• Goal supported by local DNR staff
• Multiple drawdown periods (years) and annual operation periods

(months/year) were analyzed

• Account for maintenance, high water conditions downstream; assume cold weather
• peration

9 10

Pumping Rate Analysis

• 2020 HEI analysis:
• Pumping scenarios

Period Operation Time 6 months 9 months Pump Rate, cfs 21 14 Pump Rate, gpm 9,500 6,500 Pump Rate, mgd 13.7 9.4 Period Operation Time 6 months 9 months Pump Rate, cfs 15 11 Pump Rate, gpm 6,900 4,800 Pump Rate, mgd 9.9 6.9 Period Operation Time 6 months 9 months Pump Rate, cfs 13 9.3 Pump Rate, gpm 6,000 4,200 Pump Rate, mgd 8.6 6.0 Period Operation Time 6 months 9 months Pump Rate, cfs 12 8.7 Pump Rate, gpm 5,600 3,900 Pump Rate, mgd 8.1 5.6 1 Year Drawdown 2 year Drawdown 3 Year Drawdown 4 Year Drawdown

LSLID Board focusing on 10 cfs at this time

Downstream Capacity

• HEI completed a preliminary look at the capacity of the

waterways and road crossings downstream of the pipe outlet

• Assumed average flow conditions (~ culverts half full)
• Looked at a range of potential discharges from project
• Impacts appear to be less than one foot at most locations with a 10 cfs

pumping rate

• Acceptable to landowners that we have met with
• Impacts will be addressed through potential improvements (i.e. larger

culverts) and through conditions in the Operating Plan

11 12

Project Features

• Intake
• Pump Station
• Pump
• Filter
• Building
• Forcemain (Pipe)
• Outlet
• Downstream
• Bypass

Project Features

• Intake:
• Gravity flow pipe (extending +/- 100’ into Lake Shamineau)
• Intake structure with screen
• No suction
• Pump Station:
• Pump- ~ 100 hp (10 cfs)
• Mechanical filter(s)- Filtration currently required by DNR due to Eurasian

watermilfoil

• Building- Necessary for cold weather operations; will provide noise

dampening and additional security

LMKP Intake Structure (https://www.lmkp-lid.com/)

13 14

Project Features

• Forcemain:
• 16” diameter pressurized pipe, buried
• Air release valve required
• Installed within public road right-of-way when feasible
• Outlet:
• Pipe will discharge into an energy dissipation structure on the south side of

County Road 203.

• Erosion control will be installed (e.g. riprap)
• Water will transition into recently cleaned out ditch and flow through existing

culvert under US Highway 10

Project Features

• Downstream Considerations:
• Possible bypass at existing small private dam along natural flow path
• Potential crossing improvements to address landowner and/or township

concerns

• LSLID to petition Todd County to discharge into Todd County Ditch No.

41 through outlet fee process

• Design and operation conditions may arise through this process
• Impacts will be addressed through potential improvements (i.e. larger

culverts) and through conditions in the Operating Plan

• The Operating Plan will be a condition placed on the DNR permit for the project

15 16

• Concept level design Concept level cost estimates
• Estimates will be refined as level of design increases
• Reference recently constructed similar projects (LMKP LID, etc)
• Focus on higher cost items (pumps, filters, etc)
• Two system capacities (10 cfs & 16 cfs) estimated to provide a

range of costs for consideration (i.e. cost vs. drawdown period)

• Estimates include a contingency in the budget to account for

uncertainties involved with the concept level design and unknowns that might come up

Estimated Project Costs

• Costs include estimates for all anticipated costs; including construction,

engineering, right-of-way, permitting, utilities, legal, administration, etc.

• The construction estimates are based on recent bids submitted by

contractors on similar projects. A better picture of the actual cost of the LSLID project won’t be known until the project is let for bids.

• Actual costs could vary from estimates as market conditions, weather conditions,

construction schedules, and other factors all impact the bids submitted by contractors.

Estimated Project Costs

17 18

• Total Estimated Project Cost (10 cfs) :
• Preconstruction Phase Costs: $435,000
• Construction Phase Costs: $3,350,000
• Included contingency amount: $394,500
• Total Project Cost: $3.785 million
• The current focus is on a 10 cfs system. A 16 cfs option was estimated

to cost approximately $400,000 more.

Estimated Project Costs

• Key Cost Factors:
• Dewatering: Required for intake installation, wet well construction,

pipe installation; Costs will vary depending on contractor’s desired means and methods, weather conditions, ice, etc; costs from similar LMKP LID project used

• Filtration: Mechanical filters assumed, natural filtration options can

be further vetted during design phase; Mechanical filters provide potential for resale if DNR determines filters are not required in the future

• System Capacity: Costs currently reflect a 10 cfs system and will be

refined during design phases

Estimated Project Costs

LMKP Intake Installation (https://www.lmkp-lid.com/)

19 20

• Key Cost Factors:
• Forcemain: Pipe prices are often impacted by petroleum prices and
• ther variables, so actual costs will depend on conditions at the

time of the bid

• Pump Station Building: Building required for year around operation

and will provide added sound abatement

Estimated Project Costs

• Key Cost Factors:
• Contingencies: The goal is to not spend any of the contingency
• funds. Any funds not spent would translate to a lower bond amount.
• Including a contingency is good practice and mitigates delays and financial

challenges

• Value engineering will be considered during future design phases to

identify potential cost savings (dewatering, filtration, route, etc.)

Estimated Project Costs

21 22

• August 2020:
• Continue stakeholder outreach
• Coordinate with Todd County on TCD41 petition
• Refine concept plan and preliminary cost estimates prior to annual meeting
• Annual meeting

Next Steps

• After annual meeting:
• Continued stakeholder outreach
• Proceed with preliminary design
• EAW
• Permitting
• Final design
• Right of way acquisition
• Bidding
• Construction

Next Steps

23 24

Next Steps….Engineering Tasks

Task Description Timeline (Estimated*1) Outreach and System Capacity Analysis

• Determine most feasible, cost-effective and timely alternative.
• Field survey and data review
• Outreach with agencies, landowners, and public
• Submit report to DNR for grant funding
• LSLID Annual Meeting presentation

September 2020 In-Process Planning, Design, and Project Development

• Detailed topographic and legal surveys
• Geotechnical evaluation
• Final alignment determination
• Develop plan and detail sheets
• Operation and maintenance plans
• Wetland delineation

December 2020 Permitting

• EAW and Phase 1 Archeological
• Permits

January 2021 Final Plans and Specifications (90% and 100% Stages)

• Design and develop final construction details
• Prepare
• Intake, outfall structure, forcemain, and lift station design
• Prepare final specifications and contract documents
• Right of Way

May 2021 Bidding Process

• Coordination of bid process
• Bidder questions
• Prebid meeting, preconstruction meeting
• Award contract

May 2021 Construction Management, Staking, and Observation

• Construction staking
• Geotechnical testing services
• Construction observation
• Process contractor pay applications
• Walk throughs/inspections
• System start up and initial operation

June 2021 to November 2021 Final Completion and Closeout

• Punchlist Items
• Turf Establishment

Spring 2022

*1 The estimated timeline indicates tasks completion timeframes that will depend on the timing of receipt of funds,

permitting, right of way easements, weather, and other unforeseeable conditions.

• Questions?
• Please use the “Chat” box in Zoom to pose your question.

25 26

Thank You

Contact Information Name: Mike Opat Email: mopat@houstoneng.com Phone: 701-499-9473
