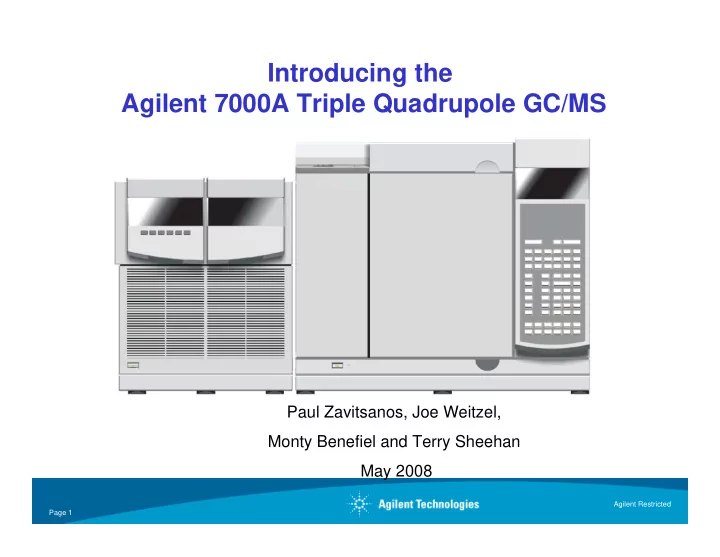

Introducing the Agilent 7000A Triple Quadrupole GC/MS

Paul Zavitsanos, Joe Weitzel, Monty Benefiel and Terry Sheehan May 2008

Agilent Restricted Page 2

What’s a Triple Quad?

Agilent Restricted Page 3

GC/MS Triple Quad (QQQ)

Detector Quad 1 Collision Gas (N2 ) Hexapole Collision Cell Ion Source

• Ionize

Quad 2

Agilent Restricted Page 4

What is MRM MS/MS?

Multiple Reaction Monitoring

Product 3 Product 2

EI: many ions from the source

Product 1

EI-MS/MS Q1 SIM

isolate precursor before CID

CID + Q3 filter

Agilent Restricted Page 5

Why MS/MS? Greater Selectivity Than SIM in complex samples

Precursor Ion Product 1 Product 3 Product 2

EI-SIM

selectivity proportional to spectral resolution no selectivity against ions with same m/z

EI-MS/MS

Precursor selectivity same as SIM

High probability that at least one product ions will be a unique dissociation product

• f the precursor BUT not the interference

interference analyte interference

The precursor ion should NOT be used for ion ratios or quantitation since the interferences will be the same as the SIM ion

unit mass resolution

Agilent Restricted Page 6

Why a GC/QQQ System?

• Allows for the selective quantitation of target

compounds in high chemical background samples

• Better S/N in complex matrices than can be

achieved by single quad approaches

• Newer regulations in some markets specify

analytical power commensurate with GC/QQQ

Agilent Restricted Page 7

Why a Triple? A Picture is worth a thousand words.

GC/MS/MS QQQ MRM GC/MS Single Quad SIM EI 100fg HCB in “DIRTY” Matrix

S/N: 116:1 RMS

100 fg HCB

MS SIM MS/MS MRM

Agilent Restricted Page 8

SIM vs MRM for HCB

100 fg HCB in Clean Matrix 300 fg HCB in Diesel

Single MS: SIM 283.8 MS/MS: 283.8:213.9

S/N=6:1 RMS S/N=86:1 RMS S/N=37:1 RMS S/N=26:1 RMS

Agilent Restricted Page 9

Technology

• Agilent took the Best technologies from their industry

leading 597X Series GC/MSD:

• Heated monolithic gold plated quartz quadrupole
• Proven reliable high performance source design
• AUTOTUNE
• And the Agilent 6410A LC/QQQ:
• Linear acceleration enhanced Collision Cell
• Wide Mass-Bandwidth QQQ ion optics
• Mass Hunter software

Agilent Restricted Page 10

Why Proprietary Heated Quartz “Gold” Quads?

• Heated monolithic gold plated hyperbolic quartz

quadrupole is the “gold” standard in quadrupole instruments for GC/MS

• High 200C temperature quadrupole operation results in

greater reliability with “dirty” samples

• Virtually eliminates the need to clean quads as a

maintenance issue

• More stable tunes and methods over a longer period of

time in real world sample environments

• High speed MRMs (500 MRMs/sec) possible with Agilent

Quad electronics

• AUTOTUNE Friendly!!!

Agilent Restricted Page 11

Agilent 7000A Analyzer

Agilent Restricted Page 12

Analyzer Details

Agilent Restricted Page 13

P2

8E-5 Torr

P1

5-20E-5 Torr

Rough Pump He or H2 (1-8 sccm) CH4 (0-2 sccm) Edwards Edwards Split Flo Split Flow Turbo Turbo

Collision Cell

N2 (1 sccm) He (1-5 sccm)

High Performance Differentially Pumped Manifold

Source Analyzer

Agilent Restricted Page 14

Analyzer Details

Agilent Restricted Page 15

Analyzer Doors Open

Agilent Restricted Page 16

Proven source performance

• Inert source design

proven over thousands of systems in current use

• Stay-Clean design

extends maintenance intervals with dirty samples

• Source tune parameters

in the Autotune file

• Dual Filament design

reduces maintenance intervals

Agilent Restricted Page 17

EI Source Details

Agilent Restricted Page 18

High Performance Collision Cell Design

• Linear acceleration design is
• ptimized for high speed

performance without ion ghosting or cross-talk

• MRM speed to 500 MRMs/sec

allows determination of more compounds per ion group

• High sensitivity with wide mass

bandwidth eliminates the need to “tune on my your Compound” for optimum sensitivity

• Helium seeded chemical noise

reduction collision cell increases S/N.

Agilent Restricted Page 19

Q1-Collision Cell Interface

Agilent Restricted Page 20

Collision Cell Details

(2 rods removed for clarity)

Agilent Restricted Page 21

High performance triple off-axis detector

• Ultra low neutrals noise
• Long life and high linearity
• Gain calibration corrects tune file for detector age to

allow repeatable long term method performance.

• Same design as used in the 5975 GC/MSD

Agilent Restricted Page 22

Triple-Axis Detector

hyperbolic quartz transmission quadrupole analyzer triple channel electron multiplier high energy dynode steering rod ion beam

X Y Offset Z

shield for secondary particles

Agilent Restricted Page 23

Q2-Detector Interface

Agilent Restricted Page 24

Autotune

• Proprietary program tunes the source, mass analyzer,

and detector for (as applicable):

– Ion transmission – Mass axis calibration – Mass resolution – Detector gain vs Voltage

• Autotune settings are saved with the method for

repeatable method performance.

• Manual Tune override is available

Agilent Restricted Page 25

Performance

Agilent Restricted Page 26

Agilent 7000A 100 fg HCB Sensitivity

2

x10 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 3.2 3.4 Abundance vs. Acquisition Time (min) 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6 6.1 6.2 6.3 6.4

+ MRM (283.8 -> 248.9) 100fgHCB_newvial_methHCB_MRM_PW1p21p2__527N2DAC_600HeDAC_35VColE_1e7Gain_2040EMV_0Baseline_12.d Noise (RMS) = 1.99; SNR (6.387min) = 146.3

6.387

146:1 RMS S/N vs Spec of 100:1

100:1 Competitor 1 >1000:1 Agilent GC/QQQ

1pg HCB Benchmark comparison

Agilent Restricted Page 27

2

x10 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 Abundance vs. Acquisition Time (min) 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6 3.8 4 4.2 4.4 4.6 4.8 5 5.2 5.4 5.6 5.8 6 6.2 6.4 6.6 6.8 7 7.2

+ MRM (272.0 -> 241.0) 100fgOFN_MRM_N2DAC1160_He18p5pct_30VColE_1e7Gain_2410EMV_GaugeOff_02.d Noise (RMS) = 1.10; SNR (5.471min) = 186.3

5.471 0.226 7.121 6.025 1 1

Agilent 7000A OFN Sensitivity

272:241 Transition 186:1 RMS S/N 100fg OFN in clean Matrix

Agilent Restricted Page 28

Innovation that led to this level of GC/QQQ sensitivity

Agilent Restricted Page 29

Helium Seeded Collision Cell

1 ml/min N2 Collision Gas Q1 Ions In Collision Cell Ions Out He* + He* + N2 N2

+. + He

N2

+. + A A+. + N2

Agilent Restricted Page 30

Helium Seeded Collision Cell

1 ml/min N2 Collision Gas Q1 Ions In Collision Cell Ions Out 2.5 ml/min He Buffer Gas He* + He* + He 2He + Heat He* + N2 N2

+. + He

Agilent Restricted Page 31

Effect of Helium Buffer Gas Tested with HCB

S/N 341:1 Helium Buffer Gas OFF

Agilent Restricted Page 32

Effect of Helium Buffer Gas tested with Hexachlorobenzene

S/N 341:1 Helium Buffer Gas OFF S/N 1294:1 Helium Buffer Gas ON Noise Comparison

Agilent Restricted Page 33

Software

Agilent Restricted Page 34

Mass Hunter MS Workstation Software

• Modern software interpretation of the proven industry

standard GC/MS Chemstation platform

• Single software Platform for all Agilent MS Systems

– LC/SQ , LC/QQQ, LC/TOF, LC/QTOF – GC/SQ, GC/QQQ – ICP/MS

Agilent Restricted Page 35

GC/QQQ Software Modules

Acquisition Analysis Excel Reporting

Agilent Restricted Page 36

Instrument Control UI/navigation

Agilent Restricted Page 37

QQQ Acquisition Method Editor Dialog

Single window acquisition setup

Agilent Restricted Page 38

Agilent G7000A GC/QQQ

• Outstanding sensitivity 100fg of OFN on column at 100:1 S/N

RMS in MS/MS mode using AUTOTUNE parameters verified at customer installation.

• 1050 amu Mass Range
• 500 MRM/sec Speed
• Reliable heated monolithic gold plated hyperbolic quadrupoles
• Differentially pumped vacuum system
• CI/NCI upgrade available
• New Helium seeded collision cell technology
• Agilent 7890 GC with Capillary Flow technology.
• Mass Hunter Software.
