INTERSECTION OF SOLIDS WHEN ONE SOLID PENETRATES ANOTHER SOLID THEN THEIR SURFACES INTERSECT AND AT THE JUNCTION OF INTERSECTION A TYPICAL CURVE IS FORMED, WHICH REMAINS COMMON TO BOTH SOLIDS. THIS CURVE IS CALLED CURVE OF INTERSECTION AND IT

slide-1
SLIDE 1

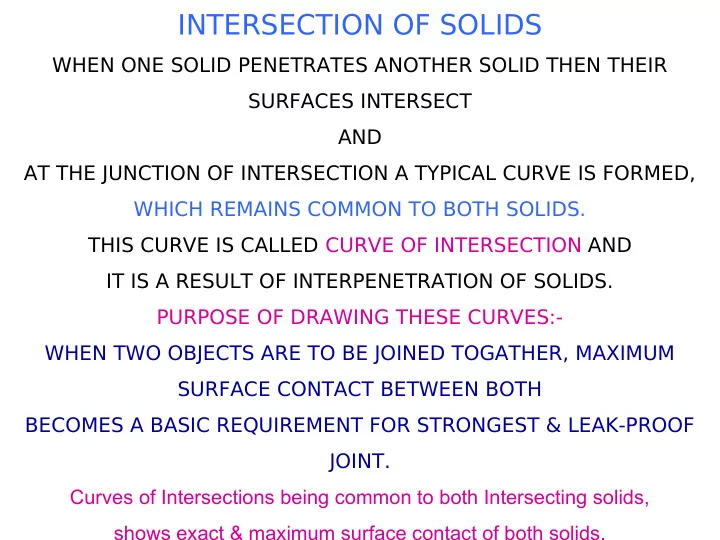

INTERSECTION OF SOLIDS

WHEN ONE SOLID PENETRATES ANOTHER SOLID THEN THEIR SURFACES INTERSECT AND AT THE JUNCTION OF INTERSECTION A TYPICAL CURVE IS FORMED, WHICH REMAINS COMMON TO BOTH SOLIDS. THIS CURVE IS CALLED CURVE OF INTERSECTION AND IT IS A RESULT OF INTERPENETRATION OF SOLIDS. PURPOSE OF DRAWING THESE CURVES:- WHEN TWO OBJECTS ARE TO BE JOINED TOGATHER, MAXIMUM SURFACE CONTACT BETWEEN BOTH BECOMES A BASIC REQUIREMENT FOR STRONGEST & LEAK-PROOF JOINT. Curves of Intersections being common to both Intersecting solids, shows exact & maximum surface contact of both solids.

slide-2
SLIDE 2
slide-3
SLIDE 3

Intersection of Main Pipe and Branch Pipe Pump lid Having shape

  • f Hexagonal Prism and

Hemi-sphere Intersecting each other.

slide-4
SLIDE 4

COMMON SOLUTION STEPS

  • One solid will be standing on HP
  • Other will penetrate horizontally.
  • Draw three views of standing solid.
  • Name views as per the illustrations.
  • Beginning with side view draw three Views
  • f penetrating solids also.
  • On it’s S.V. mark number of points And

name those (eitherletters or nos.)

slide-5
SLIDE 5
  • The points which are on standard

generators or edges of standing solid, ( in S.V.) can be marked on respective generators in Fv and Tv. And other points from SV should be brought to Tv first and then projecting upward To Fv.

  • Dark and dotted line’s decision should be

taken by observing side view from it’s right side as shown by arrow.

  • Accordingly those should be joined by

curvature or straight lines.

slide-6
SLIDE 6

Problem: A cylinder 50mm dia. and 70mm axis is completely penetrated by another of 40 mm dia. and 70 mm axis horizontally Both axes intersect & bisect each other. Draw projections showing curves of intersections

CYLINDER STANDING & CYLINDER PENETRATING

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13

Problem: A cylinder 50mm dia.and 70mm axis is completely penetrated by a square prism of 25 mm sides.and 70 mm axis, horizontally. Both

  • axes. Intersect & bisect each other. All faces of

prism are equally inclined to Hp. Draw projections showing curves of intersections.

CYLINDER STANDING & SQ.PRISM PENETRATING

slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25

Problem: A cylinder of 80 mm diameter and 100 mm axis is completely penetrated by a cone of 80 mm diameter and 120 mm long axis horizontally.Both axes intersect & bisect each

  • ther. Draw projections showing curve of

intersections.

CYLINDER STANDING & CONE PENETRATING

slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34

Problem: A sq. prism 30 mm base sides and 70mm axis is completely penetrated by another square prism of 25 mm sides and 70 mm axis, horizontally. Both axes Intersects & bisect each other. All faces of prisms are equally inclined to Vp. Draw projections showing curves of intersections.

SQ.PRISM STANDING & SQ.PRISM PENETRATING

slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45

Problem: A cylinder 50mm dia. and 70mm axis is completely penetrated by a triangular prism

  • f 45 mm sides and 70 mm axis, horizontally.

One flat face of prism is parallel to Vp and Contains axis of cylinder. Draw projections showing curves of intersections.

CYLINDER STANDING & TRIANGULAR PRISM PENETRATING

slide-46
SLIDE 46
slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51
slide-52
SLIDE 52
slide-53
SLIDE 53
slide-54
SLIDE 54
slide-55
SLIDE 55

Problem: A cone70 mm base diameter and 90 mm axis is completely penetrated by a square prism from top with it’s axis parallel to cone’s axis and 5 mm away from it. a vertical plane containing both axes is parallel to Vp. Take all faces of sq.prism equally inclined to Vp. Base Side of prism is 0 mm and axis is 100 mm long. Draw projections showing curves of intersections.

CONE STANDING & SQ.PRISM PENETRATING (BOTH AXES VERTICAL)

slide-56
SLIDE 56
slide-57
SLIDE 57
slide-58
SLIDE 58
slide-59
SLIDE 59
slide-60
SLIDE 60
slide-61
SLIDE 61
slide-62
SLIDE 62
slide-63
SLIDE 63
slide-64
SLIDE 64
slide-65
SLIDE 65
slide-66
SLIDE 66
slide-67
SLIDE 67

Problem: A vertical cone, base diameter 75 mm and axis 100 mm long, is completely penetrated by a cylinder of 45 mm diameter. The axis of the cylinder is parallel to Hp and Vp and intersects axis

  • f the cone at a point 28 mm above the base. Draw

projections showing curves of intersection.

CONE STANDING & CYLINDER PENETRATING

slide-68
SLIDE 68
slide-69
SLIDE 69
slide-70
SLIDE 70
slide-71
SLIDE 71
slide-72
SLIDE 72
slide-73
SLIDE 73
slide-74
SLIDE 74
slide-75
SLIDE 75
slide-76
SLIDE 76
slide-77
SLIDE 77
slide-78
SLIDE 78
slide-79
SLIDE 79
slide-80
SLIDE 80
slide-81
SLIDE 81
slide-82
SLIDE 82

Problem: A sq. prism 30 mm base sides and 70mm axis is completely penetrated by another square prism of 25 mm sides and 70 mm axis, horizontally. Both axes Intersect & bisect each other Two faces of penetrating prism are 300 inclined to Hp. Draw projections showing curves of intersections

SQ.PRISM STANDING & SQ.PRISM PENETRATING

slide-83
SLIDE 83
slide-84
SLIDE 84
slide-85
SLIDE 85
slide-86
SLIDE 86
slide-87
SLIDE 87
slide-88
SLIDE 88
slide-89
SLIDE 89
slide-90
SLIDE 90
slide-91
SLIDE 91
slide-92
SLIDE 92
slide-93
SLIDE 93
slide-94
SLIDE 94
