CLEAN WATER SUMMIT 2012 Green Infrastructure for Clean Water: The Essential Role of Soil CHEMICALS AND SOILS: INTERACTIONS AND TRANSPORT Paul D. Capel, U.S. Geological Survey WATER TRANPORT MANY CHEMICALS ! Fe +2 Fe +3 Cl - Zn +2 As +3 THE

SLIDE 1

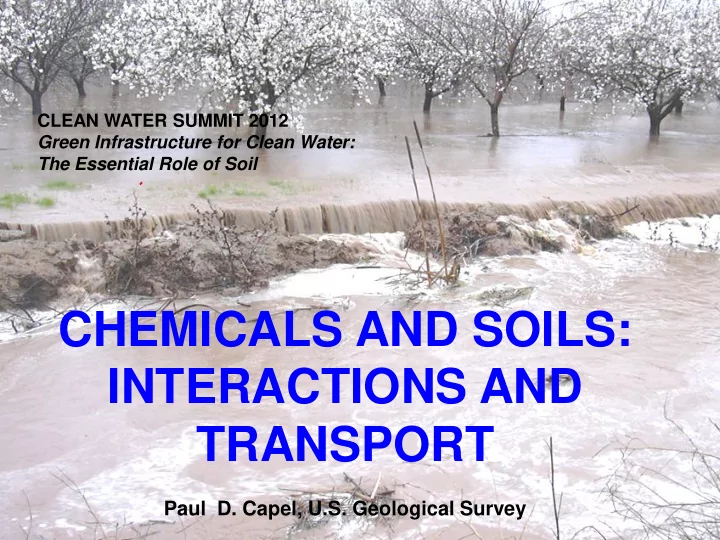

CLEAN WATER SUMMIT 2012 Green Infrastructure for Clean Water: The Essential Role of Soil

CHEMICALS AND SOILS: INTERACTIONS AND TRANSPORT

Paul D. Capel, U.S. Geological Survey

SLIDE 2

SLIDE 3

WATER TRANPORT

SLIDE 4

Fe+3 Cl- Zn+2 As+3 Fe+2

MANY CHEMICALS !

SLIDE 5

THE “OLIVE THEORY” OF THE BEHAVIOR AND TRANSPORT OF CHEMICALS IN THE ENVIRONMENT Properties of the Environment

temperature
pH
salinity
kind of solids
amount of solids
amount of water
bacteria

.... Properties of the Chemical

water solubility
vapor pressure
Henry’s Law
acid / base
charge
size
reactivity

.....

SLIDE 6

One Meter Deep Profiles of Various Minnesota Soils

SOILS ARE COMPOSED OF SOLIDS, AIR, AND WATER

SLIDE 7

SOIL AGGREGATE

Mineral surface Roots Organic matter Pore

SLIDE 8

Mineral surfaces Organic matter Air Water Chemical

SOIL-CHEMICAL INTERACTIONS

Photo: Karnok, 2003, Australian Turfgrass Management

SLIDE 9

CHEMICAL CONTROLS ON SOIL-CHEMICAL INTERACTIONS

Water Solubility (S) Charge and reactivity Henry’s Law constant (~V/S) Vapor pressure (V)

SLIDE 10

EQUATIONS – FOR THE ENGINNERS !

Solids-Water Distribution concentration of the chemical on solid (mg/kg) concentration of the chemical in water (mg/L) Air-Water Distribution concentration of the chemical in air (mg/m3) concentration of the chemical in water (mg/L)

Kd = Kaw =

SLIDE 11

Capel et al., USGS, in review

EQUILIBRIUM DISTRIBUTIONS OF CHEMICALS AMOUNG SOLIDS, WATER, AND AIR

SLIDE 12

Capel et al., USGS, in review

EQUILIBRIUM DISTRIBUTIONS OF CHEMICALS AMOUNG SOLIDS, WATER, AND AIR

SLIDE 13

CHEMICALS ALSO UNDERGO TRANSFORMATIONS

Microorganism-induced Plant-induced Chemical-induced Light-induced “Half-life”: time for 50% to be transformed “Environmental lifetime” of a chemical = 6 half-lives (~1% remains)

SLIDE 14

Capel et al., USGS, in review

CHEMICAL LIFETIME AND DISTRIBUTION

Legacy Chemicals

SLIDE 15

EXAMPLES: GLYPHOSATE and VOCs

SLIDE 16

GLYPHOSATE Competes with phosphorous for solid interactions Strongly interacts with mineral surfaces (Ca, Mg, Fe, Al) Weakly interacts with organic matter Kd ranges from 1 to > 1000 L/kg (depending on soil)

SLIDE 17

GLYPHOSATE IN AN AGRICULTURAL STREAM

 Transported largely in runoff associated with soil particles

Coupe et al., 2012, Pest. Manage.

SLIDE 18

GLYPHOSATE IN AN AGRICULTURAL DRAIN

 Quickly transported through soil after rain after application ???

Velkoverh and Capel, in review

SLIDE 19

GLYPHOSATE: COMPLEX INTERATIONS WITH SOIL

SLIDE 20

EXTENT OF GLYPHOSATE ASSOCIATED WITH SOLIDS

Streams Soil Runoff

SLIDE 21

VOLATILE ORGANIC CHEMICALS (VOCs)

SLIDE 22

VOCs IN PRINCIPAL AQUIFERs – DETECTION FREQUENCY

Zogorski et al., USGS Circular 1292

SLIDE 23

VOCs IN PRINCIPAL AQUIFERs – CONCENTRATIONS

Zogorski et al., USGS Circular 1292

SLIDE 24

Pankow et al., 1997, ES&T

TRANSPORT OF VOCs THROUGH THE SOIL TO GW

SLIDE 25

Capel et al., USGS, in review

CHEMICAL LIFETIME AND DISTRIBUTION

Legacy Chemicals

SLIDE 26

URBAN AND AGRICULTURAL AREAS Similarities: soil foundation, same transport processes water and solids, sometime similar engineering, ... Differences: permanent vegetation, tillage, exposed soil, ...
