Integrating Technology for Radiotherapy in Prostate Cancer Peter Chung Department of Radiation Oncology Radiation Medicine Program Princess Margaret Hospital High risk Prostate Cancer - Canadian Consensus Intermediate risk Gleason score

slide-1
SLIDE 1

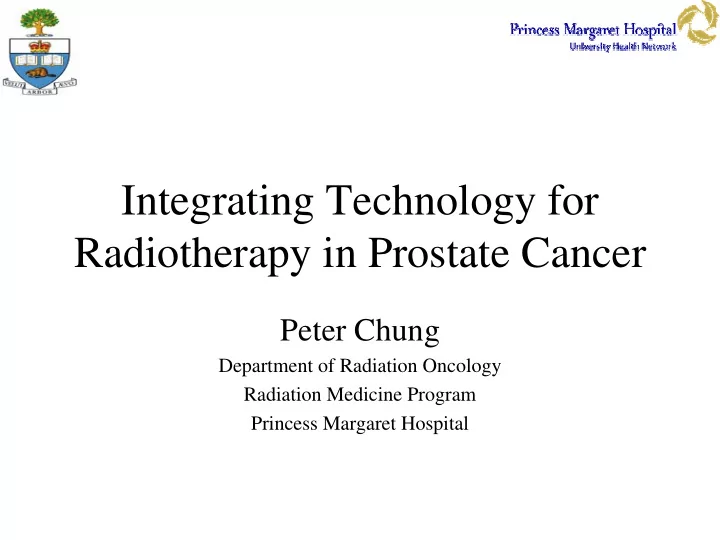

Integrating Technology for Radiotherapy in Prostate Cancer

Peter Chung

Department of Radiation Oncology Radiation Medicine Program Princess Margaret Hospital

slide-2
SLIDE 2

Prostate Cancer - Canadian Consensus

Gleason score PSA T-stage High risk Intermediate risk Low risk

slide-3
SLIDE 3

Radiotherapy Treatment Indications

  • Brachytherapy
  • External beam RT
  • Combined B/EBRT

Low risk Intermediate risk High risk Postoperative

slide-4
SLIDE 4

Results - Low risk

Zelefsky et al, 2007

slide-5
SLIDE 5

Results - Intermediate risk

Kuban et al, 2008

slide-6
SLIDE 6

Results - High risk

Bolla et al, 2002

slide-7
SLIDE 7

Dose

  • Large trials confirm that higher dose improve

cancer control – become standard of care

– Independent of type of radiation used

  • Now - limit collateral injury to rectum,

bladder, erectile structures

– Reduce the volume of normal tissue exposed to high-dose

slide-8
SLIDE 8

Approach

  • Improve precision and accuracy

– IMRT (Intensity Modulated Radiotherapy) – IGRT (Image-Guided Radiotherapy)

  • Target cancer instead of organs

– Imaging

slide-9
SLIDE 9

EBRT – Past

Cobalt ‘bomb’ – Johns et al

slide-10
SLIDE 10

EBRT – Past

24Gy

slide-11
SLIDE 11

Linear Accelerator

slide-12
SLIDE 12

EBRT – Linear Accelerator

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

Dose Distribution

7700 7400 7030 4370 3700

slide-18
SLIDE 18

Dose Distribution

7700 7400 7030 4370 3700

slide-19
SLIDE 19

Toxicity

3d conformal

Zelefsky et al

slide-20
SLIDE 20

Step-by-step process - Planning

  • Patient education + Prep instructions
  • Immobilisation - VacLok
  • CTSim - 2mm slices for DRR generation
  • Contouring
  • PTV margin generation – 10mm (7mm post)
  • IMRT planning
  • Physics QA
slide-21
SLIDE 21

New technologies

  • Planning RT

– VMAT

  • Tracking the prostate

– GPS, soft tissue, US

  • Improved imaging

– MRI

slide-22
SLIDE 22

High Precision Radiotherapy

  • Identifying the tumour
  • Knowing where the tumour is during

treatment

  • Accurate targeting of the tumour
slide-23
SLIDE 23

MRI

slide-24
SLIDE 24

Extracapsular Extension

  • Rectoprostatic angle

Choyke et al.

slide-25
SLIDE 25

MRI Disease

  • Low T2
  • Fast T1 contrast

enhancement & washout

  • Low diffusivity
  • High Choline / Citrate

Haider et al.

slide-26
SLIDE 26

MRI Disease

  • Low T2
  • Fast T1 contrast

enhancement & washout

  • Low diffusivity
  • High Choline /

Citrate

Choyke et al.

slide-27
SLIDE 27

Disease

  • Low T2
  • Fast T1 contrast

enhancement & washout

  • Low diffusivity
  • High Choline /

Citrate

Haider et al.

slide-28
SLIDE 28

Anatomic Resolution

Rosewall et al.

slide-29
SLIDE 29

Post-Prostatectomy

Ménard et al.

slide-30
SLIDE 30

Missing the Target

slide-31
SLIDE 31

Image Guidance

  • Accurately directing

radiation to the target

  • Improves precision
  • Reduces normal tissue in

the treatment volume

slide-32
SLIDE 32

IMRT Prep

  • Fiducial markers
  • CT/MR simulation
slide-33
SLIDE 33

8.7 min (sd 2.3) Adjusted 6.1 min (sd 1.3) Unadjusted Mean time 1st image to last beam

11% 5mm 19% 3mm 38% 1mm 28% 2mm

Frequency Action Level

Chung et al

slide-34
SLIDE 34

Cone beam CT

MV Markers: Template matching CBCT Markers: Auto-segmentation CBCT Soft Tissue: Reference contour

Vs Vs

Couch Shift: x,y,z

Moseley et al

slide-35
SLIDE 35

Results

2.5 ∑ + 0.7 σ

σ = 0.58, 1.29, 1.27 Σ = 0.35, 0.99, 0.98 σ = 0.89, 2.24, 2.27 Σ = 0.51, 2.22, 1.17

MV Markers CBCT Markers

van Herk’s Margin Recipe

R/L A/P S/I R/L A/P S/I

Margin 1.3 mm 3.4 3.3 Margin 1.9 mm 7.1 4.5

CBCT Soft Tissue

slide-36
SLIDE 36
slide-37
SLIDE 37

Noel et al , 2009

slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41

Volumetric Modulated Arc Therapy

(VMAT)

  • Continuous irradiation with gantry

motion;

– as in conventional arc therapy.

  • Field shape changes with rotation;

– “Arbitrary” fluence patterns at each gantry angle fall within a single arc.

Otto et al

slide-42
SLIDE 42

7 field Step-and-Shoot 5.6 minutes 362 MU 360 degree arc VMAT 1.0 minutes 421 MU 360 degree arc VMAT 4.2 minutes 442 MU

slide-43
SLIDE 43

Rectum DVH

VMAT (dashed), S&S (solid)

slide-44
SLIDE 44

Focusing on the Tumor

slide-45
SLIDE 45

Conclusions

  • Radiotherapy continues to evolve
  • Dynamic process
  • Old and new technologies continue to

advance the ‘state of the art’

  • Delivery of dose to a specified target with

sparing of normal tissue as a goal is achievable…….we are not there…….yet

slide-46
SLIDE 46

Oncology Andrew Bayley Rob Bristow Charles Catton Juanita Crook Saibish Elantholiparameswaran Mary Gospodarowicz Mike McLean Cynthia Menard Mike Milosevic Padraig Warde

Acknowledgements

Physics Hamideh Alasti Tim Craig Anna Kirilova Team 3 Physicists Trials Debbie Tsuji Bernadeth Lao Therapists Tara Rosewall Vickie Kong Jing Yan Val Kelly Tony Lam Jan Patterson Glennis Savage Lorie Divanbeigi Team 3 Planners Team 3 Therapists
