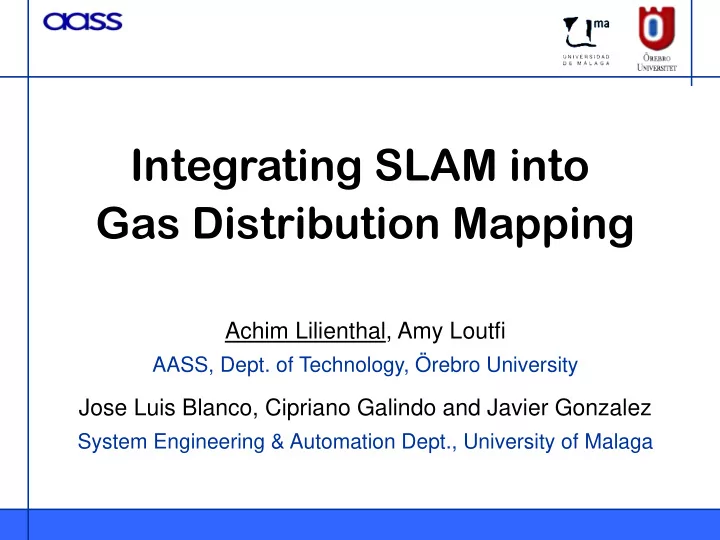

Integrating SLAM into Gas Distribution Mapping

Achim Lilienthal, Amy Loutfi

AASS, Dept. of Technology, Örebro University

Jose Luis Blanco, Cipriano Galindo and Javier Gonzalez

System Engineering & Automation Dept., University of Malaga

slide-2
SLIDE 2

Achim J. Lilienthal

Gas Distribution Mapping

→ Contents

slide-3
SLIDE 3

Achim J. Lilienthal

Gas Distribution Mapping

slide-4
SLIDE 4

Achim J. Lilienthal

Localization (SLAM)

slide-5
SLIDE 5

Achim J. Lilienthal

Localization (SLAM)

slide-6
SLIDE 6

Achim J. Lilienthal

Gas Distribution Mapping + SLAM

+

position, position uncertainty

slide-7
SLIDE 7

Achim J. Lilienthal

  • 1. Applications of Gas Distribution Modelling?
  • 2. The Challenges for Gas Distribution Mapping
  • 3. Kernel Based Gas Distribution Mapping
  • 4. Integrating SLAM and Gas Distribution Mapping
  • 5. Experiments and Results
  • 6. Summary

Contents

slide-8
SLIDE 8

Achim J. Lilienthal

Applications of Gas Distribution Modelling

→ Contents

slide-9
SLIDE 9

Achim J. Lilienthal

Gas Distribution Modelling

 Applications

 Oil Refinery Surveillance

1

slide-10
SLIDE 10

Achim J. Lilienthal

Gas Distribution Modelling

 Applications

 Oil Refinery Surveillance  Garbage Dump Site Surveillance

1

slide-11
SLIDE 11

Achim J. Lilienthal

Gas Distribution Modelling

 Applications

 Oil Refinery Surveillance  Garbage Dump Site Surveillance  Pollution Monitoring

 air quality monitoring and surveillance of pedestrian areas  communicating pollution levels to technical staff / pedestrians

1

slide-12
SLIDE 12

Achim J. Lilienthal

Gas Distribution Modelling

 Applications

 Oil Refinery Surveillance  Garbage Dump Site Surveillance  Pollution Monitoring

 air quality monitoring and surveillance of pedestrian areas  communicating pollution levels to technical staff / pedestrians

 Disaster Prevention

1

slide-13
SLIDE 13

Achim J. Lilienthal

Gas Distribution Modelling

 Applications

 Oil Refinery Surveillance  Garbage Dump Site Surveillance  Pollution Monitoring

 air quality monitoring and surveillance of pedestrian areas  communicating pollution levels to technical staff / pedestrians

 Disaster Prevention  Rescue Robots  ...

1

slide-14
SLIDE 14

Achim J. Lilienthal

Gas Distribution Mapping in Natural Environments – The Challenges

→ Contents

slide-15
SLIDE 15

Achim J. Lilienthal

Gas Distribution Mapping – Challenges

 Chaotic Gas Distribution

 diffusion  advective transport  turbulence

2

video by Hiroshi Ishida

slide-16
SLIDE 16

Achim J. Lilienthal

Gas Distribution Mapping – Challenges

 Chaotic Gas Distribution  Point Measurement

 sensitive sensor surface is typically small (often ≈ 1cm2)

2

slide-17
SLIDE 17

Achim J. Lilienthal

Gas Distribution Mapping – Challenges

 Chaotic Gas Distribution  Point Measurement  Sensor Dynamics

2

slide-18
SLIDE 18

Achim J. Lilienthal

Gas Distribution Mapping – Challenges

 Chaotic Gas Distribution  Point Measurement  Sensor Dynamics  Calibration

 complicated "sensor response ↔ concentration" relation  dependent on other variables (temperature, humidity, ...)  has to consider sensor dynamics  variation between individual sensors  long-term drift

2

slide-19
SLIDE 19

Achim J. Lilienthal

Gas Distribution Mapping – Challenges

 Chaotic Gas Distribution  Point Measurement  Sensor Dynamics  Calibration  Real-Time Gas Distribution Mapping

 changes at different time-scales

 rapid fluctuations  slow changes of the overall structure of the average distribution

2

slide-20
SLIDE 20

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

→ Contents

slide-21
SLIDE 21

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

 General Gas Distribution Mapping Problem

 given the robot trajectory

 Differences to Range Sensing

 calibration: readings do not correspond directly to concentration levels

3

) , | (

: : t 1 gas t 1 gas

z x m p

t 1

x :

slide-22
SLIDE 22

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

 General Gas Distribution Mapping Problem

 given the robot trajectory

 Differences to Range Sensing

 readings don't correspond directly to concentration levels  chaotic gas distribution: an instantaneous snapshot

  • f the gas distribution contains little information

about the distribution at other times

3

t 1

x :

) , | (

: : t 1 gas t 1 gas

z x m p

slide-23
SLIDE 23

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

 General Gas Distribution Mapping Problem

 given the robot trajectory

 Differences to Range Sensing

 readings don't correspond directly to concentration levels  instantaneous gas distribution snapshots contain little information about the distribution at other times  point measurement: a single gas sensor measurement provides information about a very small area (≈ 1cm2)

3

t 1

x :

) , | (

: : t 1 gas t 1 gas

z x m p

slide-24
SLIDE 24

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

 Time-Averaged Gas Distribution Mapping Problem

 given the robot trajectory

 Kernel Based Gas Distribution Mapping

 interpret gas sensor measurements zt as random samples from a time-constant distribution

 assumes time-constant structure of the observed gas distribution  randomness due to concentration fluctuations (measurement noise negligible)

⇒ kernel to model information content of single readings

3

) , | (

: : t 1 gas t 1 av gas

z x m p

t 1

x :

→ Achim Lilienthal and Tom Duckett. "Building Gas Concentration Gridmaps with a Mobile Robot". Robotics and Autonomous Systems, Vol. 48, No. 1, pp. 3-16, August 2004.

slide-25
SLIDE 25

Achim J. Lilienthal

Kernel Based Gas Distribution Mapping

 Analogy to Density Function Estimation

 estimate the PDF of a random variable (Parzen window)  K ← 2D univariate Gaussian

3

( )

∑

=

− =

N i PW

K Nh x p

1

|; | 1 ) ( ˆ σ

i

x x

from Duda, Hart, Stork "Pattern Classification"

slide-26
SLIDE 26

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping

→ Contents

slide-27
SLIDE 27

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  General SLAM problem

 simultaneously estimate the map and the robot path given robot actions u and observations z

 Simultaneous Localisation and Gas Distribution / Occupancy Mapping ("GasSLAM")

4

) , | , (

: : : t 1 t 1 t t 1

z u m x p

( )

t

  • cc

t gas t t

z z z

, , ,

= ← z

( )

  • cc

av gas m

m m , = ← m

slide-28
SLIDE 28

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  The GasSLAM Problem

 general approach: inverse sensor model to estimate maps

4

slide-29
SLIDE 29

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  The GasSLAM Problem

 useful factorization if maps can be analytically estimated given a robot path hypothesis

4

) , , | ( ) , | ( ) , | , (

: : : : : : : : : t 1 t 1 t 1 t t 1 t 1 t 1 t 1 t 1 t t 1

z u x m p z u x p z u m x p =

⇒

estimate robot path using a particle filter compute maps analytically

Rao-Blackwellization, Rao-Blackwellized Particle Filter (RBPF)

slide-30
SLIDE 30

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  GasSLAM – Map Computation

  • bservations zocc and zgas are conditionally independent

 assume independency between mocc and mgas

4

slide-31
SLIDE 31

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  GasSLAM – Map Computation

  • bservations zocc and zgas are conditionally independent

 assume independency between mocc and mgas ⇒ computing maps separately for each particle

  • ccupancy grid map using sensor integration

[Moravec/Elfes 1985]  gas distribution grid map using kernel based gas distribution mapping [Lilienthal/Duckett, 2004]

 determine max. likelihood estimate of the maps from the weighted average (using particle weights)

4

slide-32
SLIDE 32

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  GasSLAM – Estimation of the Robot Path

 sample from the motion model  update weights with the observation model  higher weights for particles that better corresponds with the current observations

4

) , | ( ~

t [i] 1 t t [i] t

u x x p x

−

) , | (

1 [i] [i] t t [i] t [i] t

m x z p

−

∝ω ω

slide-33
SLIDE 33

Achim J. Lilienthal

Integrating SLAM and Gas Distribution Mapping  GasSLAM – Estimation of the Robot Path

  • bservation model

4

) , , | , ( ) , | (

, , [i]

  • cc

[i] gas [i] t t

  • cc

t gas [i] [i] t t

m m x z z p m x z p = ) , | ( ) , | (

, , [i]

  • cc

[i] t t

  • cc

[i] gas [i] t t gas

m x z p m x z p = ) , | (

, [i]

  • cc

[i] t t

  • cc

m x z p η ≈

use only the laser scanner to estimate the path

  • cc

gas

  • cc
slide-34
SLIDE 34

Achim J. Lilienthal

Experiments and Results

→ Contents

slide-35
SLIDE 35

Achim J. Lilienthal

Experiments  Service Robot Sancho

 base: Pioneer 3DX  laser range finder: SICK LMS 200  pair of e-noses

5

slide-36
SLIDE 36

Achim J. Lilienthal

Experiments  Service Robot Sancho

 base: Pioneer 3DX  laser range finder: SICK LMS 200  pair of e-noses

 Electronic Nose

 4 metal-oxide gas sensors (Figaro): TGS 2600 [x2], TGS 2602, TGS 2620  sensors in a tube with CPU fan  sampling frequency: 1.25 Hz  separation: 14 cm; height: 11 cm

5

slide-37
SLIDE 37

Achim J. Lilienthal

Experiments  Environment

 University of Malaga, Computer Science building 

  • ne indoor and one outdoor corridor

 no modification for the experiment

 Gas Source

 evaporating ethanol  robot could drive

  • ver the source

(cup, height = 6 cm)

5

slide-38
SLIDE 38

Achim J. Lilienthal

Results  Result – SLAM

 robot speed: 5 cm/s  trajectory: sweeping

5

  • max. likelihood path
slide-39
SLIDE 39

Achim J. Lilienthal

Results  Result – Gas Distribution Map

 lighter shading ↔ higher concentration  different shading color for values > 80% of the max.

5

gas distribution map

slide-40
SLIDE 40

Achim J. Lilienthal

Results  Result – Gas Distribution Map

 lighter shading ↔ higher concentration  different shading color for values > 80% of the max.

5

gas distribution map

slide-41
SLIDE 41

Achim J. Lilienthal

Summary

→ Contents

slide-42
SLIDE 42

Achim J. Lilienthal

Experiments  Summary

 conceptual framework to integrate kernel based gas distribution mapping and SLAM

5

slide-43
SLIDE 43

Achim J. Lilienthal

Experiments  Summary

 conceptual framework to integrate kernel based gas distribution mapping and SLAM  large gas distribution map (20 x 2 m2)

5

slide-44
SLIDE 44

Achim J. Lilienthal

Experiments  Summary

 conceptual framework to integrate kernel based gas distribution mapping and SLAM  large gas distribution map (20 x 2 m2)  uncontrolled environment  combined indoor / outdoor environment

5

slide-45
SLIDE 45

Integrating SLAM into Gas Distribution Mapping

Achim Lilienthal, Amy Loutfi

AASS, Dept. of Technology, Örebro University

Jose Luis Blanco, Cipriano Galindo and Javier Gonzalez

System Engineering & Automation Dept., University of Malaga

Thank you!
