INOC-DBA Hotline Phone System Version 5.0 June 2007 Gaurab Raj Upadhaya Packet Clearing House Whats it About? INOC-DBA: Inter-NOC Dial-by-ASN Global Voice-over-IP hotline phone system, directly interconnecting NOCs and SIRTs

slide-1

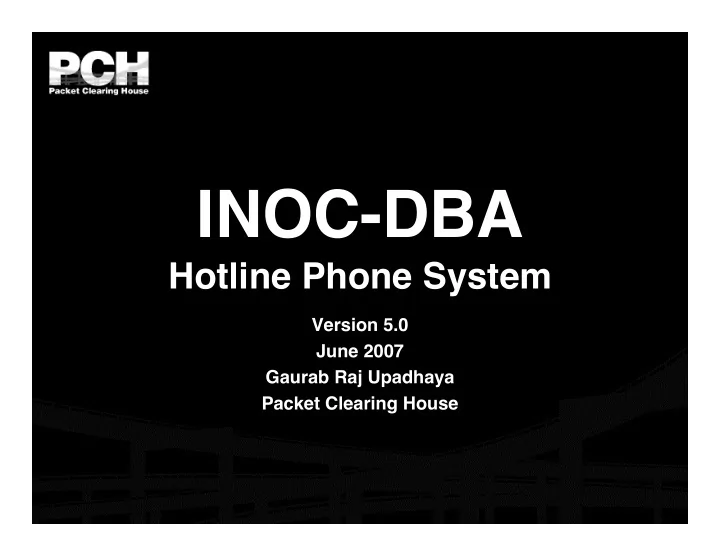

SLIDE 1

INOC-DBA

Hotline Phone System

Version 5.0 June 2007 Gaurab Raj Upadhaya Packet Clearing House

slide-2
SLIDE 2

What’s it About?

 INOC-DBA: Inter-NOC Dial-by-ASN  Global Voice-over-IP hotline phone system, directly interconnecting NOCs and SIRTs within carriers, ISPs, exchange points, and vendors.

slide-3
SLIDE 3

How does it work?

 If you just dial an Autonomous System Number, it’ll ring a predefined group of phones within that AS. (example: 42 )  If you dial an ASN and an extension number, it’ll ring the phones belonging to that person. (example: 42*WEW )  Also, well-known extensions for NOC, abuse, routing, SIRT, et cetera.

slide-4
SLIDE 4

How does it work?

 Uses SIP.

 Uses SER (SIP Express Router)  You register online

 Give it a day or two to get approved

 Then you configure your phone / asterisks / gateway to regsiter with the inoc-dba.pch.net  Someone dials your ASN, your phone rings

slide-5
SLIDE 5

Any Problems So Far?

 CPE network environment: NAT and firewall traversal Unusual DHCP server options  Nothing a little static configuration can’t

  • vercome.
slide-6
SLIDE 6

Unexpected Benefits

 QoS is completely unnecessary.  Sound quality far exceeds that of the PSTN, even under the worst conditions.  Latency seems less annoying when it’s not accompanied by degraded sound.

slide-7
SLIDE 7

Is it Difficult to Set Up?

 Not really.

slide-8
SLIDE 8

Is it Difficult to Set Up?

slide-9
SLIDE 9

News

 Call forwarding to sip: addresses.  Conference bridge successfully tested, and available for use on request.

 inoc-dba used more commonly as an interface to

  • ther voip confrence bridges.

 1400+ users on the db, but lots are not 24x7 available  Asterisk seems to be a popular gateway to the inoc-dba.

slide-10
SLIDE 10

Bill Woodcock Berkeley, California Scott Bradner Cambridge, Massachussetts Patrik Fältström Ledåsa, Sweden Brian Longwe Nairobi, Kenya 1 8 r

  • u

t e r h

  • p

s , 5 A S h

  • p

s 6 5 – 9 m s l a t e n c y , 5 %

  • 4

% l

  • s

s 13 rtr, 3 AS 120–400ms, 0.5% 12 router hops, 4 AS hops 175–225ms latency, 0.8% loss 21 rtr, 7 AS 250ms, 2.3% 18 router hops, 5 AS hops 650–1000ms latency, 5%-40% loss 1 9 r t r , 5 A S 7 5 m s , 2 5 %

slide-11
SLIDE 11

Ongoing activities

 NAT or not to NAT  Preserving dilution  xml directory accessible on phone  Server side config provisioning for more phones  SIP Anycast

slide-12
SLIDE 12

How to Participate

 With your own phones/gateways:

 Register online http://www.pch.net/inoc-dba/

 With phones from us:

 We need your contact and shipping address, ASNs, and extension number.  Phones from us are getting rarer

slide-13
SLIDE 13

More Information

 General information:

http://www.pch.net/inoc-dba/

 Mailing-list archive:

http://www.pch.net/resources/discussion/inoc-dba/archive/

 Who’s participating:

http://www.pch.net/inoc-dba/directory/

Exchanges Carriers Associations LINX SD-NAP UUnet AT&T ARIN PAIX LAIIX Sprint SBC APNIC Equinix NSP-IXP2 C&W AOL/T-W RIPE/NCC AMS-IX NOTA Genuity RCN ICANN MAEs OIX Verio/NTT TDS ISC
