Feedback on the use of ROS in the InFuse project Ellon PAIVA MENDES Pierre NARVOR Journe ROS - robots mobiles terrestres emendes@laas.fr pnarvor@laas.fr Clermont-Ferrand 4 Juillet 2018 The InFuse project " Infusing Data Fusion in

slide-1
SLIDE 1

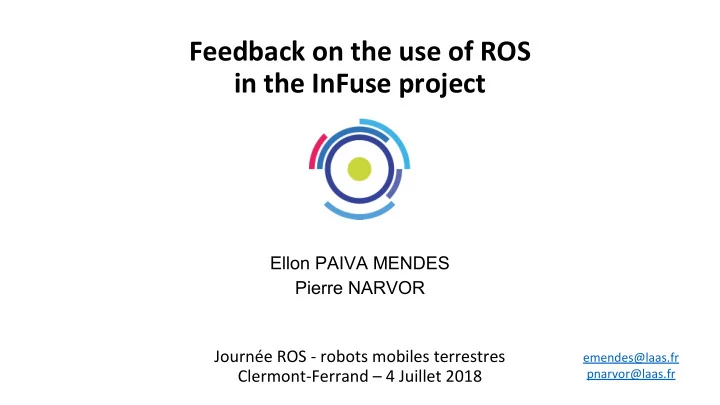

Feedback on the use of ROS in the InFuse project

Journée ROS - robots mobiles terrestres Clermont-Ferrand – 4 Juillet 2018

emendes@laas.fr pnarvor@laas.fr

Ellon PAIVA MENDES Pierre NARVOR

slide-2
SLIDE 2

The InFuse project

"Infusing Data Fusion in Space Robotics"

  • One of six projects of Space Robotics Technologies SRC (Horizon 2020)
  • Aims to develop of a Common Data Fusion Framework (CDFF) building block
  • To serve through all SRC upcoming activities
  • LAAS is only involved with the planetary rovers (not the orbital track)
  • CDFF development
  • Absolute map-based localization
  • Alternative perception techniques (hyper spectral cameras, lidars, etc)
slide-3
SLIDE 3

What is CDFF?

  • Common Data Fusion Framework
  • Defines a functional architecture to integrate the data fusion process
  • that is flexible and generic
  • with clear inner and outer interfaces
  • expose products (maps and positions)
  • and algorithm models (to allow their control)
slide-4
SLIDE 4

(outputs) CDFF products

Environment models Poses

(inputs)

1. Acquired data

  • IMU
  • Images
  • Point clouds
  • …

2. Initial data & models

  • Orbiter maps
  • Satellite models
  • …

3. Knowledge

  • Terramechanics
  • Dynamics
  • …

CDFF

Core processes Internal data structures

CDFF functional architecture

slide-5
SLIDE 5

Project constraints

  • ESROCOS should be used as Robot Control Operational System (RCOS)
  • Space oriented RCOS being developed in a parallel project
  • Problem: ESROCOS is not ready yet! → We decided to use ROS instead.
  • Data exchanged between nodes should be described using ASN.1
  • Interface description language for defining data structures that can be

serialized and deserialized in a standard, cross-platform way.

  • We decided to user ASN.1 over ROS messages.
slide-6
SLIDE 6

ASN.1 Communication interface

TASTE-BasicTypes DEFINITIONS ::= BEGIN

  • - Set of TASTE predefined basic types

T-Int32 ::= INTEGER (-2147483648 .. 2147483647) T-UInt32 ::= INTEGER (0 .. 4294967295) T-Int8 ::= INTEGER (-128 .. 127) T-UInt8 ::= INTEGER (0 .. 255) T-Boolean ::= BOOLEAN END

  • ASN.1 (Abstract Syntax Notation One) widely used communication standard.
  • Exchanged types defined in high level .asn abstract description files.
slide-7
SLIDE 7

ASN.1 Communication interface

  • ASN.1 (Abstract Syntax Notation One) widely used communication standard.
  • Exchanged types defined in high level .asn abstract description files.
  • ASN1SCC : ESA’s ASN.1 compiler for safety-critical embedded systems.
  • .asn compiled into C files with ready to use serialization functions

TASTE-BasicTypes DEFINITIONS ::= BEGIN

  • - Set of TASTE predefined basic types

T-Int32 ::= INTEGER (-2147483648 .. 2147483647) T-UInt32 ::= INTEGER (0 .. 4294967295) T-Int8 ::= INTEGER (-128 .. 127) T-UInt8 ::= INTEGER (0 .. 255) T-Boolean ::= BOOLEAN END #ifndef GENERATED_ASN1SCC_TASTE_TYPES_H #define GENERATED_ASN1SCC_TASTE_TYPES_H typedef int T_Int32; #define T_Int32_REQUIRED_BYTES_FOR_ENCODING 4 #define T_Int32_REQUIRED_BITS_FOR_ENCODING 32 #define T_Int32_REQUIRED_BYTES_FOR_ACN_ENCODING 4 #define T_Int32_REQUIRED_BITS_FOR_ACN_ENCODING 32 #define T_Int32_REQUIRED_BYTES_FOR_XER_ENCODING 39 flag T_Int32_Encode(const T_Int32* val, BitStream* pBitStrm, int* pErrCode, flag bCheckConstraints); flag T_Int32_Decode(T_Int32* pVal, BitStream* pBitStrm, int* pErrCode); ...

Serialization functions

slide-8
SLIDE 8

Separation between "core" and ASN.1

  • Core functionalities are being written into libraries
  • Libraries are wrapped in/used by a "main" program that may be written in

Genom3 + ROS or pure ROS

  • ASN.1 related code stays outside the libraries
  • ROS is used as implementation middleware
slide-9
SLIDE 9
  • Libraries use any internal representation for data (pcl, eigen, etc)
  • Data is converted from/to an according ASN.1 type
  • The ASN.1 type is converted to/from bitstream using asn1scc

encode/decode functions

  • Bitstream is stored in a ROS message for output to/input from

the middleware

ASN.1 and ROS

slide-10
SLIDE 10

A single ROS message type

  • Only one type of ROS message is exchanged between the modules

# ROS common header std_msgs/Header header # Identification of the type : ASN.1 name string type # Serialisation method : 0 (uPER), 1 (BER), 2 (XER) uint8 serialization_method # Buffer with ASN serialised data uint8[] data

slide-11
SLIDE 11

ASN.1 Tradeoffs

  • Pros
  • International widely used standard, mature technology
  • Simple text notation for type definition with physical encoding rules
  • Independent from programming languages
  • ASN1SCC compiler : free, open-source, ready to use
  • Cons
  • ASN.1 ROS message used are not human readable
  • Extra computation overhead (to be assessed)
  • Some encoding limitations (e.g. NaN or Inf encoding missing)
slide-12
SLIDE 12

Integration with docker

  • Part of the project may be supplied as dockers images
  • Allow easy use of software with closed source code
  • Dockers communicate through ROS using the same type of ROS message
slide-13
SLIDE 13

Visualization with rviz

  • Rviz plugin implemented to decode and display data
slide-14
SLIDE 14

LAAS Rovers (not on Mars)

Minnie Mana

slide-15
SLIDE 15

LAAS Rovers Hardware

  • Segway rmp400 and rmp440 platforms.
  • Six-axis IMU
  • (accelerometer, gyrometer, magnetometer).
  • One axis Fiber-optic gyro.
  • (100Hz, drift of 1 deg/hour after correction).
  • RTK GPS.
  • (20Hz, cm accuracy => corrections provided by a nearby base).
slide-16
SLIDE 16

LAAS Rovers Hardware

  • Lidar rover (Mana):
  • Panoramic Lidar velodyne HDL64.
  • (Scan rate 5-20Hz, vertical FOV -24/+2deg, 1.4M points per second)
  • Vision rover (Minnie):
  • Panoramic Lidar velodyne HDL32.
  • (Scan rate 10Hz, vertical FOV -30/+10deg, 700k points per second)
  • 1 NavCam stereo bench on a PTU.
  • Automotive Lidar
  • High resolution point cloud, FOV 110x90deg.
  • 2 HazCam fixed stereo benches (front and rear)
slide-17
SLIDE 17

LAAS Rovers System Diagram

GPS Base + Wifi Station Operator Robot Base Controller GPS Receiver 2 Industrial computers:

  • DEM Building
  • Lidar-based SLAM
  • Visual Odometry
  • Position Manager
  • Data fusion + server
  • ROS bags

Stereo bench 1 Stereo bench 3 Stereo bench 2 Velodyne Lidar Sick Lidar Hyper- spectral camera PTU Controller

slide-18
SLIDE 18

Feedback from trials at CNES

  • First tests performed during the last two weeks
  • (in fact mostly integration work…)
  • Data acquisition in ROS bags with joystick controlled robots
  • Needed to have some ASN.1 translator nodes here and there...
  • Single ROS message + ASN.1 helped integration with partners (Magellium)
  • Detected some latency/bandwidth problems
  • Less point clouds in the bags than expected (need to investigate why)
  • Acquired datasets still being analysed.
slide-19
SLIDE 19

Conclusion

  • Not an optimal solution
  • ROS being used only as communication layer + debugging
  • Still a work in progress…
  • Some questions:
  • Could we generate .msg from .asn files?
  • Should we use nodelets to reduce message passing?
  • Are we doing something very wrong here? :)
