Infrastructure Solutions

Infrastructure Solutions

MSD 2250R

Infrastructure Solutions

Background: Excavator Trends

In 2000: Excavator Weight: PC300 = 67,900lbs Attachment Weight: 2500R = 14,600lbs Total Package: 82,500lbs Today: Excavator Weight: PC360 = 79,093lbs Attachment Weight: 2500R = 14,600lbs Total Package: 93,693 lbs Particularly in demolition, excavators are moved regularly to new job sites 85,000lbs maximum load for 5 axle permit LaBounty needs a shear targeting the 65,000-70,000lb excavators

Manufacturer Model Weight Caterpillar 329E 64,060 Volvo EC300D 67,260 Komatsu PC290LC-10 68,234 Liebherr R934C 70,350 Liebherr R936 72,425

“Smaller” excavator models are being used more often to conserve

• perating costs

Excavator weights increased 10%-25%

Infrastructure Solutions MSD 2500R Pivot Components & Heavy Duty Wraps Proven MSD Reversed Cylinder Technology with Speed Valve Heavy Duty Fabricated Tubes (reduce stick deflection)

Standard LaBounty Features

Durability, Quality, Service

MSD 2500R Rotation Group Patented Wrap- around Blades Dual Guide Pucks

Expertise, Knowledge, Professional

Indexable Saber Tip Optional Saber Guard (black wear plates)

• Protects the cylinder rod from

being damaged.

• Enables the reduced stick height

design increasing visibility and reduces weight. The heavy duty components contribute to the durability and long life expectancy

• f the LaBounty Shears.

Prevents upper jaw deflection increasing durability and life expectancy of the shear. Allows for the piercing tip blade to be rotated reducing the cost of

• wnership.

The replaceable blades reduce welding and maintenance time.

• Allows for placing the smaller shear on

a heavier duty carrier without damage to the critical rotation components.

• 360 degree powered rotation.

Reduces stick deflection and “buckling” of the shear stick.

Infrastructure Solutions Shorter upper primary/ lower secondary blade

• Increased apex force
• Increased gathering capability

New Reduced Size Saber Tip

• Swept back (wear reduction)
• Reduced cost

Guide Blade Commonality

• Blade common to upper and

lower

• Smaller profile
• Reduces area for jamming
• Fewer Blade SKU’s

Jaw Geometry & Blade Changes

Infrastructure Solutions

2250R 2500R

Product Comparison

2500 and 2000 have deeper jaw. 2250 has shorter primary blade= shallower and shorter

Infrastructure Solutions

2250 Maintenance Talking Points

Slide Screw and Slide Screw Lock Plate

• Slide screw now also greases the threads (ease of

removal)

• Lock plate retention bolt is now protected in a counter-

bore in the lock plate Upper Jaw Wear Bars

• Upper wear surface now protected by .75 wide x .50

tall AR500 wear bars Optional Saber Guard Plating

• AR 500 plating on the

upper and lower working surfaces

Infrastructure Solutions

2250 Maintenance Talking Points

Multi Machine Mount - Standard

• Allows mounting on a variety of machines
• Simple pin kit is all that is required to

convert

• Formed side plates for weight reduction

Easier Hydraulic Swivel Removal

• No need to split shear in half (remove slewing ring bolts)
• Remove the motor/gearbox and(4) lock plate bolts
• Removes through upper head
• Lifting eyes are included in the maintenance kit

Access hole for removal Lift chain access Heavy Duty Rotation

• MSD 2500R Slewing Ring
• 2nd member mounts from 55,000 lb – 90,000 lb
• Std. style

fabrication Lock plate bolts

Infrastructure Solutions

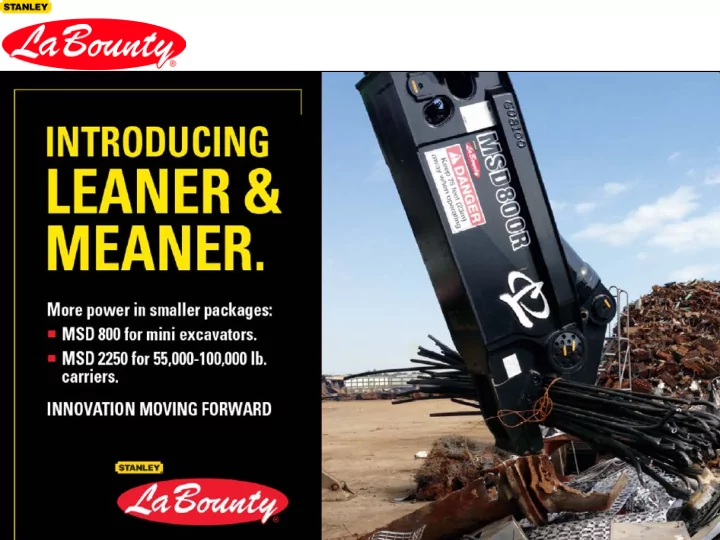

MSD 800R

Infrastructure Solutions

Primary Applications

Primary Application Secondary Application Tertiary Application

Light Duty Scrap

• n Scrap Yards

Interior Demolition Cutting Pipes Oil Fields Mini Excavator

• r Bobcat

Mini Excavator or Bobcat with Rubber Tires Backhoe or Mini Excavator

App

Carrier Manual Burner, MSD7R, Genesis VP15, Cat S305 MSD7R, Robots, Genesis VP15, Cat S305 Magnum RHS607R, MSD7R, Cat S305

Comp

Infrastructure Solutions

Current Application Limitations

Primary Application Secondary Application Tertiary Application MSD7R, Cat S305 MSD7R, Robots, Genesis VP15, Cat S305 Magnum, MSD7R, Cat S305

Used Today

Can’t cut thick wall pipe

• r 10” I-Beams

Jaw Opening Can’t cut 10” Concrete or I-beams Power Can’t Cut thick wall Issues

Infrastructure Solutions Heavy Duty Pivot Components & Wraps Proven MSD Reversed Cylinder Technology Heavy Duty Fabricated Tubes (reduce stick deflection)

MSD 800 Features

Durability, Quality, Service

MSD 1000R Rotation Group Patented Wraparound Blades

Expertise, Knowledge, Professional

Weld-in Tip Large 15” Jaw Opening

• Protects the cylinder rod from

being damaged.

• Enables the reduced stick height

design increasing visibility and reduces weight. The heavy duty components contribute to the durability and long life expectancy

• f the LaBounty Shears.

The replaceable blades reduce welding and maintenance time.

• Allows for placing the smaller shear on

a heavier duty carrier without damage to the critical rotation components.

• 360 degree powered rotation.

Reduces stick deflection and “buckling” of the shear stick. Makes for easy replacement of a common wear area saving

• n maintenance

time. The 15” opening will fit and process most any lighter ferrous and nonferrous materials including pipe, cable, concrete pillars, or I-beams.

Infrastructure Solutions

Application Sheets

Two Cylinder Options
