Welcome into our World Mobile Shears & Rail Breakers Italian Passion made of Steel In the hearth of Northern Italy, Zato is the leading company in the field of Scrap and Metal Processing About Zato Design and Manufacturing of Equipment
SLIDE 2
SLIDE 3
About Zato
Design and Manufacturing
- f Equipment for
Metal Scrap
SLIDE 4
This is Zato
ZATO: Performance provider with more than 2.000
installations realized worldwide in the Metal Scrap Recycling Industry from 1998
SLIDE 5
This is Zato
87% of our Customers are located outside Italy. Our Mission is to serve them worldwide especially in the Asian Market bring and sharing our Know How and Competencies to jointly develop Tailor Made Projects.
SLIDE 6
This is Zato
2 4 6 8 10 12 14 16 18 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
Turnover [Mio€]
Business Share 2017 Backlog
SLIDE 7
This is Zato

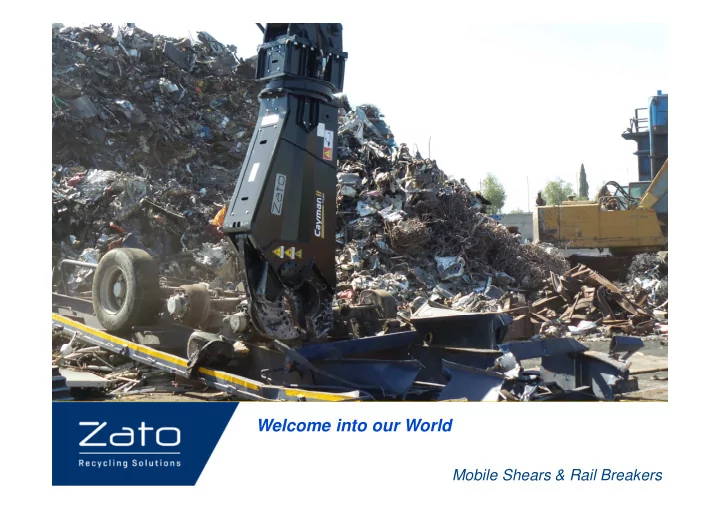

Cayman Demolition Shear is widely recognized as one of the leader in Scrap Demolition: it is named by its proper weight, the Rotation Feature and the Production Series: FCE30 RII is a rotating 3 tons shear which belongs to the Serie II. Zato developed in the past years the Elephant Serie, the Series I and Serie II in 2016: Continuous Evolution
SLIDE 8
This is Zato
SLIDE 9
Our Services
- Technical Feasibility & Viability
- Engineering and Procurement
- Construction
- Supervision to Erection & Commissioning
- Spare Parts Availability (Guaranteed Delivery Time)
- Remote Technical Assistance Service (Real Time)
- Yearly and Preventive Maintenance
SLIDE 10
Zato Advantage#1
Mounted on the Attachment of the mobile jaw facilitates movement in any situation; No issues in case of misalignment
- f the jaws
SPHERICAL JOINT
SLIDE 11
Zato Advantage#1
Mounted on the Attachment of the mobile jaw facilitates movement in any situation; No issues in case of misalignment
- f the jaws
SPHERICAL JOINT
SLIDE 12
Zato Advantage#2
increased and optimized to improve liberation and discharging of cut material. Clogging Free Design.
MOUTH OPENING
SLIDE 13
Zato Advantage#2
increased and optimized to improve liberation and discharging of cut material. Clogging Free Design.
MOUTH OPENING
SLIDE 14
Zato Advantage#3
Screw outwards extraction: the blades now have threaded holes and can be removed even when Mobile Jaw is locked
SCREW EXTRACTION
SLIDE 15
Zato Advantage#3
Screw outwards extraction: the blades now have threaded holes and can be removed even when Mobile Jaw is locked
SCREW EXTRACTION
SLIDE 16
Zato Advantage#3
Screw outwards extraction: the blades now have threaded holes and can be removed even when Mobile Jaw is locked
OUTWARD EXTRACTION
SLIDE 17
Zato Advantage#4
The tip of the mobile jaw is entirely made up of blades that have a special internal shape to distribute cutting forces.
PROTECTED TIP
SLIDE 18
Zato Advantage#4
EXTENDED DOWEL
SLIDE 19
Zato Advantage#5
The clutch unit, which is
- verhang,
increases the mobile jaw stability during cutting
EXTERNAL CLUTCH
SLIDE 20
Zato Advantage#5
The clutch unit, which is
- verhang,
increases the mobile jaw stability during cutting
EXTERNAL CLUTCH
SLIDE 21
Zato Advantage#5
Without external Clutc, upper and lower jaws risks to misaligns among themselves like scissor’s baldes: huge wear of blades and problem for coupling among upper and lower jaws! Not a reliable solution
COMPETITOR
SLIDE 22
Zato Advantage#6
The front part of the shear: centering groove and increased welding ensure perfect union between the frame and front plate
FRONTAL SHEAR
SLIDE 23
Zato Advantage#7
Improved by adding the flange for extraction from the outside
CENTERING DOWEL
SLIDE 24
Zato Advantage#7
SLIDE 25
Zato Advantage#8
Hydraulic and sensible Parts are fully protected by Machine Body: no damages related to debris, shocks, hits and collisions Competitors: Subject to shocks and damages
SLIDE 26
Zato Advantage#9
Shell Material & Geometry Increased stiffness due to geometry of body
SLIDE 27
Zato Advantage#10
Hhdraulic System inclusive of Regenerative Valve as Standard In all our Shears for increased speed and capacity
SLIDE 28
FCE70R II Appetise
YSR750 FCE70 R II Excavator Weight ton 35-60 45-60 Unit Weight kg 7200 7750 Pressure Jaw bar 350 350-380 Rotation bar 150 120-140 Operaing Flow Jaw l/min 450 450-500 Rotation l/min 55 50 Cutting Force Cutter Tip ton 206 275 Cutting Edge ton
- 520
Throat ton 827 1240 Max Jaws Opening mm 825 885 Max Jaws Depth mm 827 965 Appetize I Beam mm 24x11x0,5x1 IPE 600 H Beam mm 16x16x0,8x0,8 HEA 400 L Profile
- 240x24
Pipe mm 600x14
- Round bar
mm 120 130 Plate mm 40 45
SLIDE 29
FCE70 R at Work
SLIDE 30
Cayman
